Theft Deterrent System Component Views

WARNING: This page is about a different car, the 2002 Cadillac Eldorado. However, it is still accessible from the selected car via links, so may be relevant.

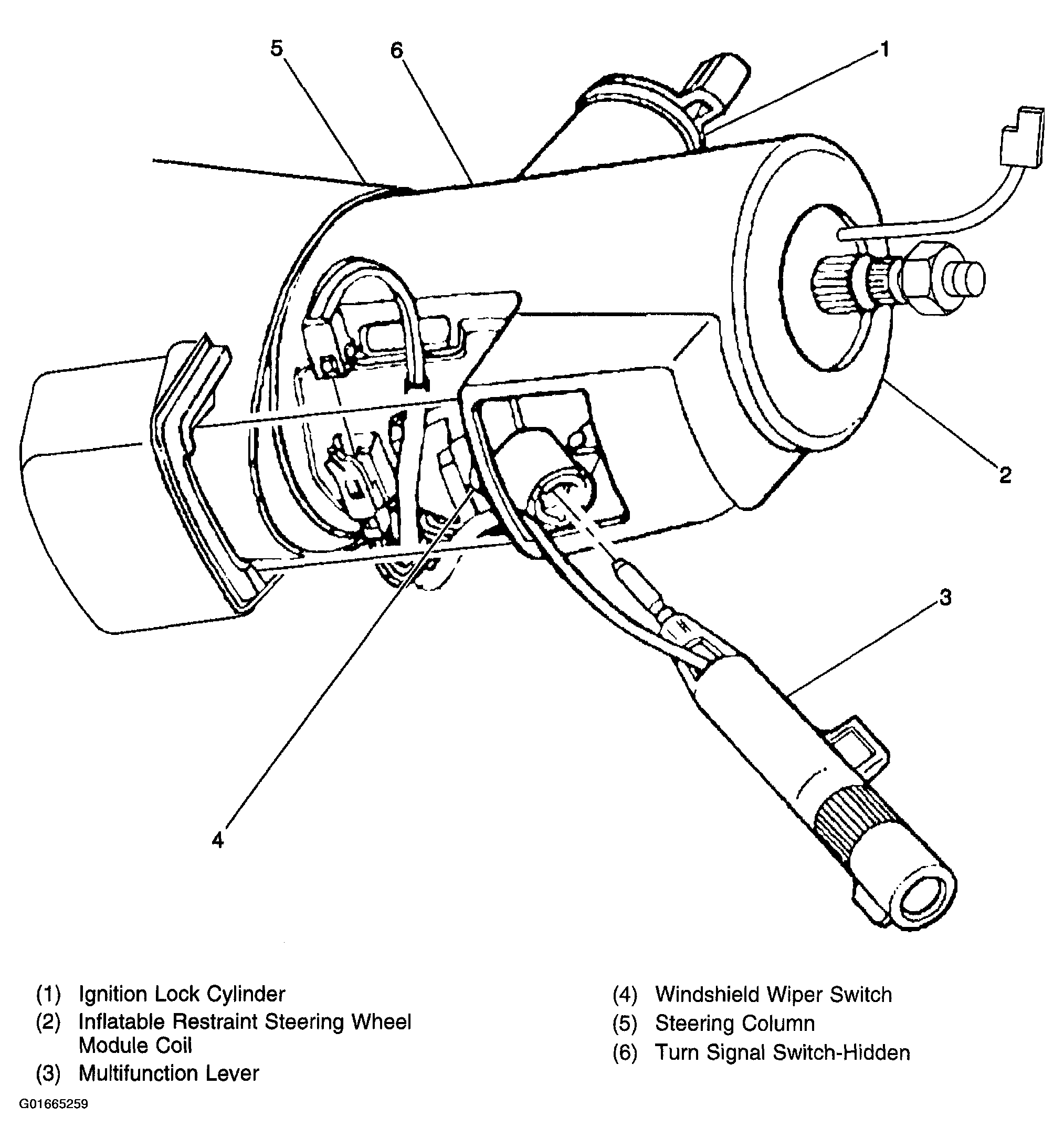

Fig 1: Passenger Compartment, in the Steering Column

Courtesy of GENERAL MOTORS CORP.

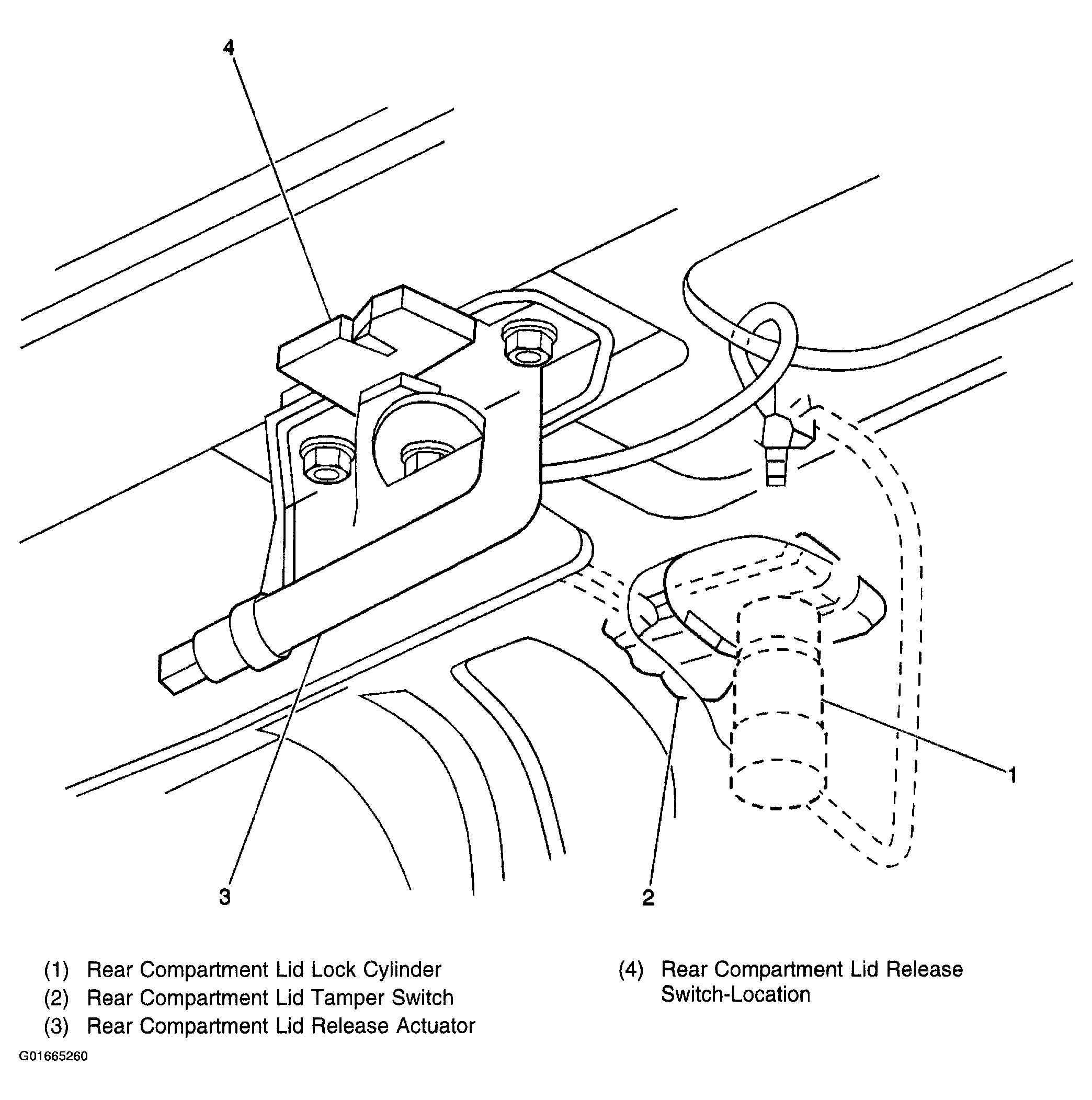

Fig 2: Rear Compartment Lid

Courtesy of GENERAL MOTORS CORP.

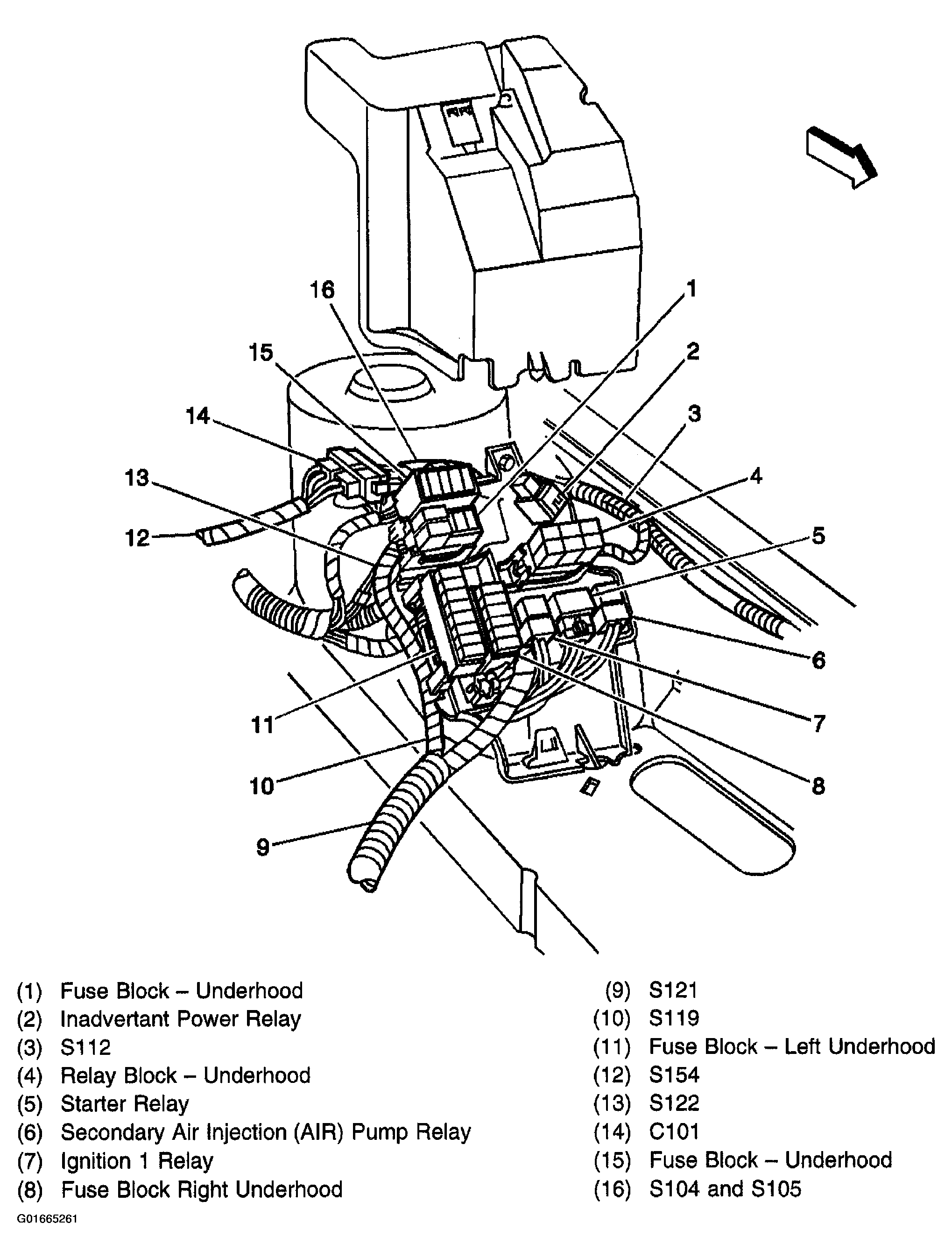

Fig 3: Engine Compartment, on the Left Side

Courtesy of GENERAL MOTORS CORP.

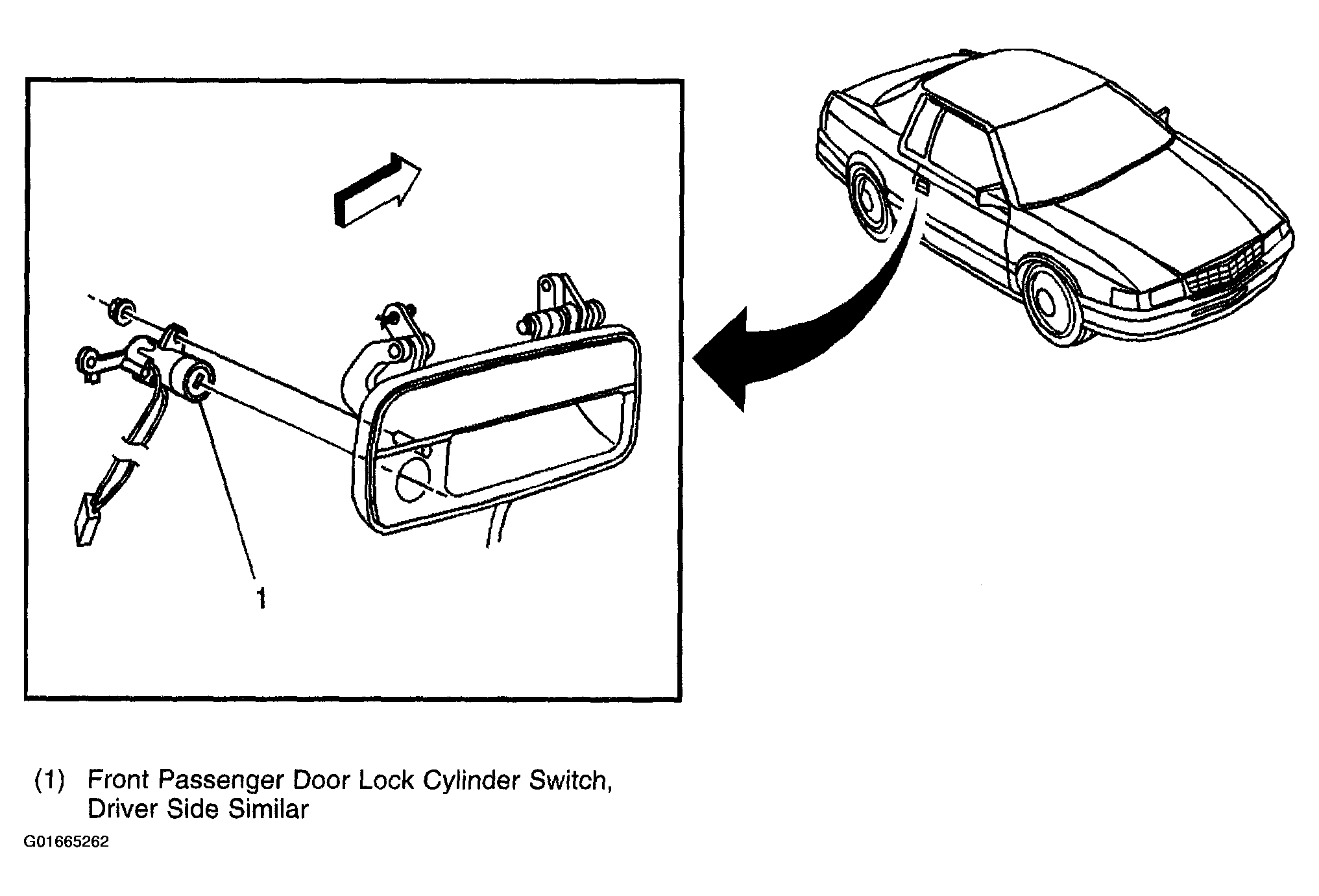

Fig 4: Door Lock Cylinder Switch

Courtesy of GENERAL MOTORS CORP.
