Connector Identification
WARNING:
This page is about a different car, the 2002 Cadillac Seville. However, it is still accessible from the selected car via links, so may be relevant.

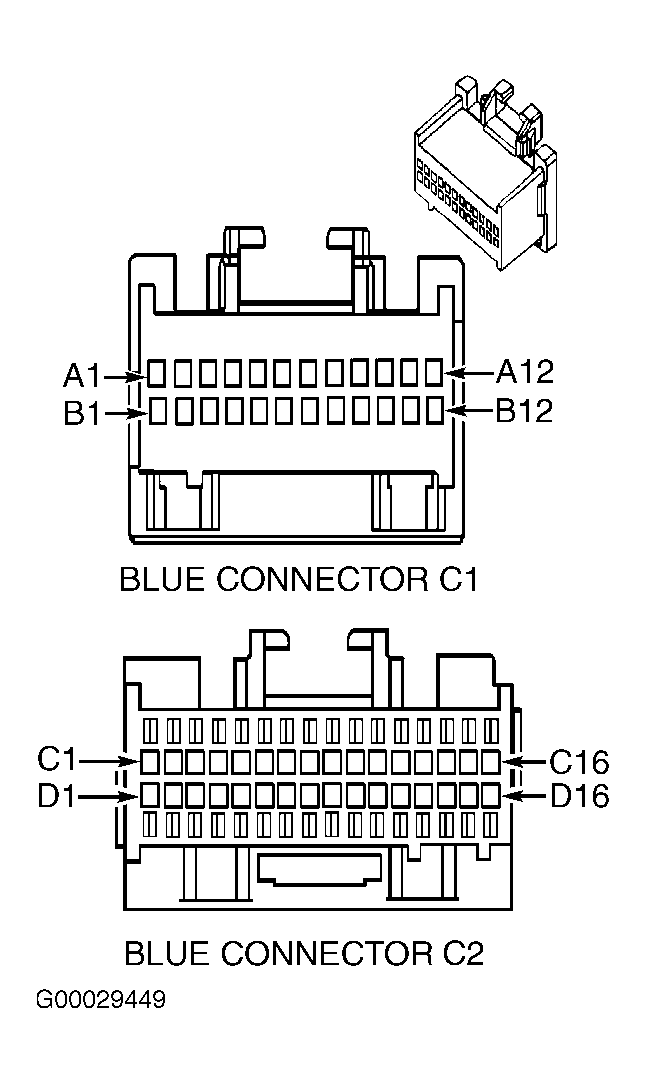

Fig 1: Identifying HVAC Instrument Panel Integration Module (IPM) Connector Terminals
Courtesy of GENERAL MOTORS CORP.

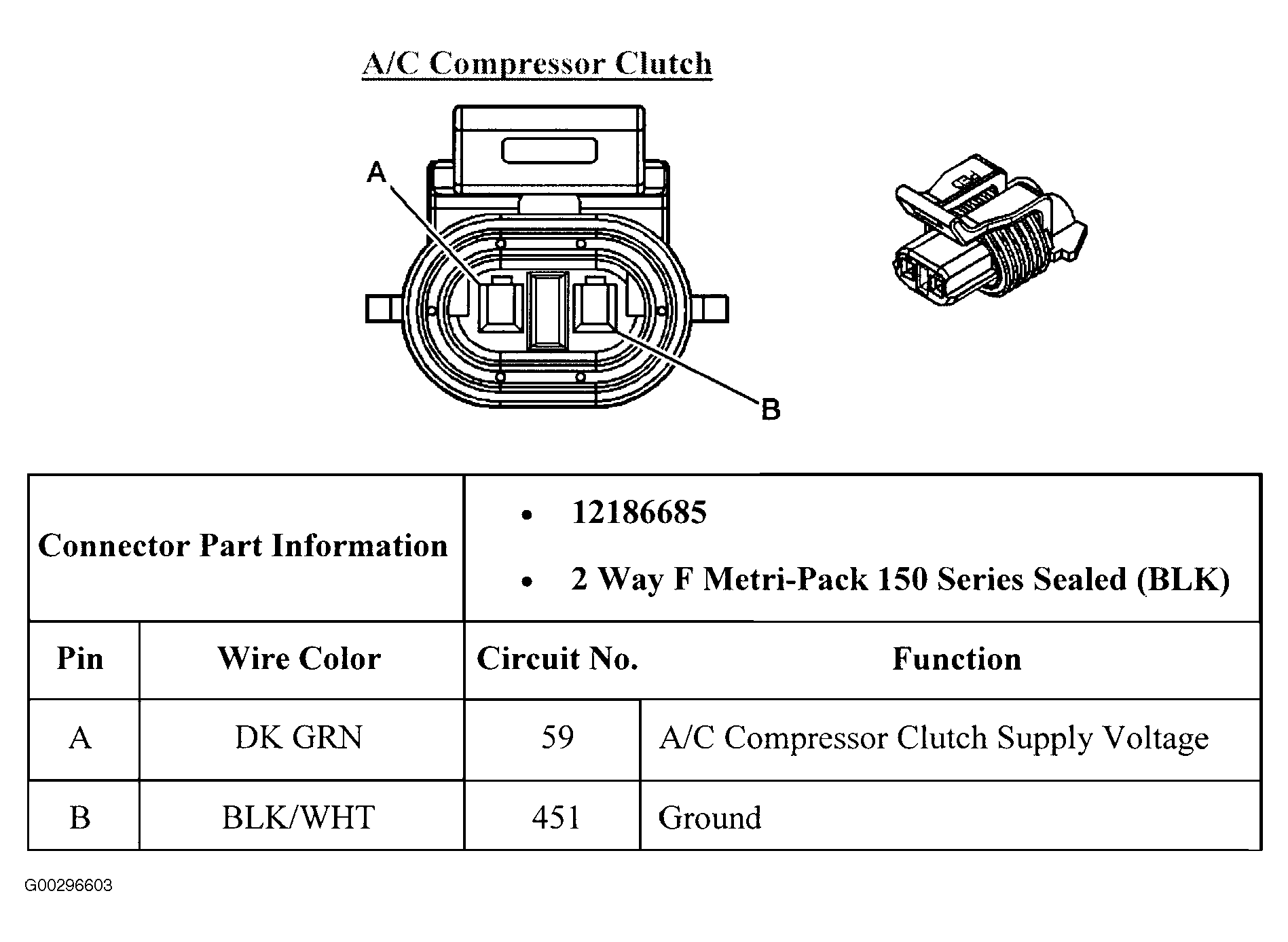

Fig 2: Identifying A/C Compressor Clutch Connector
Courtesy of GENERAL MOTORS CORP.

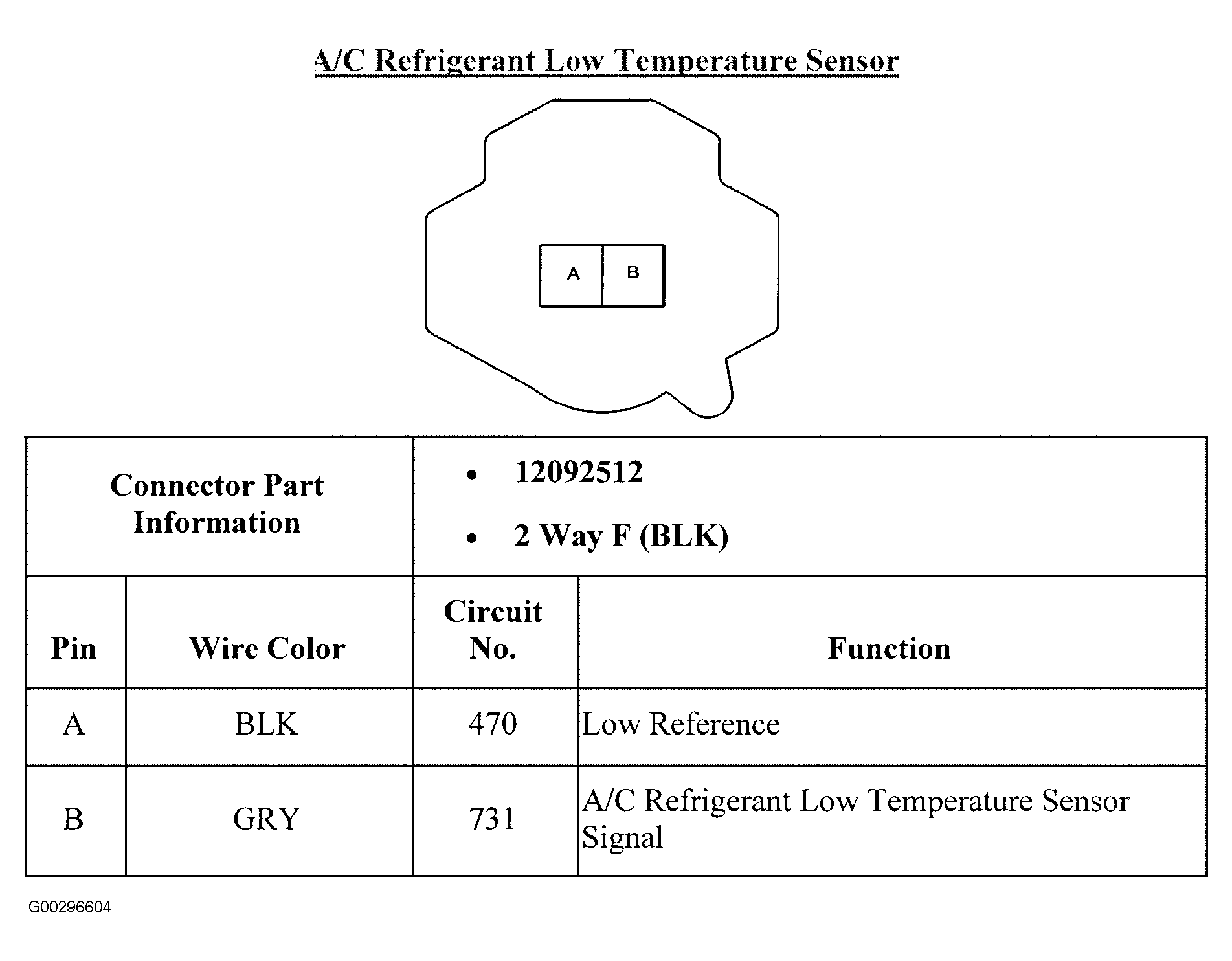

Fig 3: Identifying A/C Low Temperature Sensor Connector
Courtesy of GENERAL MOTORS CORP.

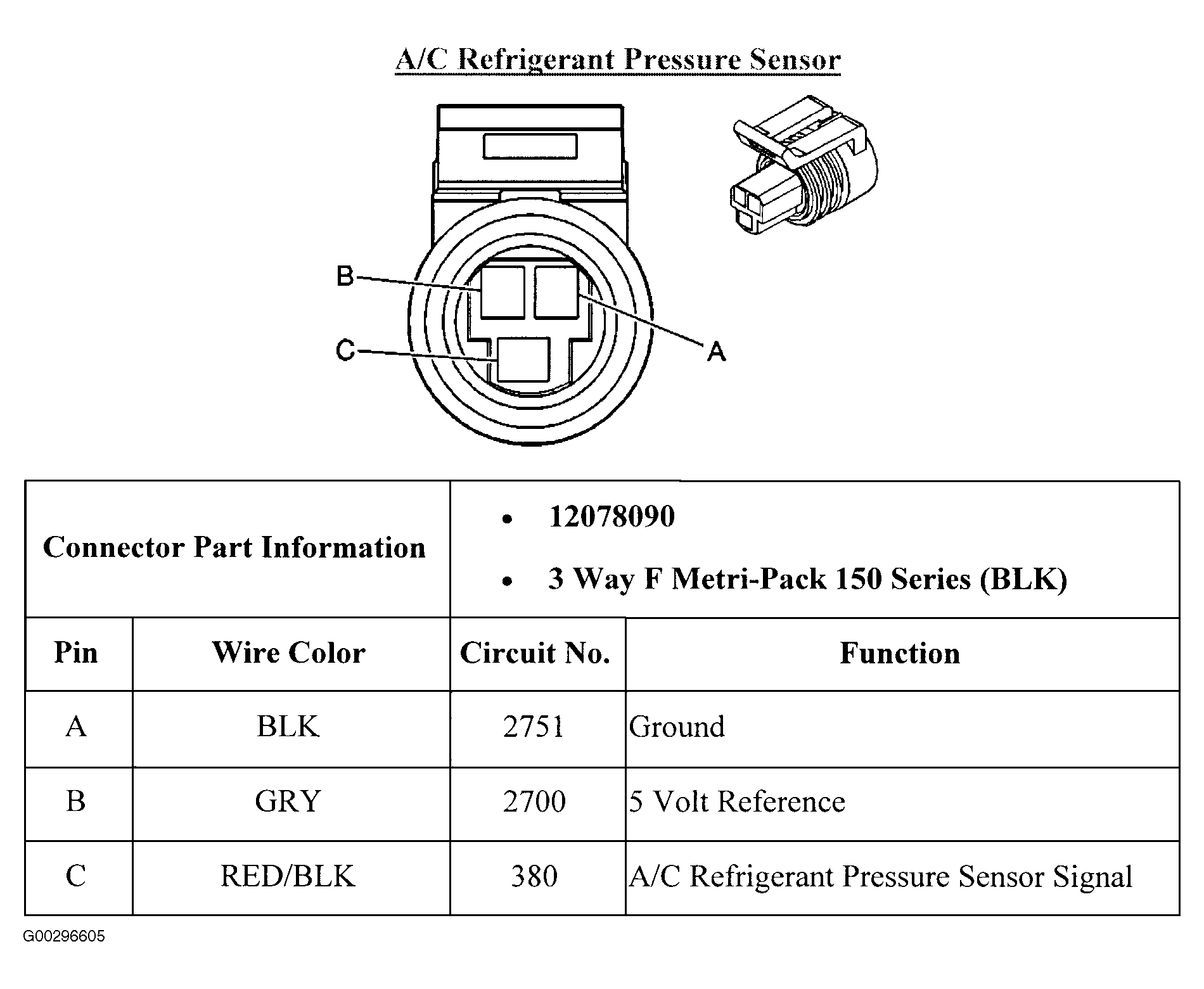

Fig 4: Identifying A/C Pressure Sensor Connector
Courtesy of GENERAL MOTORS CORP.

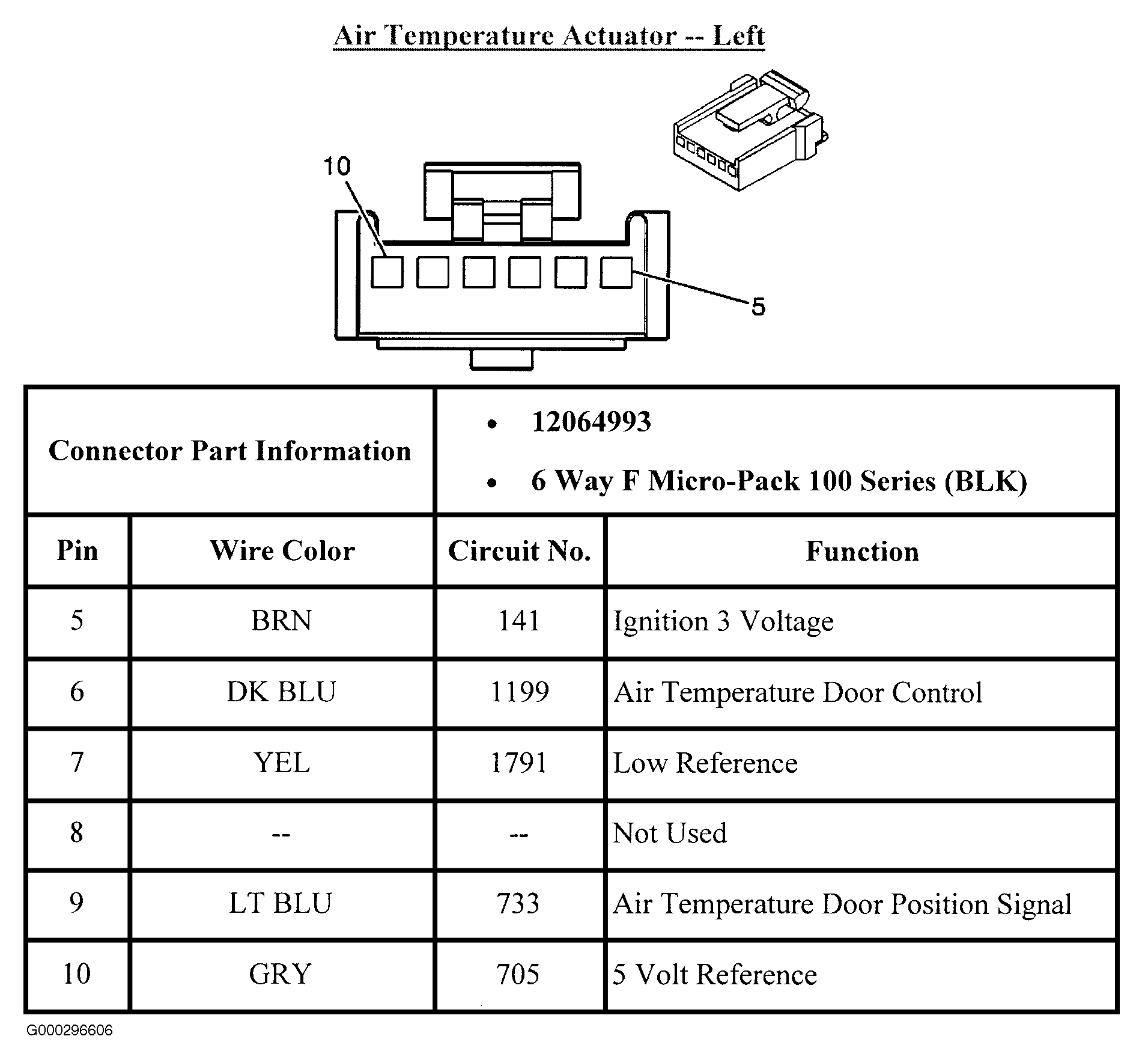

Fig 5: Identifying Air Temperature Actuator Left Connector
Courtesy of GENERAL MOTORS CORP.

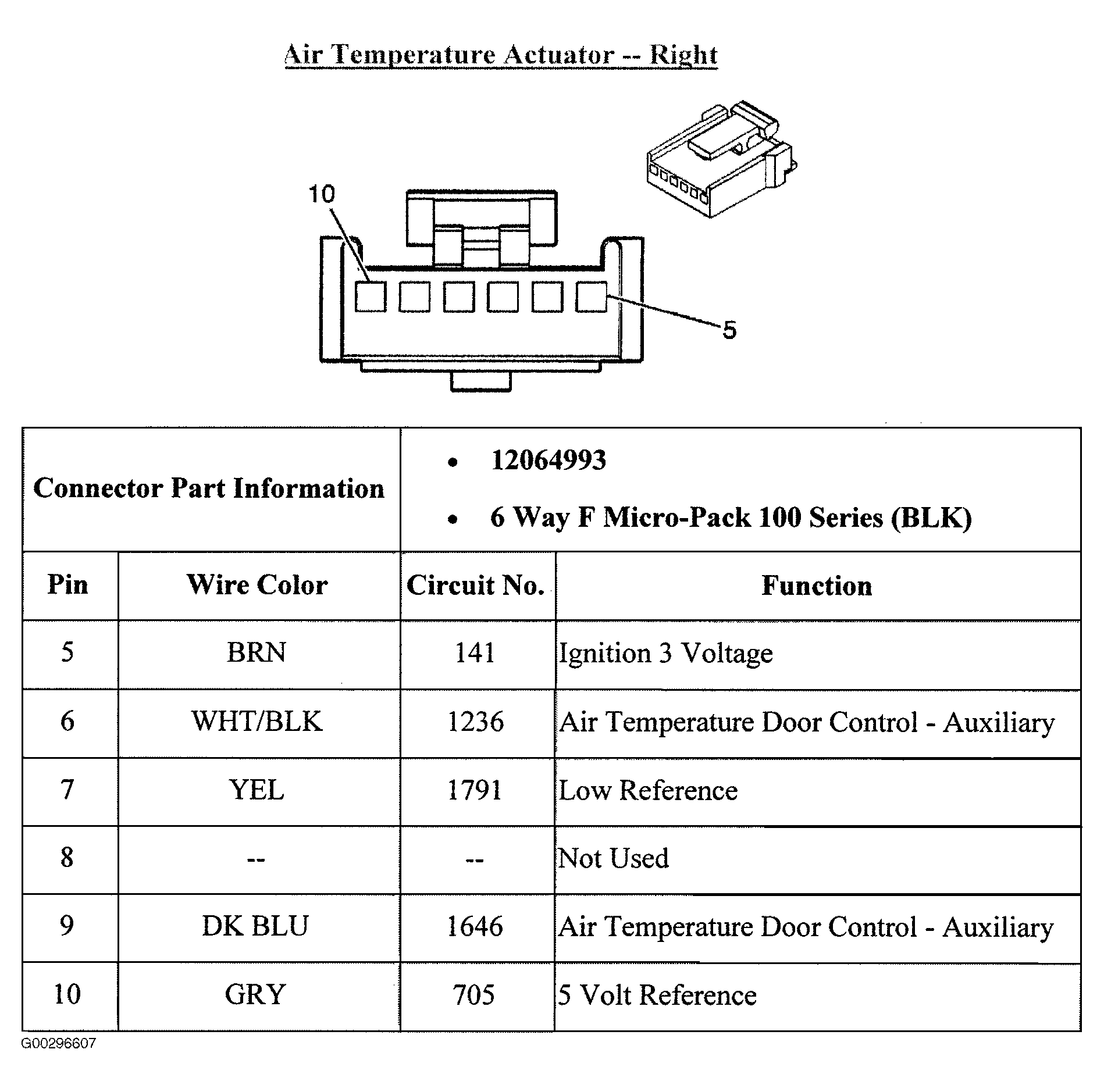

Fig 6: Identifying Air Temperature Actuator Right Connector
Courtesy of GENERAL MOTORS CORP.

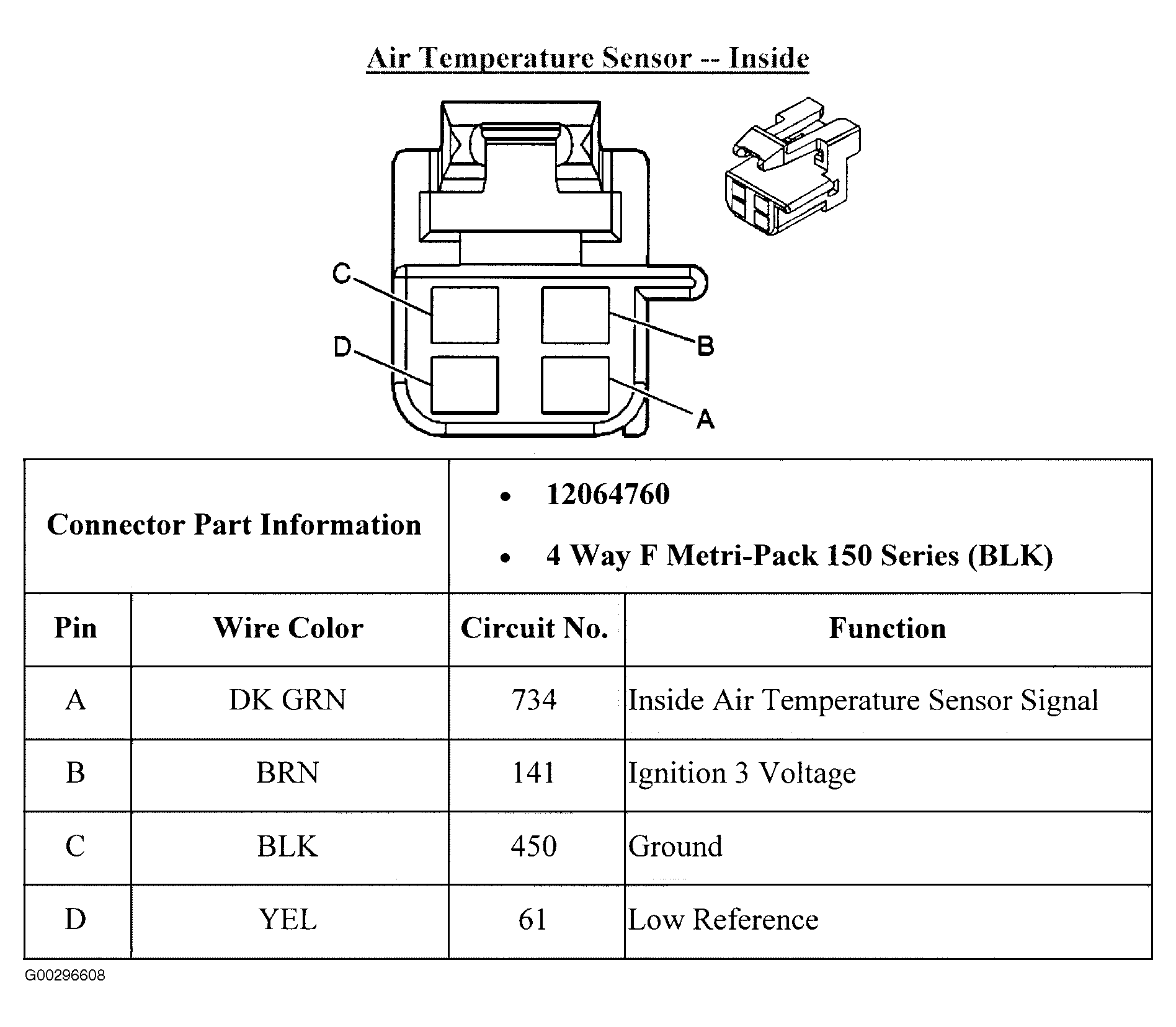

Fig 7: Identifying Air Temperature Sensor Inside Connector
Courtesy of GENERAL MOTORS CORP.
Fig 8: Identifying Air Temperature Sensor Upper Left Connector
Courtesy of GENERAL MOTORS CORP.

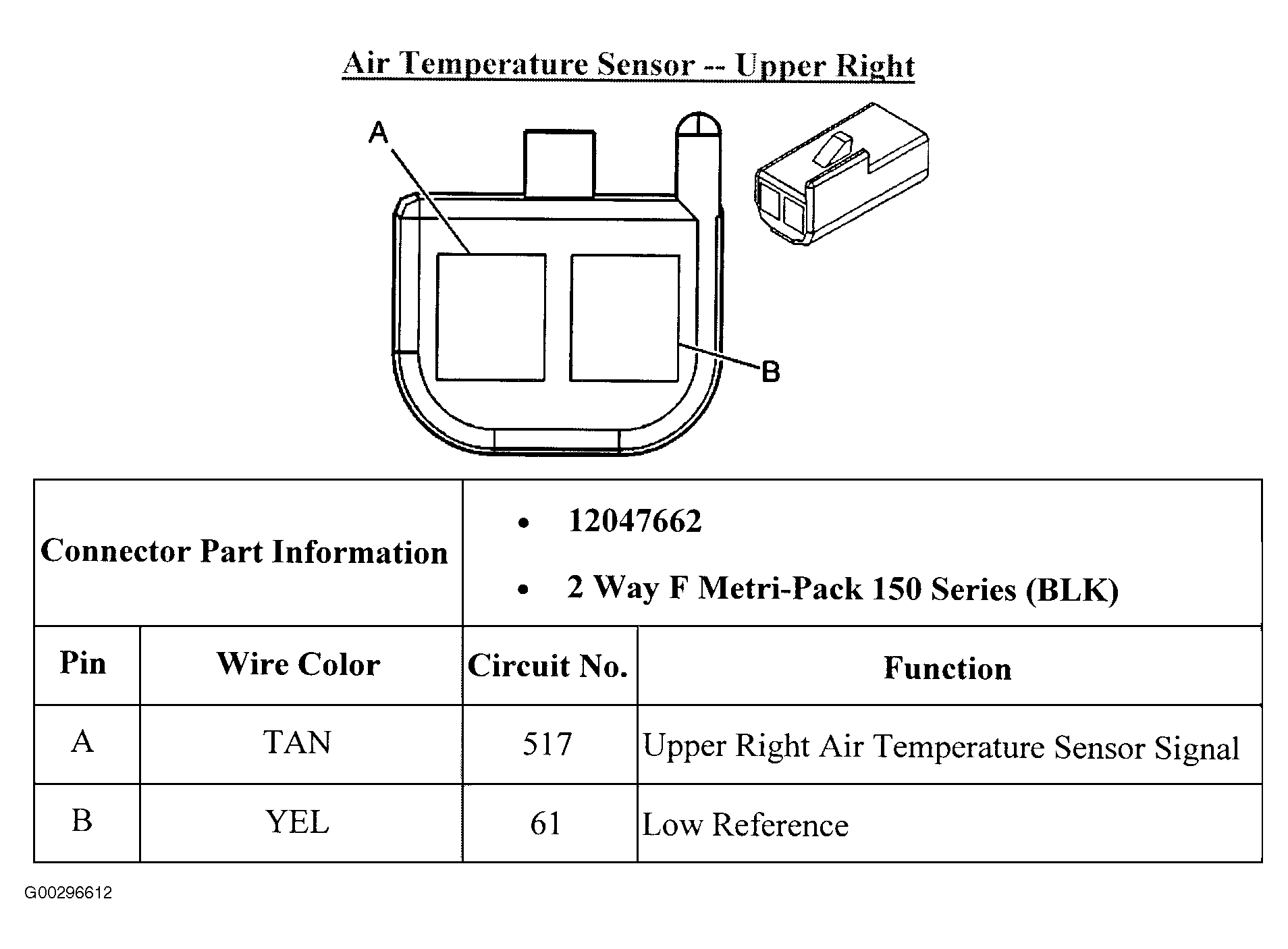

Fig 9: Identifying Air Temperature Sensor Upper Right Connector
Courtesy of GENERAL MOTORS CORP.

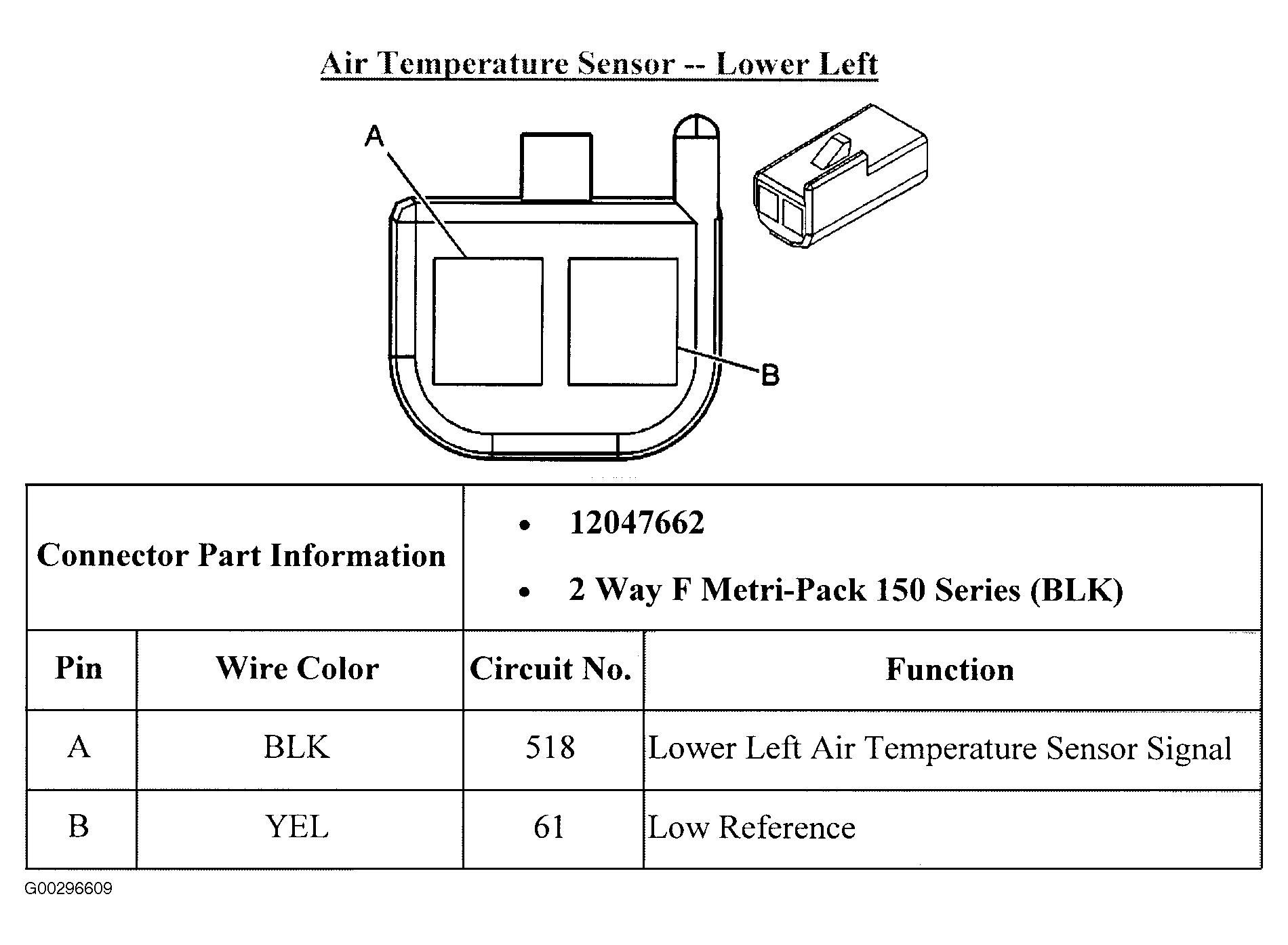

Fig 10: Identifying Air Temperature Sensor Lower Left Connector
Courtesy of GENERAL MOTORS CORP.

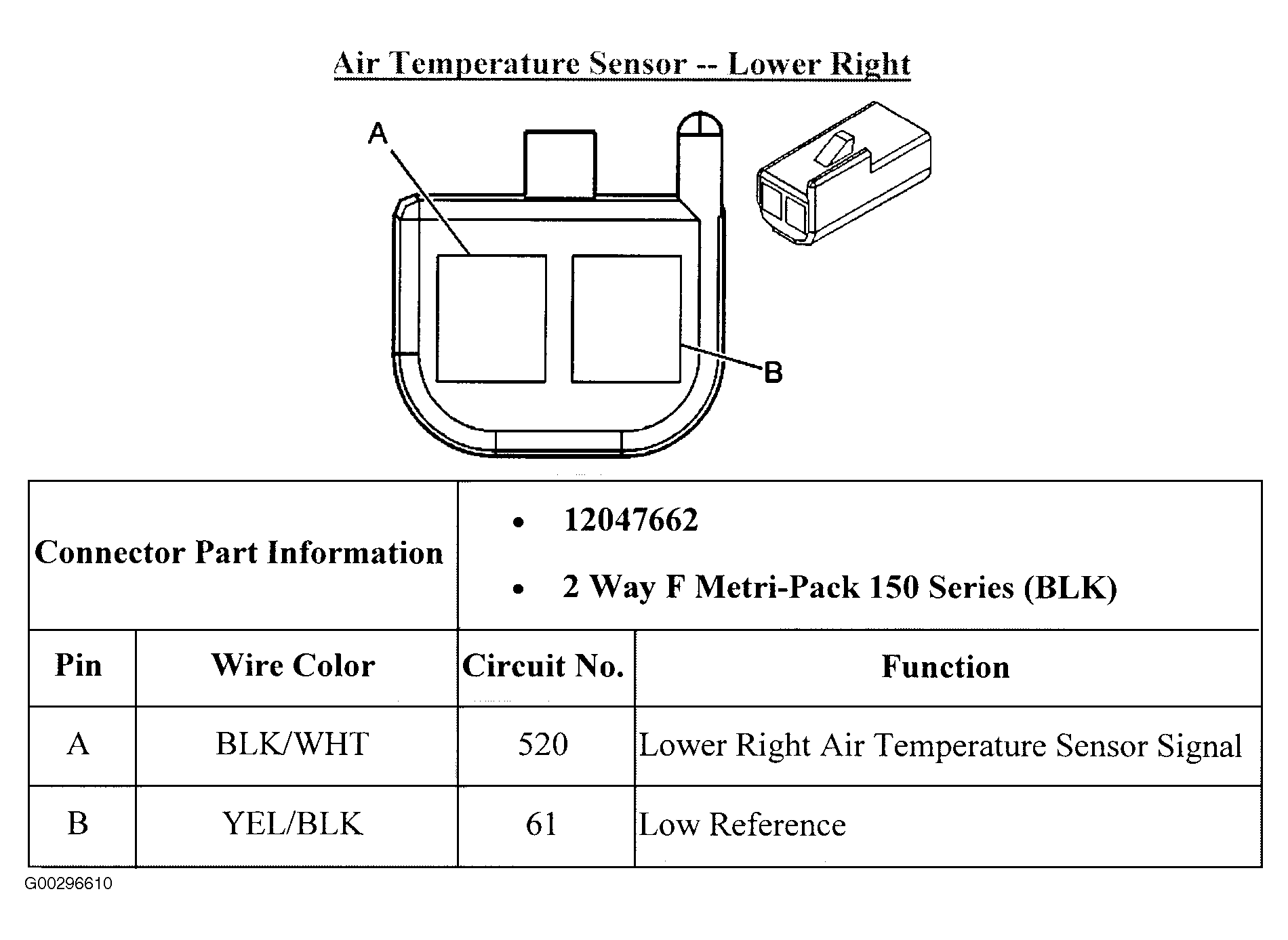

Fig 11: Identifying Air Temperature Sensor Lower Right Connector
Courtesy of GENERAL MOTORS CORP.

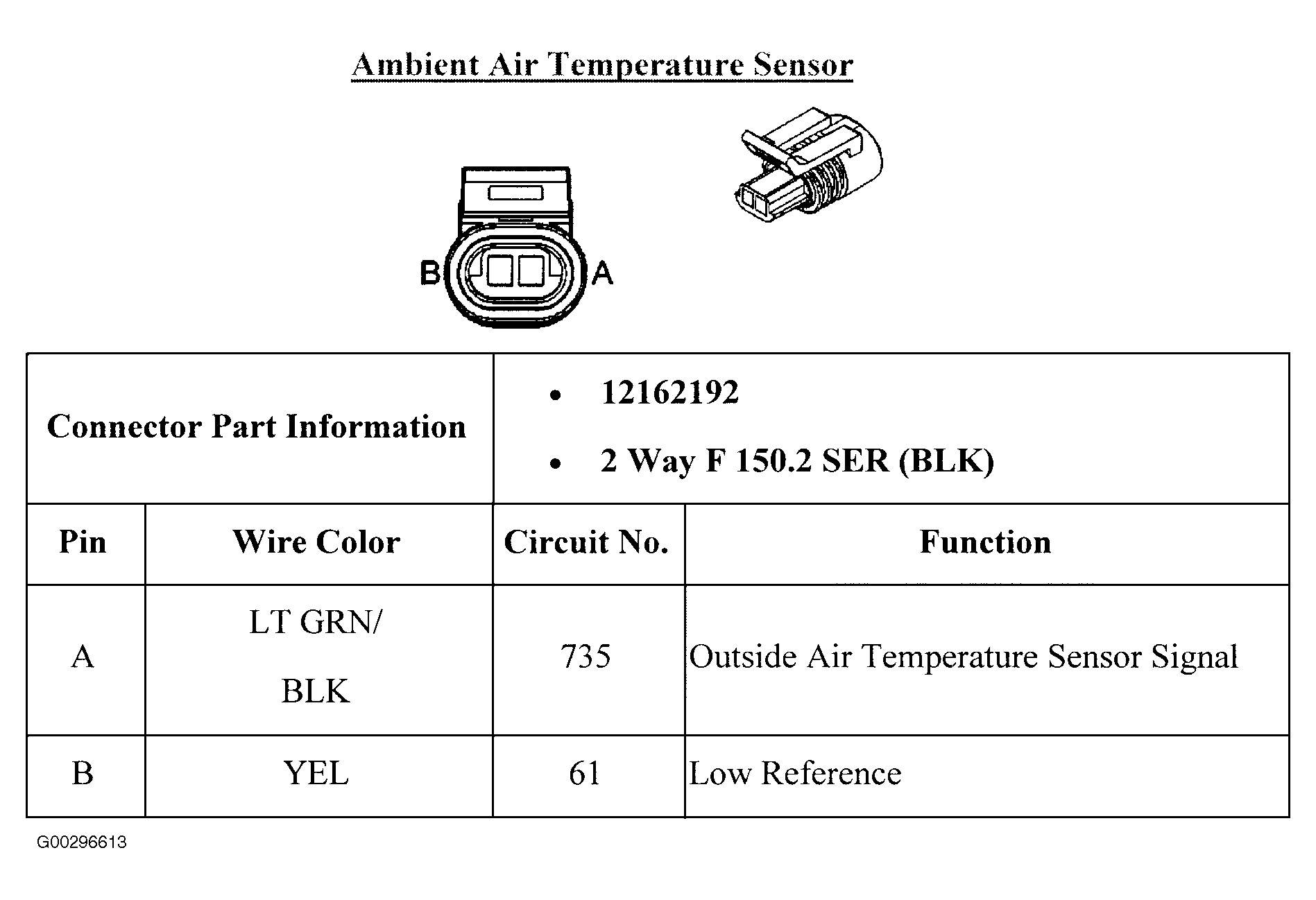

Fig 12: Identifying Ambient Air Temperature Sensor Connector
Courtesy of GENERAL MOTORS CORP.

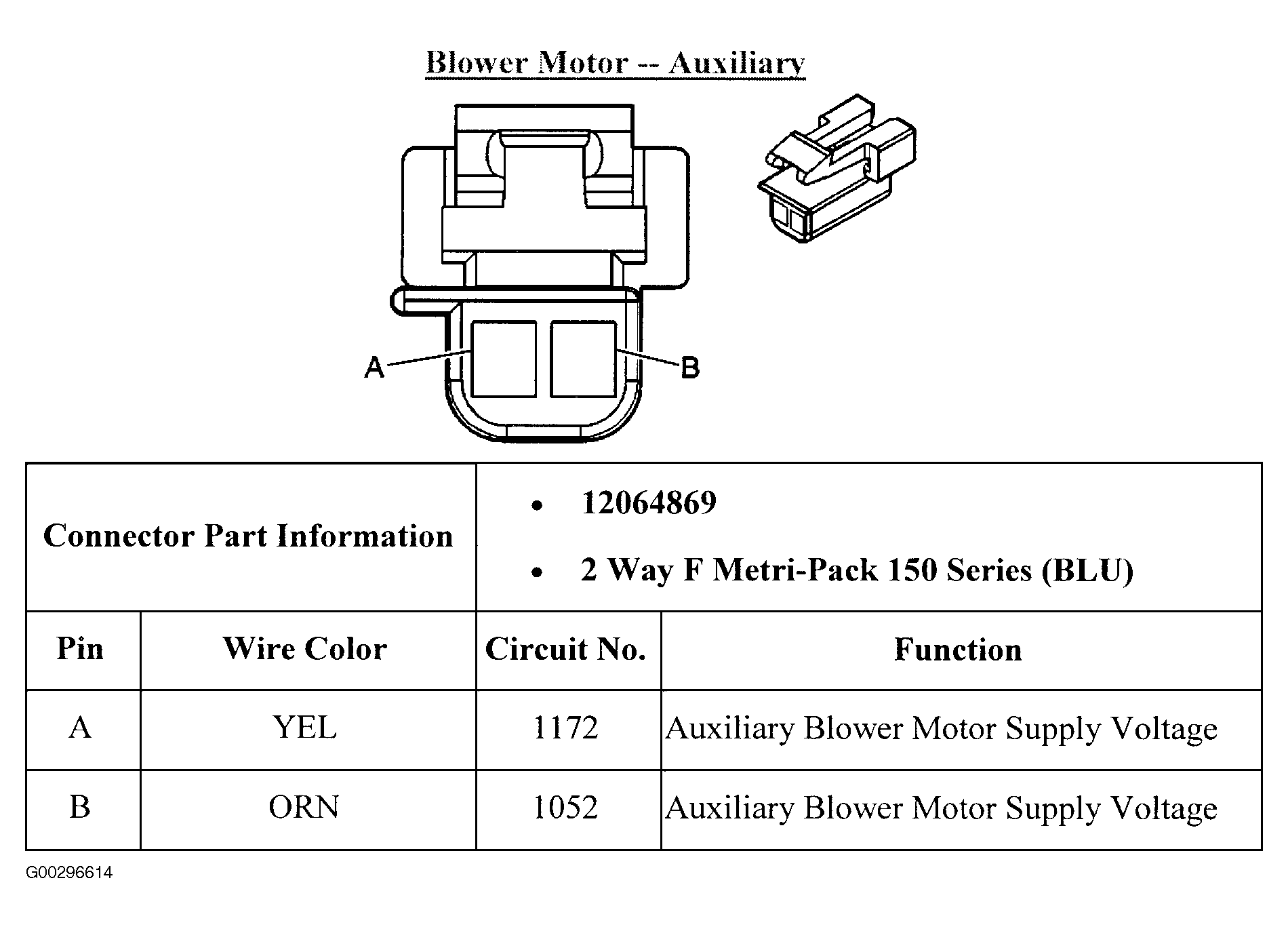

Fig 13: Identifying Blower Motor Auxiliary Connector
Courtesy of GENERAL MOTORS CORP.

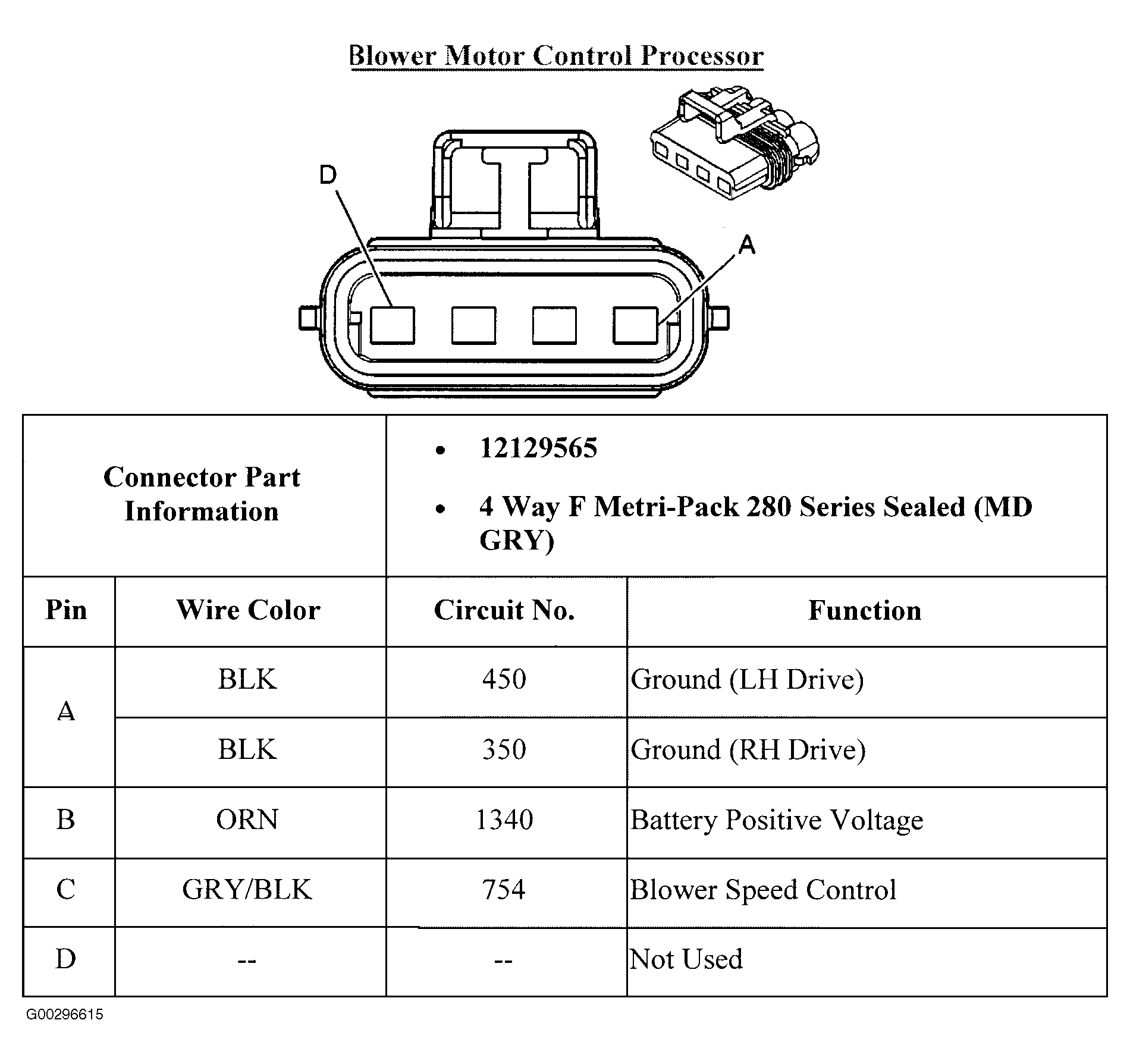

Fig 14: Identifying Blower Motor Control Processor Connector
Courtesy of GENERAL MOTORS CORP.

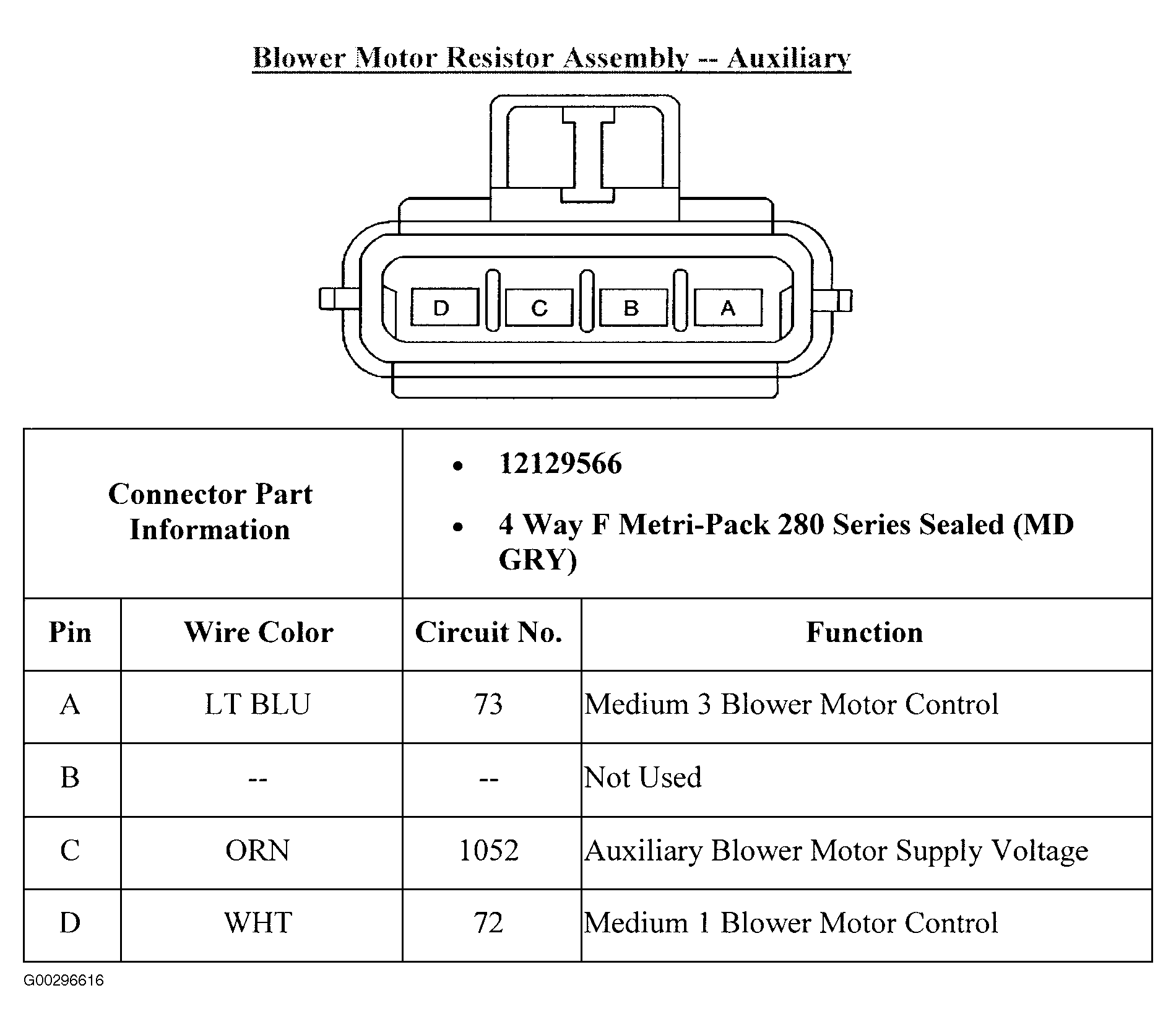

Fig 15: Identifying Blower Motor Resistor Assembly Auxiliary Connector
Courtesy of GENERAL MOTORS CORP.

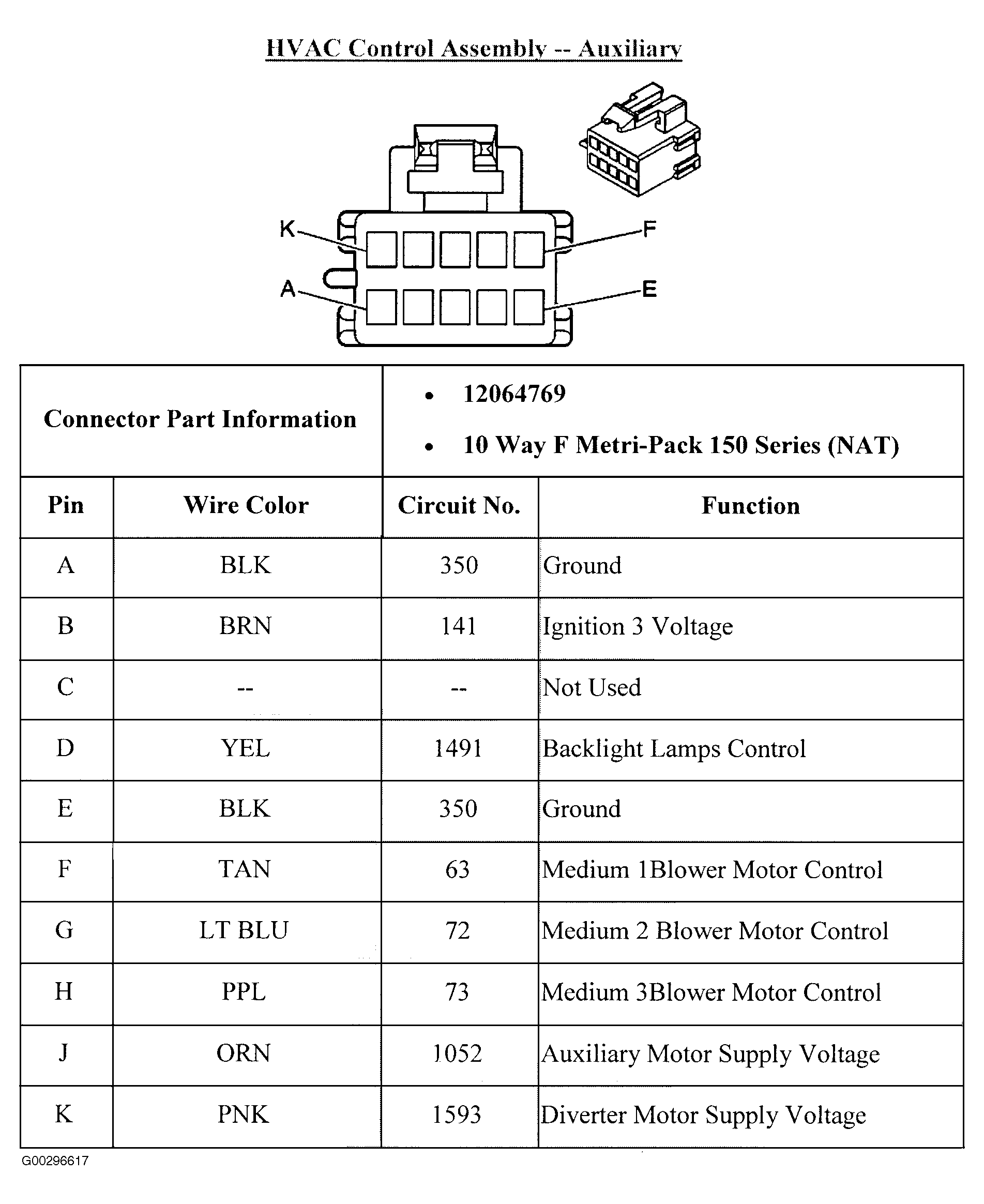

Fig 16: Identifying HVAC Control Assembly Auxiliary Connector
Courtesy of GENERAL MOTORS CORP.

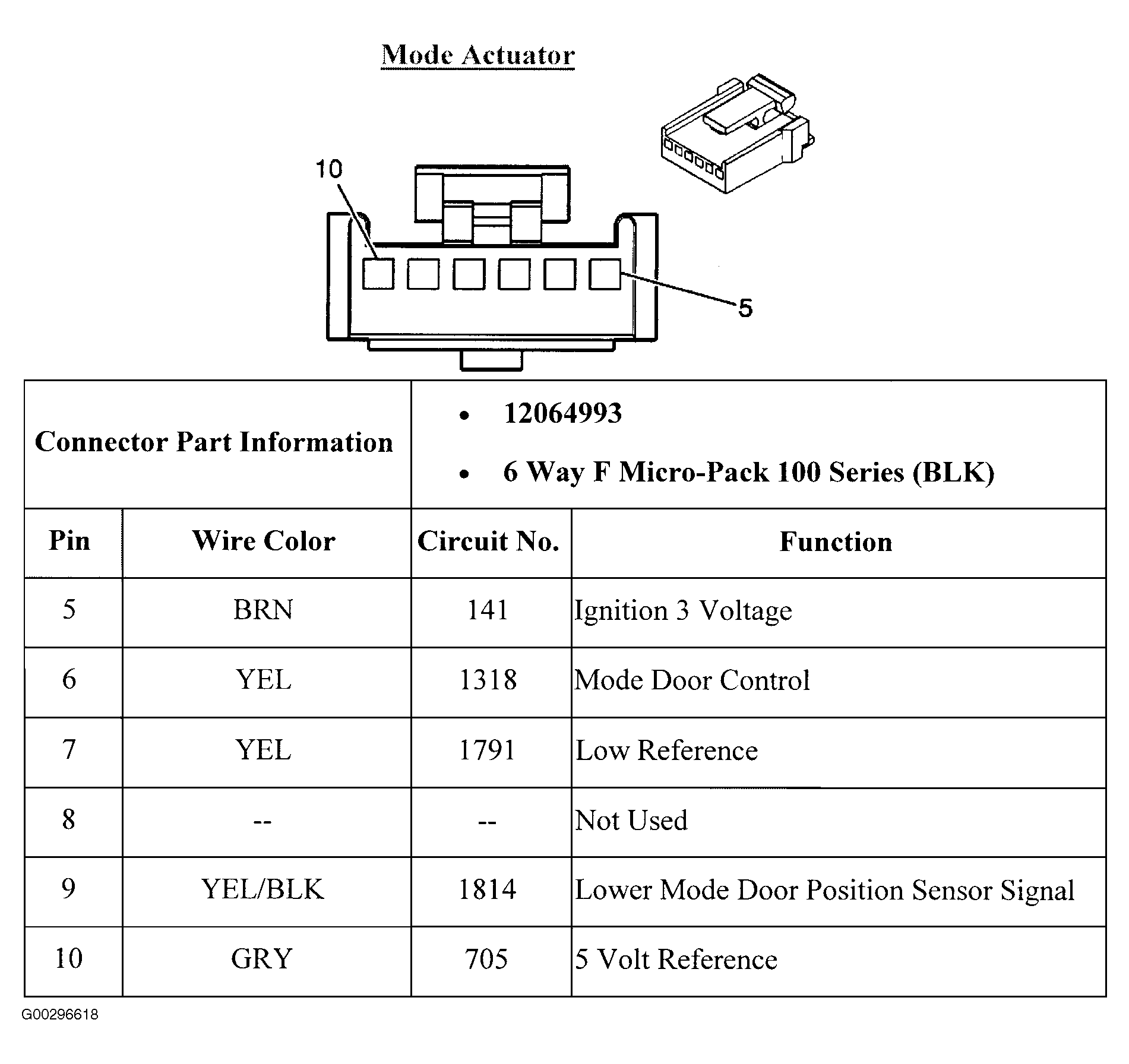

Fig 17: Identifying Mode Actuator Connector
Courtesy of GENERAL MOTORS CORP.

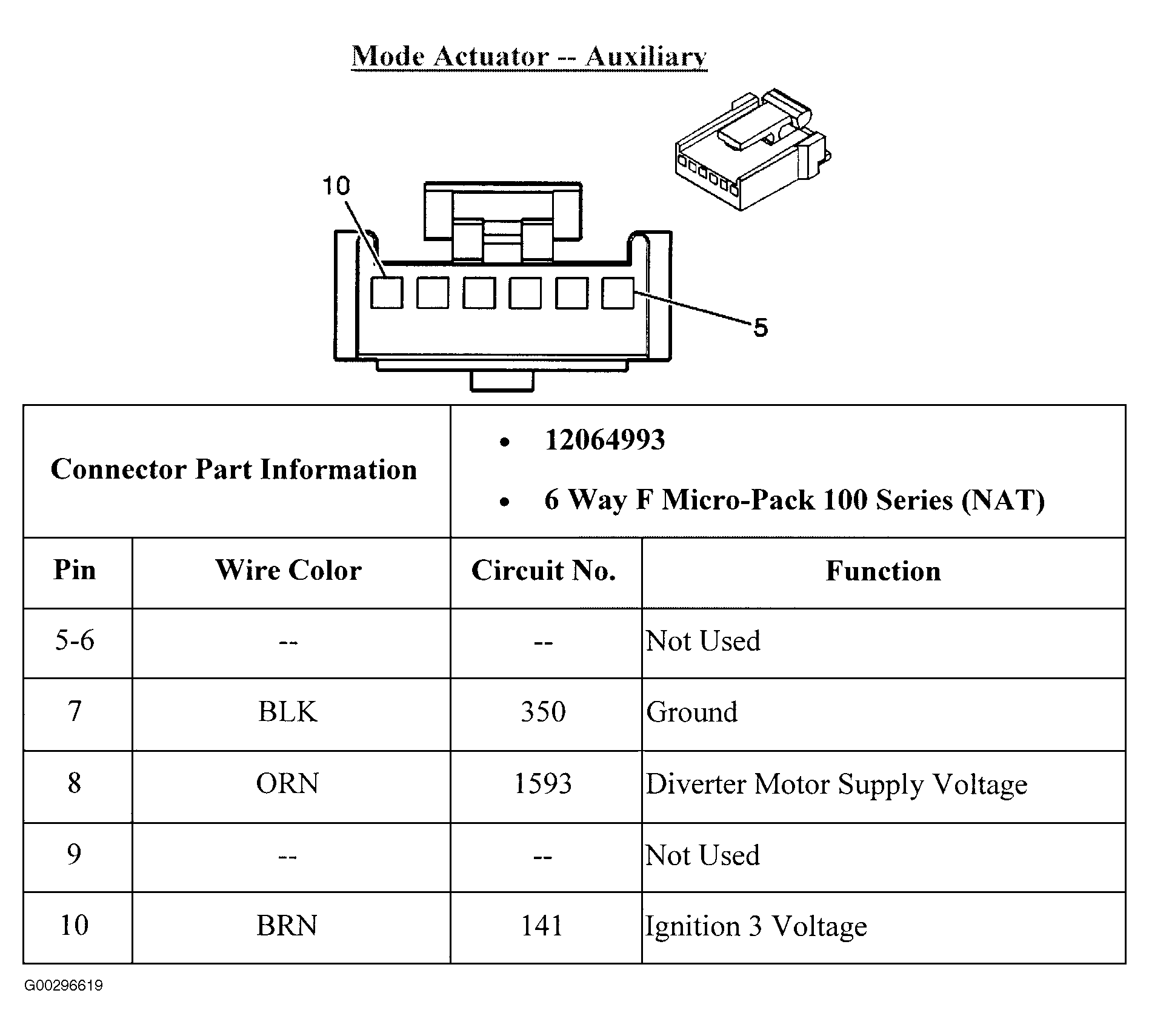

Fig 18: Identifying Mode Actuator Auxiliary Connector
Courtesy of GENERAL MOTORS CORP.

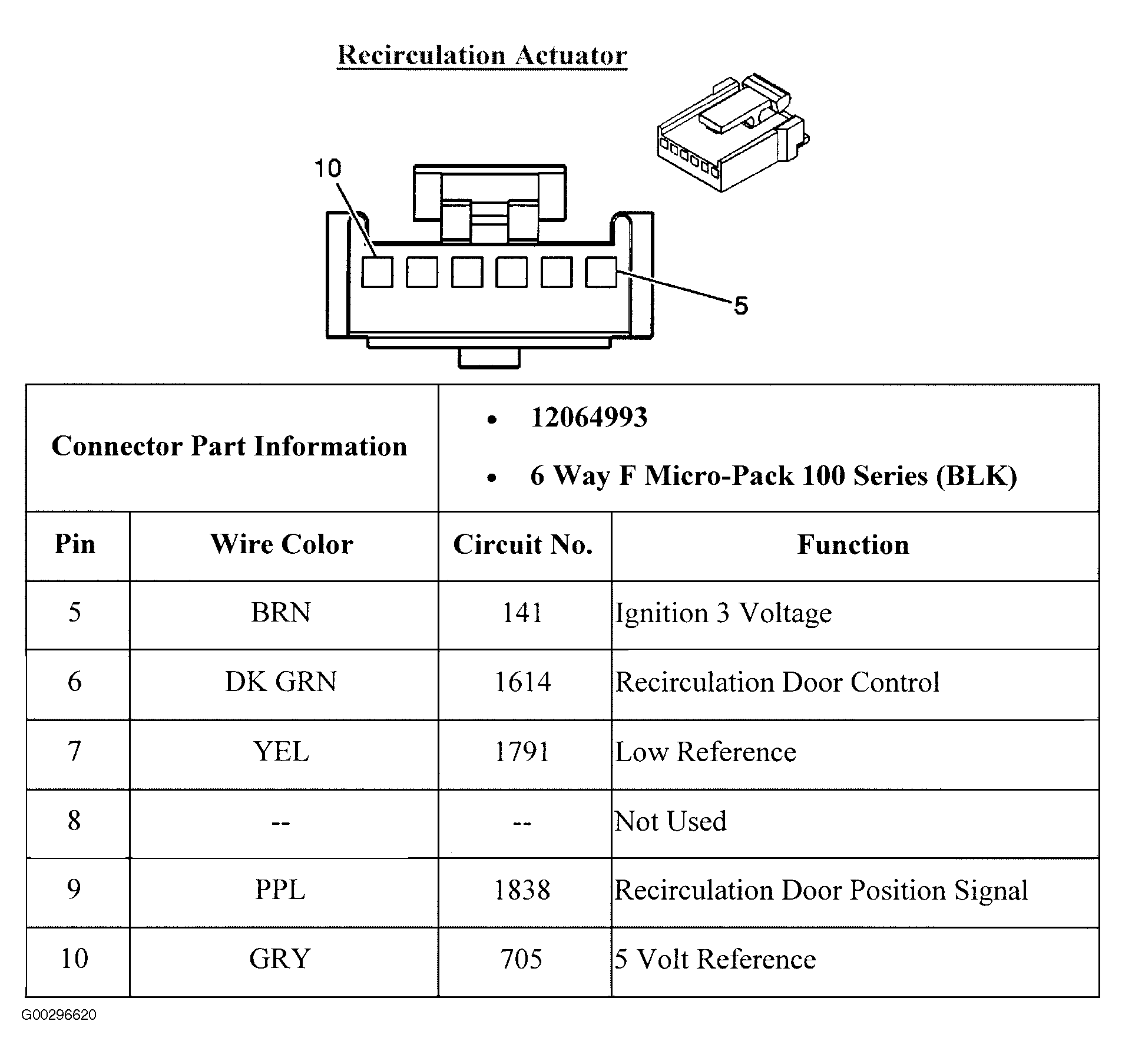

Fig 19: Identifying Recirculation Actuator Connector
Courtesy of GENERAL MOTORS CORP.

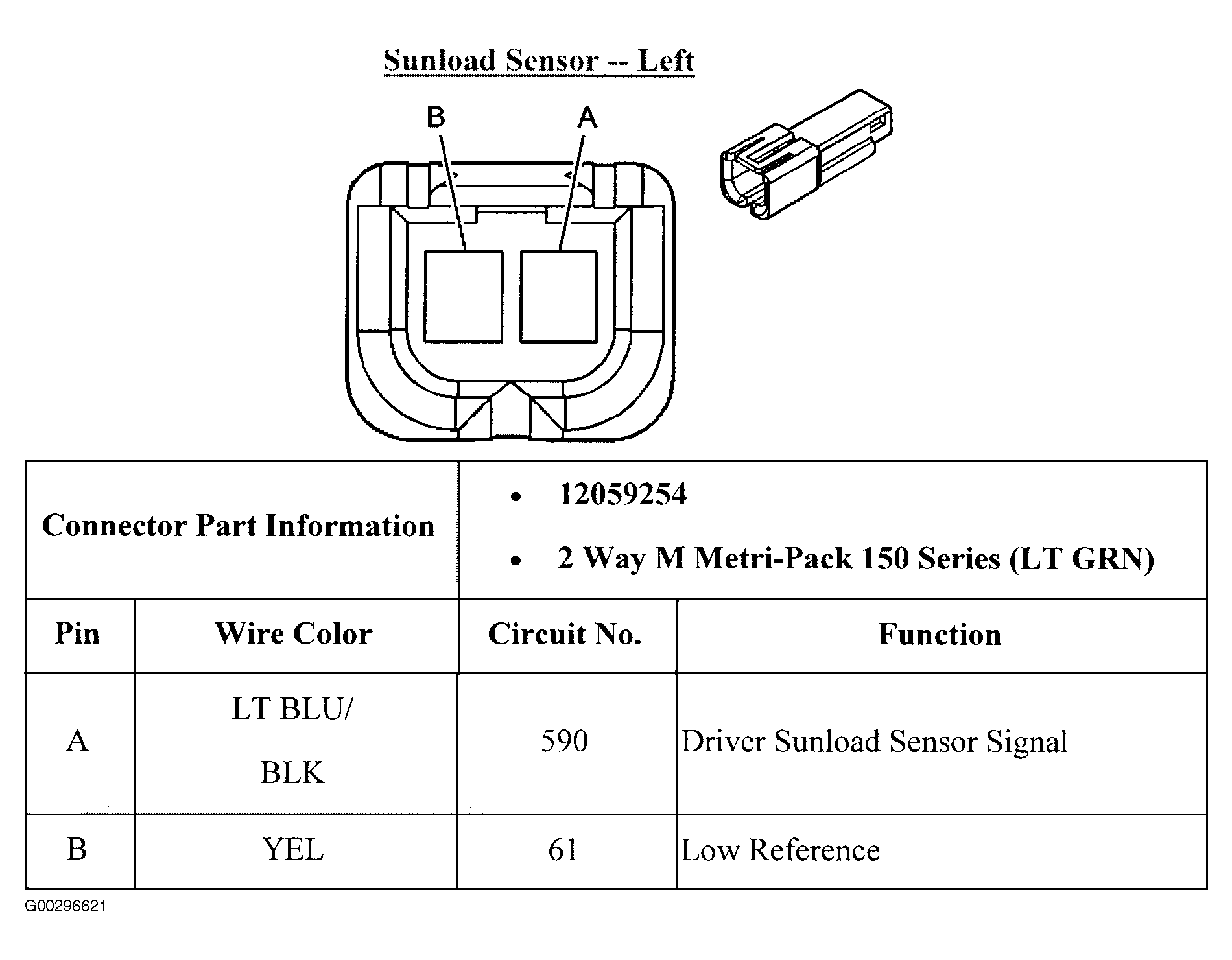

Fig 20: Identifying Sunload Sensor Left Connector
Courtesy of GENERAL MOTORS CORP.
Fig 21: Identifying Sunload Sensor Right Connector
Courtesy of GENERAL MOTORS CORP.
