Electronic Frontal Sensor Connector End View - Left

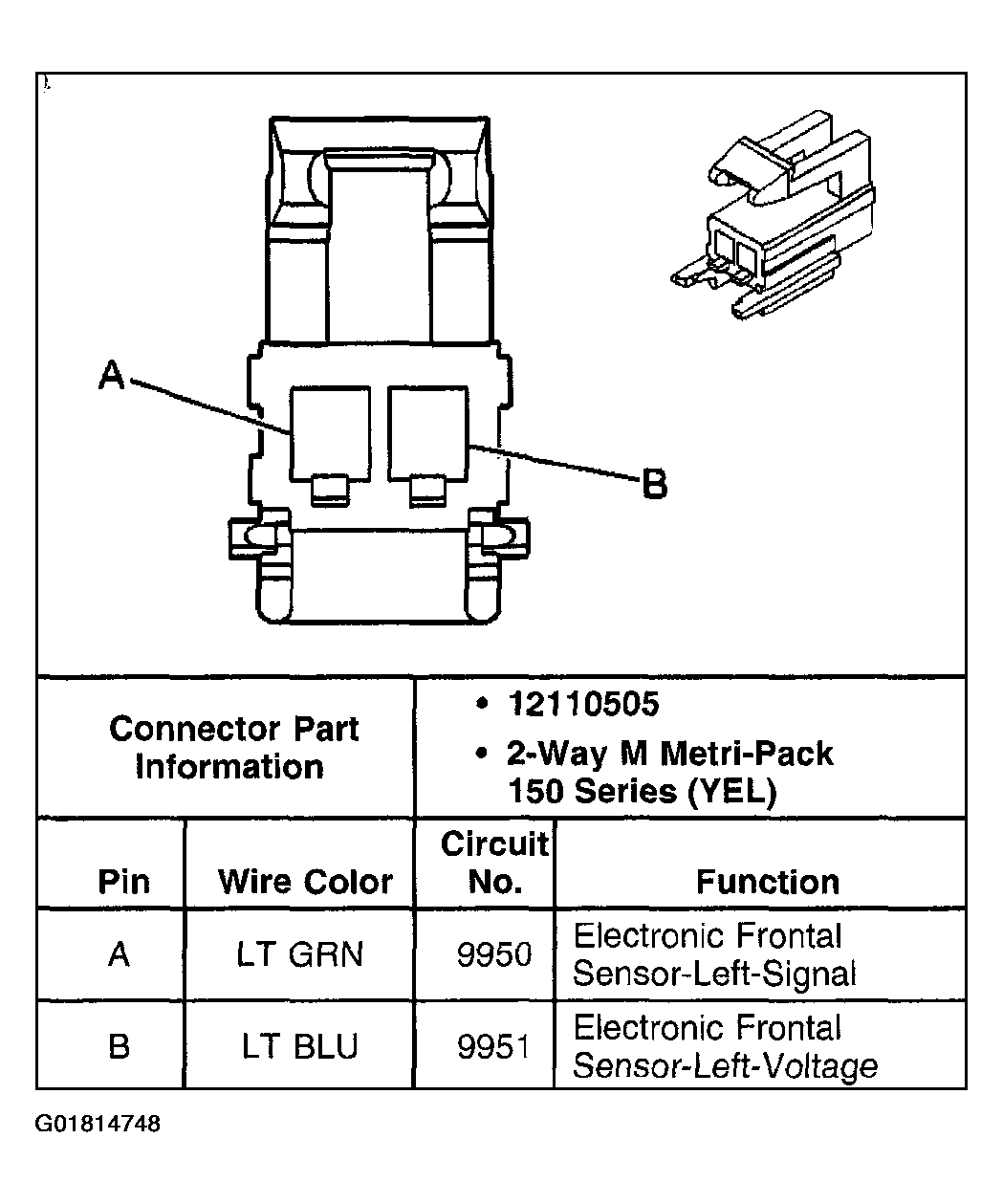

Fig 1: Electronic Frontal Sensor - Left

G01814748

Courtesy of GENERAL MOTORS CORP.
