Side Impact Sensor Connector End View - Left

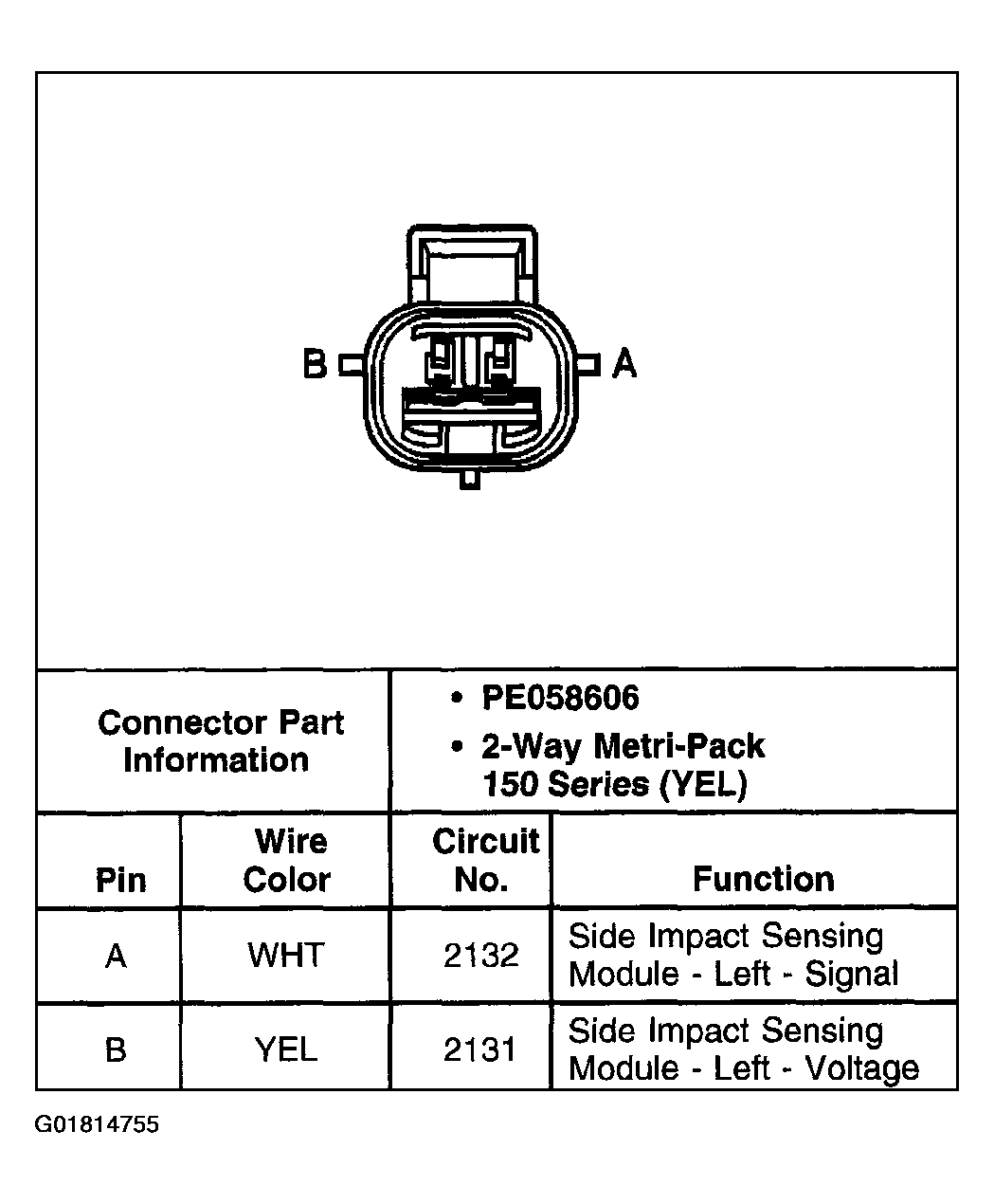

Fig 1: Side Impact Sensor - Left
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
