Side Impact Sensor Connector End View - Right

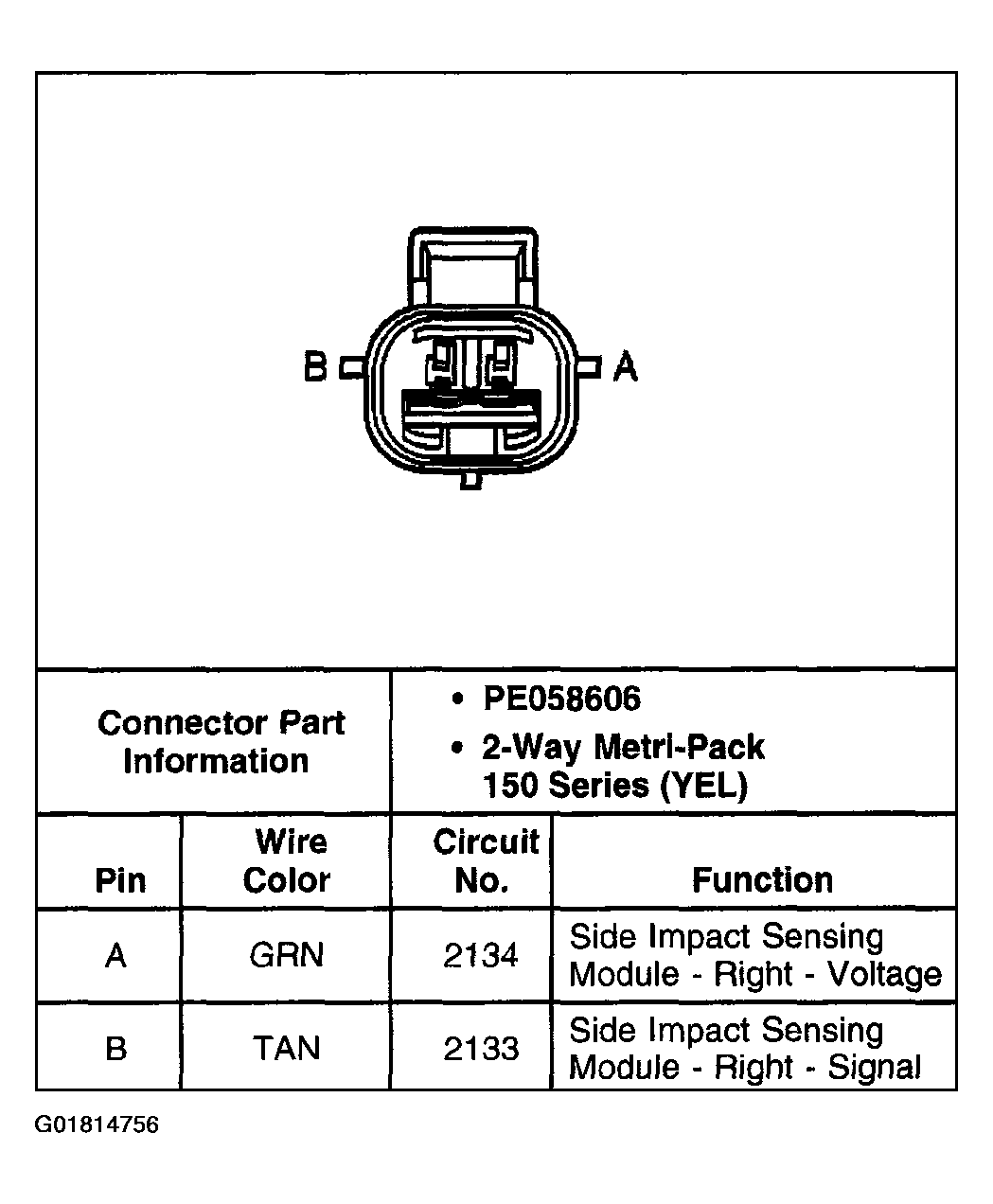

Fig 1: Side Impact Sensor - Right
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
