Installation Procedure

  1. Lubricate the tilt spring (2) with synthetic grease.
    2. Fig 1: Spring Guide
    G01827093Courtesy of GENERAL MOTORS CORP.
  2. Install the spring guide (1) into the tilt spring (2).

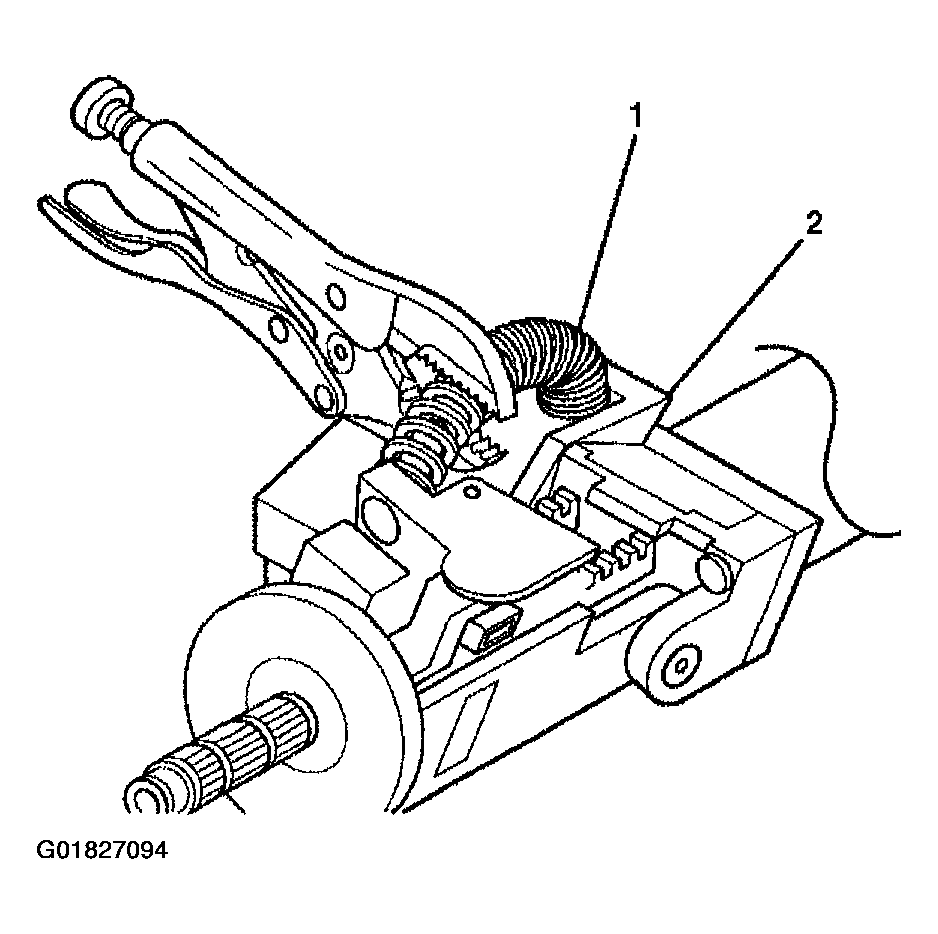

    3. Fig 2: Installing Tilt Spring
    G01827094Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
    1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. Secure the tilt spring (1) with locking pliers.
  4. Install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT - On Vehicle .
