Automatic Level Control System Does Not Raise Vehicle (with Inflator)

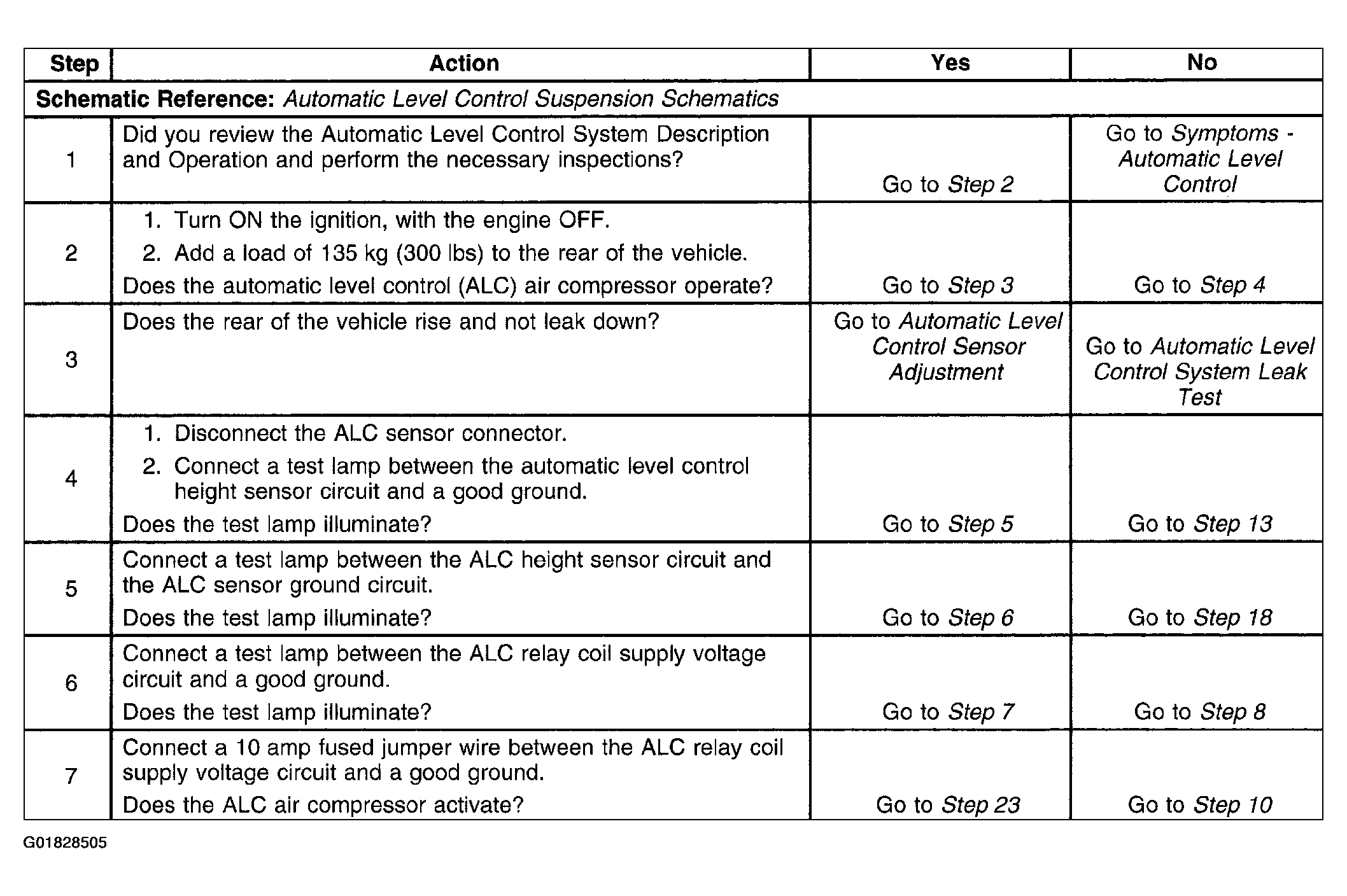

Fig 1: Automatic Level Control System Does Not Raise Vehicle (With Inflator) (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

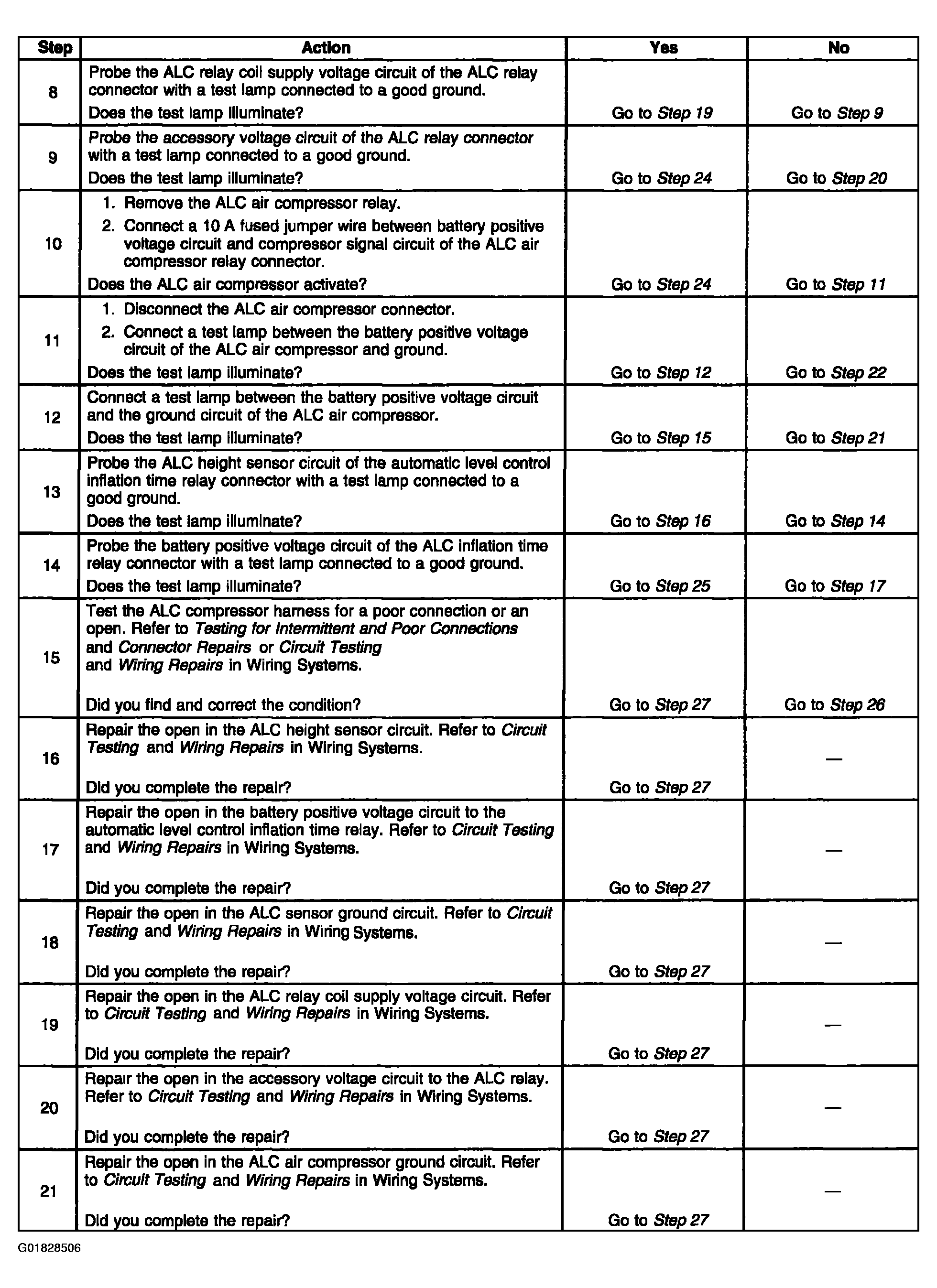

Fig 2: Automatic Level Control System Does Not Raise Vehicle (With Inflator) (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

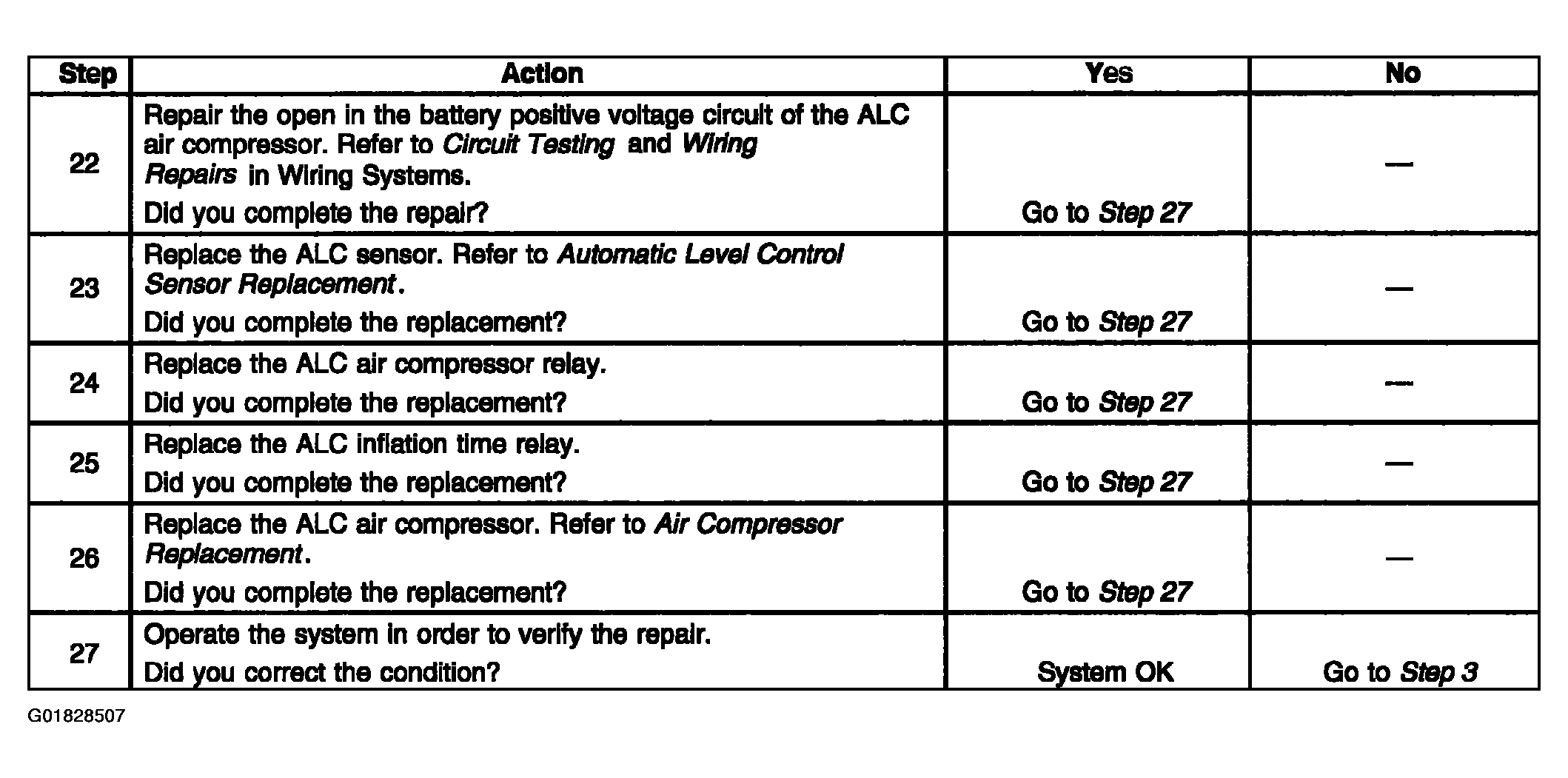

Fig 3: Automatic Level Control System Does Not Raise Vehicle (With Inflator) (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
