Removal Procedure

  1. Remove the automatic level control air compressor. Refer to Air Compressor Replacement .

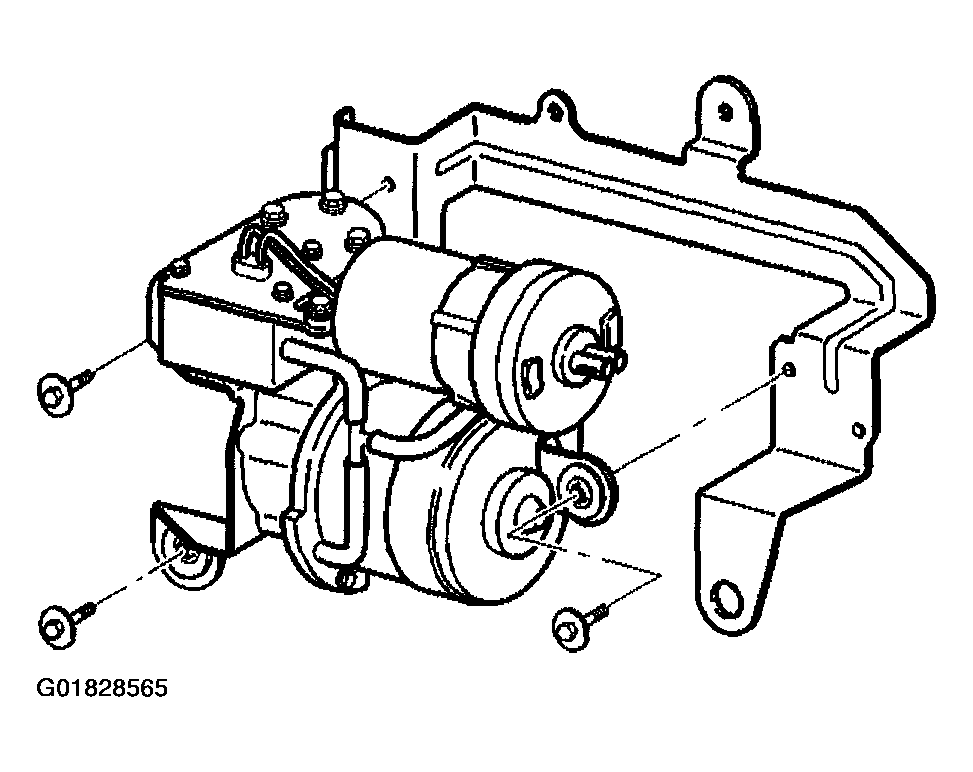

    2. Fig 1: Air Compressor Bracket
    G01828565Courtesy of GENERAL MOTORS CORP.
  2. Remove the air compressor shield.
