Installation Procedure

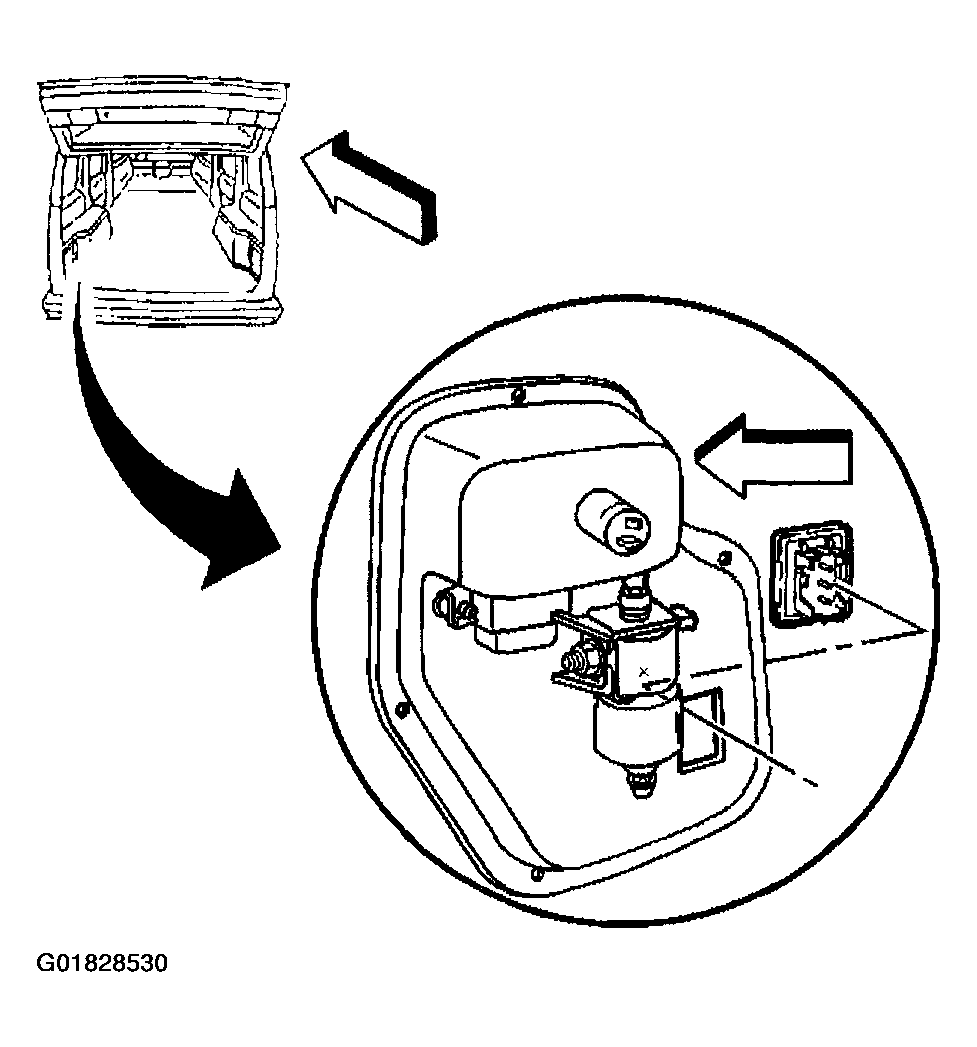

    Fig 1: Inflator Switch (VIN U)
    G01828530Courtesy of GENERAL MOTORS CORP.
  1. Install the inflator switch to the inflator control panel snaps into place.

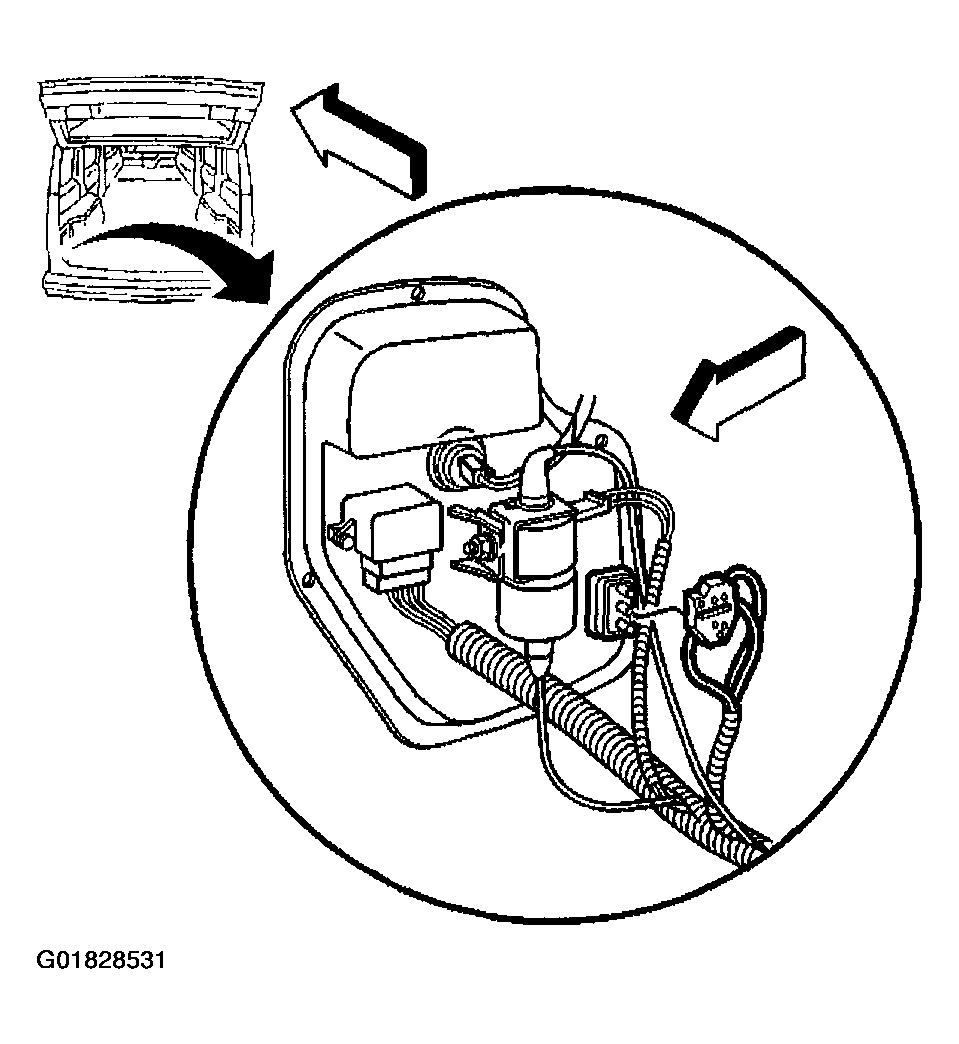

    2. Fig 2: Inflator Control Access Panel (VIN U)
    G01828531Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the inflator switch.
  3. Install the inflator control access panel retainers.
  4. Install the inflator air valve opening cover by pushing the lever outboard.
