Fuse Block-I/P
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse Block-I/P

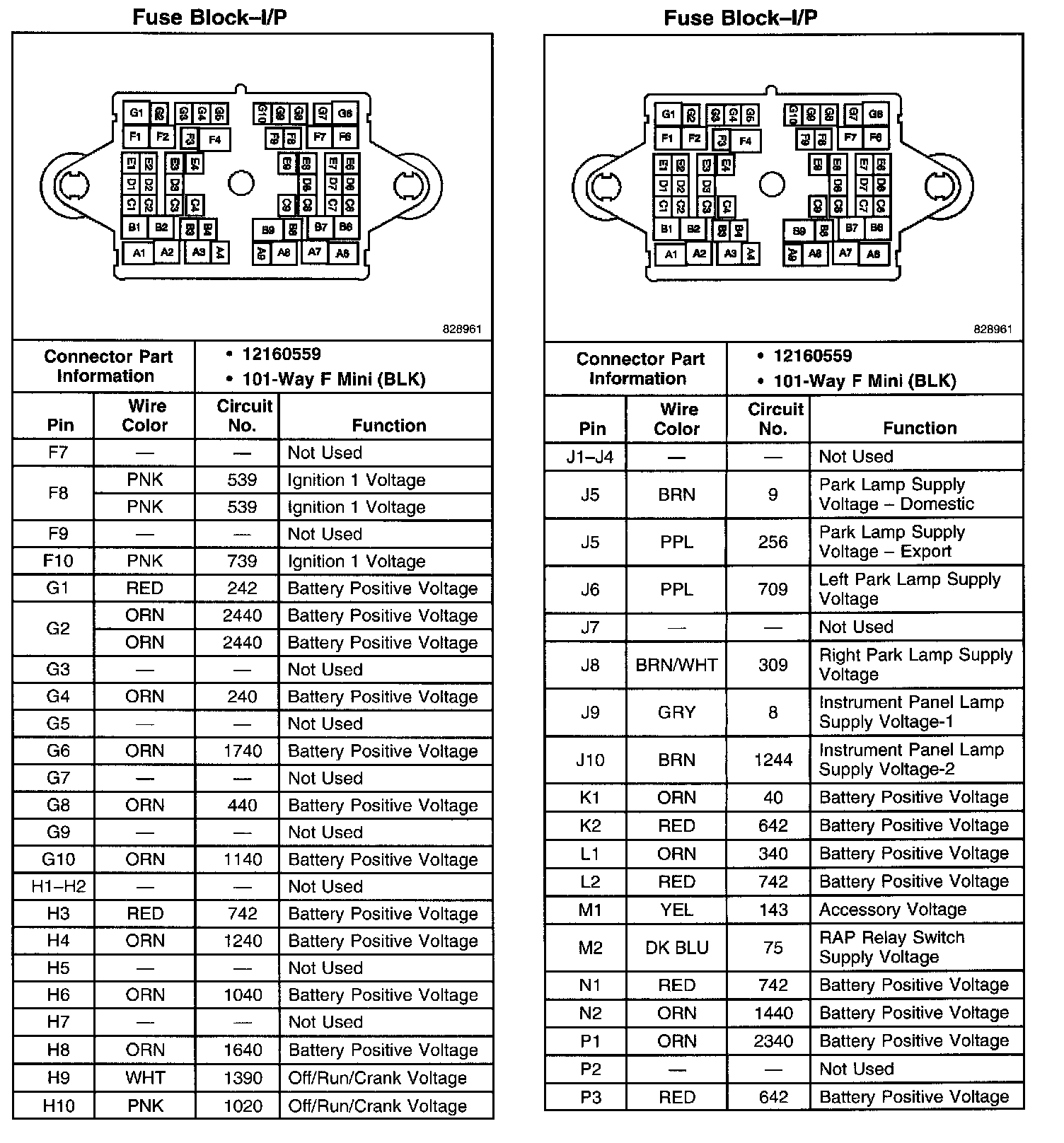

Fuse Block-I/P Part 1:

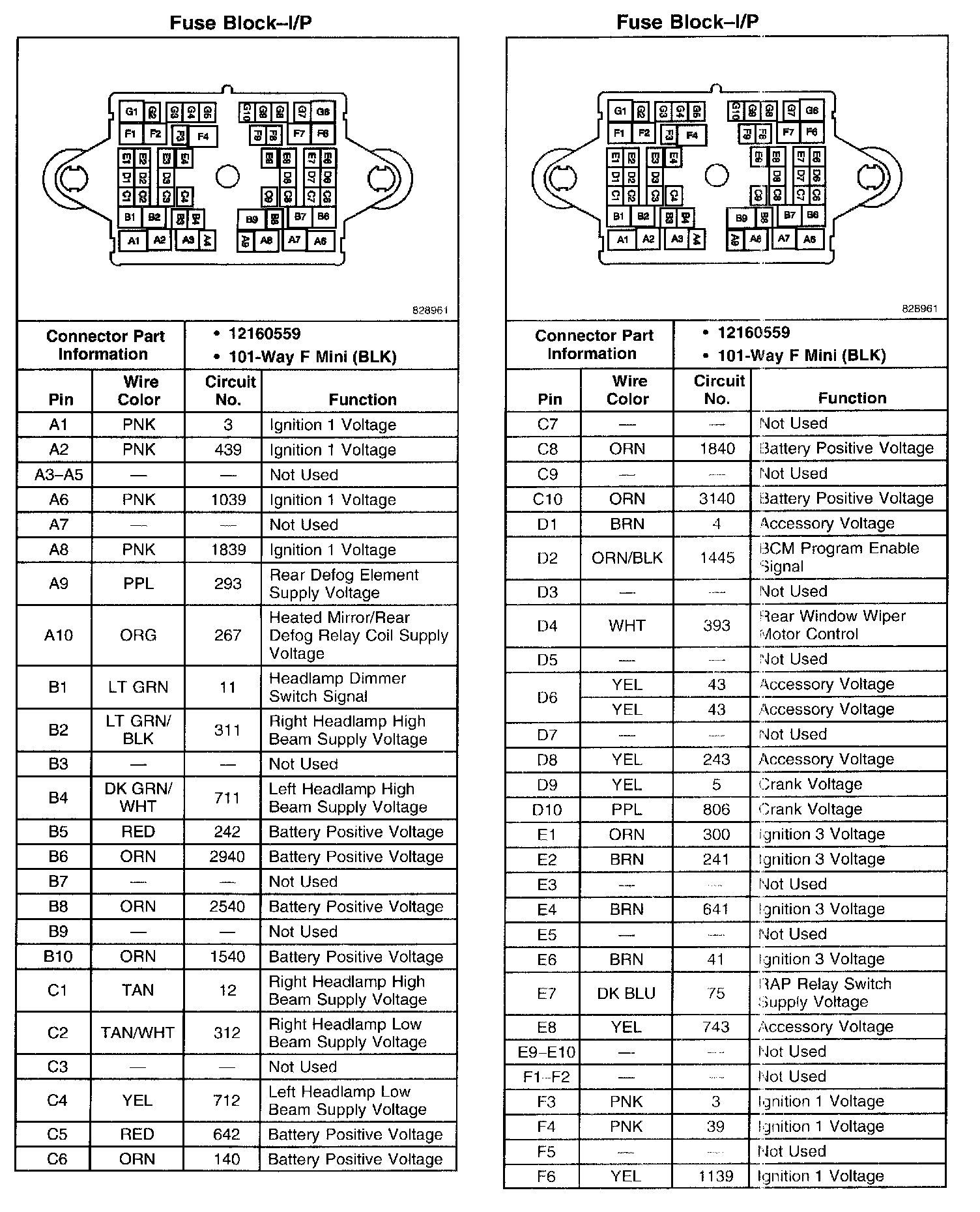

Fuse Block-I/P Part 2:
