Automatic Level Control Inflator Fill Valve Inoperative

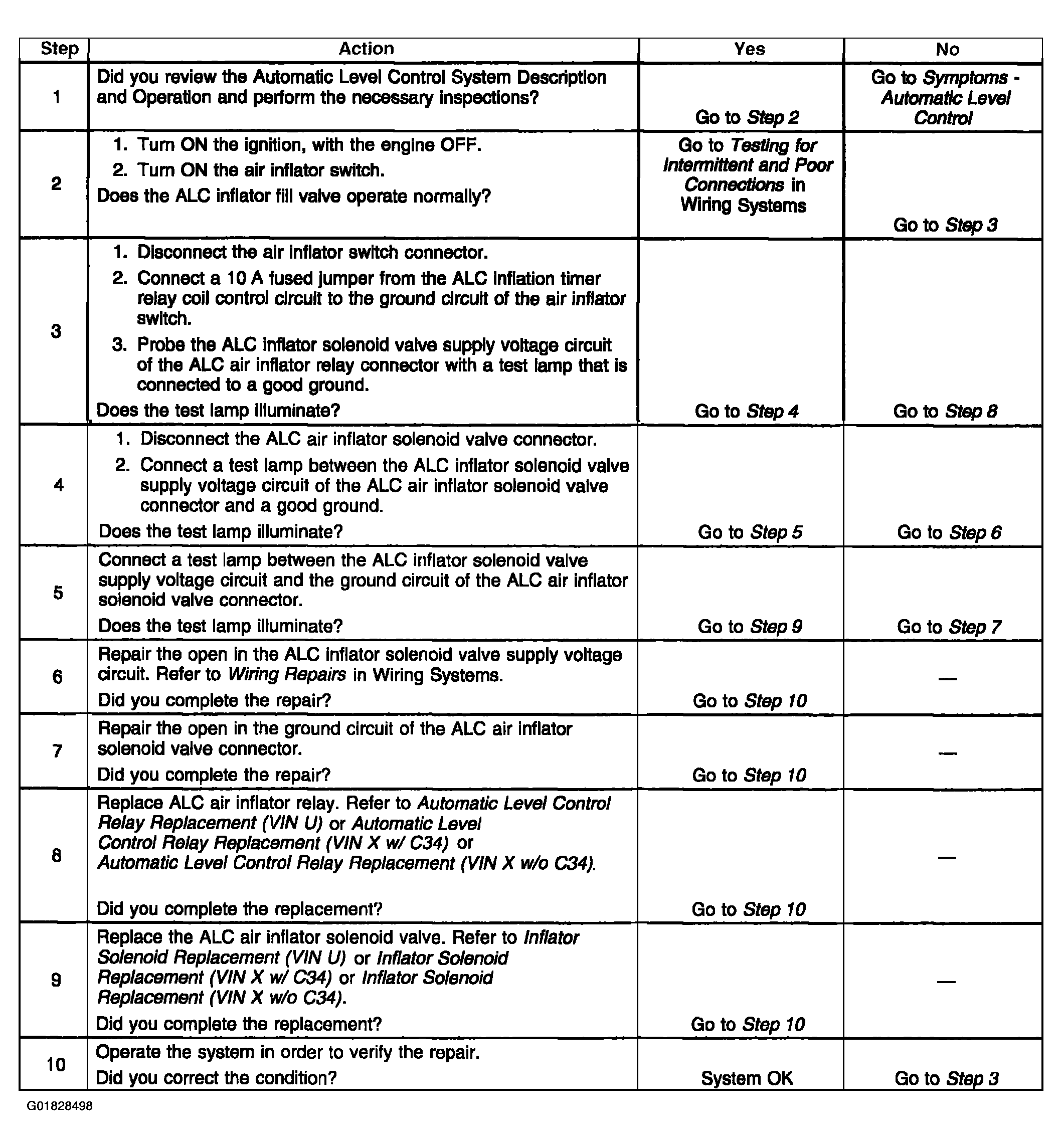

Fig 1: Automatic Level Control Inflator Fill Valve Inoperative
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
