A/C Low Pressure Switch Connector End View

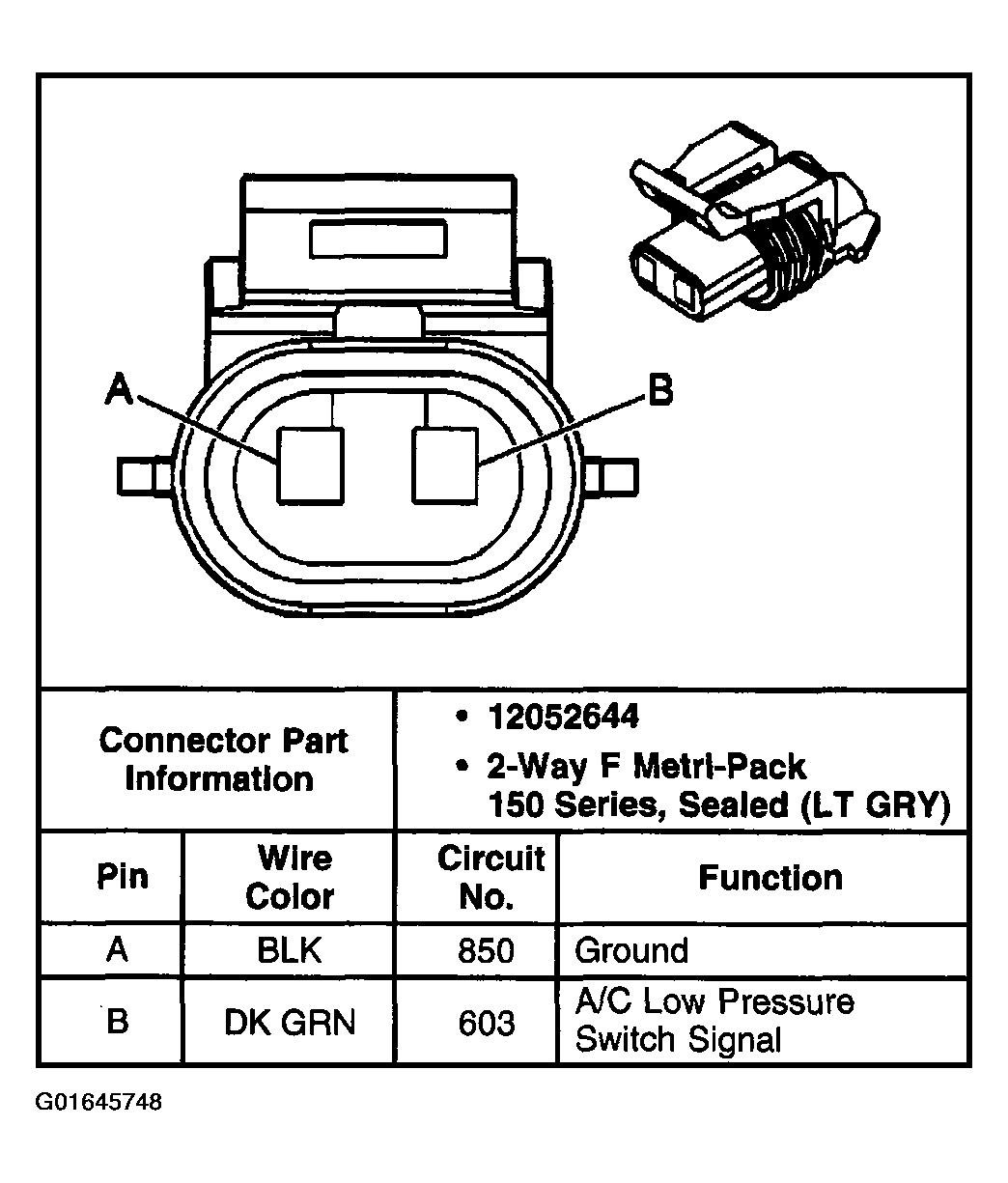

Fig 1: A/C Low Pressure Switch Connector End View
G01645748Courtesy of GENERAL MOTORS CORP.
