Test Description

The number below refers to the step number on the diagnostic table.

1. 15. A DMM must be used in this step. A test lamp may give incorrect results. Testing for B+ supply from the BCM.
2. 16. An illuminated test lamp at step 16 reveals a short to voltage in the serial data circuit.

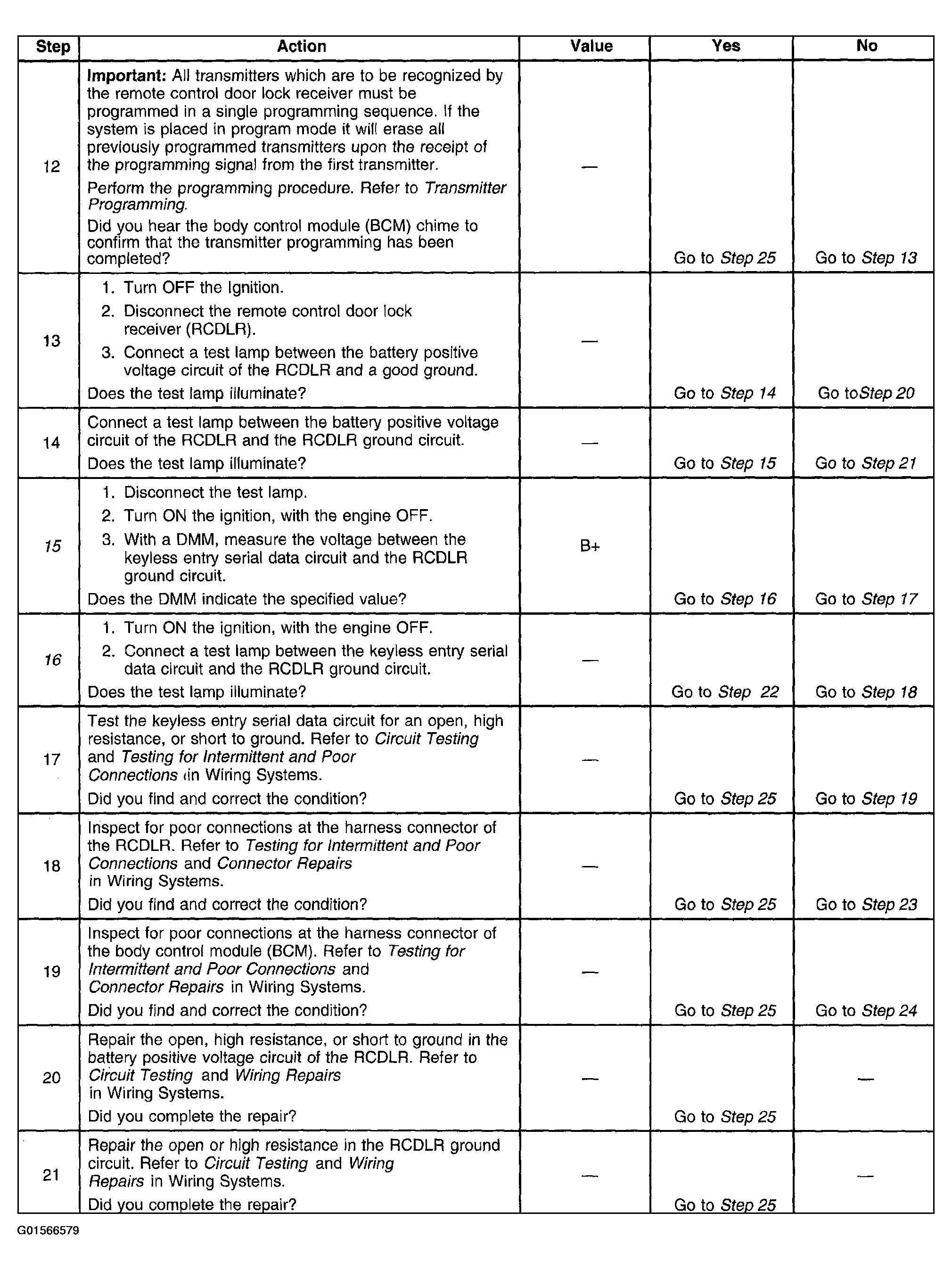

Fig 1: Keyless Entry System Inoperative Diagnostic Table (1 Of 3)

Courtesy of GENERAL MOTORS CORP.

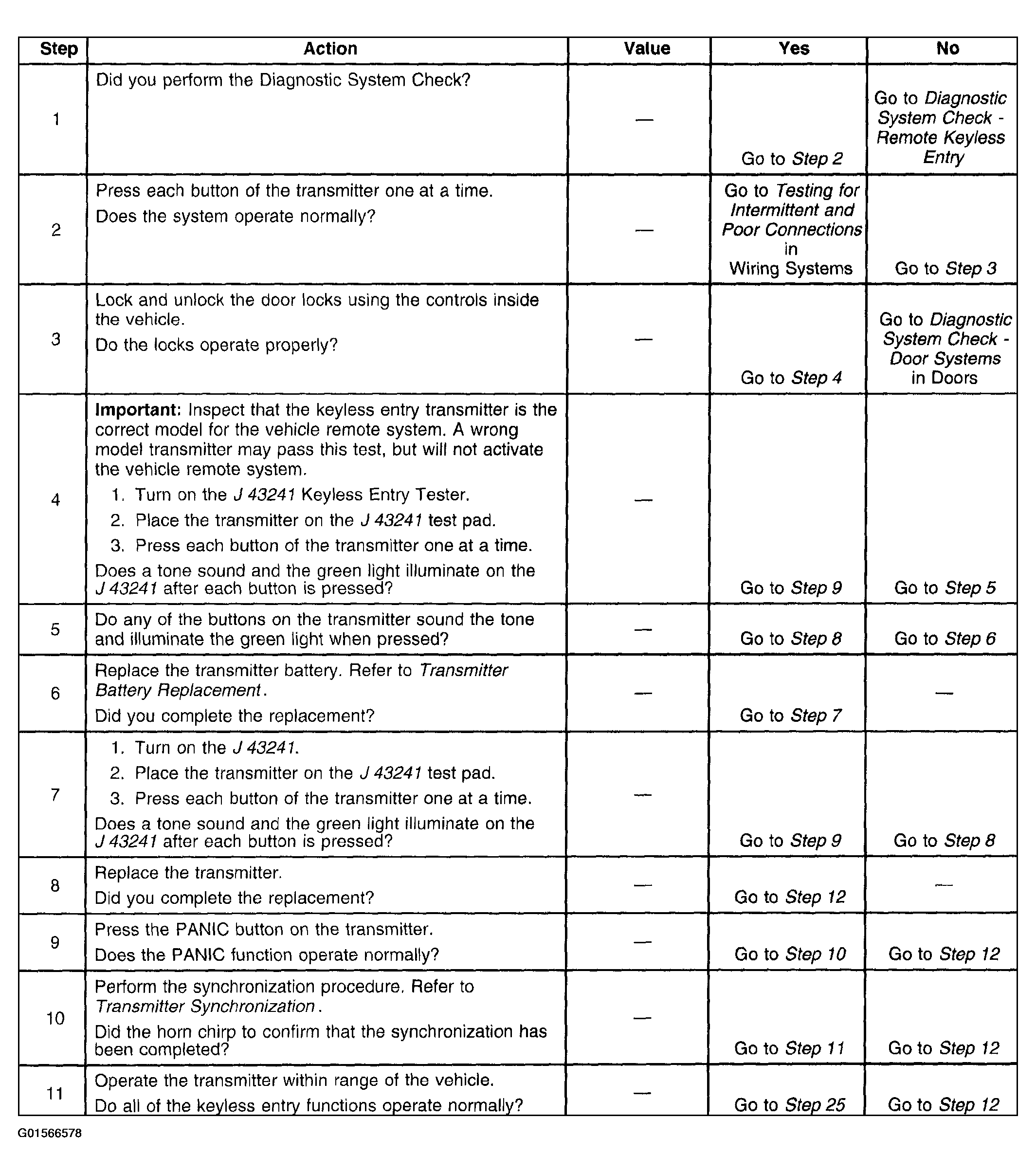

Fig 2: Keyless Entry System Inoperative Diagnostic Table (2 Of 3)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Keyless Entry System Inoperative Diagnostic Table (3 Of 3)

Courtesy of GENERAL MOTORS CORP.
