Power Seat Systems Connector End Views

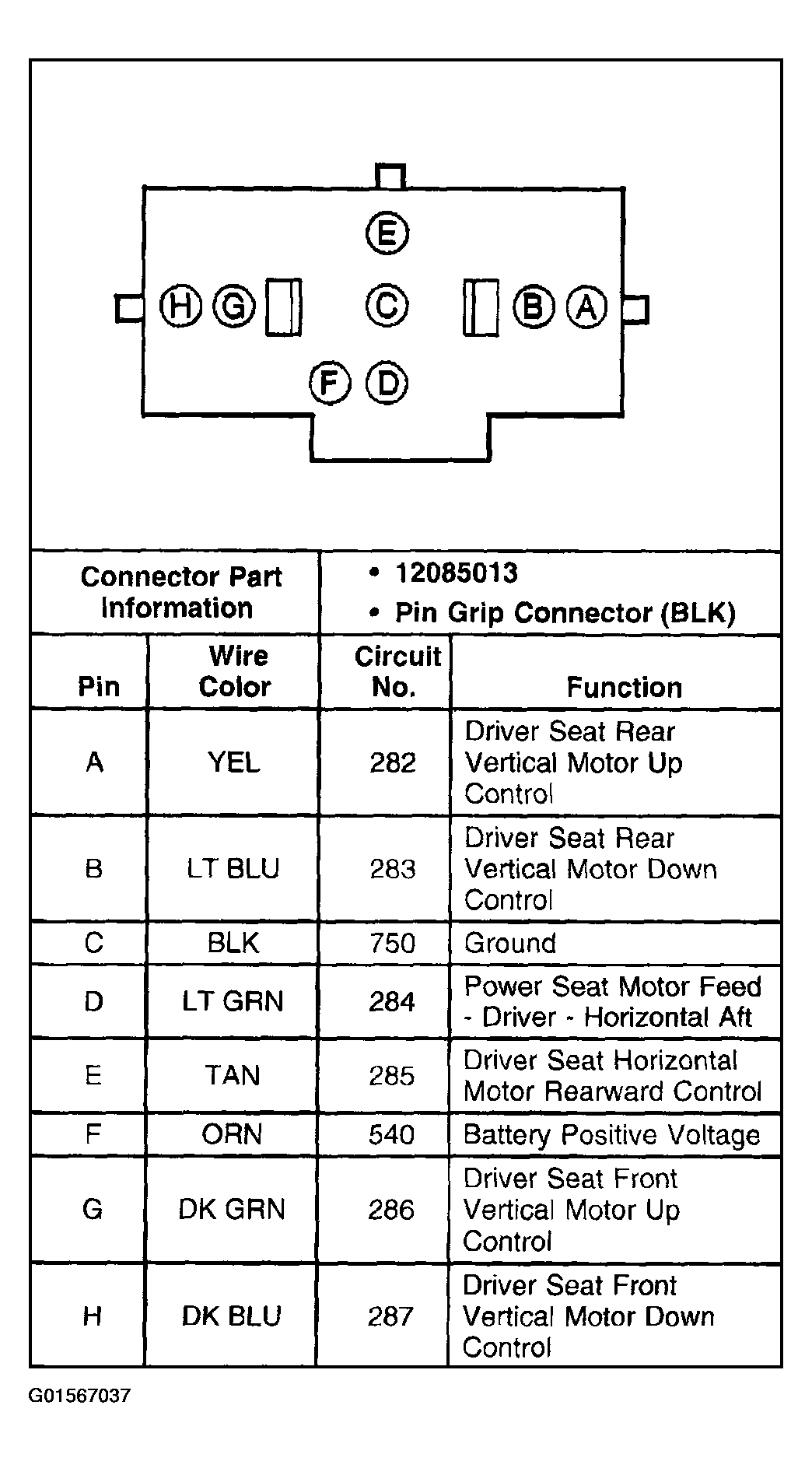

Fig 1: Power Seat Adjuster Switch Connector Terminals - Driver
G01567037Courtesy of GENERAL MOTORS CORP.
