Installation Procedure

  1. Install the lumbar support cable and housing to the bucket seat cushion frame.

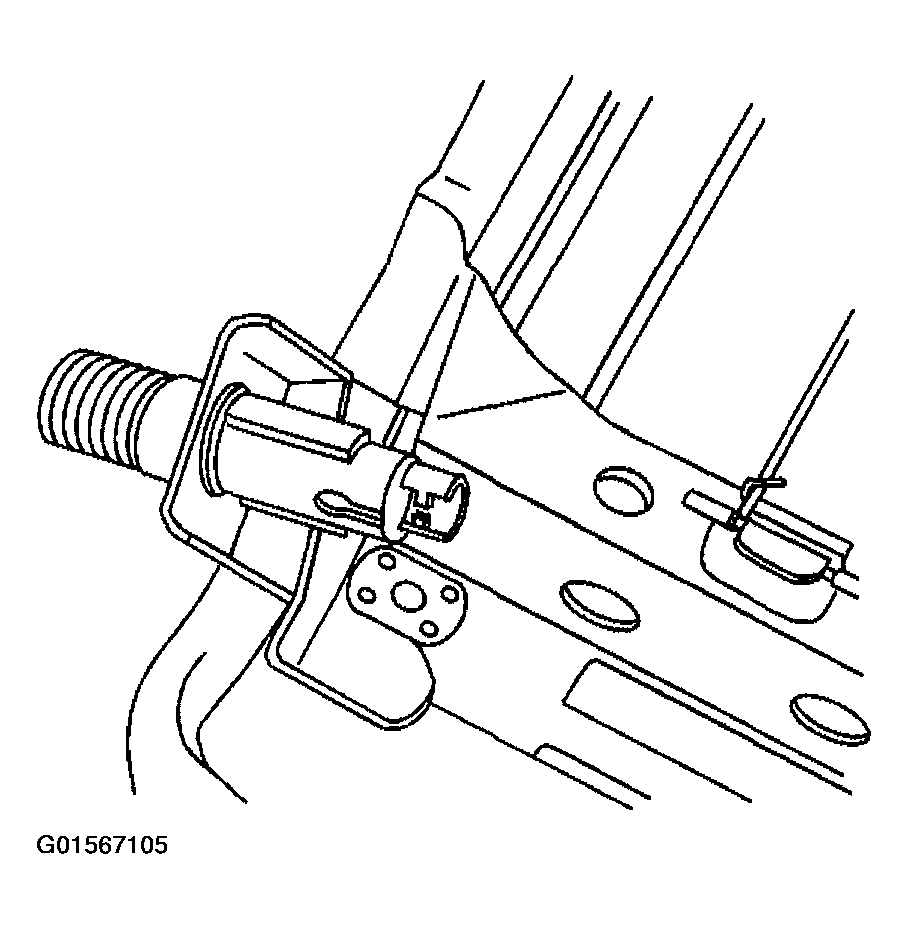

    Fig 1: Installing Lumbar Support Cable And Housing To Bucket Seat Cushion Frame
    G01567105Courtesy of GENERAL MOTORS CORP.
  2. Install the lumbar support cable to the side of the bucket seat cushion frame.
  3. Install the lumbar support cable clip.

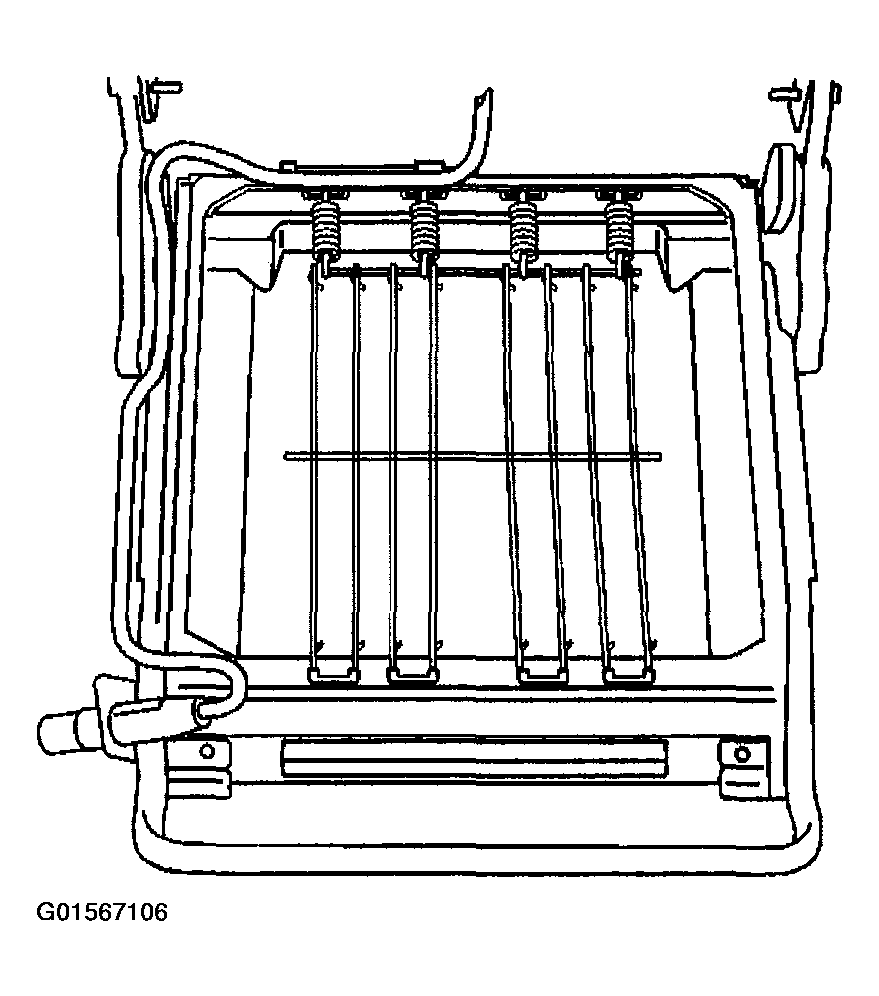

    Fig 2: Installing Lumbar Support Cable To Side Of Bucket Seat Cushion Frame
    G01567106Courtesy of GENERAL MOTORS CORP.
  4. Install the bucket seat cushion cover and pad. Refer to SEAT CUSHION COVER REPLACEMENT - FRONT (YC5 AND YC6)  or SEAT CUSHION COVER REPLACEMENT - FRONT (YC7)  .
  5. Install the lumbar plate to the seat back frame.
    Fig 3: Installing Lumbar Plate To Seat Back Frame
    G01567107Courtesy of GENERAL MOTORS CORP.
  6. Snap the corners of the lumbar plate to the seat back frame.

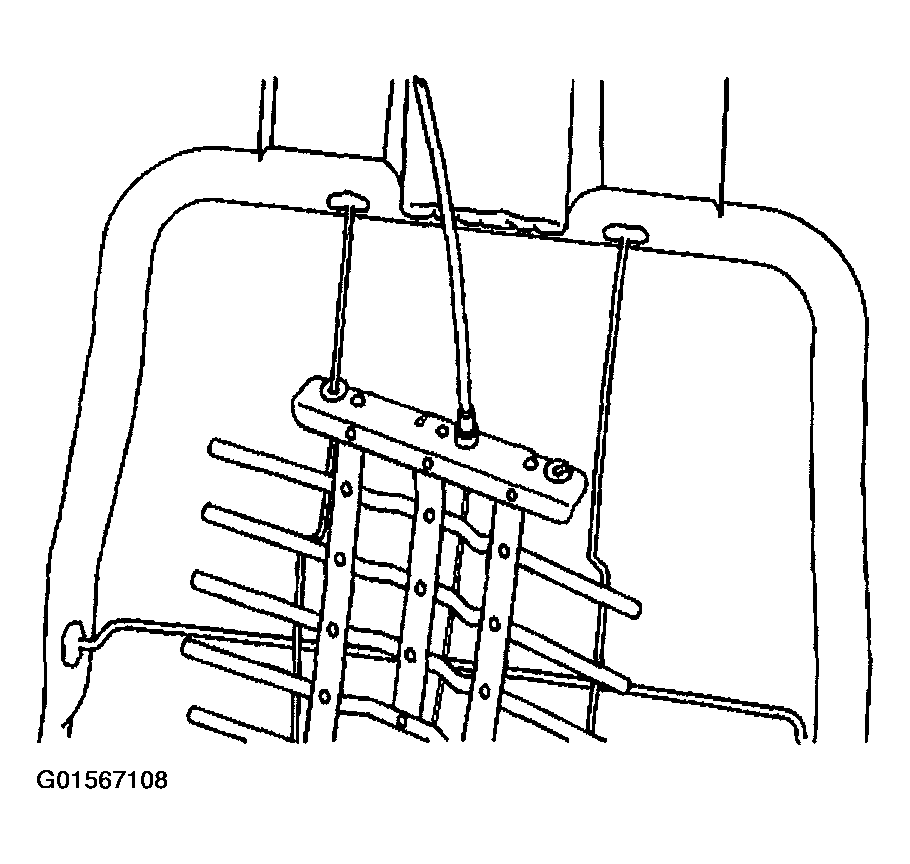

    Fig 4: Snapping Corners Of Lumbar Plate To Seat Back Frame
    G01567108Courtesy of GENERAL MOTORS CORP.
  7. Connect the lumbar plate cable (1) to the lumbar plate.
  8. Install the seat back cover and pad to the seat back frame. Refer to SEAT BACK COVER AND PAD REPLACEMENT (YC5 AND YC6)  or SEAT BACK COVER AND PAD REPLACEMENT (YC7)  .
  9. Install the bucket seat in the vehicle. Refer to SEAT REPLACEMENT - BUCKET  .

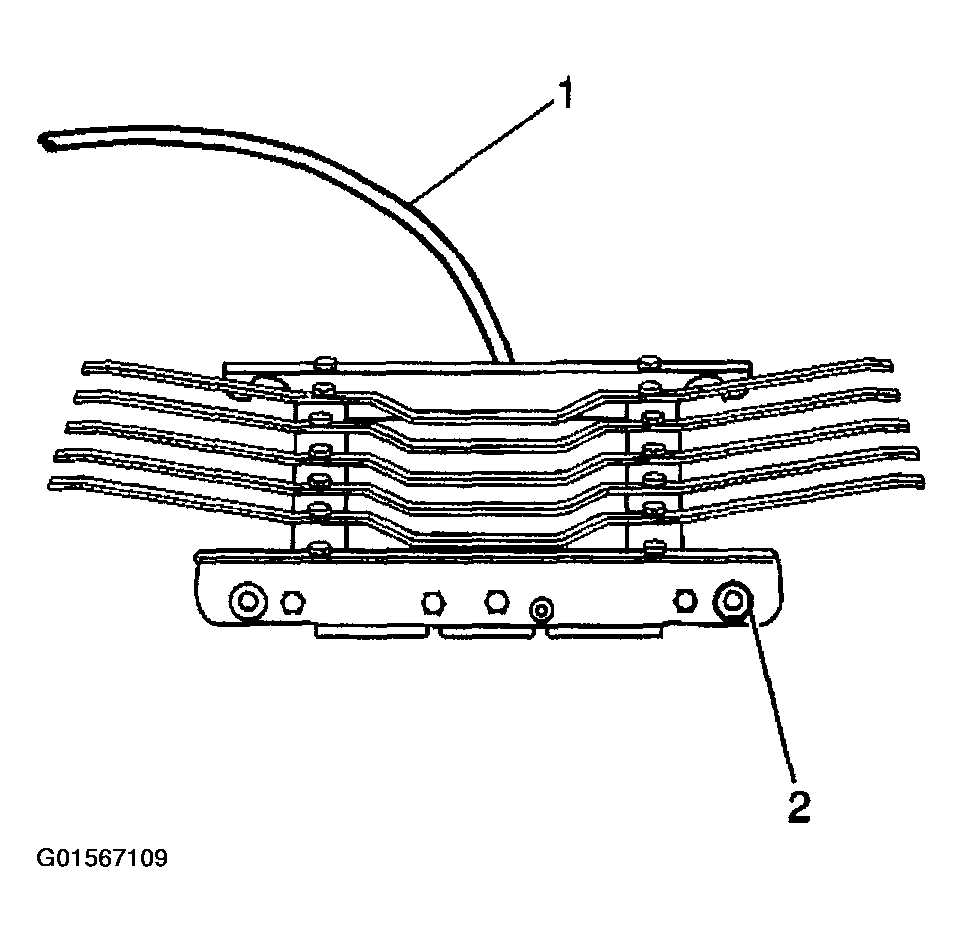

    Fig 5: Connecting Lumbar Plate Cable To Lumbar Plate
    G01567109Courtesy of GENERAL MOTORS CORP.
