Installation Procedure

  1. Install the lock rod lever to the door.

    Important:  Install new plastic retainer clips whenever the lock rods are removed.

  2. Install the remote lock lever to the clip (2).
  3. Use the M 39010  in order to install door rivets.
    Fig 1: Installing Lock Lever To Clip
    G01566979Courtesy of GENERAL MOTORS CORP.
  4. Install the lock rods to the remote lock lever.
  5. Install the water deflector and the armrest bracket. Refer to WATER DEFLECTOR REPLACEMENT - FRONT DOOR .
  6. Install the trim panel. Refer to TRIM PANEL REPLACEMENT - DOOR .

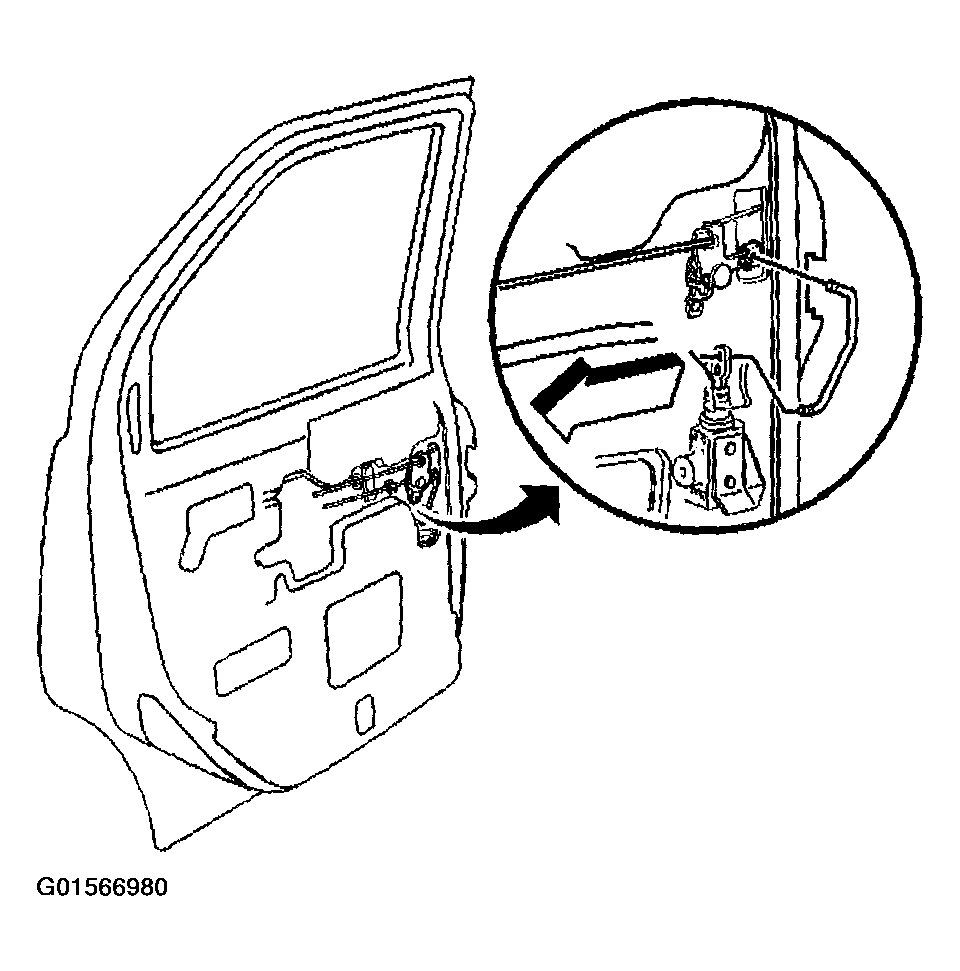

    Fig 2: Installing Lock Lever
    G01566980Courtesy of GENERAL MOTORS CORP.
