Removal Procedure

  1. Remove the front door window belt filler.
  2. Remove the sound insulator patch.
  3. Disconnect the electrical connector, if equipped.
  4. Remove the nuts (1) from the mirror.
  5. Remove the mirror (2) from the door.

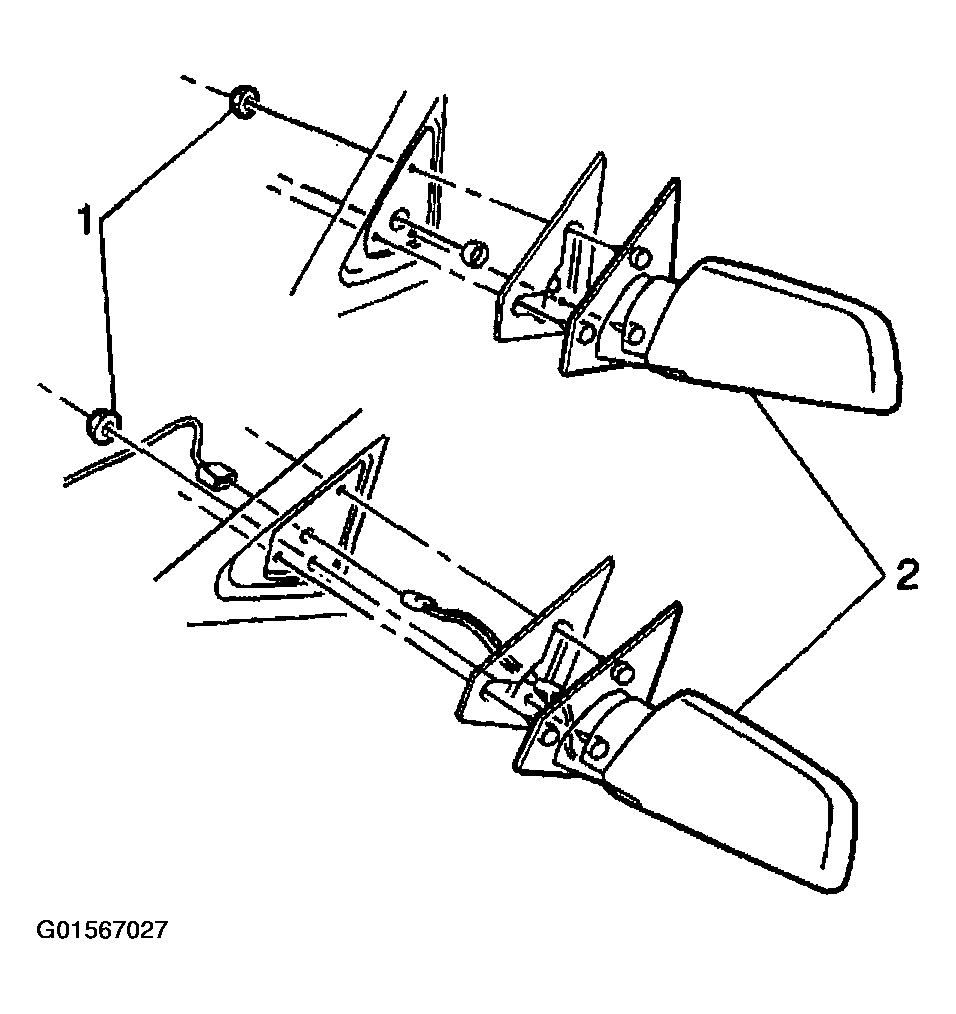

    Fig 1: Removing Mirror From The Door
    G01567027Courtesy of GENERAL MOTORS CORP.
