ABS Connector End Views

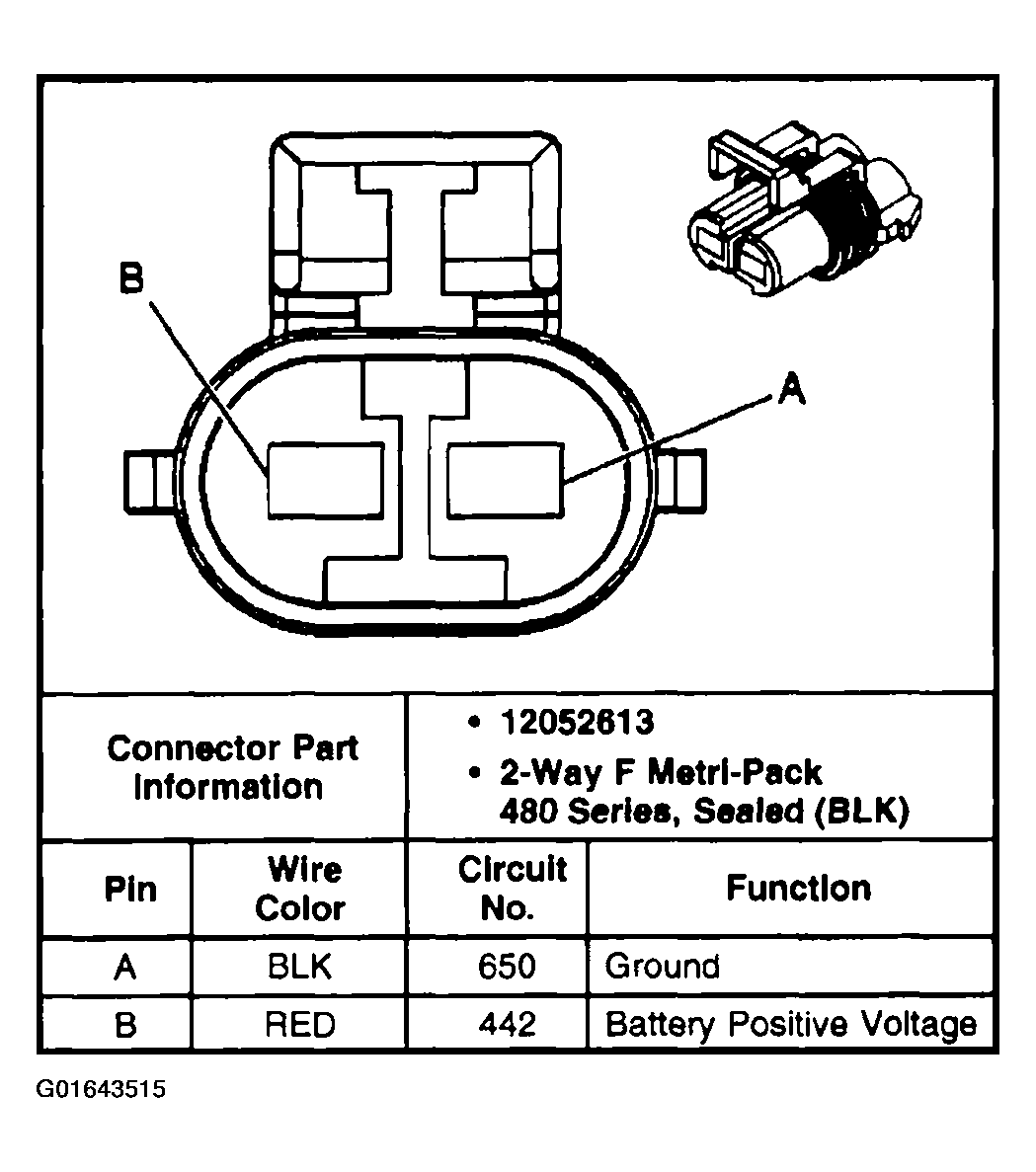

Fig 1: Identifying Electronic Brake Control Module (EBCM) Connector C1 Terminals

Courtesy of GENERAL MOTORS CORP.

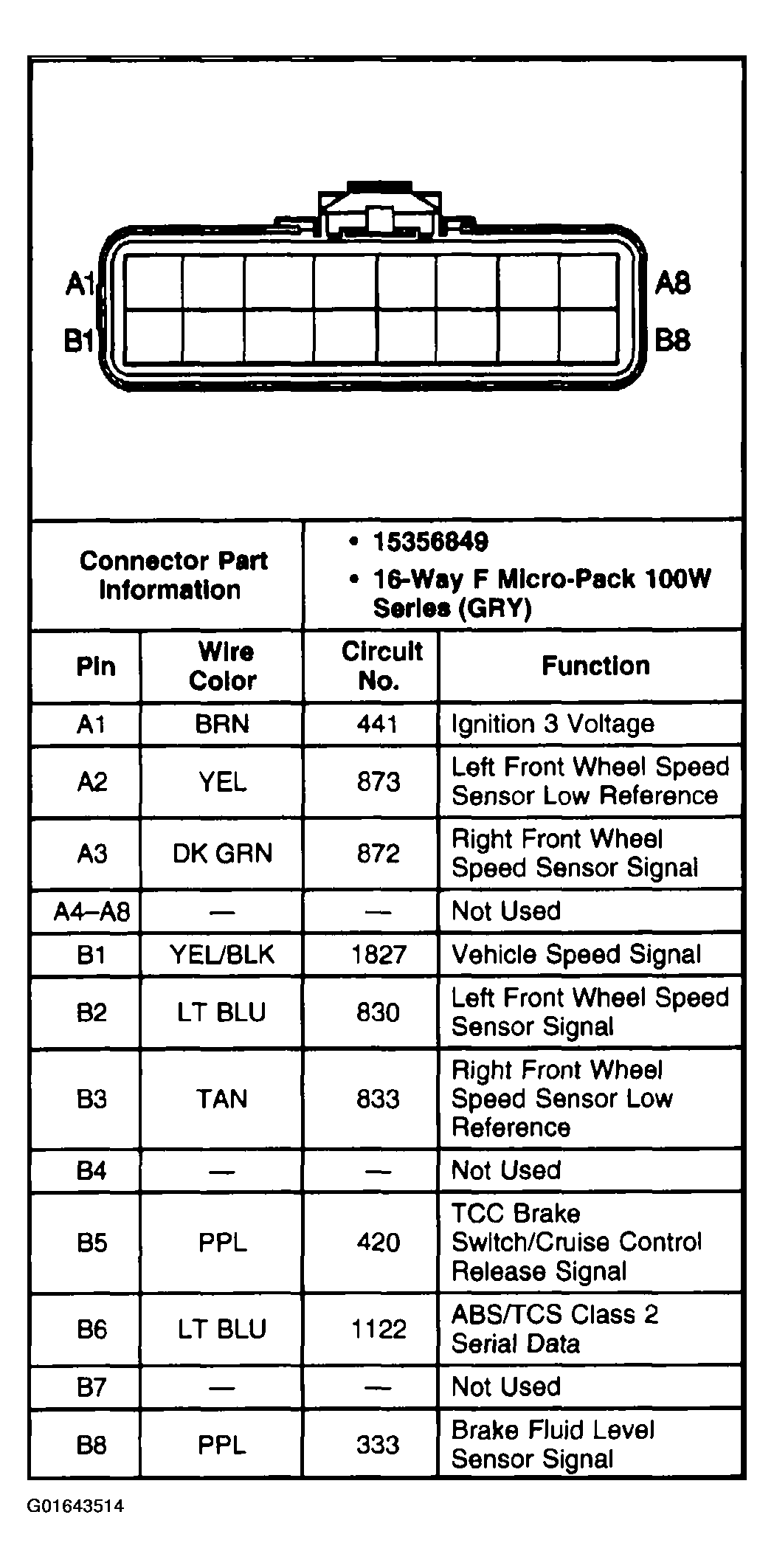

Fig 2: Identifying Electronic Brake Control Module (EBCM) Connector C2 Terminals

Courtesy of GENERAL MOTORS CORP.

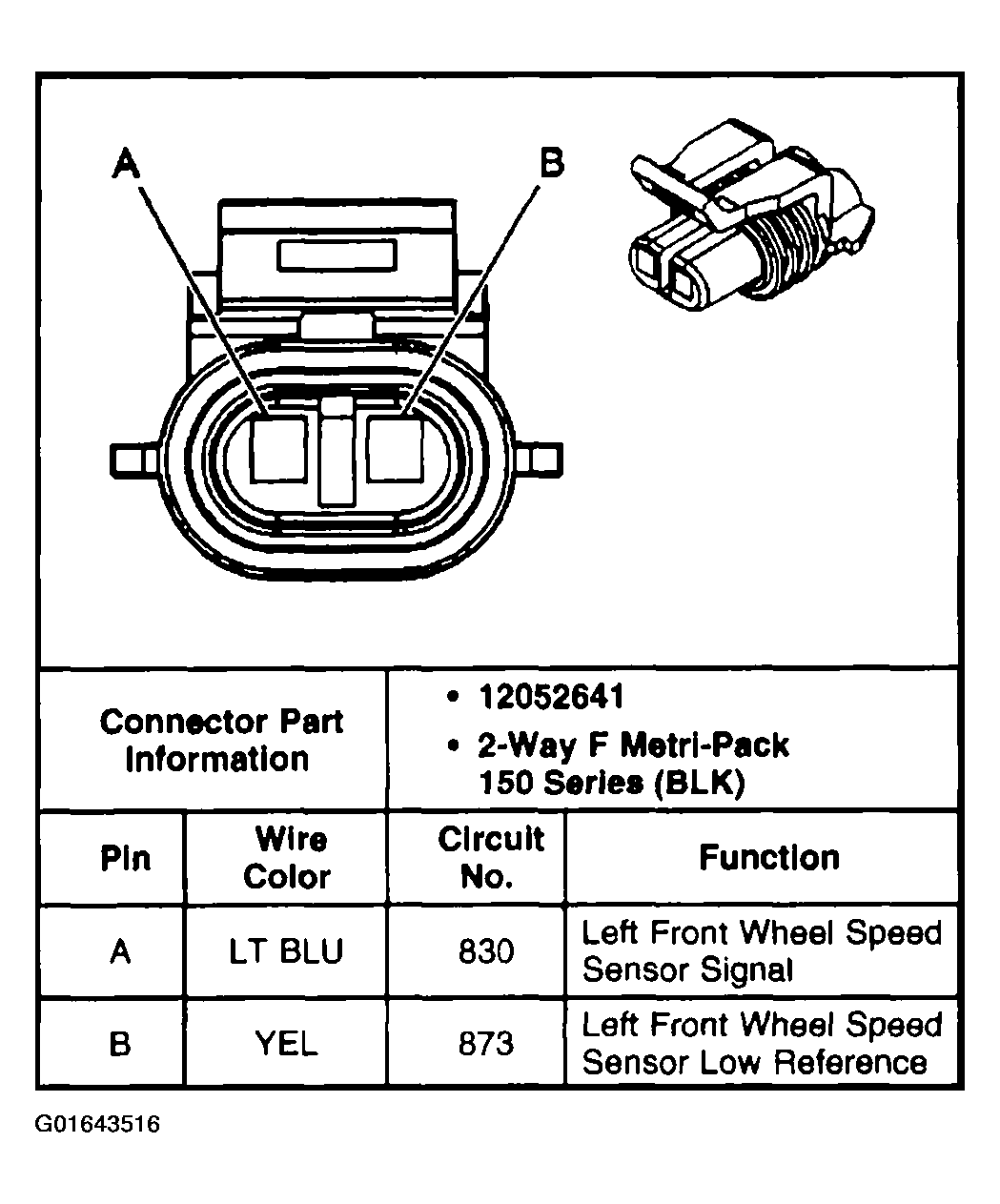

Fig 3: Identifying Wheel Speed Sensor (WSS) Connector Terminals - LF

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Wheel Speed Sensor (WSS) Connector Terminals - RF

Courtesy of GENERAL MOTORS CORP.
