Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front license plate bracket to the bumper.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the front license plate bracket retaining bolts to the bumper.

    Tighten

    Tighten the front license plate bracket retaining bolts to 3 N.m (27 lb in).

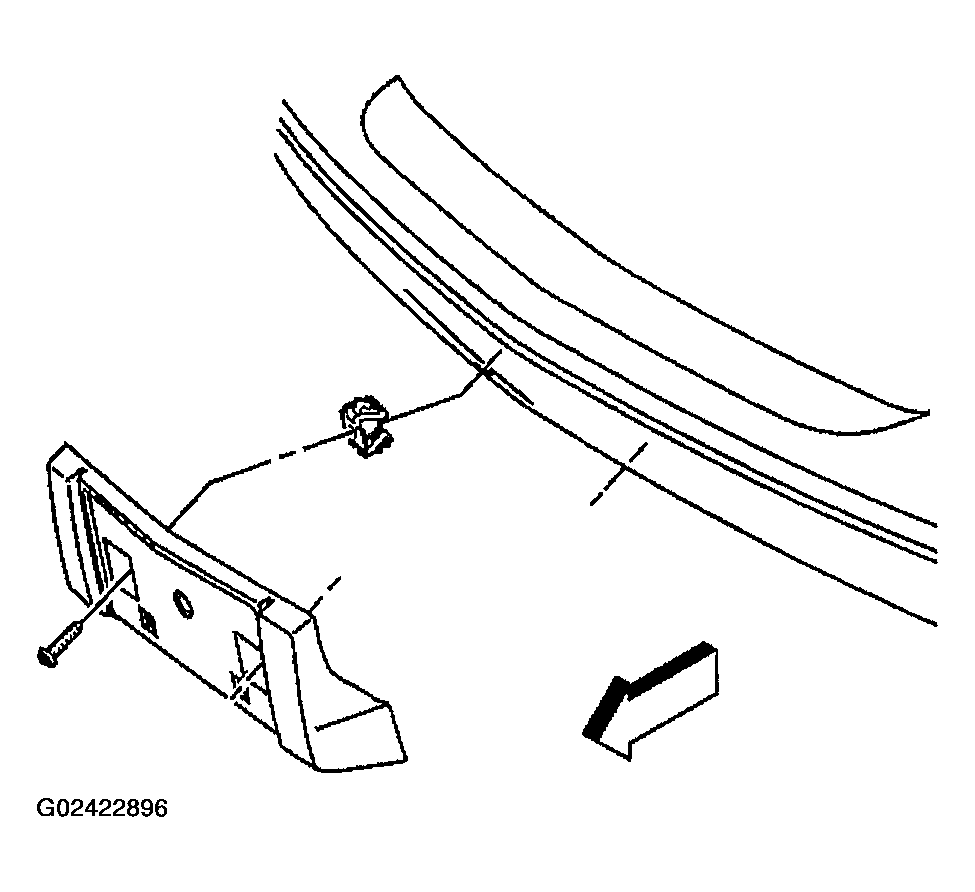

    Fig 1: Installing Front License Plate Bracket
    G02422896Courtesy of GENERAL MOTORS CORP.
