Drive Belt: Service and Repair

Drive Belt Replacement

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the front fender liner.

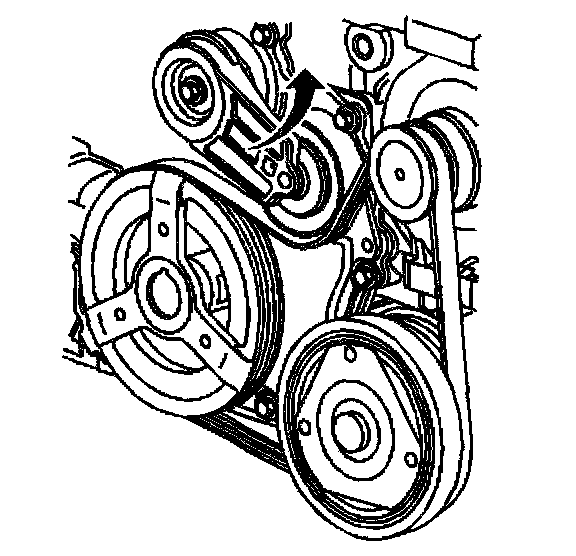

3. Rotate the drive belt tensioner counter-clockwise to release the spring tension.
4. Remove the drive belt.

Installation Procedure





1. Rotate the drive belt tensioner counter-clockwise to release the spring tension.
2. Install the drive belt.
3. Install the front fender liner.
4. Lower the vehicle.
