Installation Procedure

  1. Install the assist handle (2) to the seatback (1).
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the screws (3) that retain the assist handle to the seatback.

    Tighten

    Tighten the screws to 5 N.m (44 lb in).

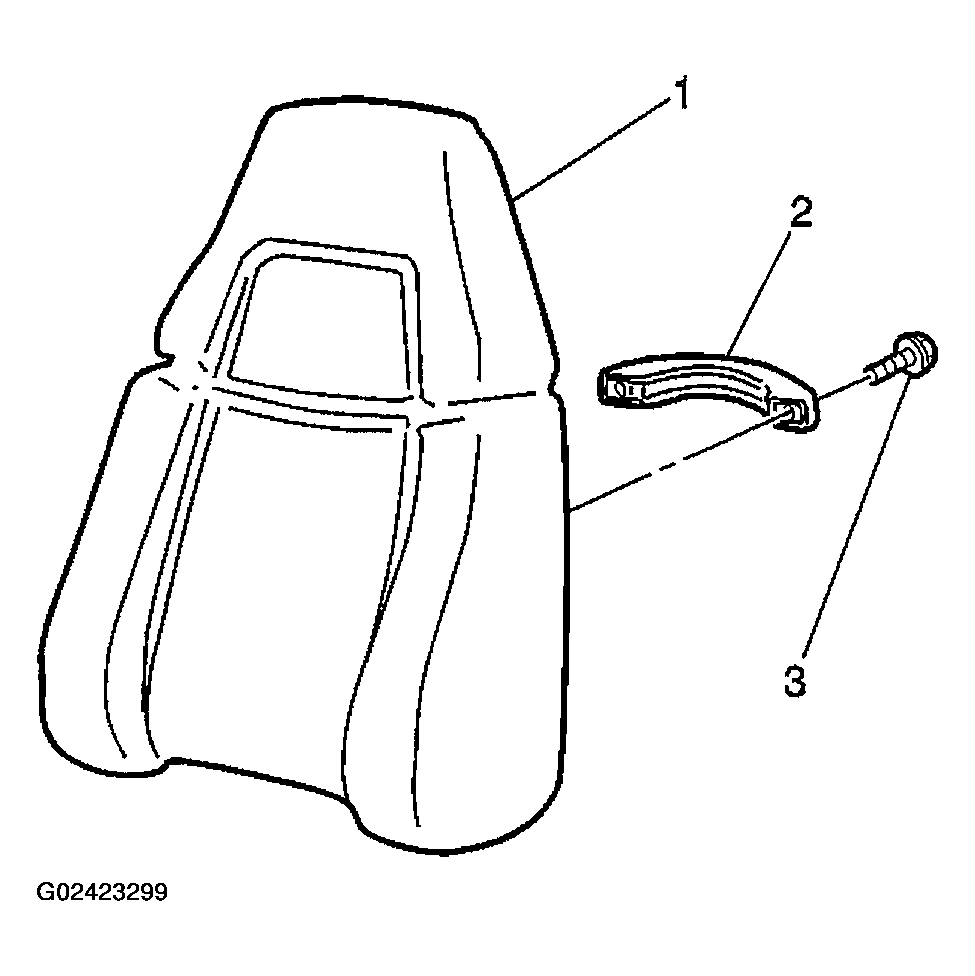

    Fig 1: Installing Assist Handle
    G02423299Courtesy of GENERAL MOTORS CORP.
