Installation Procedure

  1. Position the front seat assembly into the vehicle.
    CAUTION: Refer to FASTENER NOTICE .
  2. Install the nuts (3).

    Tighten

    Tighten the nuts to 60 N.m (44 lb ft).

  3. Connect the electrical connector to the seat assembly, if equipped with power seat motors.
  4. Enable the SIR. Refer to ZONE 3 or ZONE 5 .

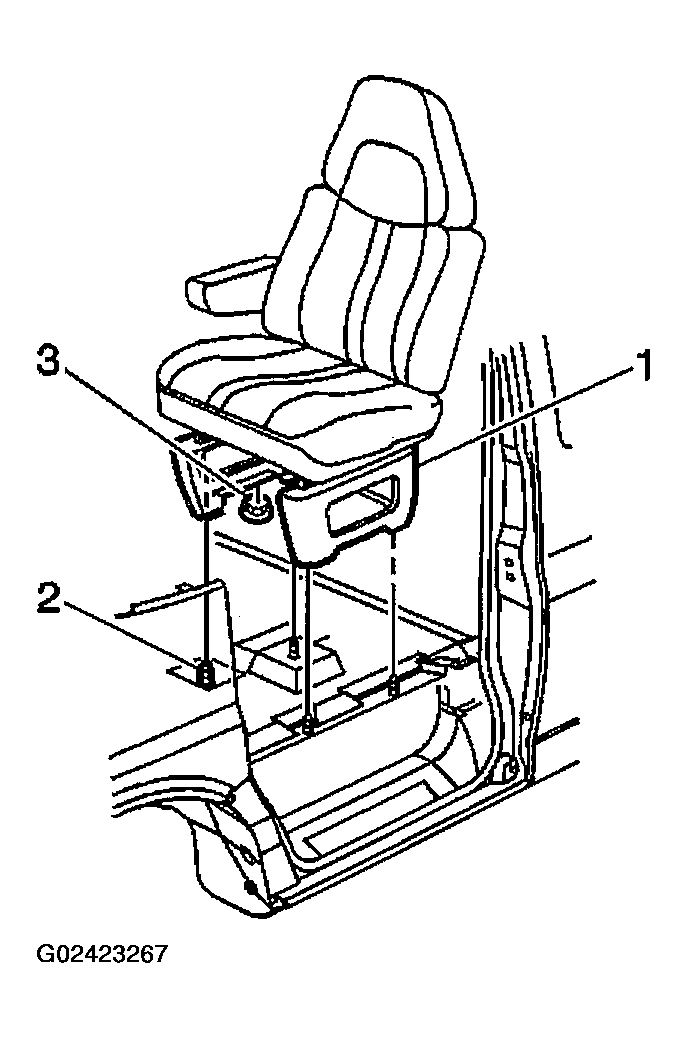

    Fig 1: Installing Seat Assembly
    G02423267Courtesy of GENERAL MOTORS CORP.
