Horns Component Views

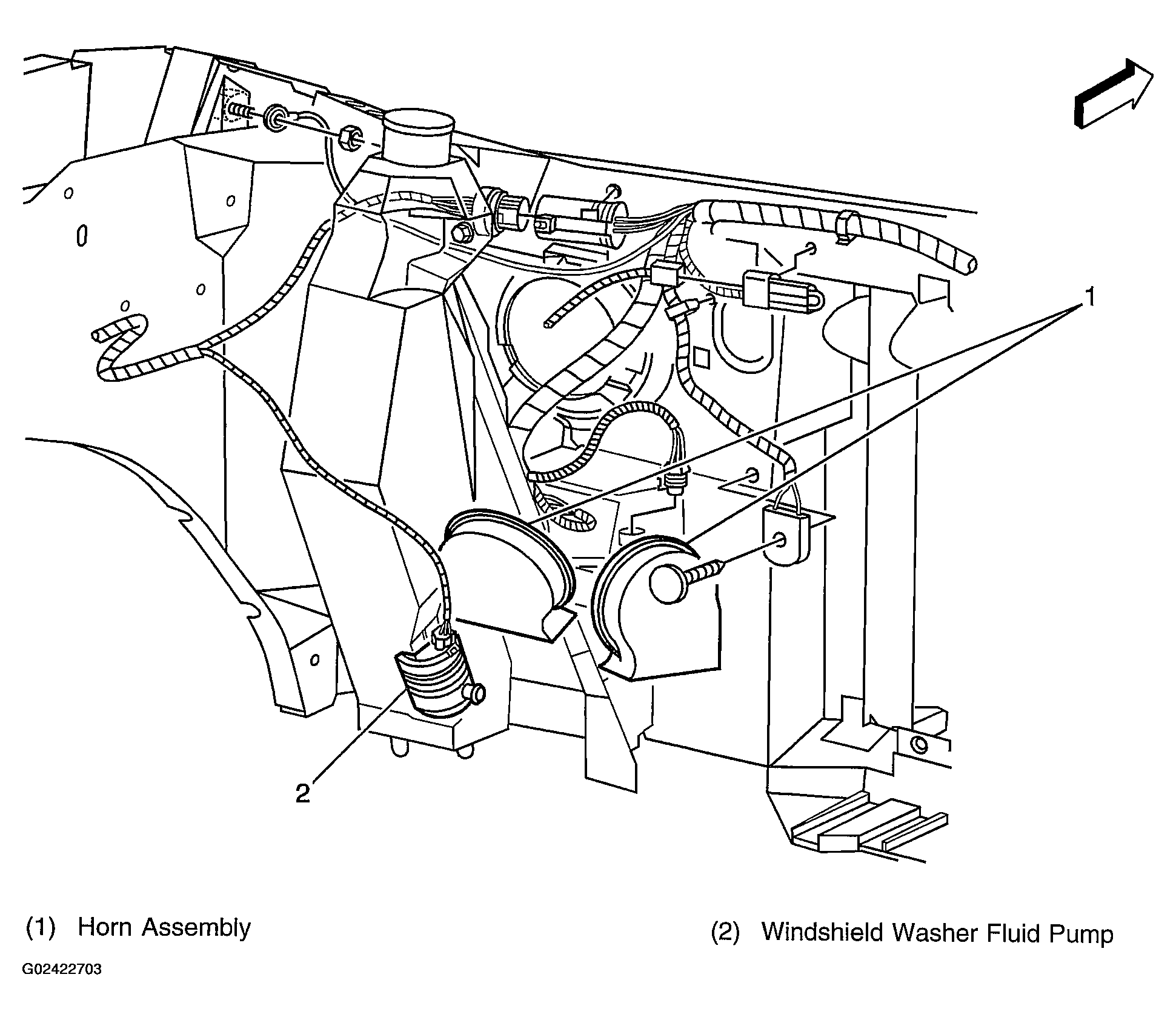

Fig 1: Locating Horn
G02422703Courtesy of GENERAL MOTORS CORP.

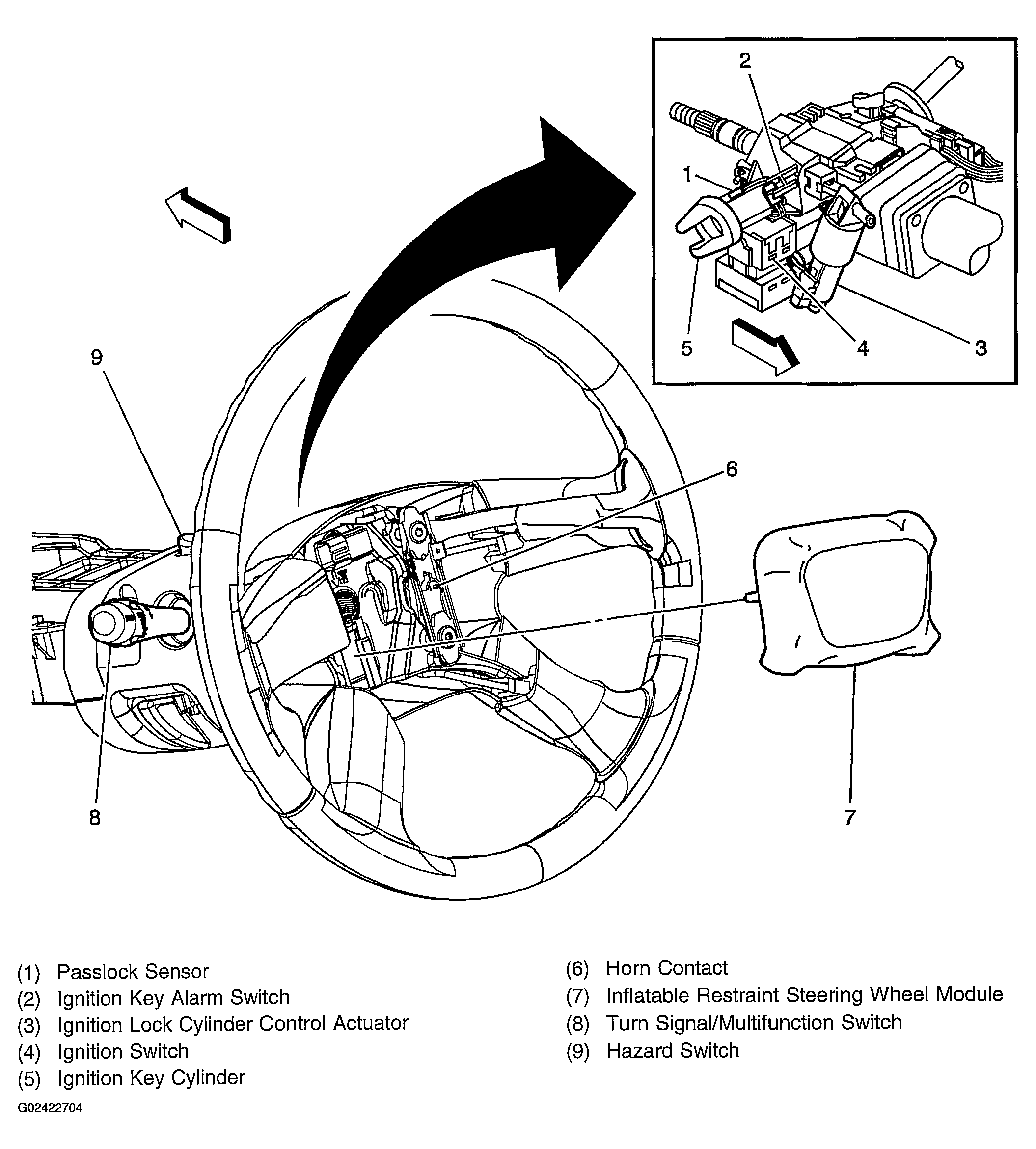

Fig 2: Locating Horn Contact Switch & Other Steering Column Switches
G02422704Courtesy of GENERAL MOTORS CORP.
