Component Locations

Fig 1: Locating CKP Sensor Connector, A/C High Pressure Switch Connector, A/C Compressor Clutch Connector & Engine Oil Level Switch Connector

Courtesy of GENERAL MOTORS CORP.

Fig 2: Locating Camshaft Position Sensor Connector

Courtesy of GENERAL MOTORS CORP.

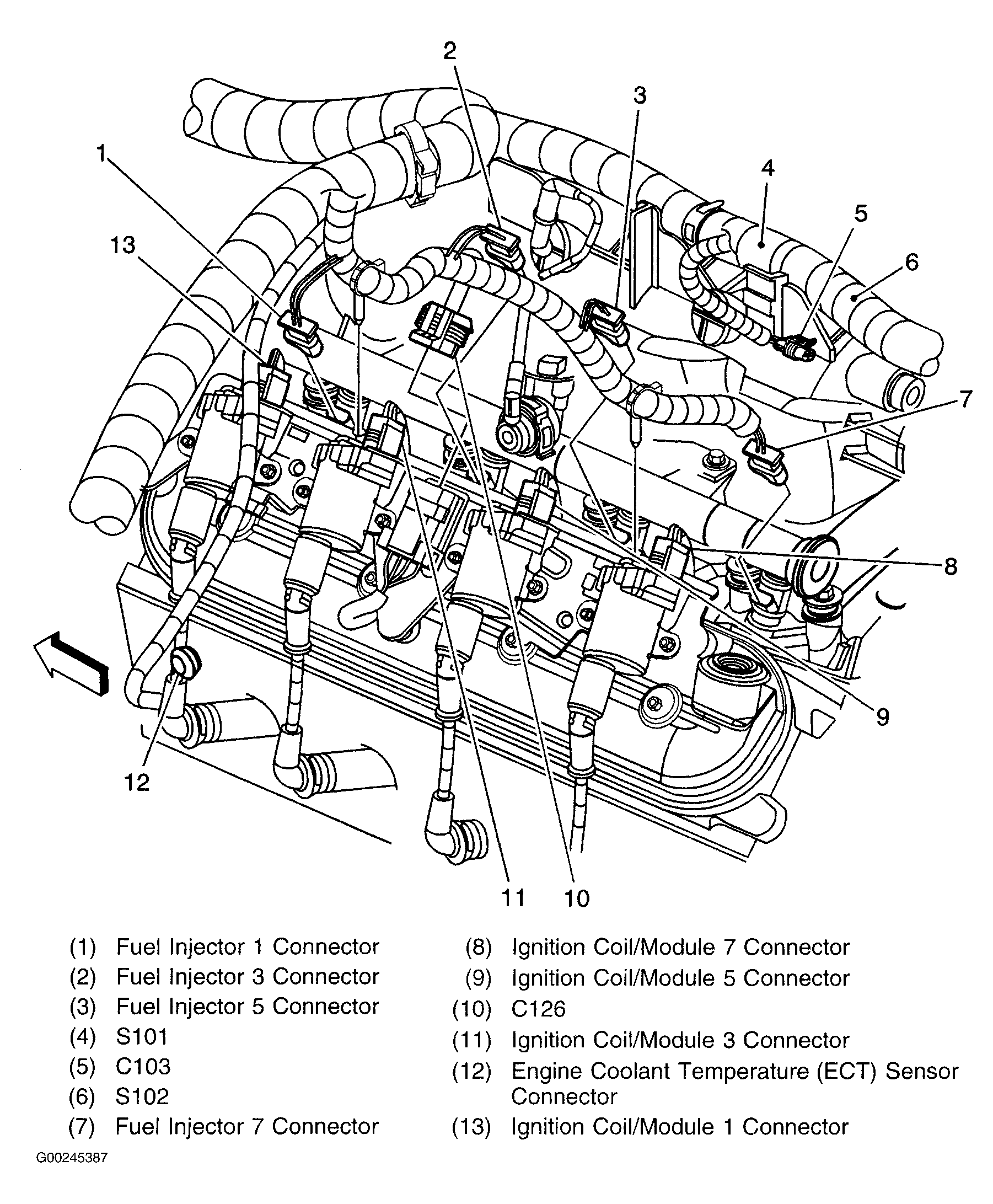

Fig 3: Locating Emission & Ignition Components - Left Bank

Courtesy of GENERAL MOTORS CORP.

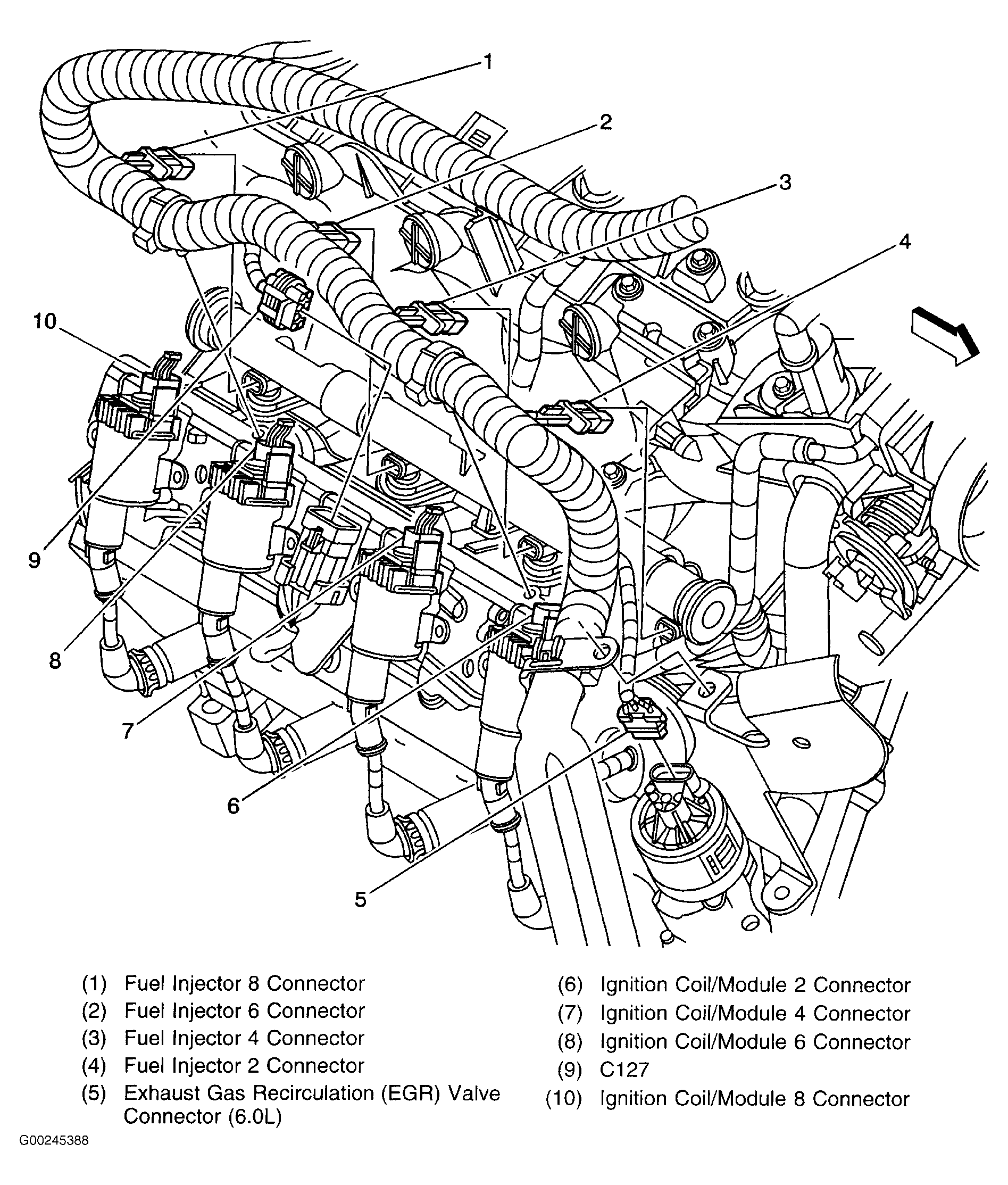

Fig 4: Locating Emission & Ignition Components - Right Bank

Courtesy of GENERAL MOTORS CORP.

Fig 5: Locating EVAP Canister Purge Solenoid, IAC Valve & TP Sensor

Courtesy of GENERAL MOTORS CORP.

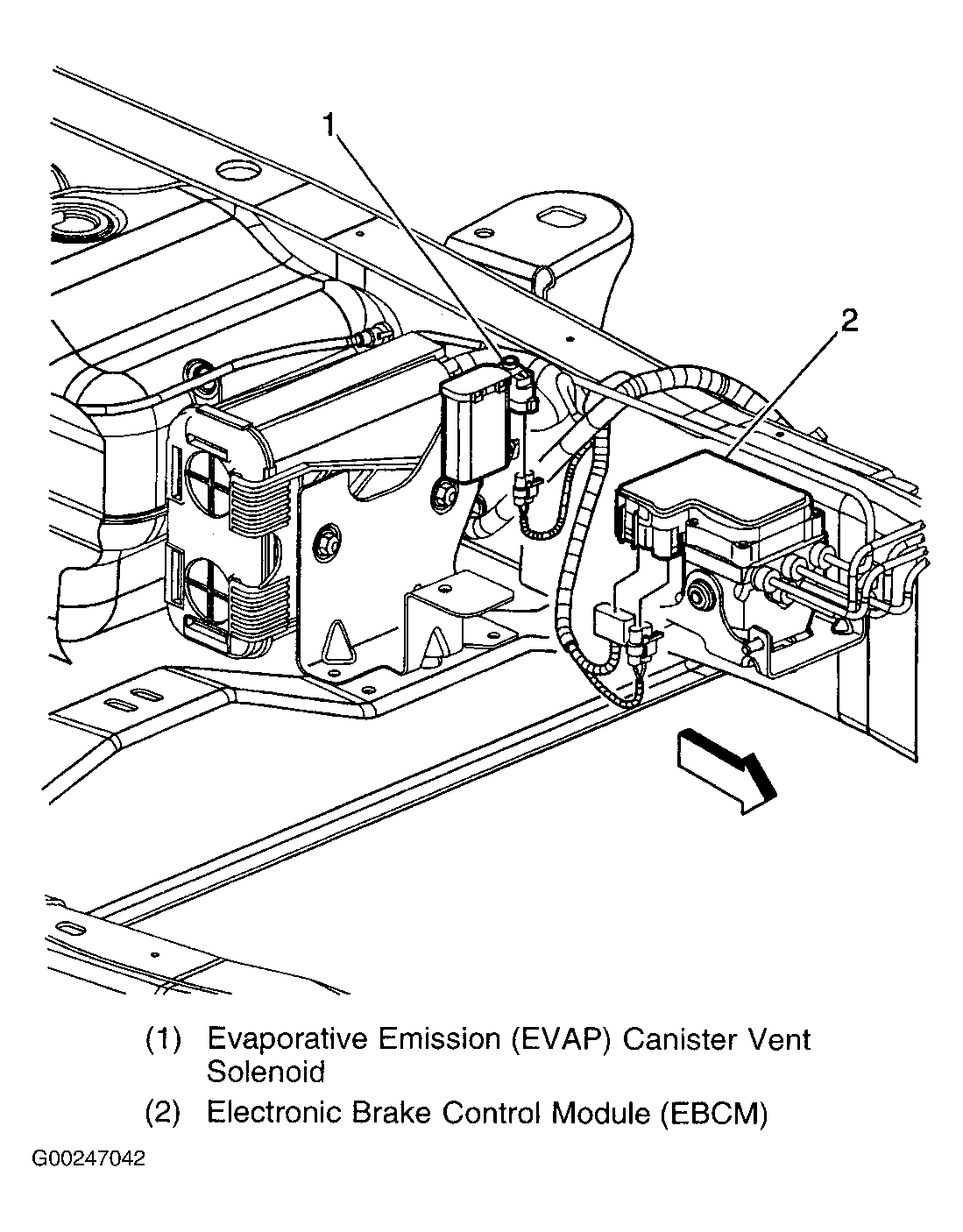

Fig 6: Locating EVAP Canister Vent Solenoid & EBCM

Courtesy of GENERAL MOTORS CORP.

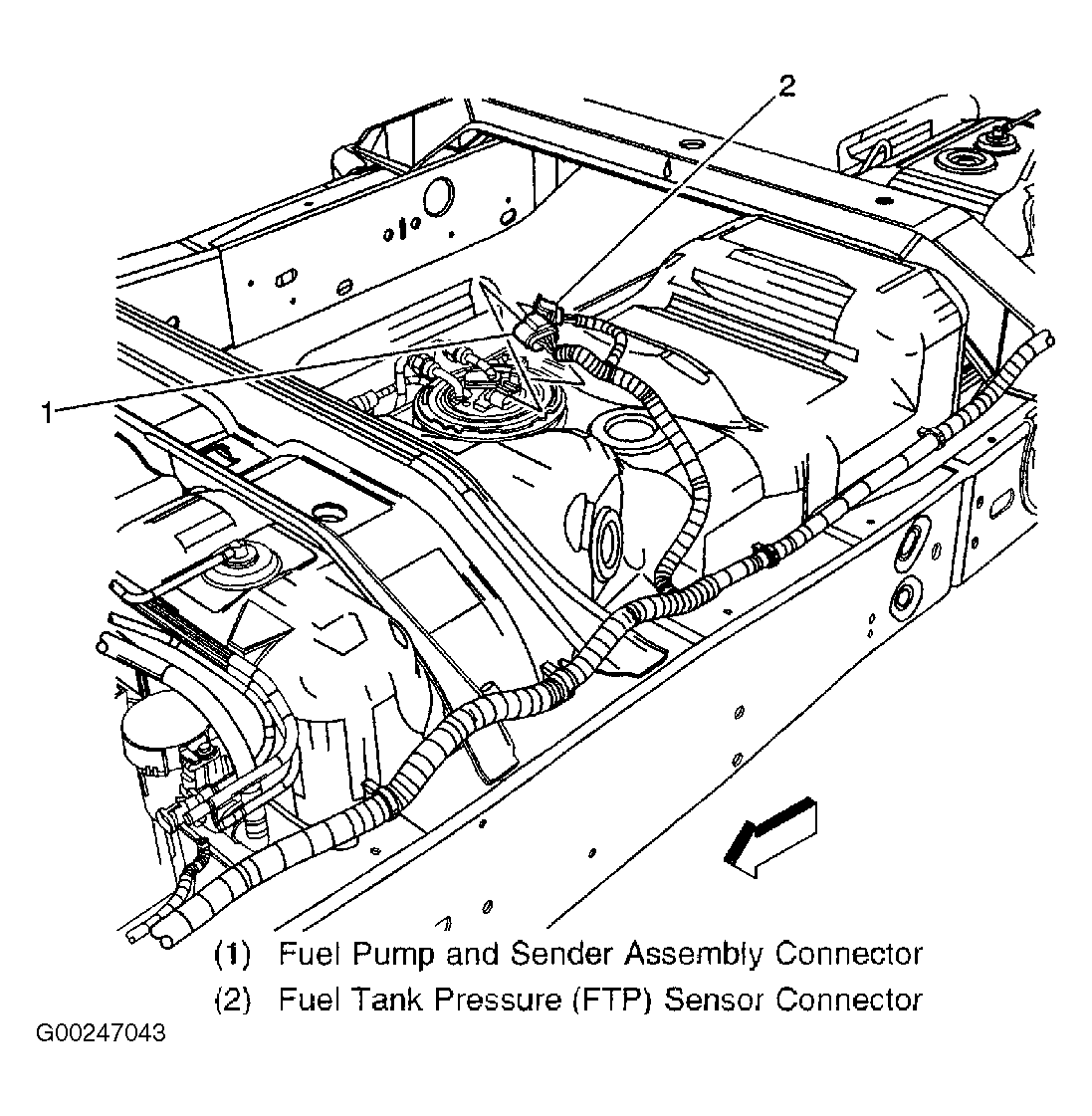

Fig 7: Locating Fuel Tank Components (With NE7)

Courtesy of GENERAL MOTORS CORP.

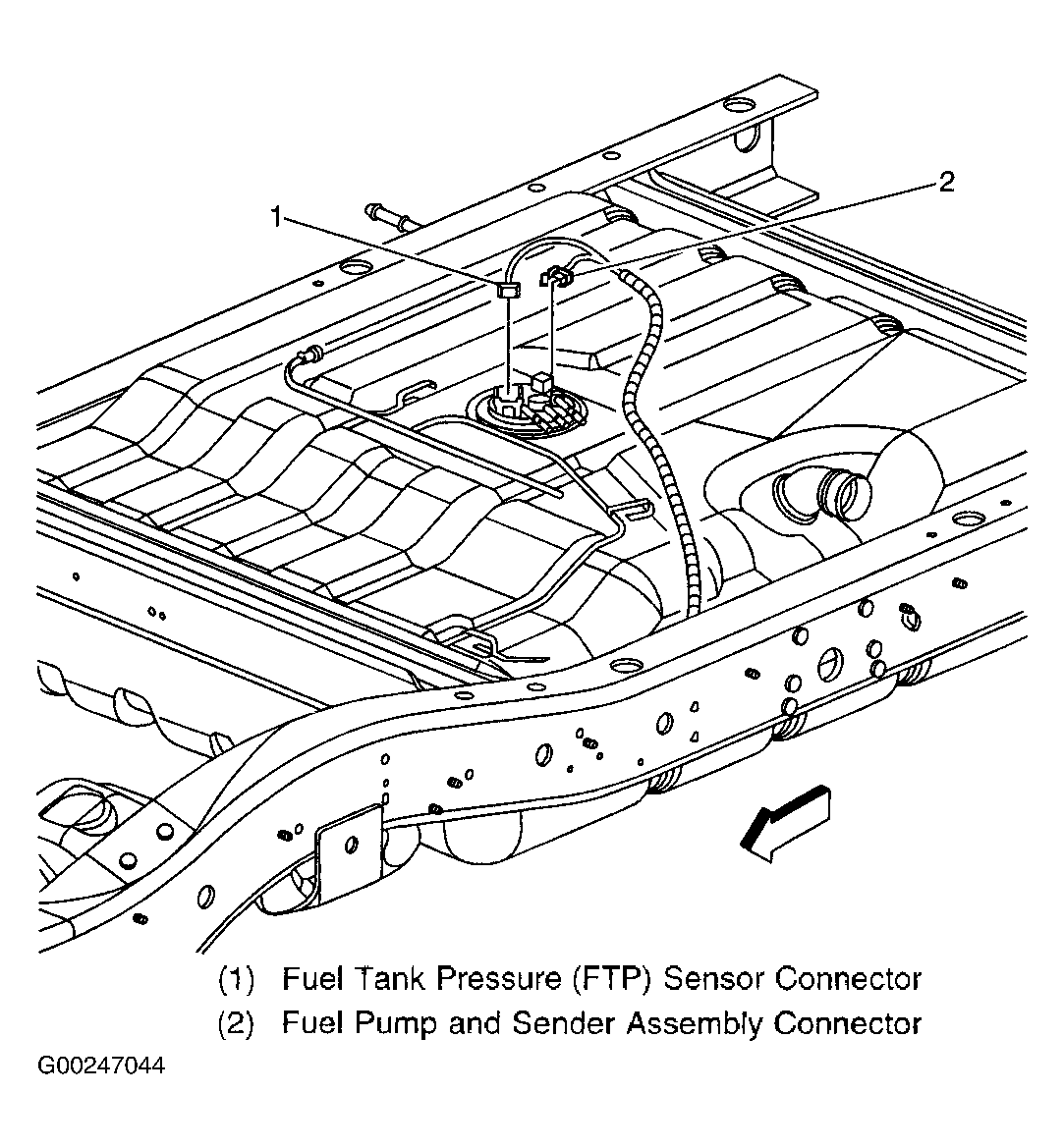

Fig 8: Locating Fuel Tank Components (Without NE7)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Locating IAT/MAF Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 10: Locating Knock Sensors

Courtesy of GENERAL MOTORS CORP.

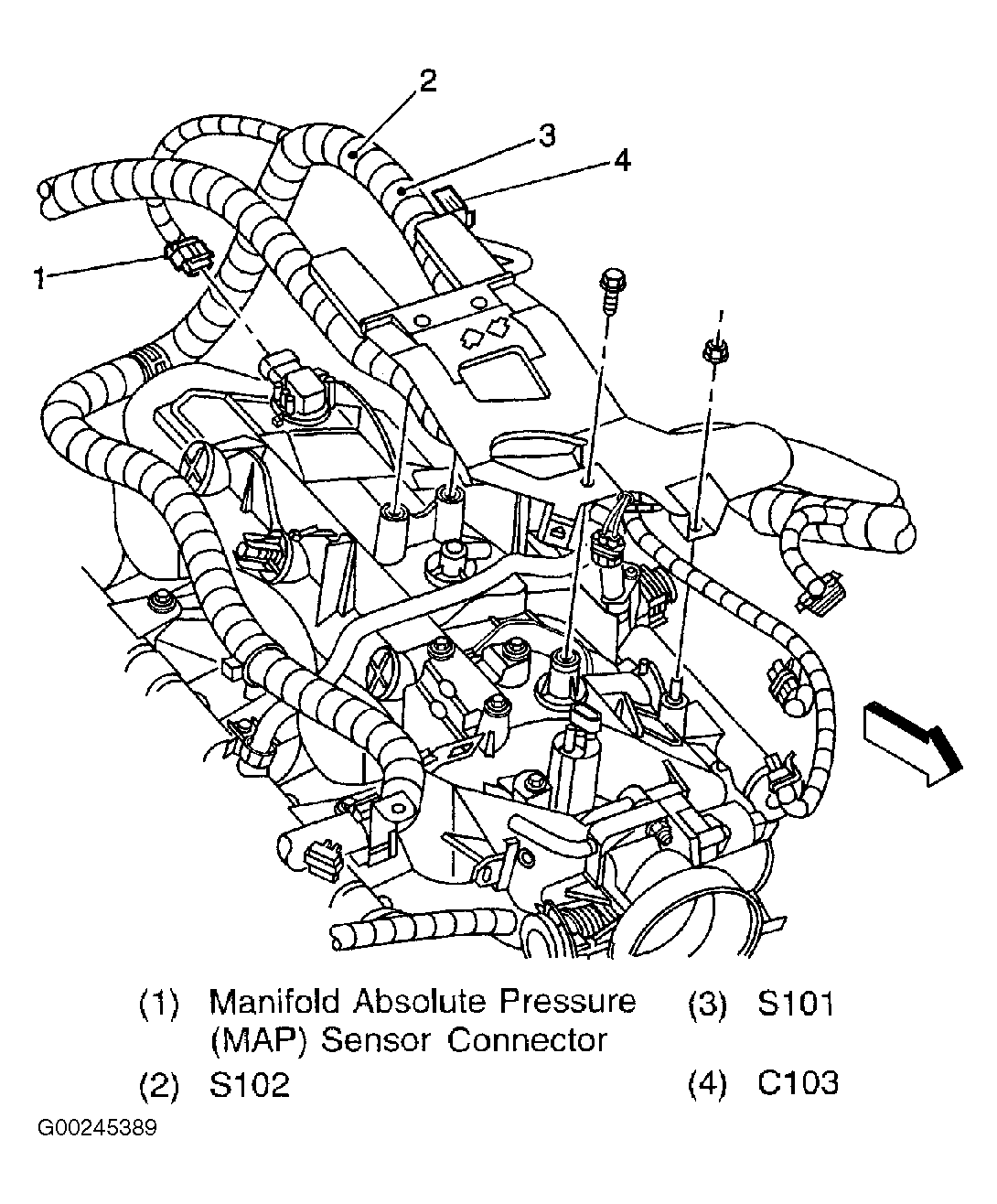

Fig 11: Locating MAP Sensor

Courtesy of GENERAL MOTORS CORP.

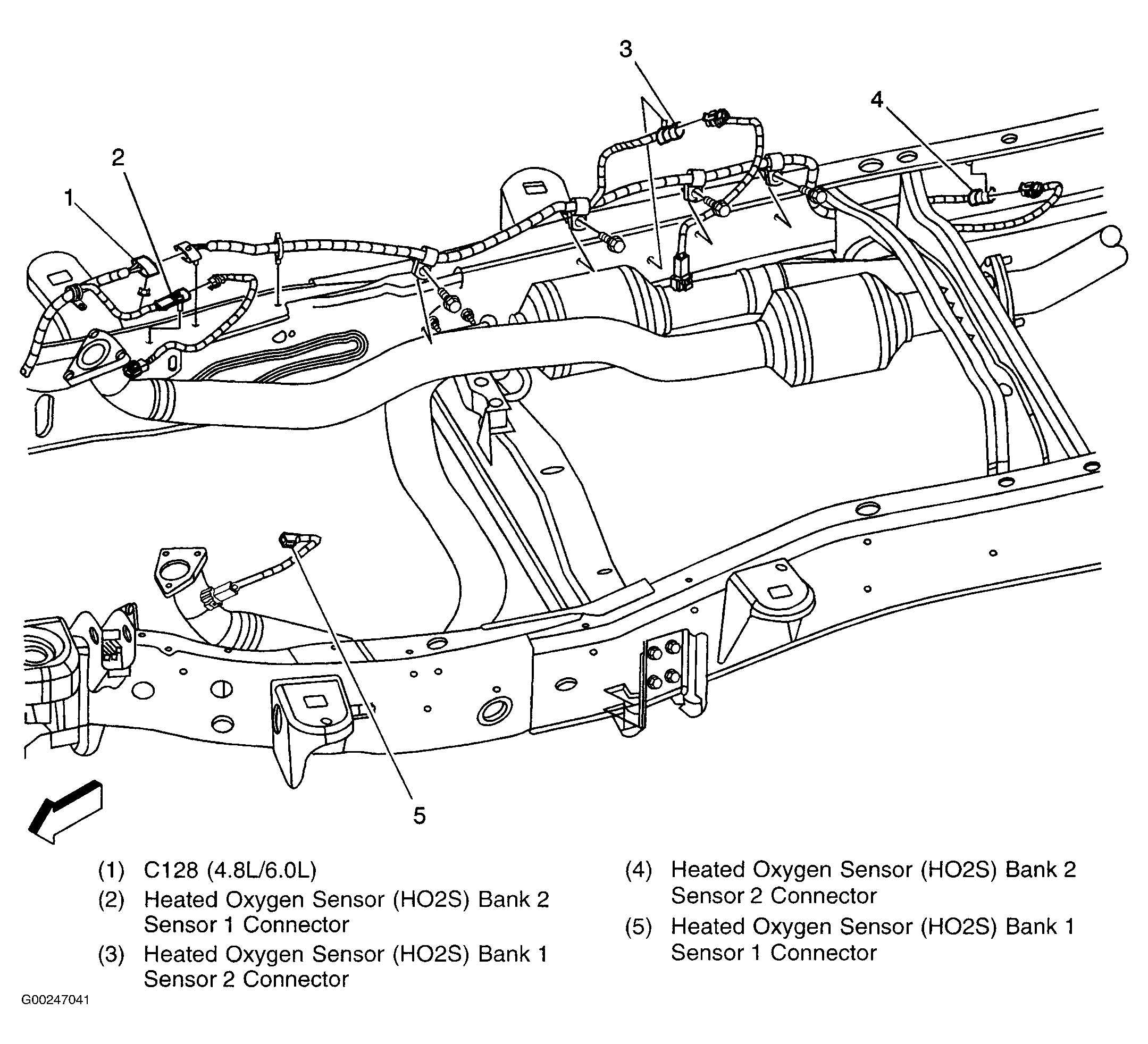

Fig 12: Locating Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 13: Locating PCM

Courtesy of GENERAL MOTORS CORP.
