Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
Support the lower control arm with a safety stand.
Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Remove the stabilizer shaft links from the lower control arm. Refer to STABILIZER SHAFT REPLACEMENT .

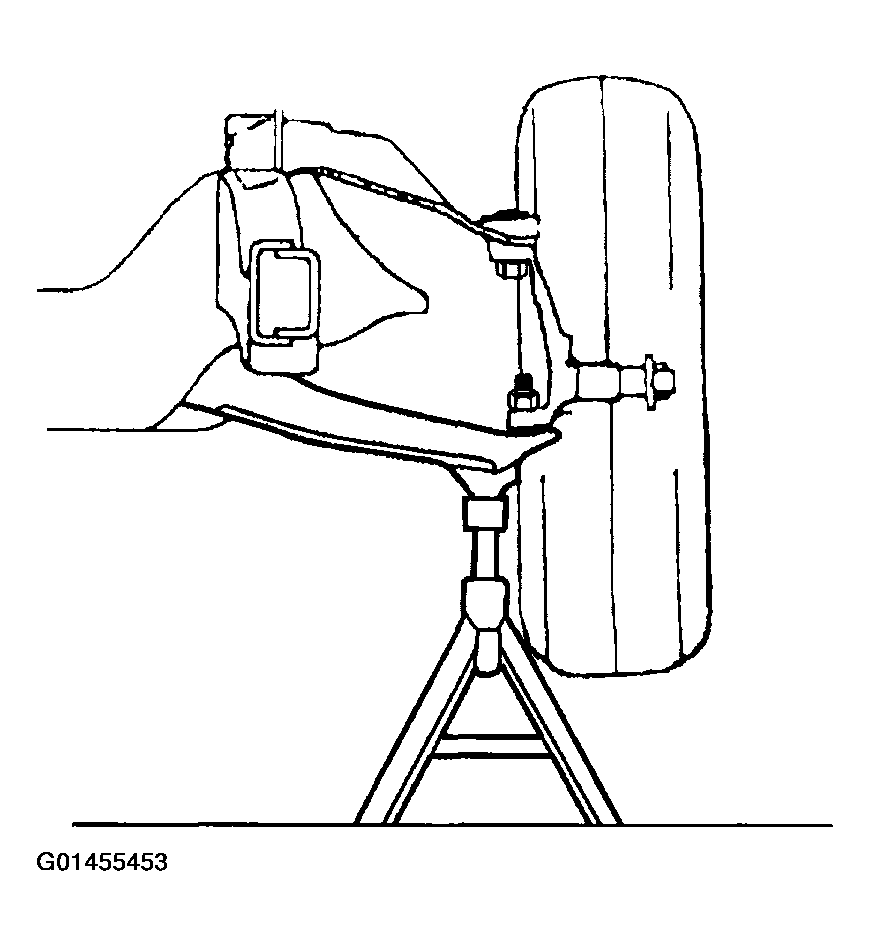

Fig 1: Supporting Lower Control Arm With Safety Stand
Courtesy of GENERAL MOTORS CORP.
Remove the shock absorber lower nut and the bolt. Refer to SHOCK ABSORBER REPLACEMENT .
Remove the torsion bars. Refer to TORSION BAR REPLACEMENT .
Remove the wheel drive shaft. Refer to AXLE SHAFT in Wheel Drive Shafts.
Remove the lower ball joint retaining nut.

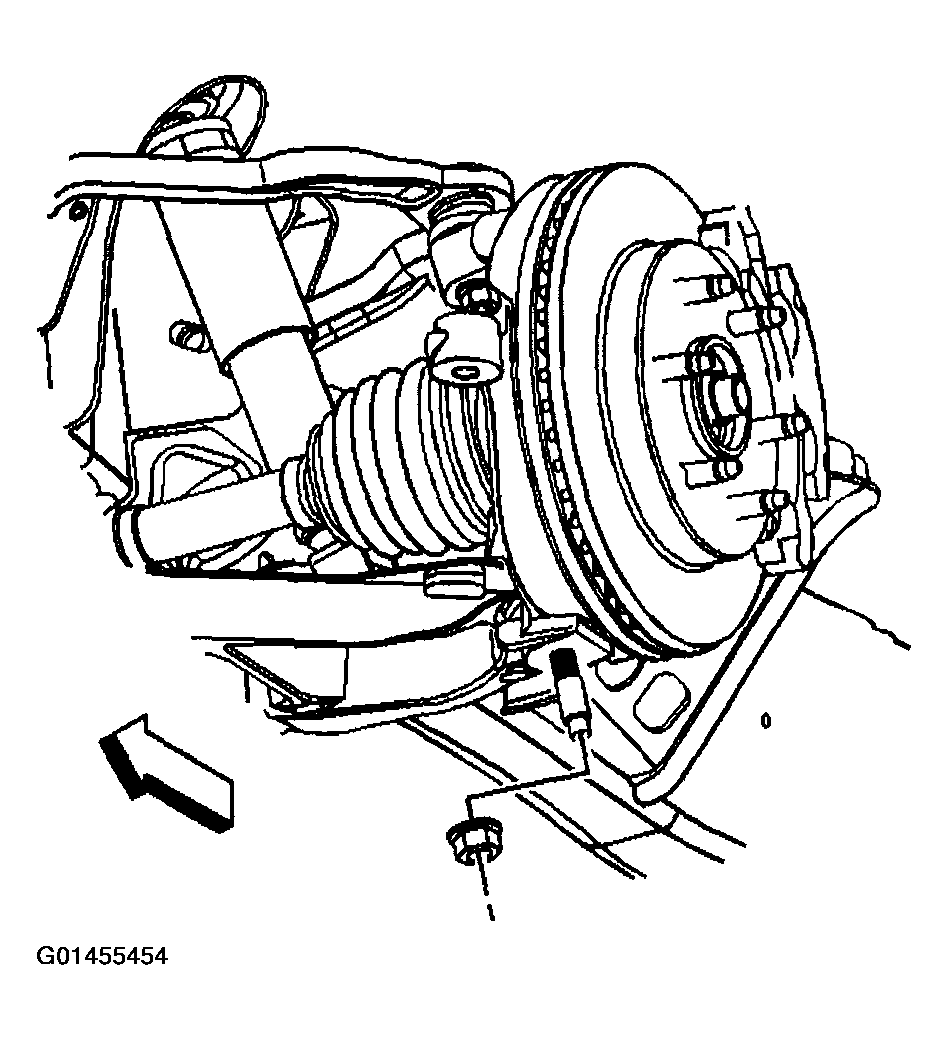

Fig 2: Removing Lower Ball Joint Retaining Nut
Courtesy of GENERAL MOTORS CORP.
Disconnect the lower ball joint stud from the steering knuckle using J 43631 and J 45851 .

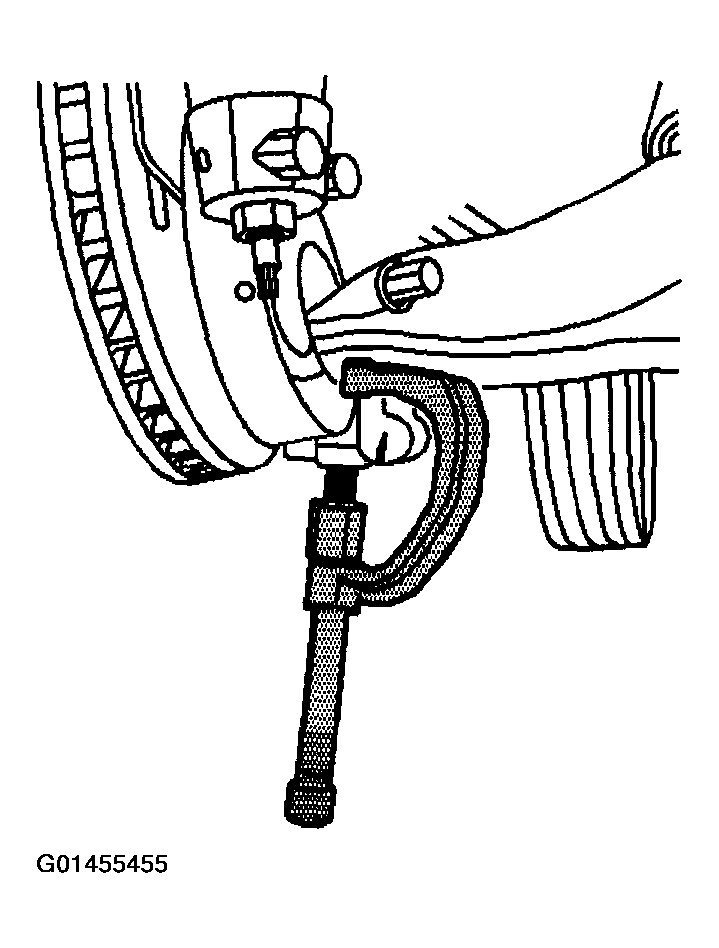

Fig 3: Disconnecting Lower Ball Joint Stud From Steering Knuckle Using J 43631 & J 45851
Courtesy of GENERAL MOTORS CORP.
Remove the lower control arm nuts and the 15-series washers.
Remove the lower control arm bolts.

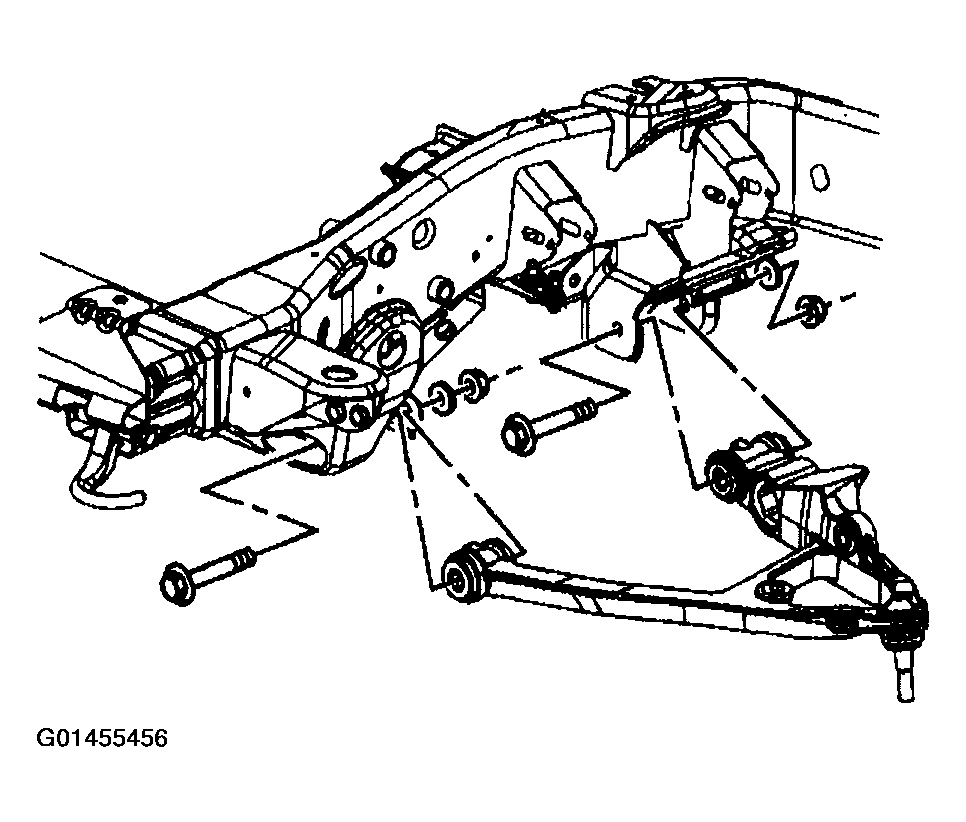

Fig 4: Removing Lower Control Arm Bolts & 15-Series Washers
Courtesy of GENERAL MOTORS CORP.
Remove the lower control arm nuts and the 25/35-series washers.
Remove the lower control arm bolts.
Remove the lower control arm.

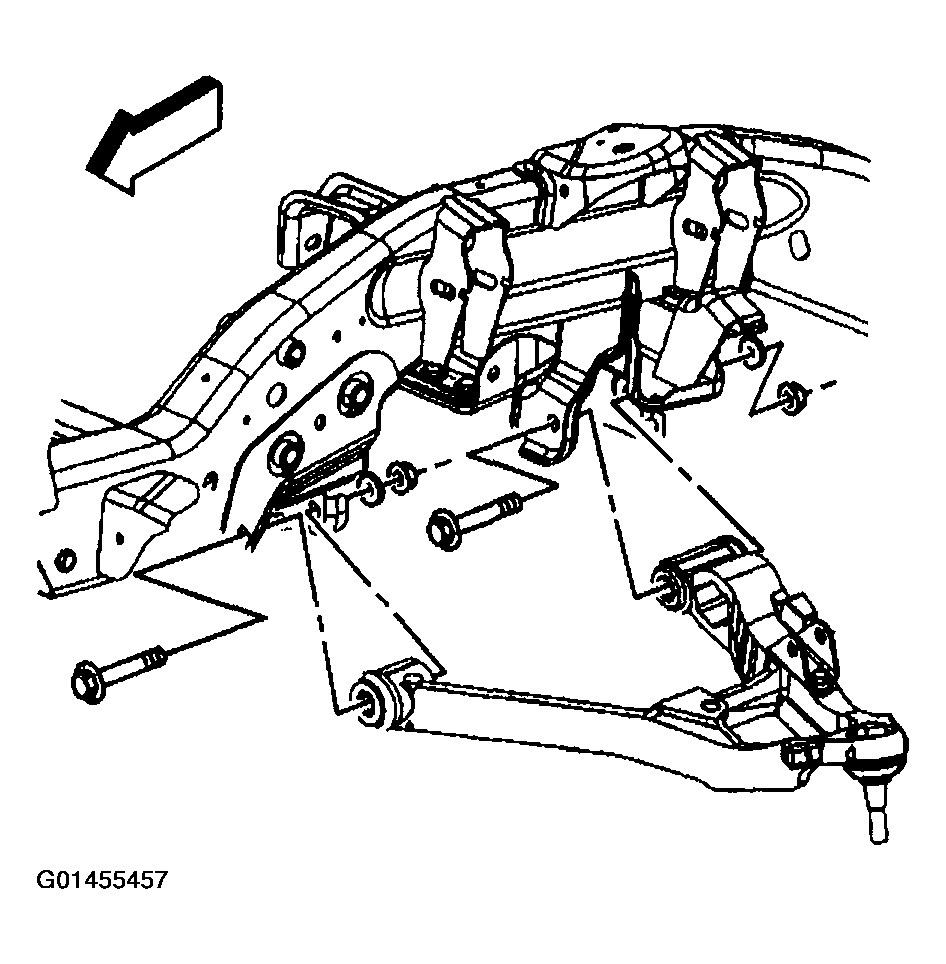

Fig 5: Removing Lower Control Arm Nuts & 25/35-Series Washers
Courtesy of GENERAL MOTORS CORP.
