Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

Important: Place the insulators on the stabilizer shaft with the slits facing toward the front of the vehicle.

Install the insulators (1) to the stabilizer shaft (4).
Install the stabilizer shaft (4).
Install the brackets (2) over the insulators and the stabilizer shaft.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
Install insulator bracket bolts (3).
Tighten
1. Tighten the bolts to 33 N.m (24 lb ft), 15 series.
2. Tighten the bolts to 50 N.m (39 lb ft), 25/35 series.
Install the stabilizer links. Refer to STABILIZER SHAFT LINK REPLACEMENT .

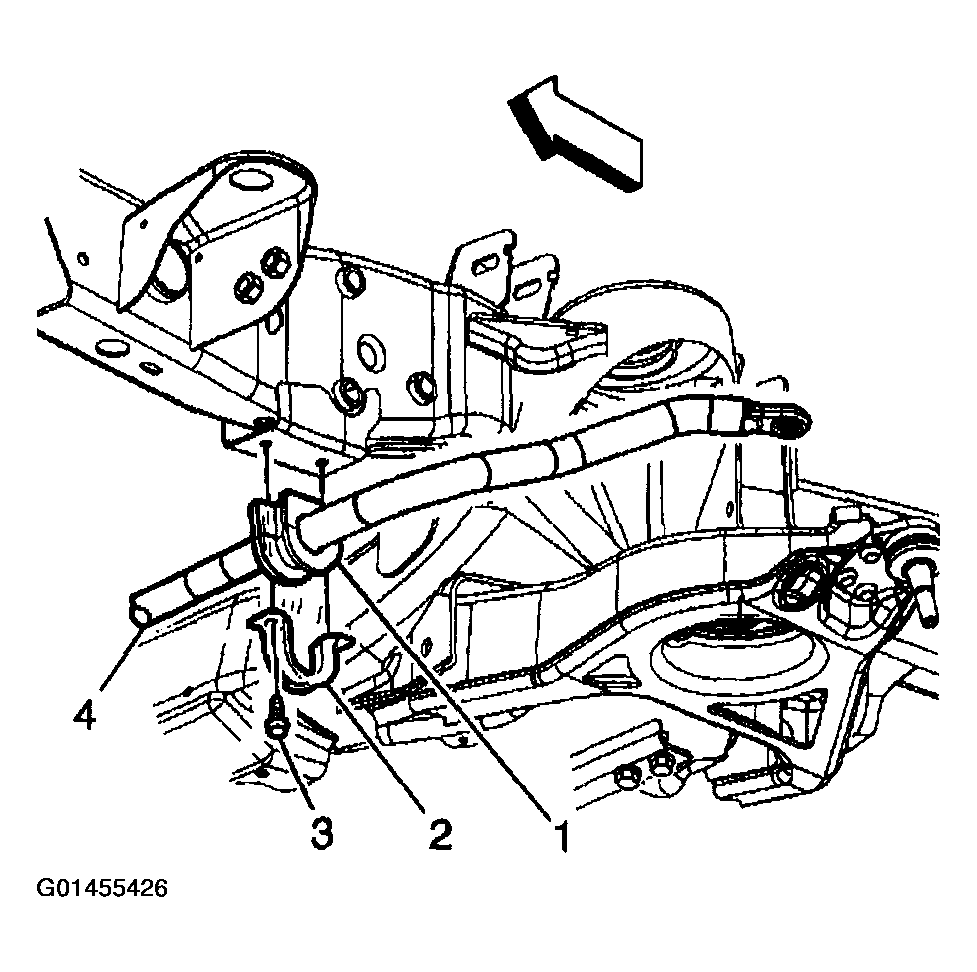

Fig 1: Installing Stabilizer Shaft Insulator Bracket & Bolts
Courtesy of GENERAL MOTORS CORP.
Install the oil pan skid plate, if equipped.
Tighten

Tighten the oil pan skid plate retaining bolts to 20 N.m (15 lb ft).
Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
Remove the safety stands
Lower the vehicle.

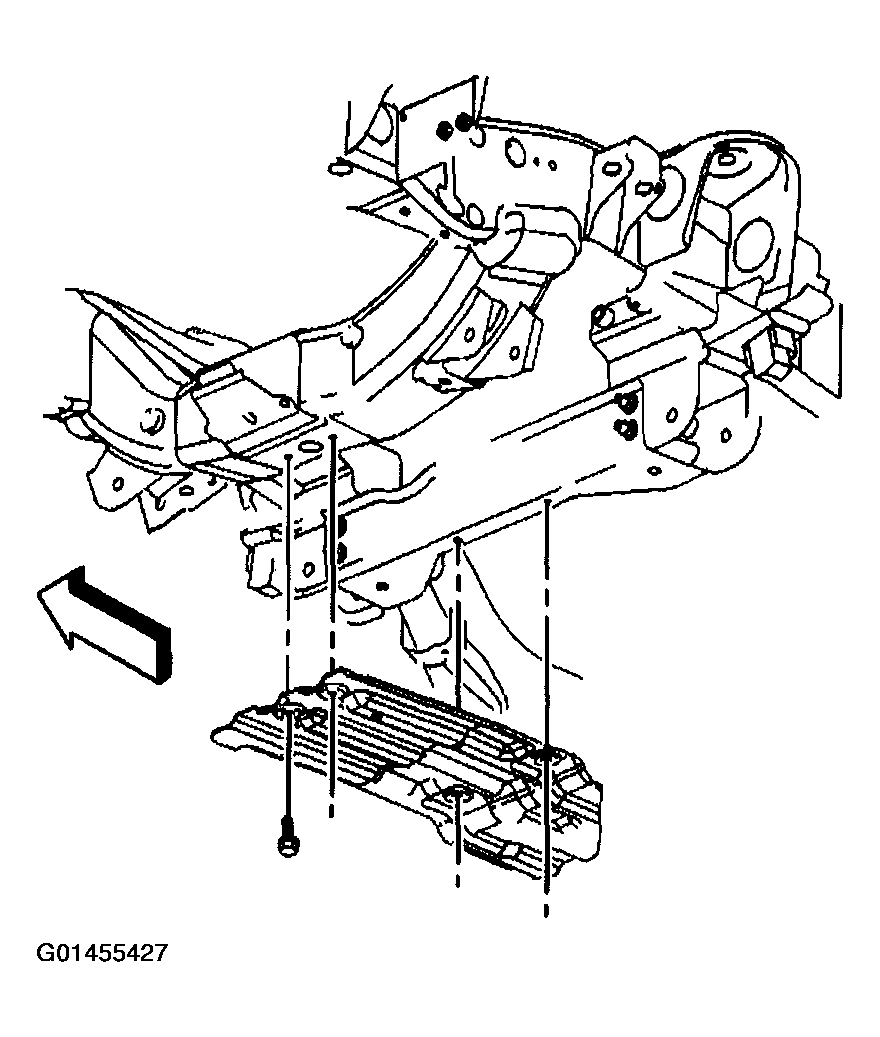

Fig 2: Installing Oil Pan Skid Plate
Courtesy of GENERAL MOTORS CORP.
