Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the stabilizer links. Refer to STABILIZER SHAFT LINK REPLACEMENT  .
  4. Remove the oil pan skid plate, if equipped.

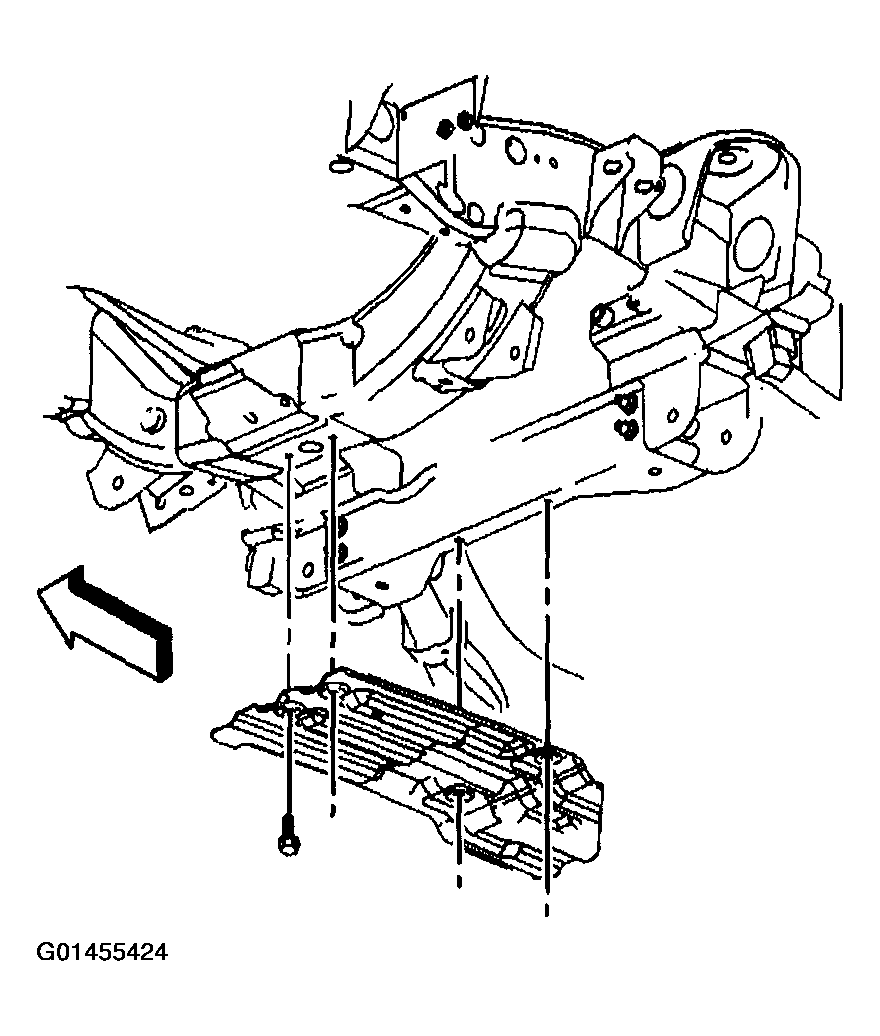

    Fig 1: Removing Oil Pan Skid Plate
    G01455424Courtesy of GENERAL MOTORS CORP.
  5. Remove the stabilizer shaft insulator bracket bolts (3).
  6. Remove the stabilizer shaft bracket (2).
  7. Remove the stabilizer shaft (4).
  8. Remove the stabilizer shaft insulators (1).
  9. Inspect all of the parts for wear and damage.

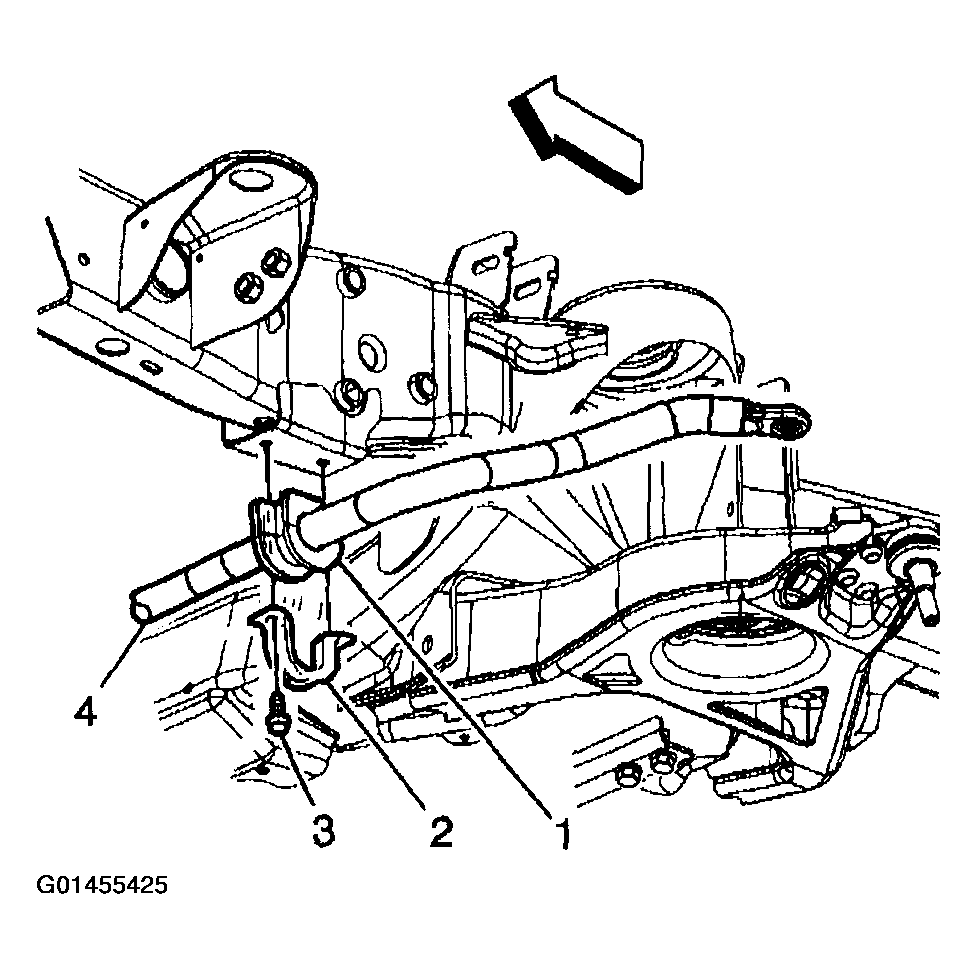

    Fig 2: Removing Stabilizer Shaft Insulator Bracket & Bolts
    G01455425Courtesy of GENERAL MOTORS CORP.
