Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Disconnect the electronic suspension control (ESC) link rod from the sensor, if equipped. Refer to FRONT POSITION SENSOR LINK ASSEMBLY REPLACEMENT - ELECTRONIC SUSPENSION in Electronic Suspension Control under REPAIR INSTRUCTIONS .
  4. Remove the retaining bolt for the brake hose and the wheel speed sensor brackets.

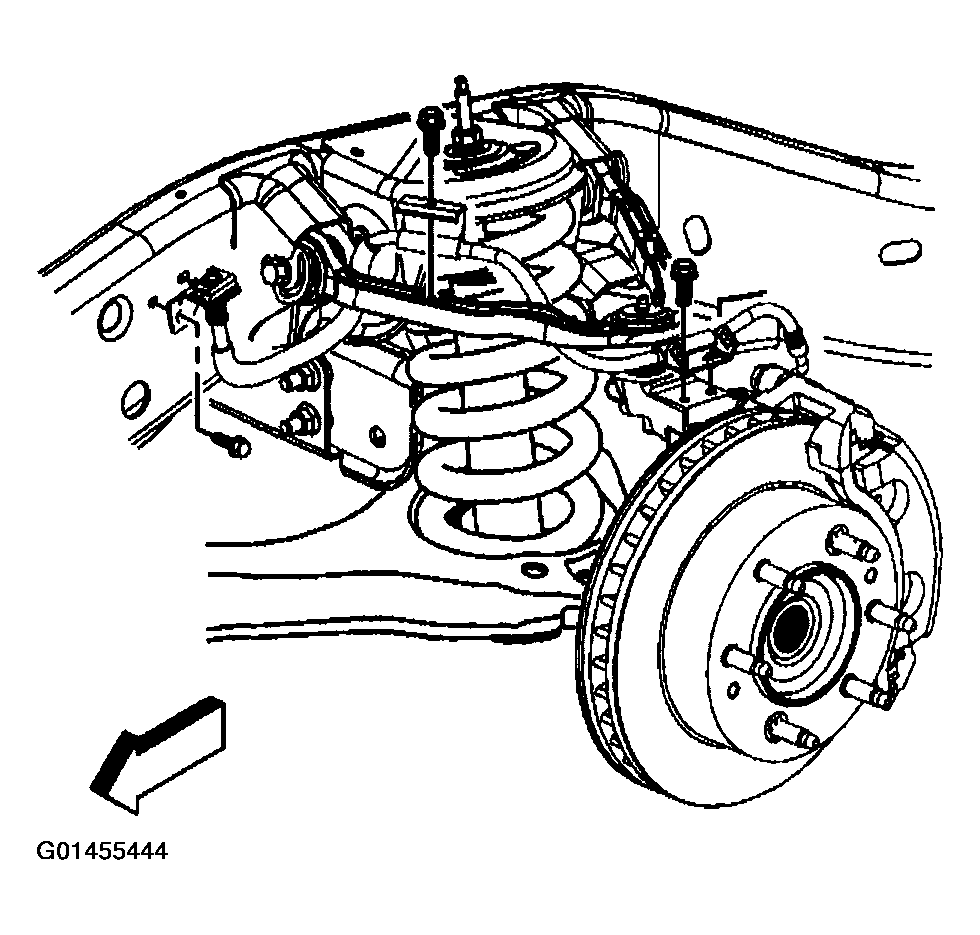

    Fig 1: Removing Retaining Bolt For Brake Hose & Wheel Speed Sensor Brackets
    G01455444Courtesy of GENERAL MOTORS CORP.
  5. Remove the wheel drive shaft. Refer to AXLE SHAFT in Wheel Drive Shafts.
  6. Remove the upper ball joint retaining nut.

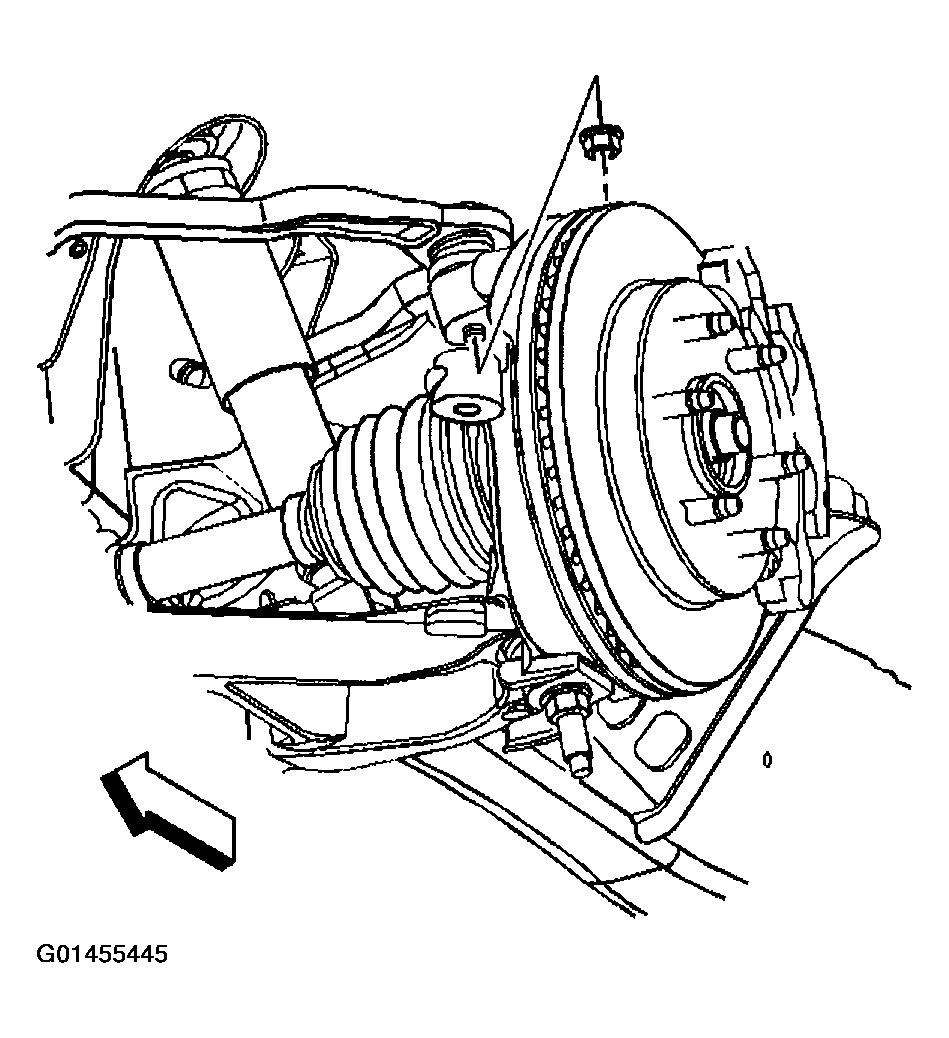

    Fig 2: Removing Upper Ball Joint Retaining Nut
    G01455445Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the upper control arm from the steering knuckle using the J 43631  and J 45851  .

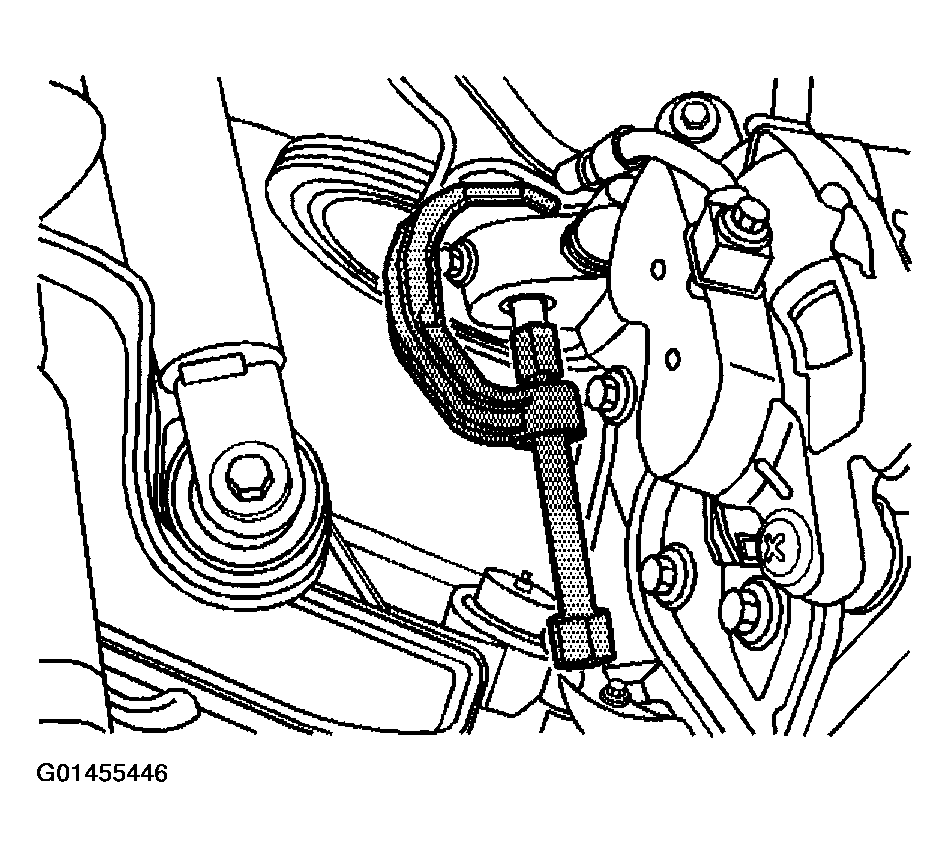

    Fig 3: Disconnecting Upper Control Arm From Steering Knuckle Using J 43631 & J 45851
    G01455446Courtesy of GENERAL MOTORS CORP.
  8. Remove the upper control arm nuts and the adjustment cams (2) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD.
  9. Remove the upper control arm bolts (4) for the 15 Series 2WD, 4WD, and 25/35 Series 2WD.

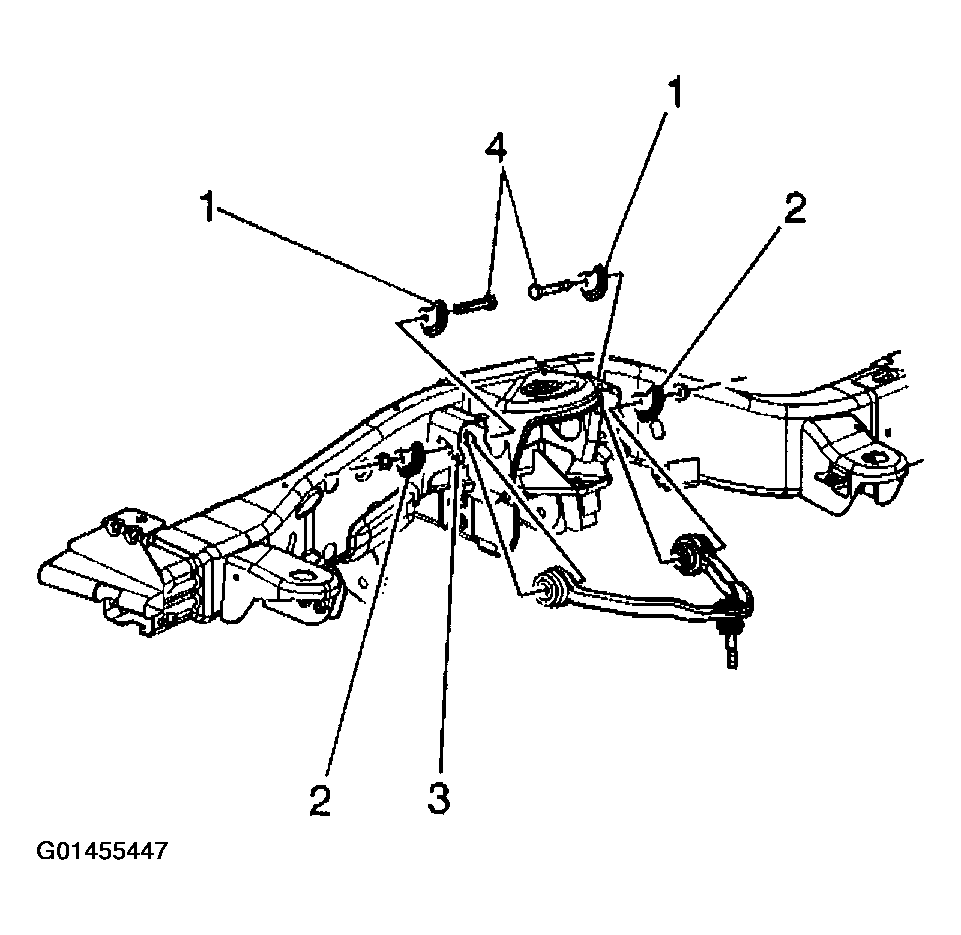

    Fig 4: Removing Upper Control Arm Bolts & Nuts
    G01455447Courtesy of GENERAL MOTORS CORP.
  10. Remove the upper control arm nuts and the adjustment cams (2) for the 25/35 Series 4WD.
  11. Remove the upper control arm bolts (4) for the 25/35 Series 4WD.
  12. Remove the upper control arm.

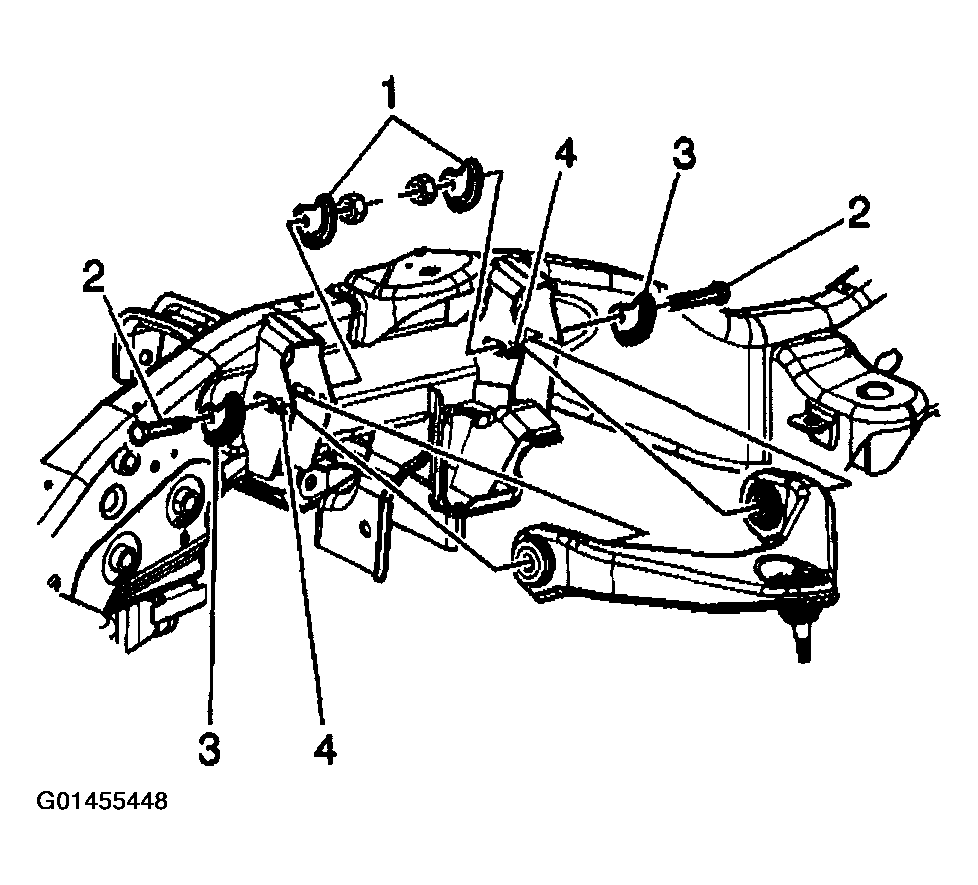

    Fig 5: Removing Upper Control Arm & Bolts
    G01455448Courtesy of GENERAL MOTORS CORP.
