Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE in General Information.
  2. Remove the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  3. Remove the brake rotor. Refer to BRAKE ROTOR in Disc Brakes.
  4. Remove the wheel stud from the hub flange using the J 43631  .
  5. Remove the wheel stud from the hub flange.

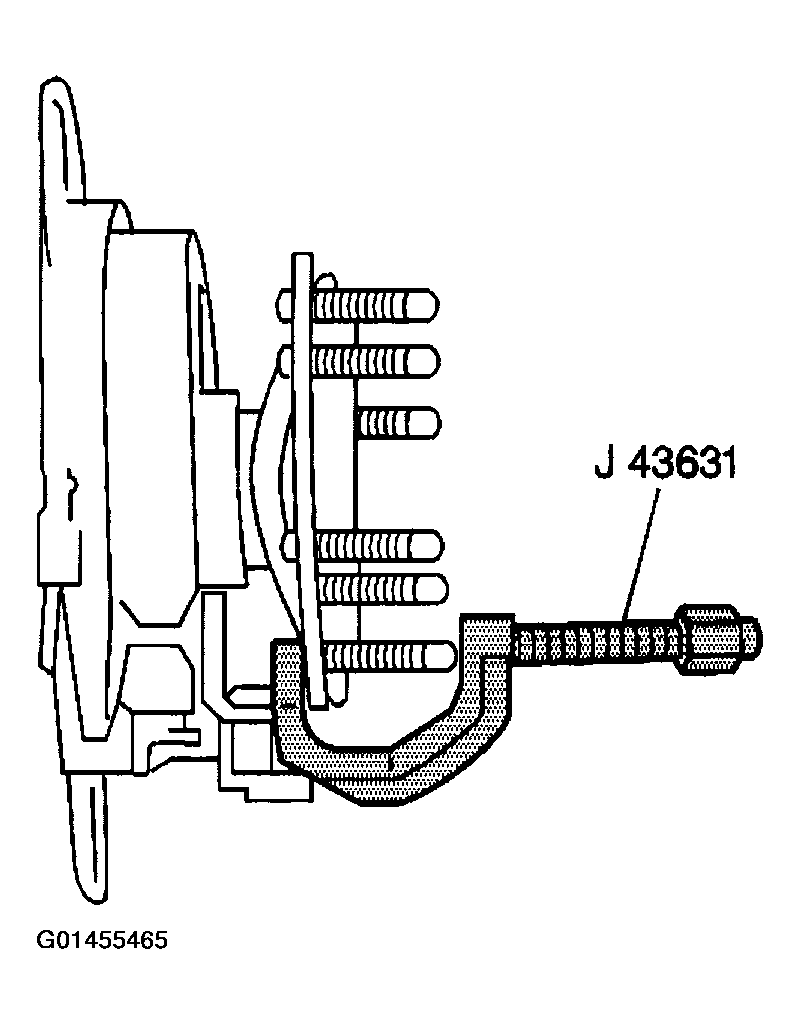

    Fig 1: Removing Wheel Stud Using J 43631
    G01455465Courtesy of GENERAL MOTORS CORP.
