Seat Belt Component Views

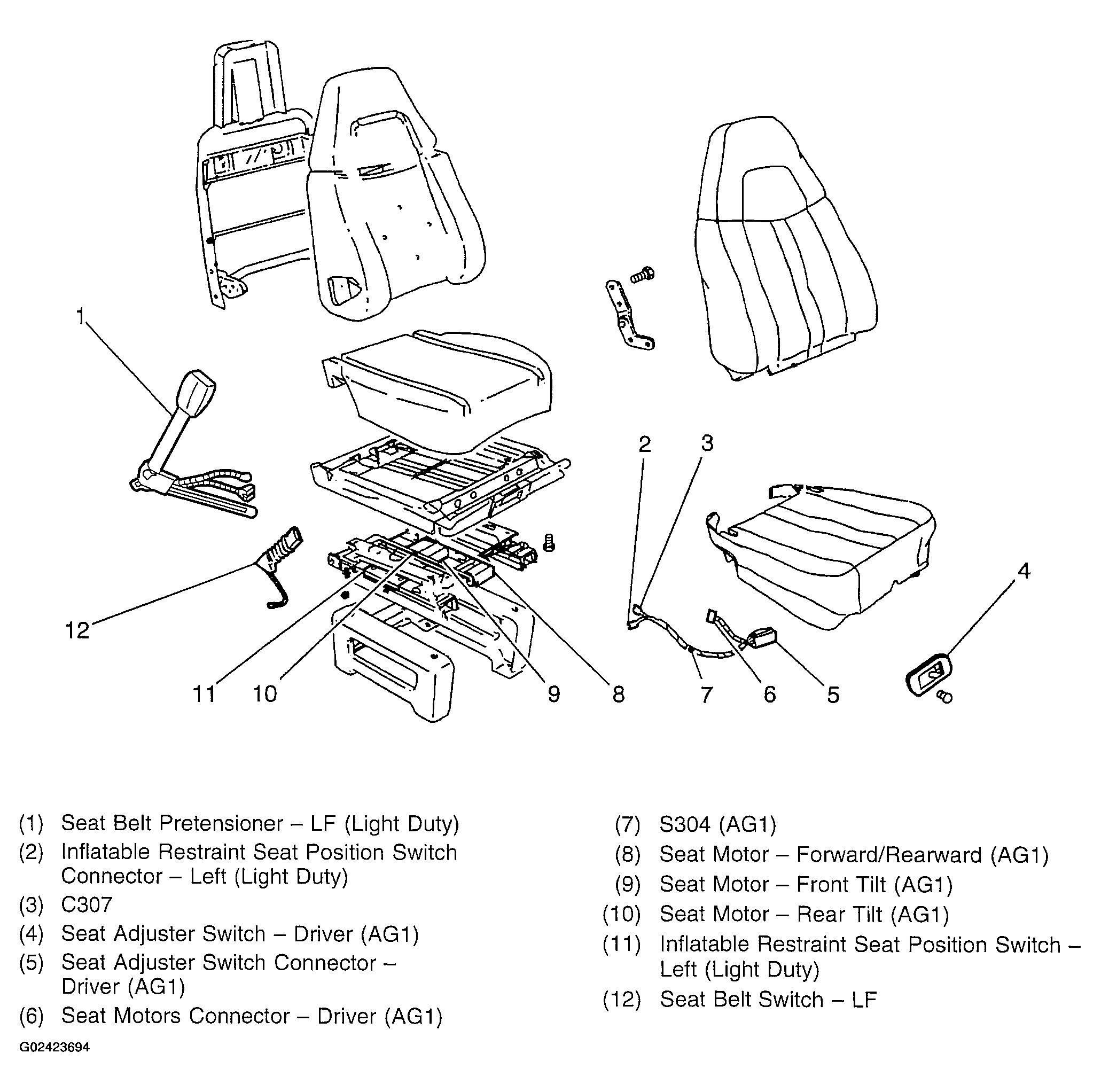

Fig 1: Identifying Driver Seat Components
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
