Special Tools

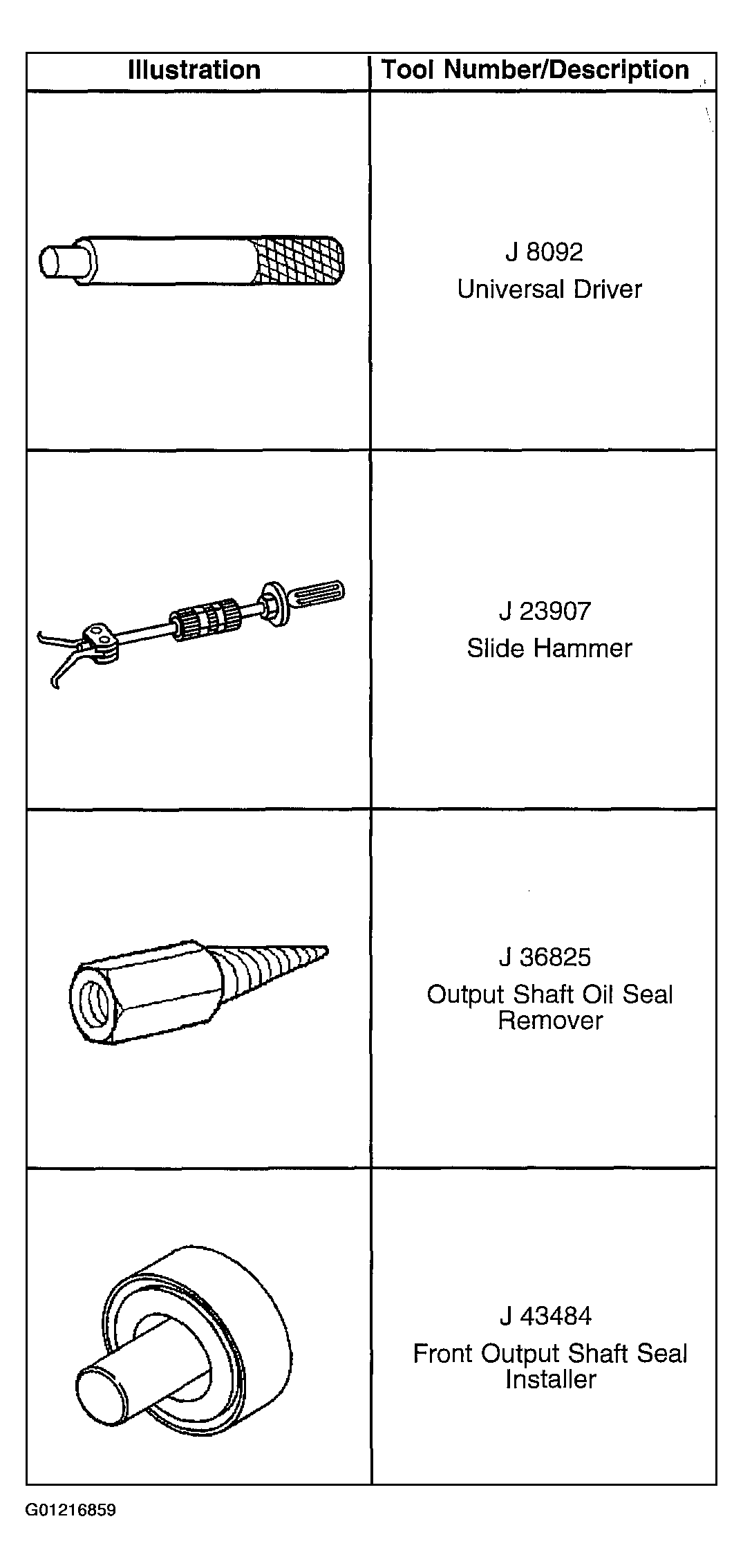

Fig 1: Special Tools J 8092 To J 43484
G01216859Courtesy of GENERAL MOTORS CORP.

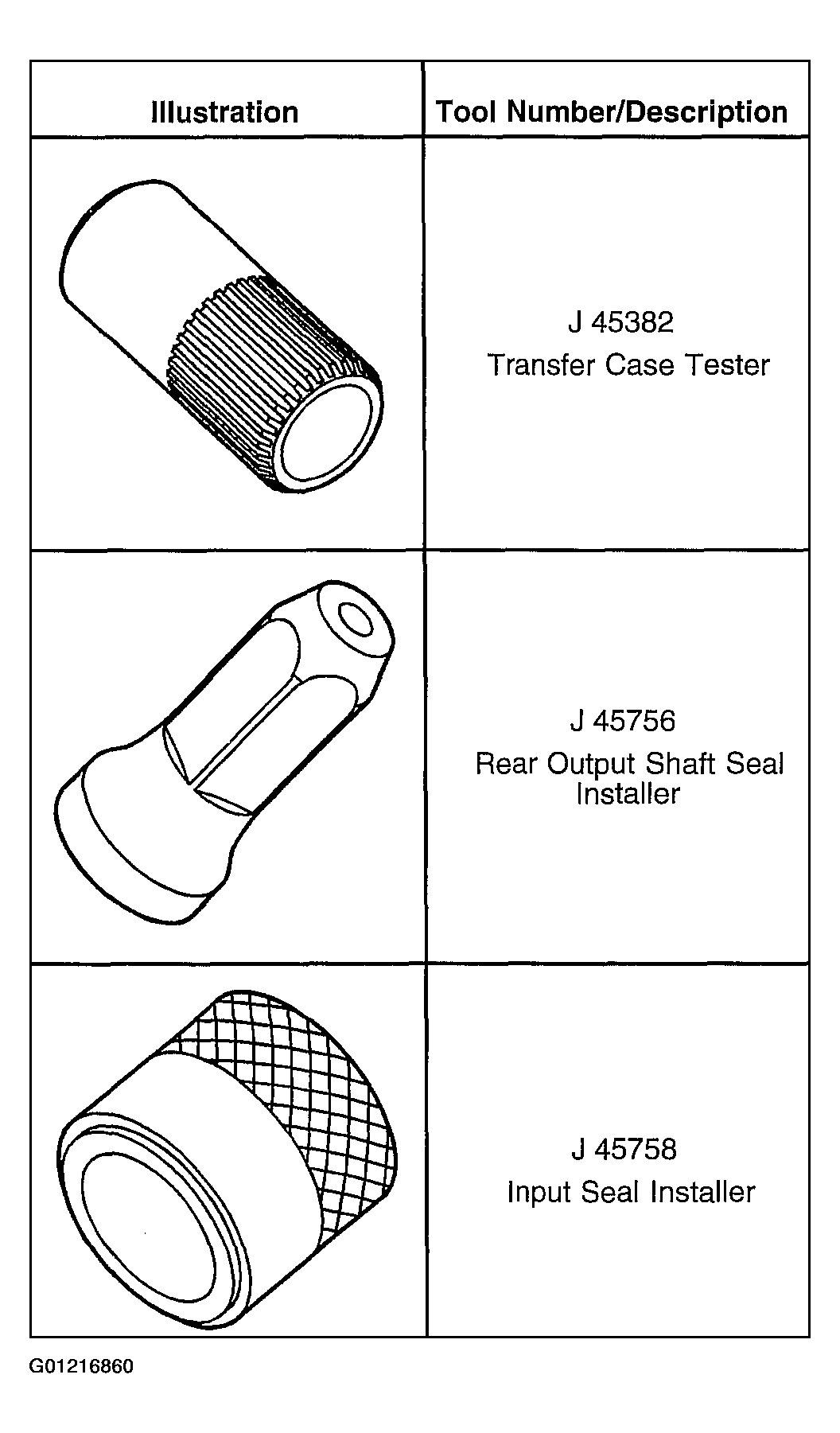

Fig 2: Special Tools J 45382 To J 45758
G01216860Courtesy of GENERAL MOTORS CORP.
