Installation Procedure

Remove the steering column from J 41352.

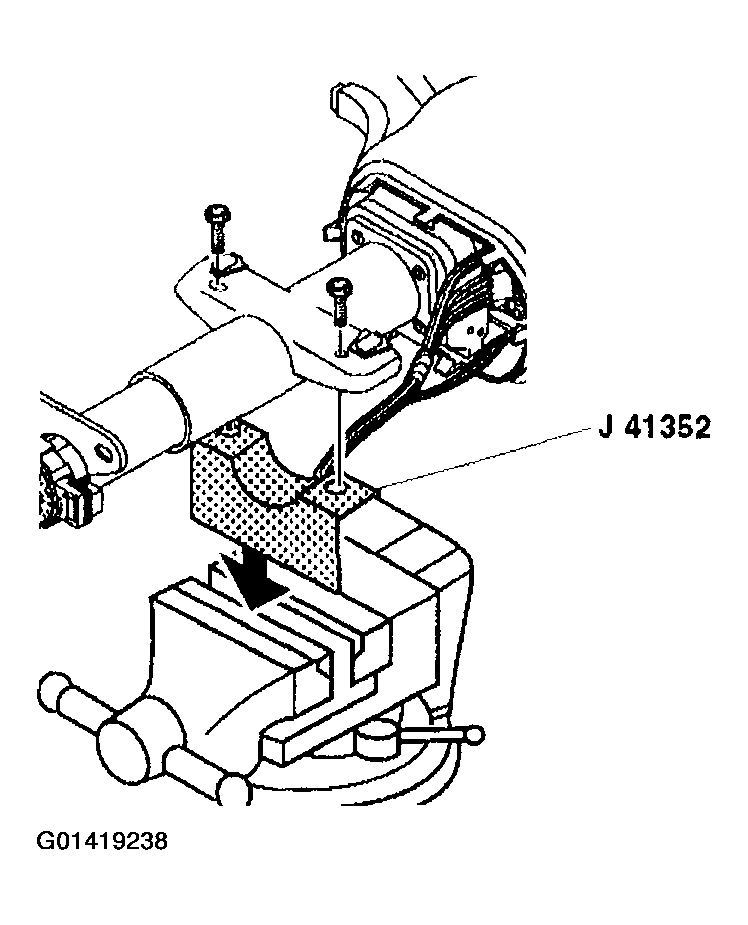

Fig 1: Removing Steering Column From J 41352
Courtesy of GENERAL MOTORS CORP.
Position the steering column assembly (2) into the vehicle and insert the lower steering shaft assembly into the upper coupling of the intermediate shaft.

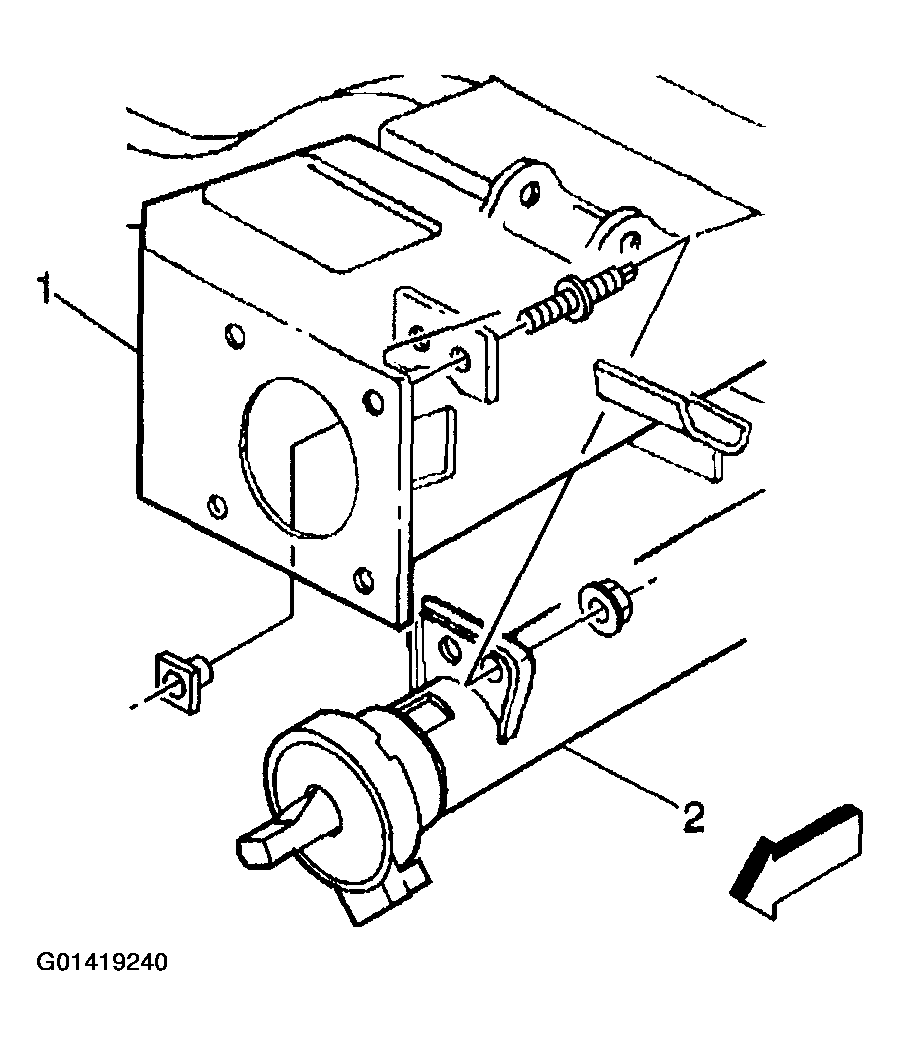

Fig 2: Locating Steering Column Assembly Components
Courtesy of GENERAL MOTORS CORP.
Install the cross car locating bushing (1) on the right hand mounting stud.
NOTE: Refer to FASTENER NOTICE .
Install the upper steering column bracket nuts to the upper reinforcement assembly (3).
Tighten

Tighten the nuts to 24 N.m (17 lb ft).
Install the nuts to the lower steering column support plate (1).

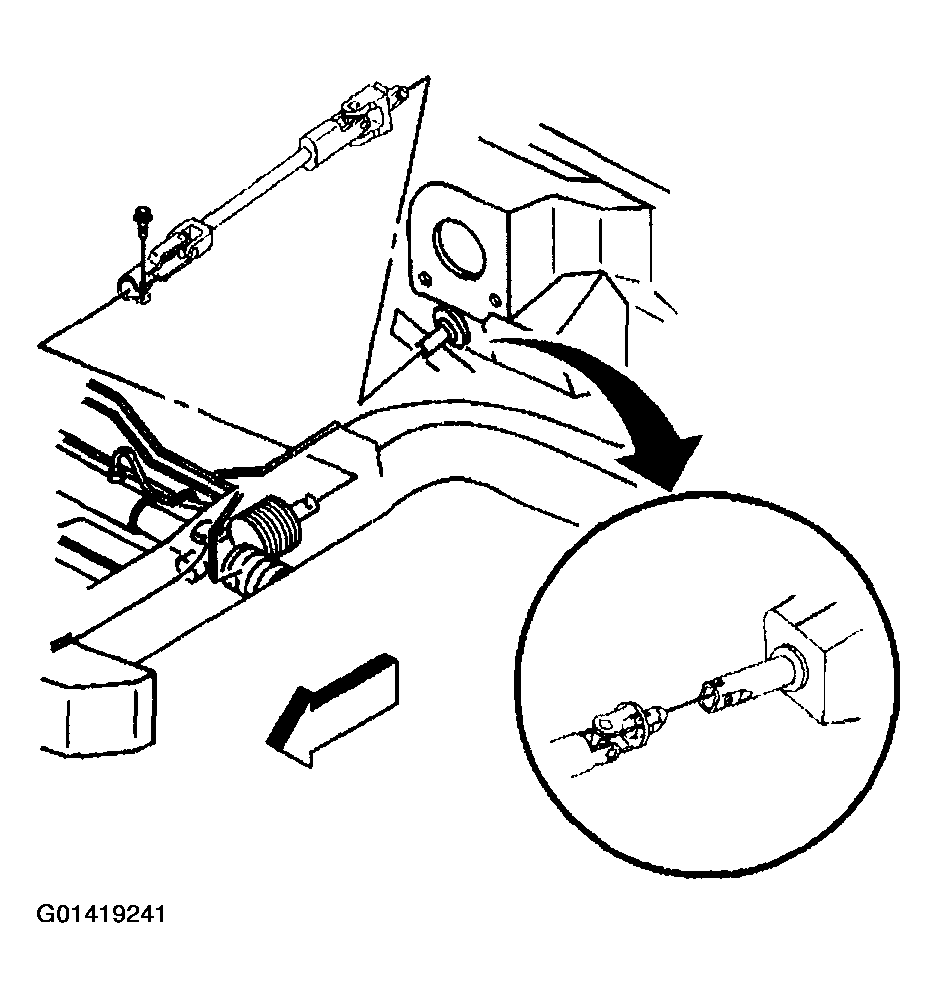

Fig 3: Installing Nuts To Lower Steering Column Support Plate
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the nuts to 24 N.m (17 lb ft).
Turn the steering wheel far enough to the left to gain access to the upper coupling of the intermediate shaft.
Install the upper coupling bolt.

Fig 4: Installing Upper Coupling Bolt
Courtesy of GENERAL MOTORS CORP.

Tighten

Tighten the bolt to 48 N.m (35 lb ft).
Connect all the electrical connectors to the I/P wiring harness.
Remove J 42640 from the steering column.
Install the driver knee bolster bracket (1). Refer to BRACKET REPLACEMENT - KNEE BOLSTER (DRIVER) or BRACKET REPLACEMENT - KNEE BOLSTER (DRIVER OUTER) or BRACKET REPLACEMENT - KNEE BOLSTER (PASSENGER) in Instrument Panel, Gages and Console.

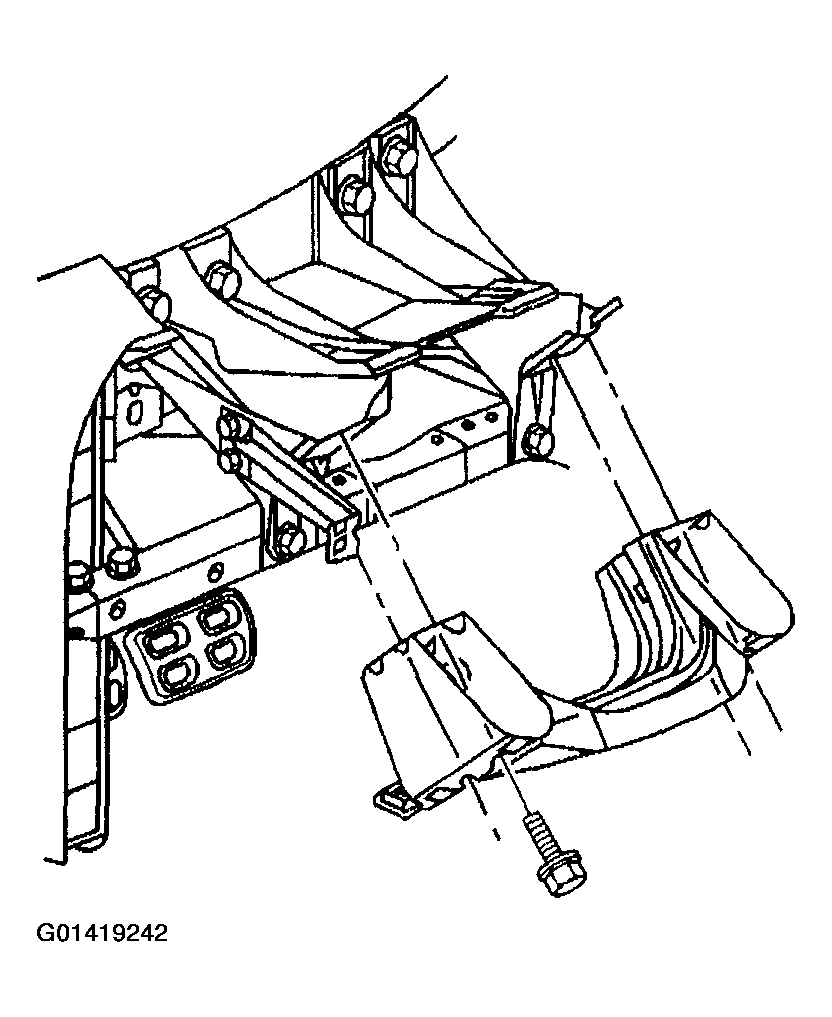

Fig 5: Installing Driver Knee Bolster Bracket
Courtesy of GENERAL MOTORS CORP.
Install the driver knee bolster trim panel. Refer to TRIM PANEL REPLACEMENT - KNEE BOLSTER in Instrument Panel, Gages and Console.
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
