Removal Procedure

  1. Remove the windshield weatherstrip, the side retainer, and the windshield side reveal molding. Refer to SIDE REVEAL MOLDING REPLACEMENT (COUPE AND CONVERTIBLE)  or SIDE REVEAL MOLDING REPLACEMENT (HARDTOP) .
  2. Remove the side window filler panel. Remove the screws attaching the filler panel. Separate the filler panel from the sealant attaching the panel to the windshield pillar.
  3. Remove the old sealant from the windshield pillar.

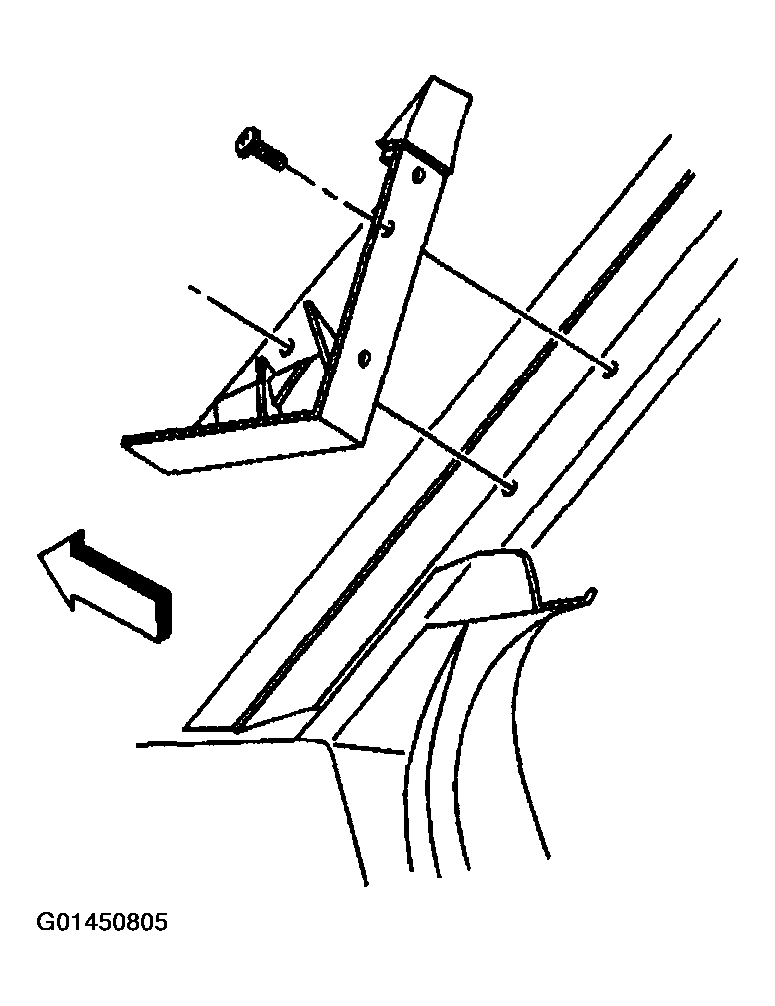

    Fig 1: Side Window Filler Panel
    G01450805Courtesy of GENERAL MOTORS CORP.
