Steering Column Disassembled View (Telescoping)

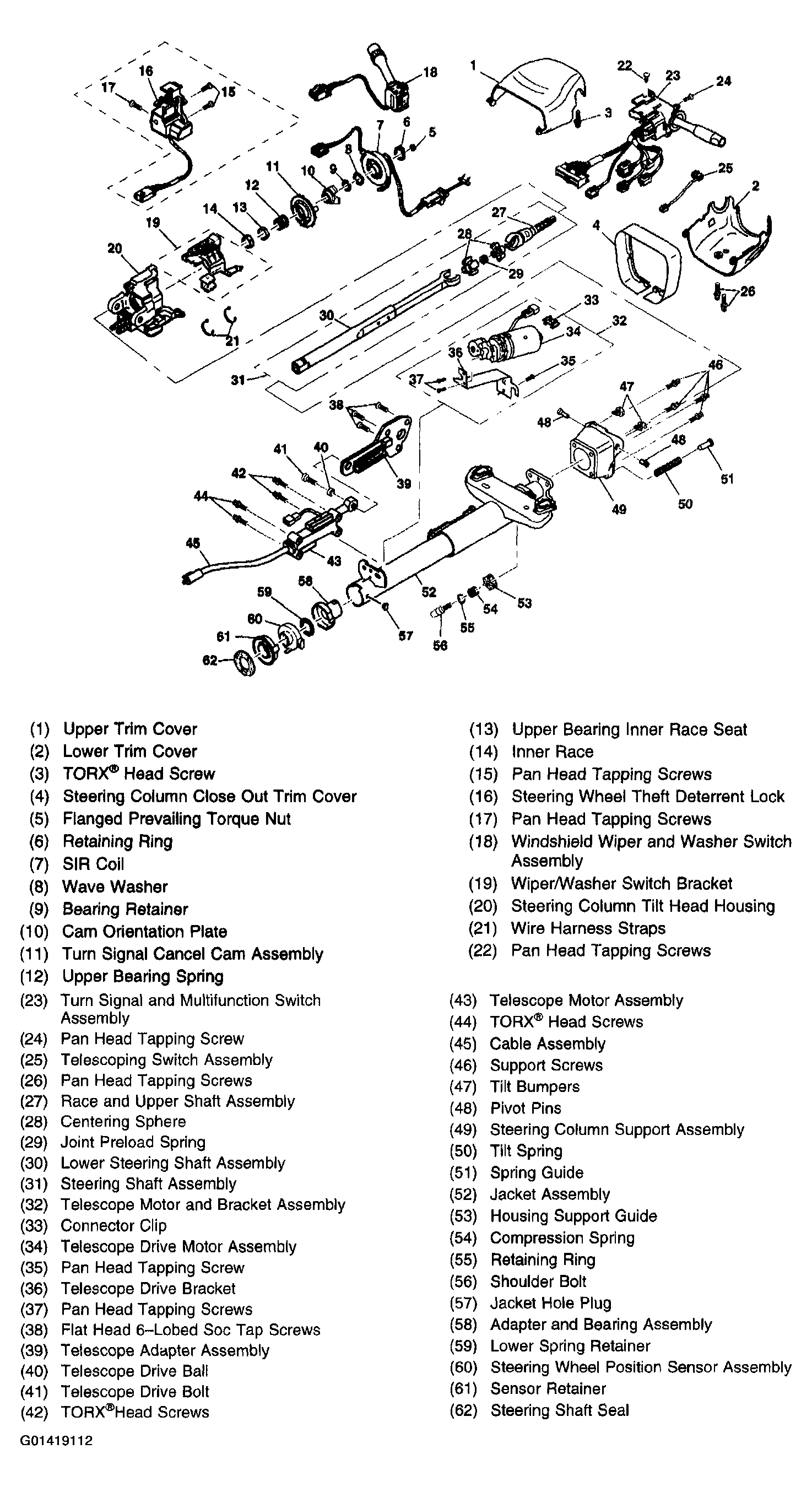

Fig 1: Exploded View Of Y-Car Telescoping Components

G01419112

Courtesy of GENERAL MOTORS CORP.
