Internal Parts

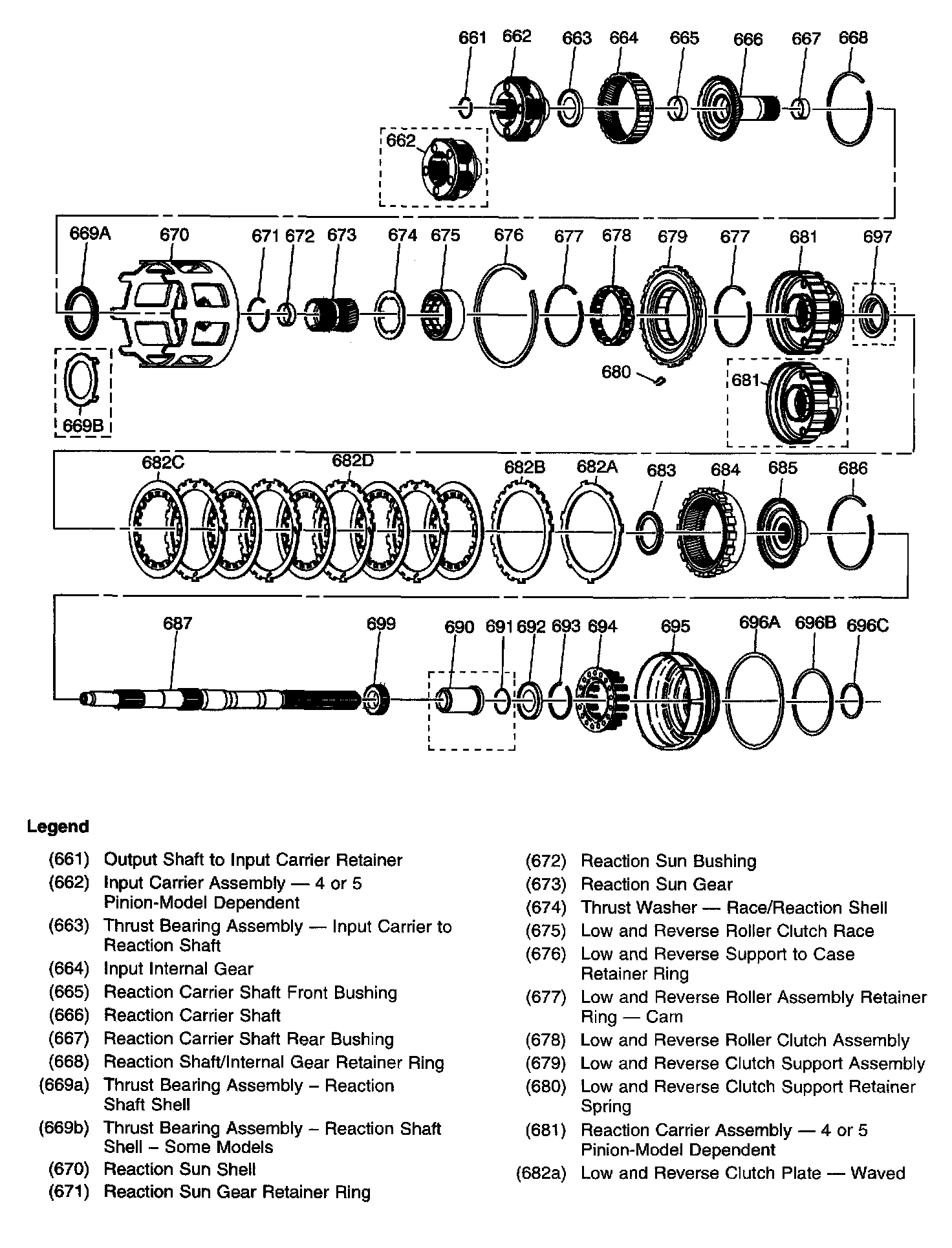

Internal Parts (1 of 4):

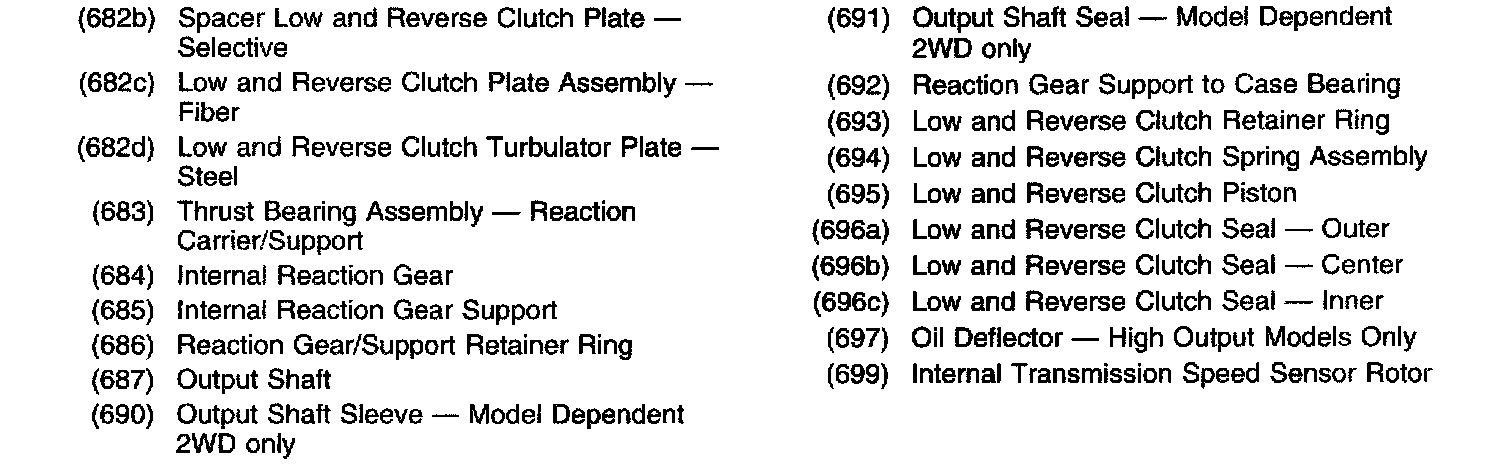

Internal Parts (2 of 4):

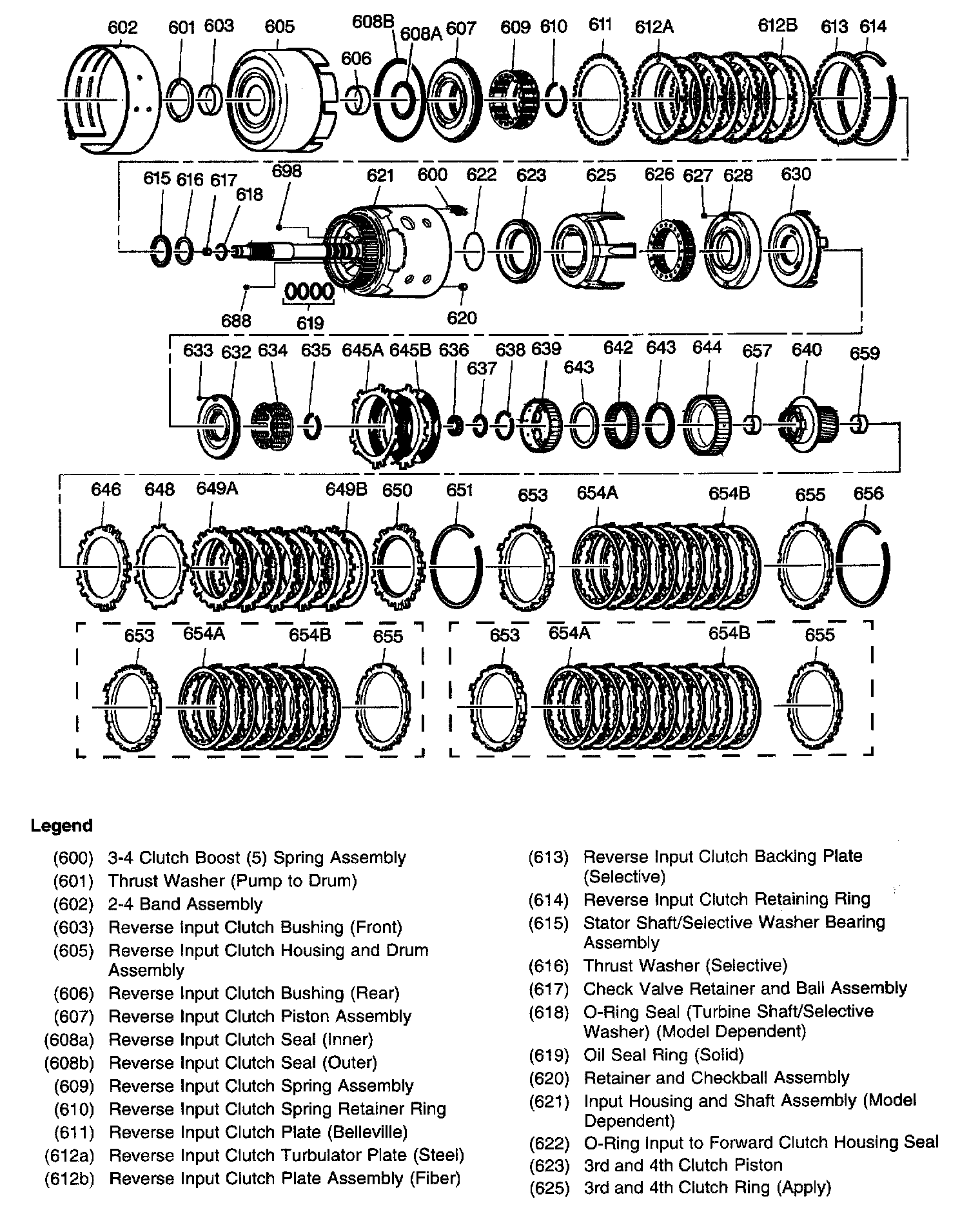

Internal Parts (3 of 4):

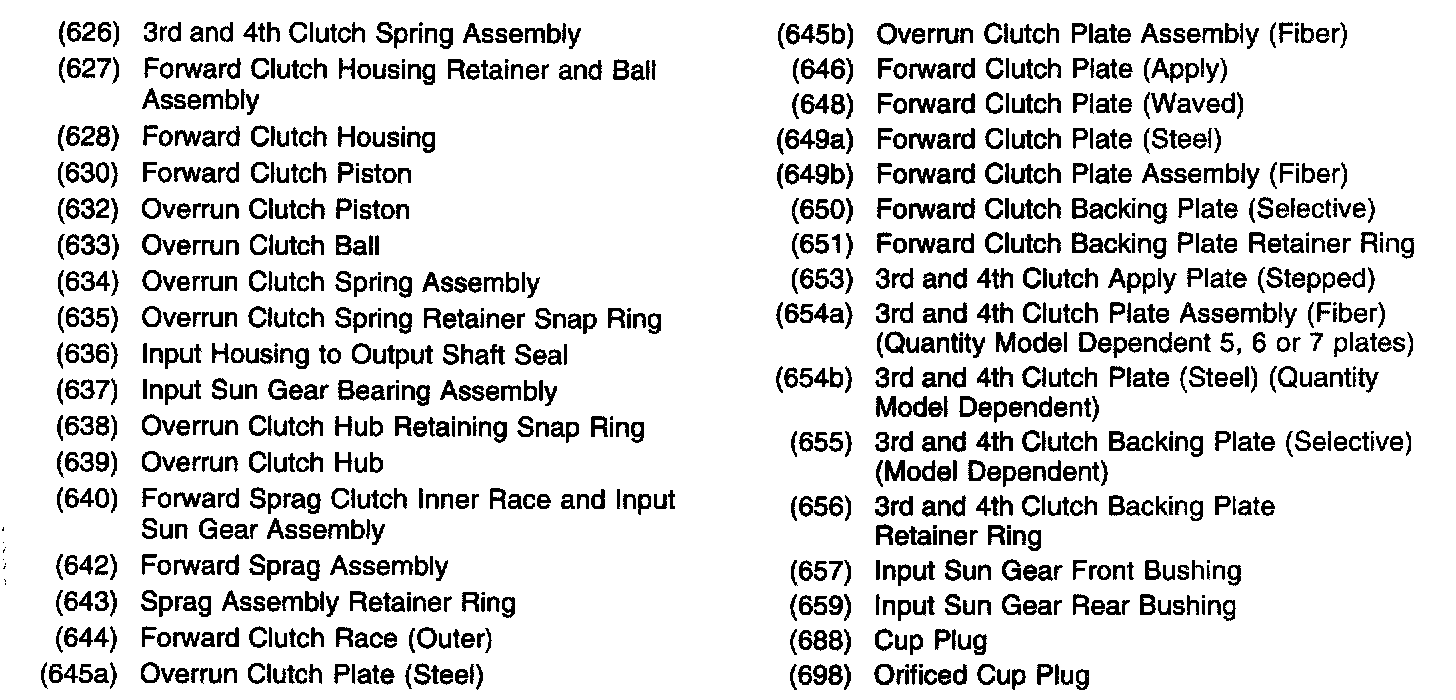

Internal Parts (4 of 4):
