System Diagram

Door Latch-Driver C1:




Door Latch-Driver C2:

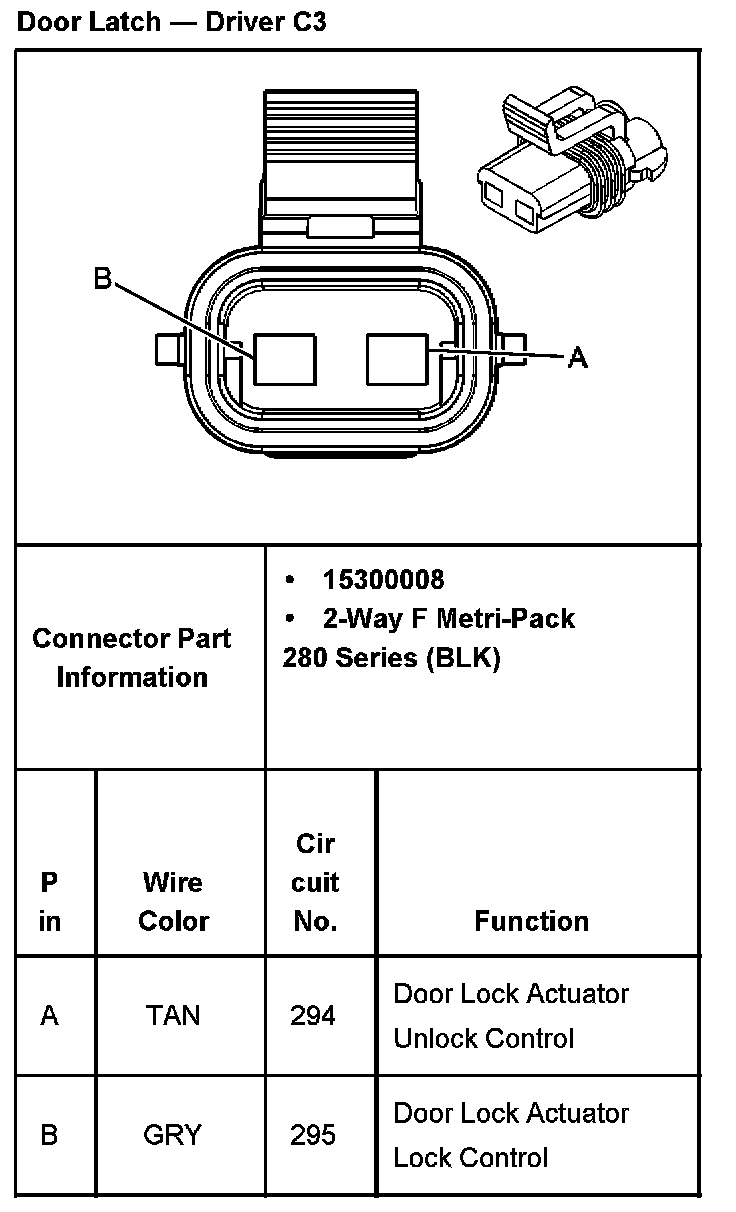

Door Latch-Driver C3:




Door Latch-Passenger C1 (Japan):

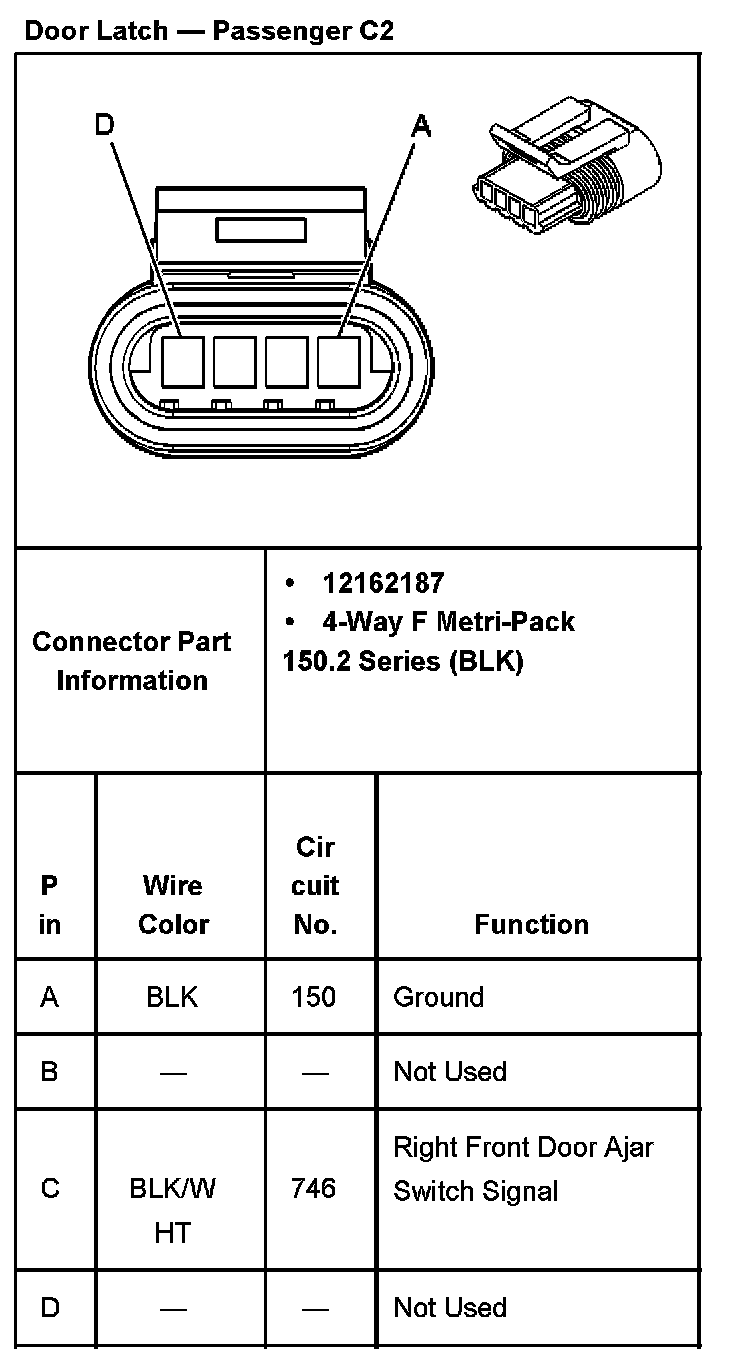

Door Latch-Passenger C2:




Door Latch-Passenger C3:
