Power Window Switch

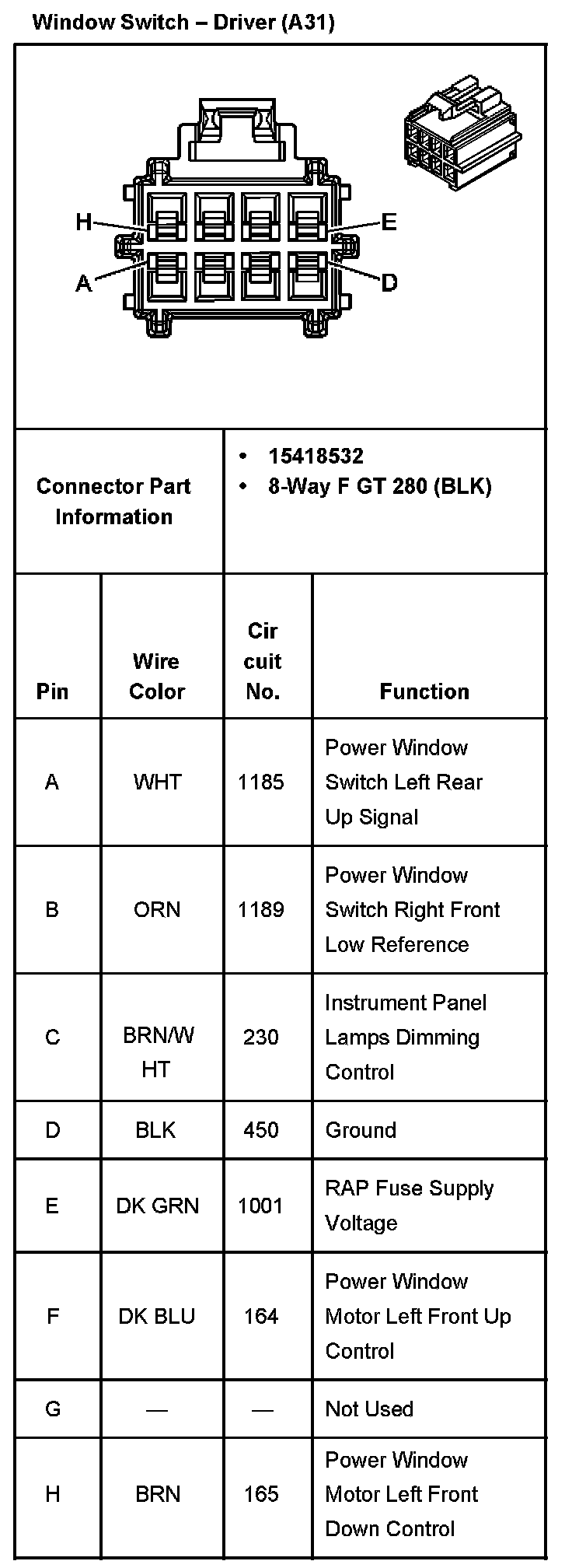

Window Switch - Driver With RPO Code A31:

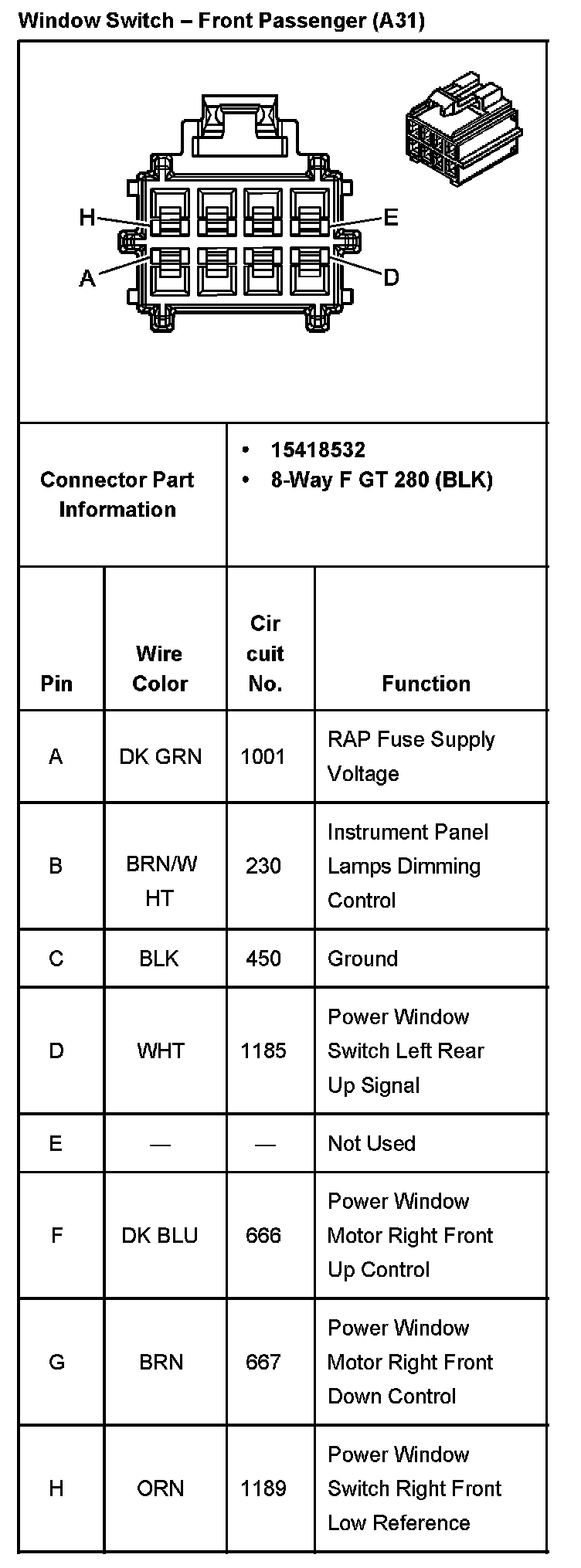

Window Switch - Front Passenger With RPO Code A31:
