Drive/Propeller Shaft
Driveline Disassembled Views
One-Piece Propeller Shaft

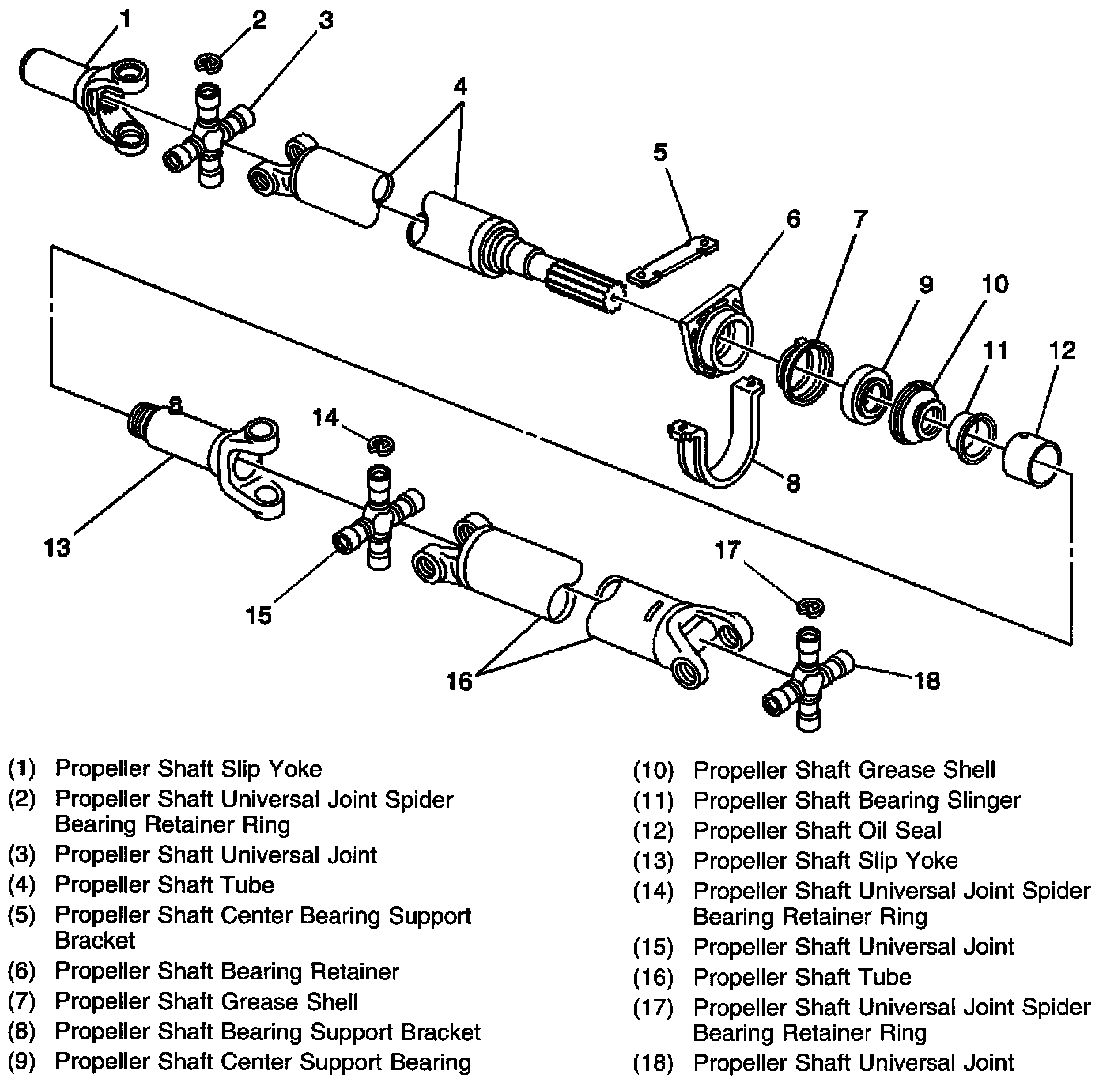

Two-Piece Propeller Shaft
