Fuse Block: Locations

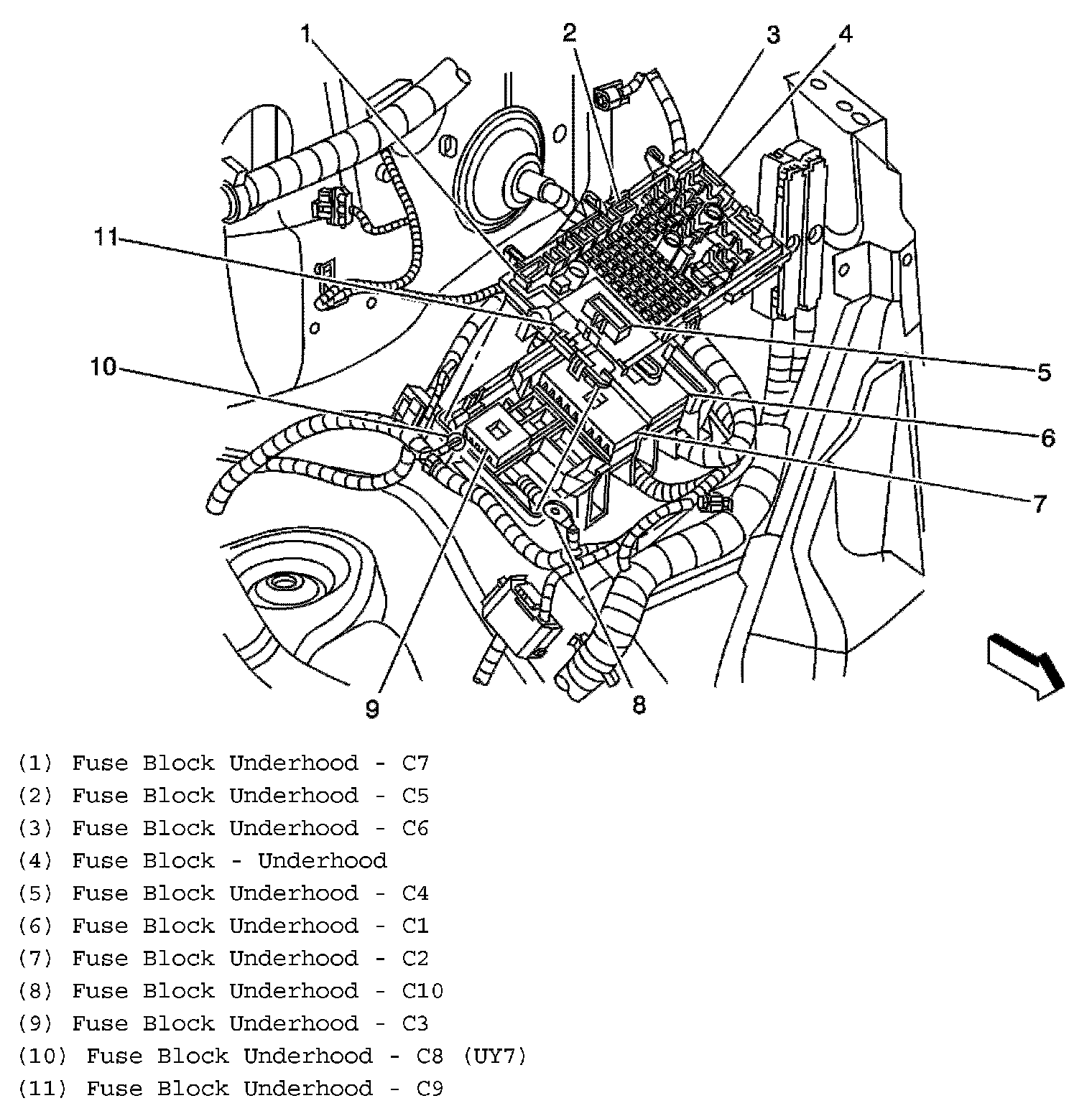

Fuse Block - Underhood
Note:
In the engine compartment, attached to the LF fender.
Fuse Block - Body
Fuse Block - Body:
Note:
Below the driver seat.
