System Specifications

Rear Drive Axle

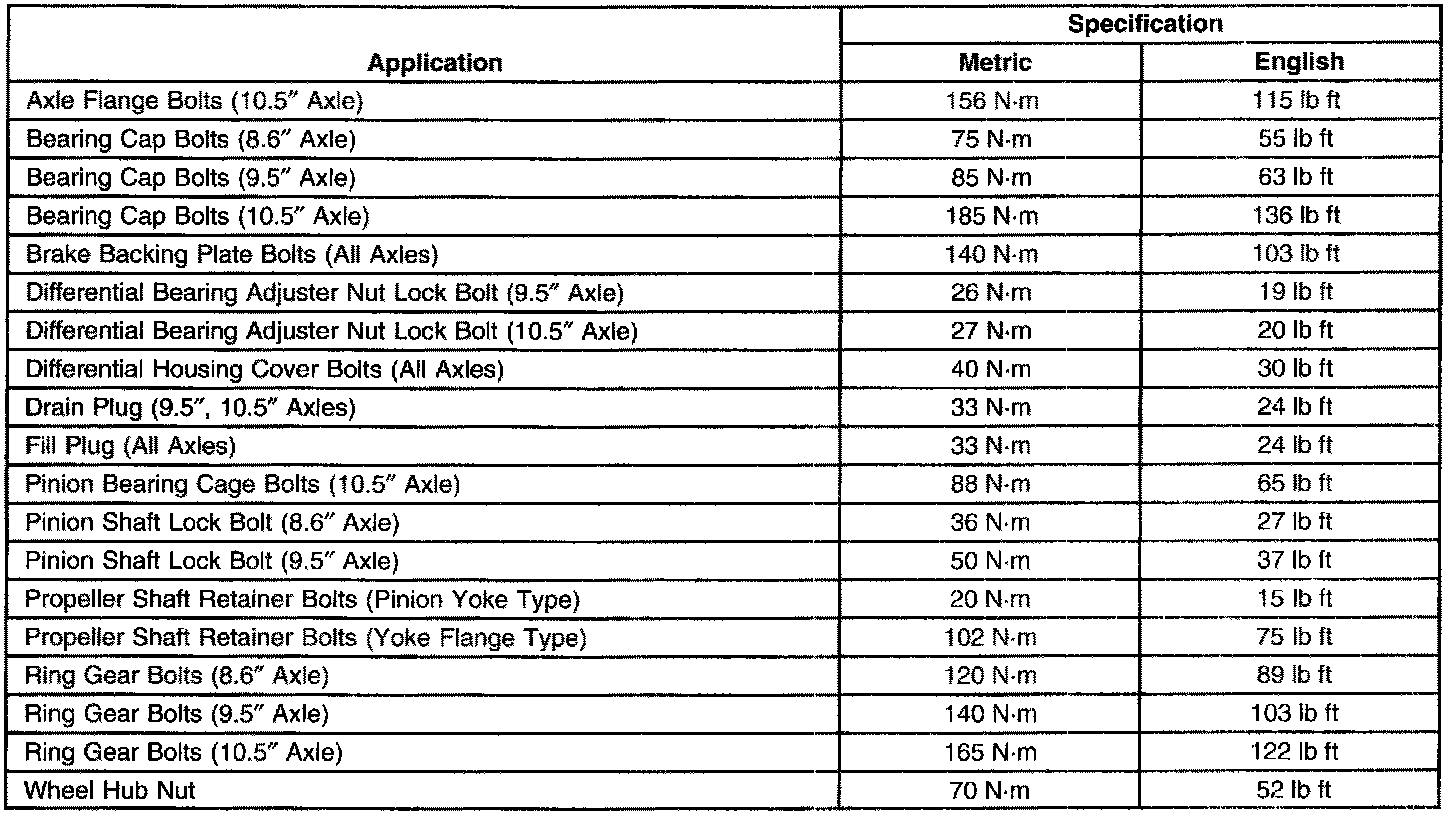

Fastener Tightening Specifications

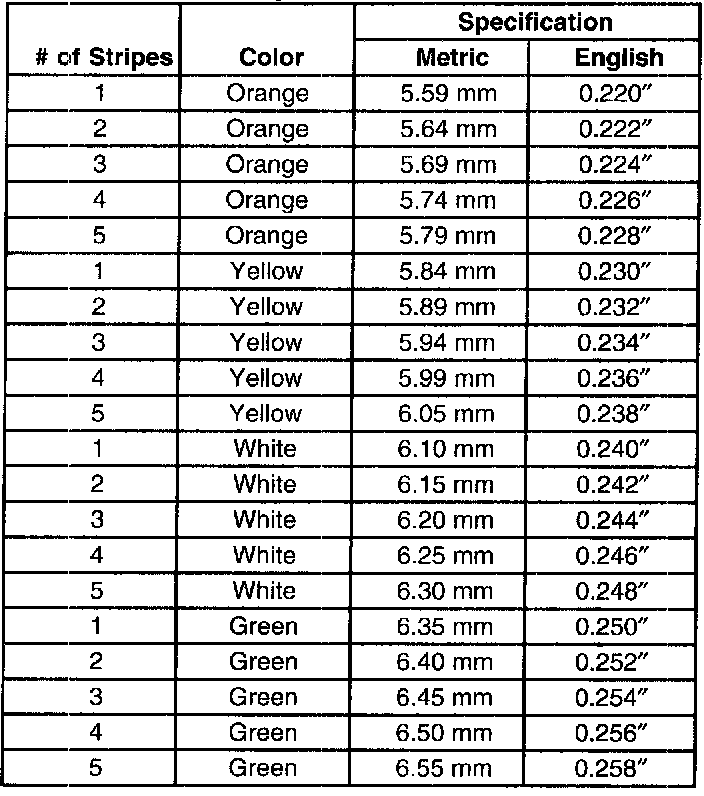

8.6 Inch Axle Differential Adjustment Shims Specifications

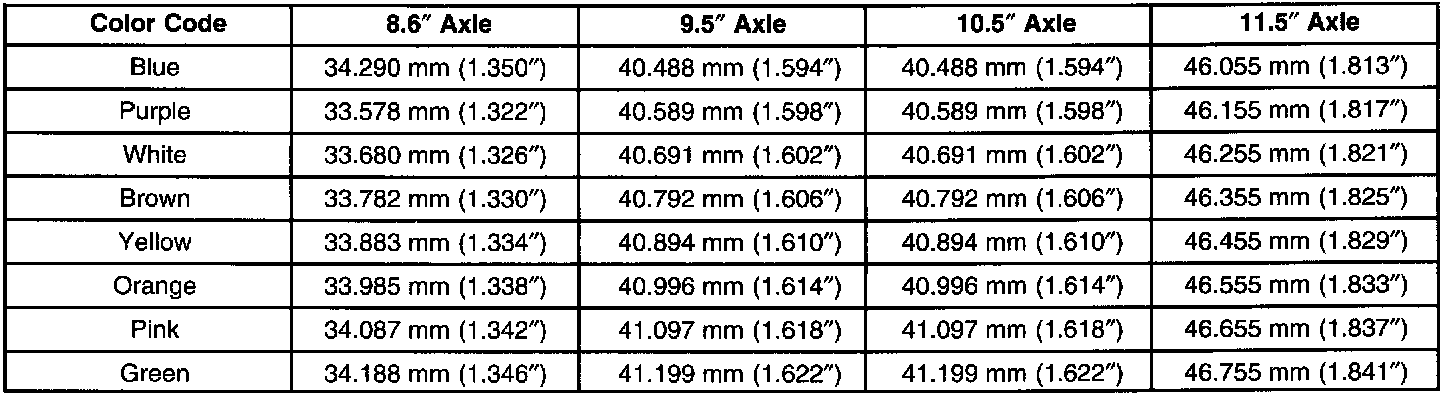

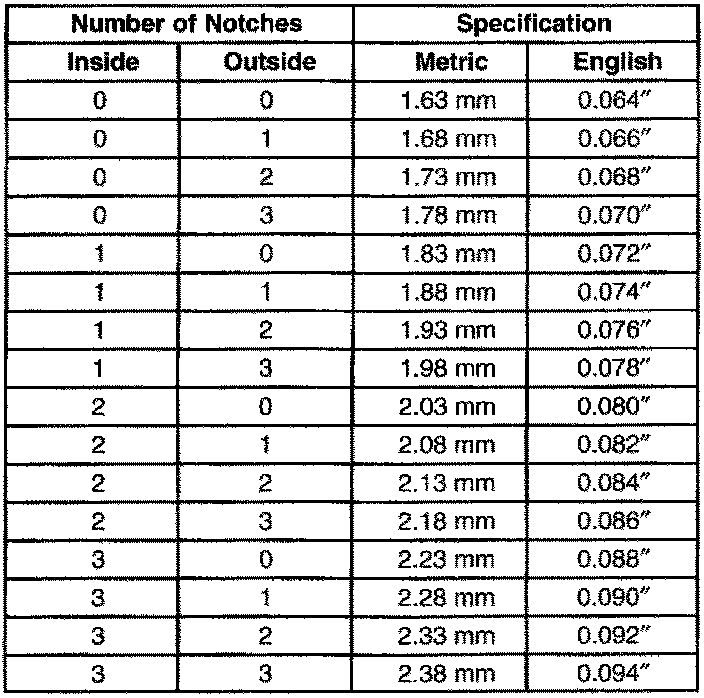

9.15 Inch Axle Differential Adjustment Shims Specifications





Pinion Bearing and Differential Bearing Preload

Rear Drive Axle - Locking/Limited Slip Rear Axle





Fastener Tightening Specifications





Thrust Block Sizes (Locking)





Reaction Block, 101/2 Inch Axle
