Inline Connector End View C123

Inline Connector C123

GM684854Courtesy of GENERAL MOTORS CORP.

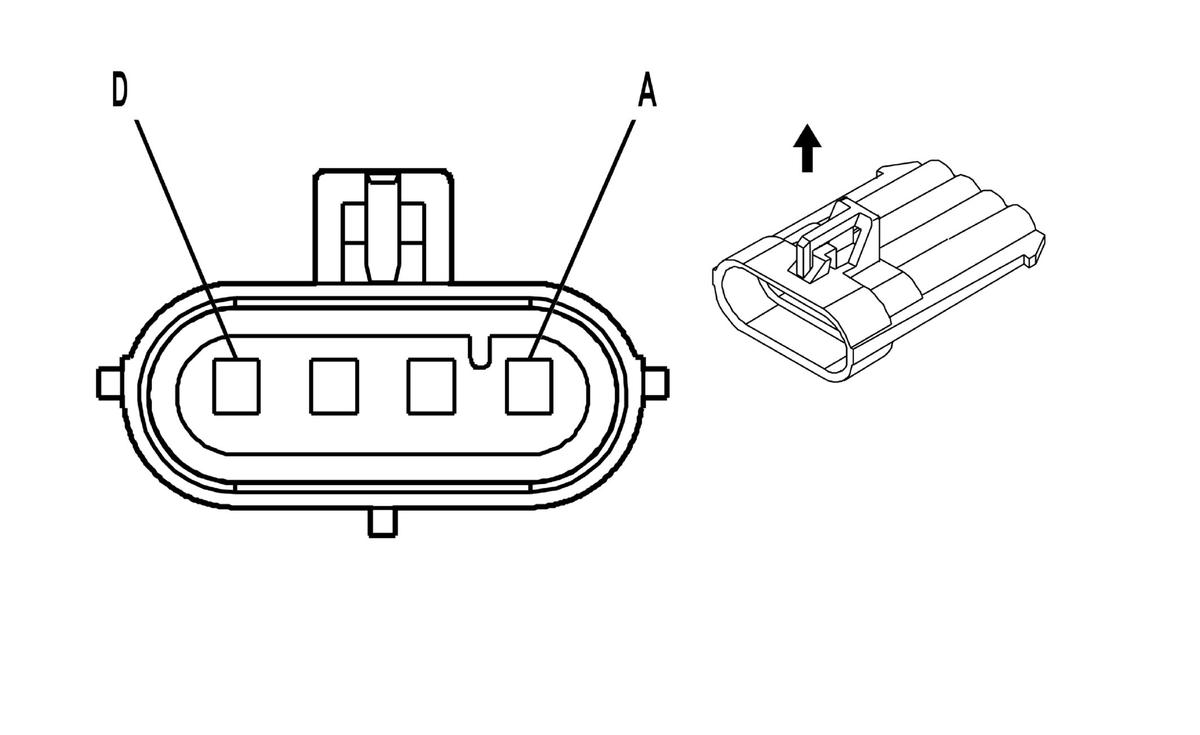

GM396241Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162144
  • 4-Way F Metri-Pack 150 Series Sealed (BLK)
 Connector Part Information
  • 12162102
  • 4-Way M Metri-Pack 150 Series Sealed (BLK)
Pin Wire Color Circuit No. Function Pin Wire Color Circuit No. Function
A LT BLU 2320 Siren/Speaker Circuit-Provisional A LT BLU 2320 Siren/Speaker Circuit-Provisional
B LT GRN 2321 Siren/Speaker Circuit-Provisional B LT GRN 2321 Siren/Speaker Circuit-Provisional
C GRY 2245 Emergency Vehicle Front Lamps Supply Voltage C GRY 2245 Emergency Vehicle Front Lamps Supply Voltage
D TAN 2246 Emergency Vehicle Front Lamps Supply Voltage D TAN 2246 Emergency Vehicle Front Lamps Supply Voltage
