Power Distribution Schematics

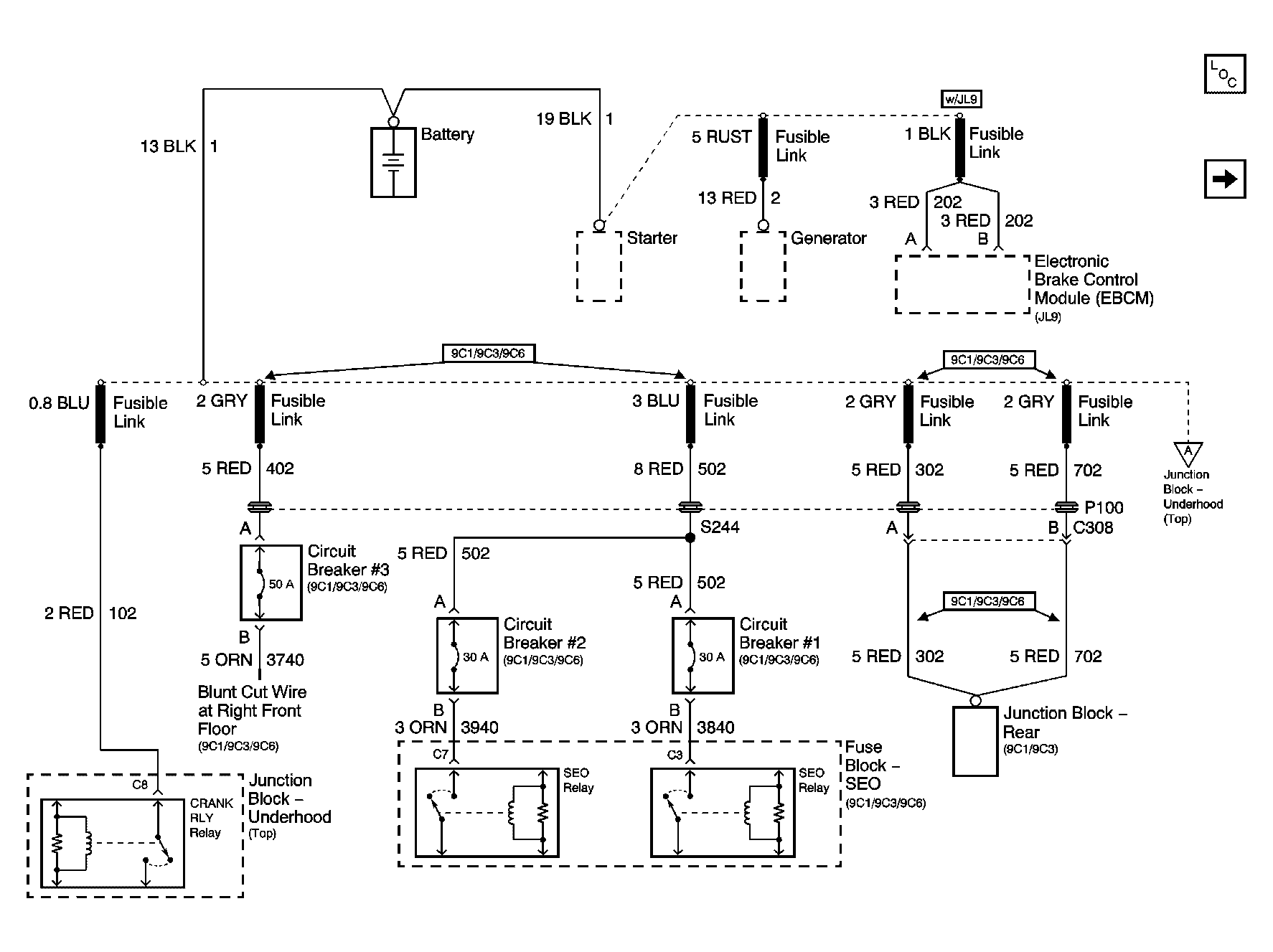

Fig 1: Fuse Block - SEO & Fusible Links Schematic

Courtesy of GENERAL MOTORS CORP.

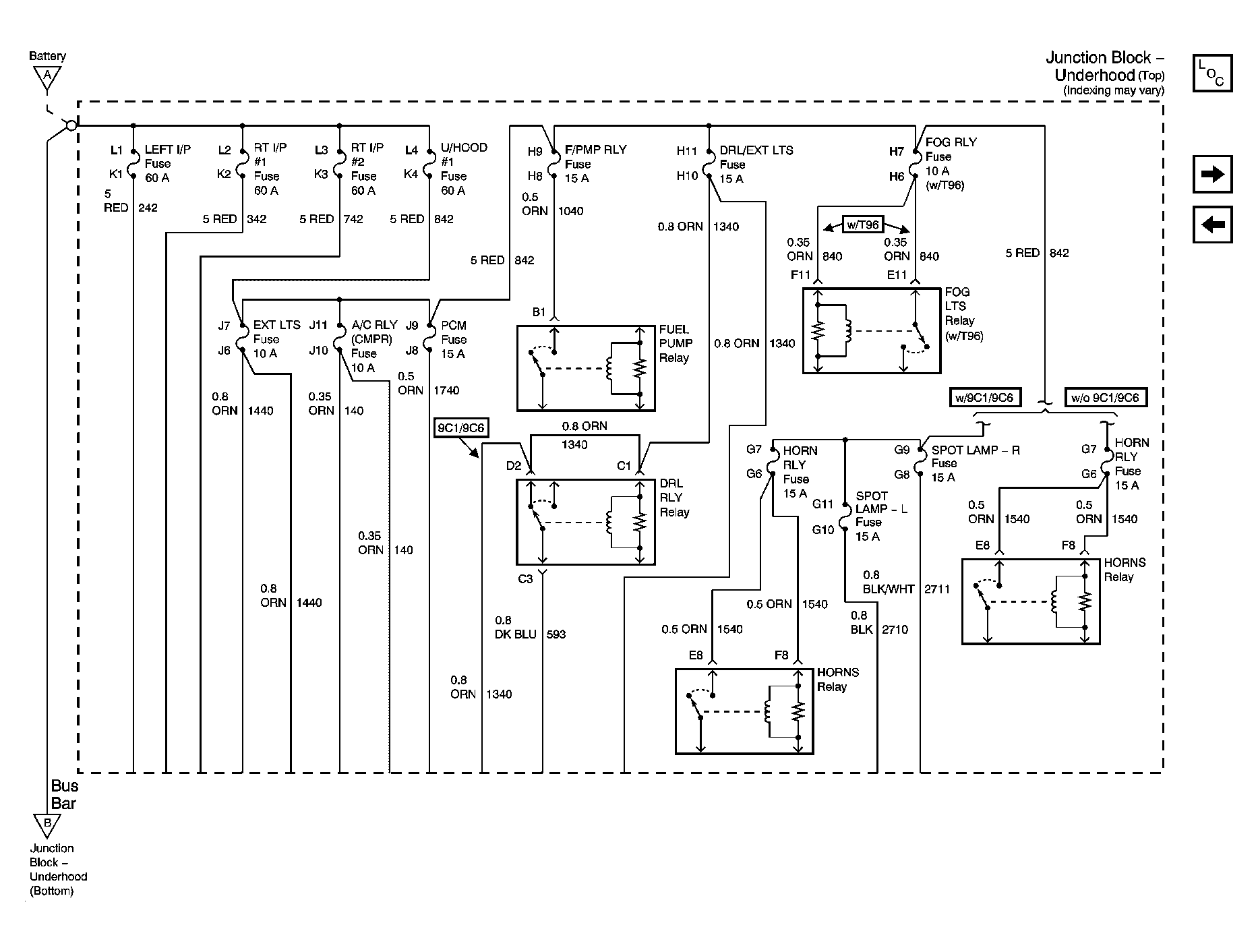

Fig 2: Junction Block - Underhood (Top) Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

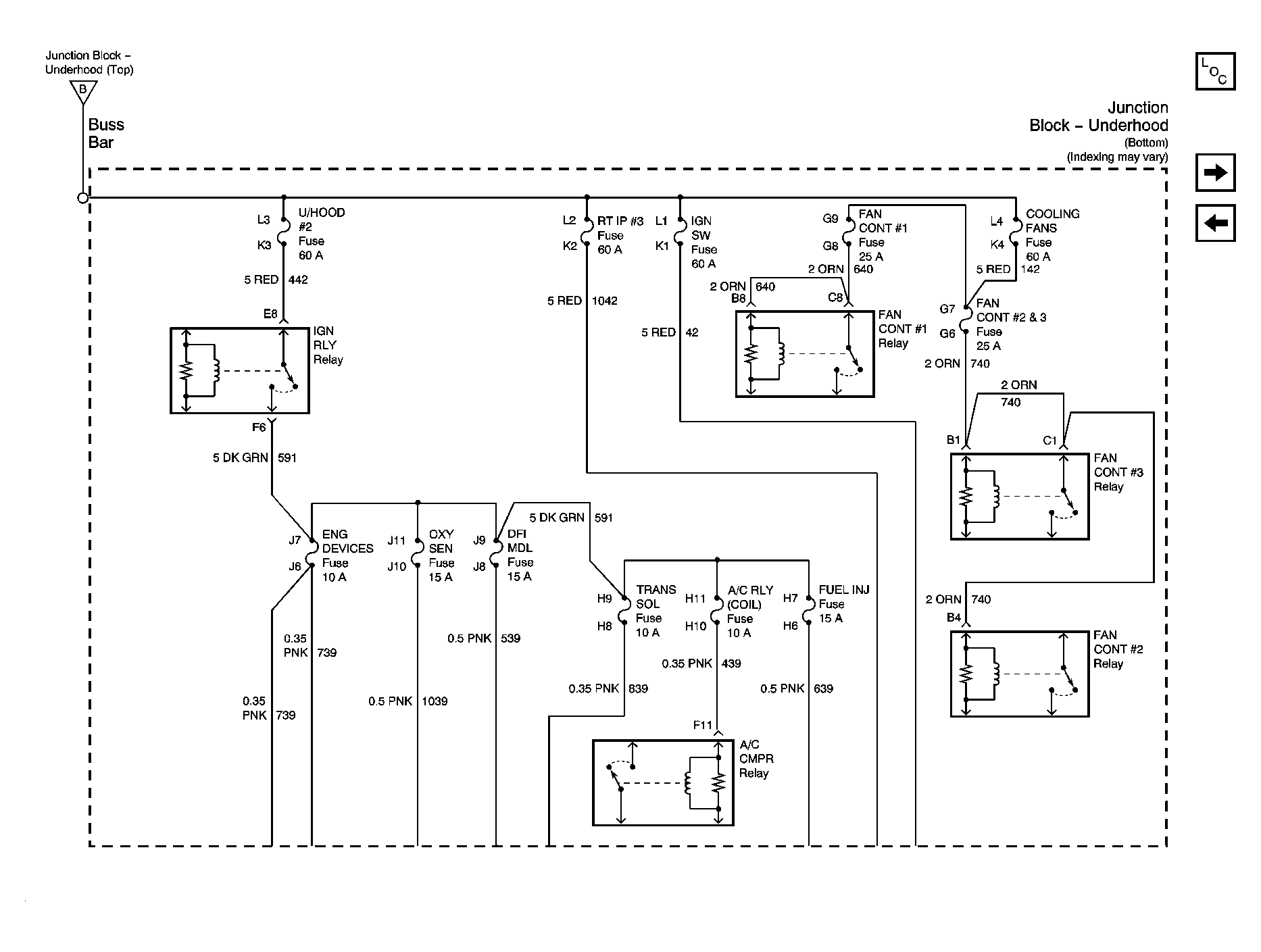

Fig 3: Junction Block - Underhood (Bottom) Bussing Schematic

Courtesy of GENERAL MOTORS CORP.

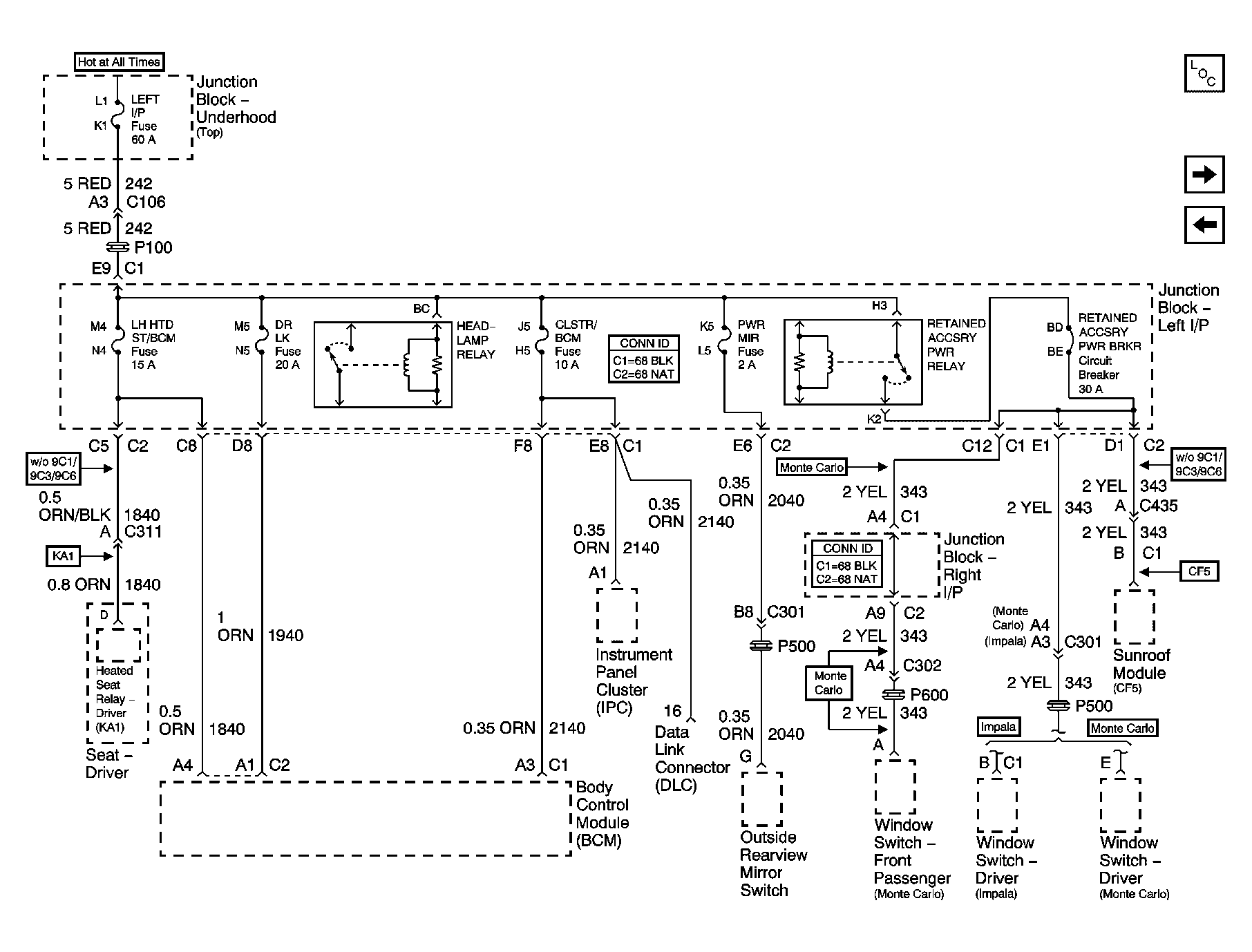

Fig 4: CLSTR/BCM, DR LK, LEFT IP, LT HTD ST/BCM & PWR MIR Fuses, RETAINED ACCSRY PWR BRKR Circuit Breaker & RETAINED ACCSRY PWR RELAY Schematic

Courtesy of GENERAL MOTORS CORP.

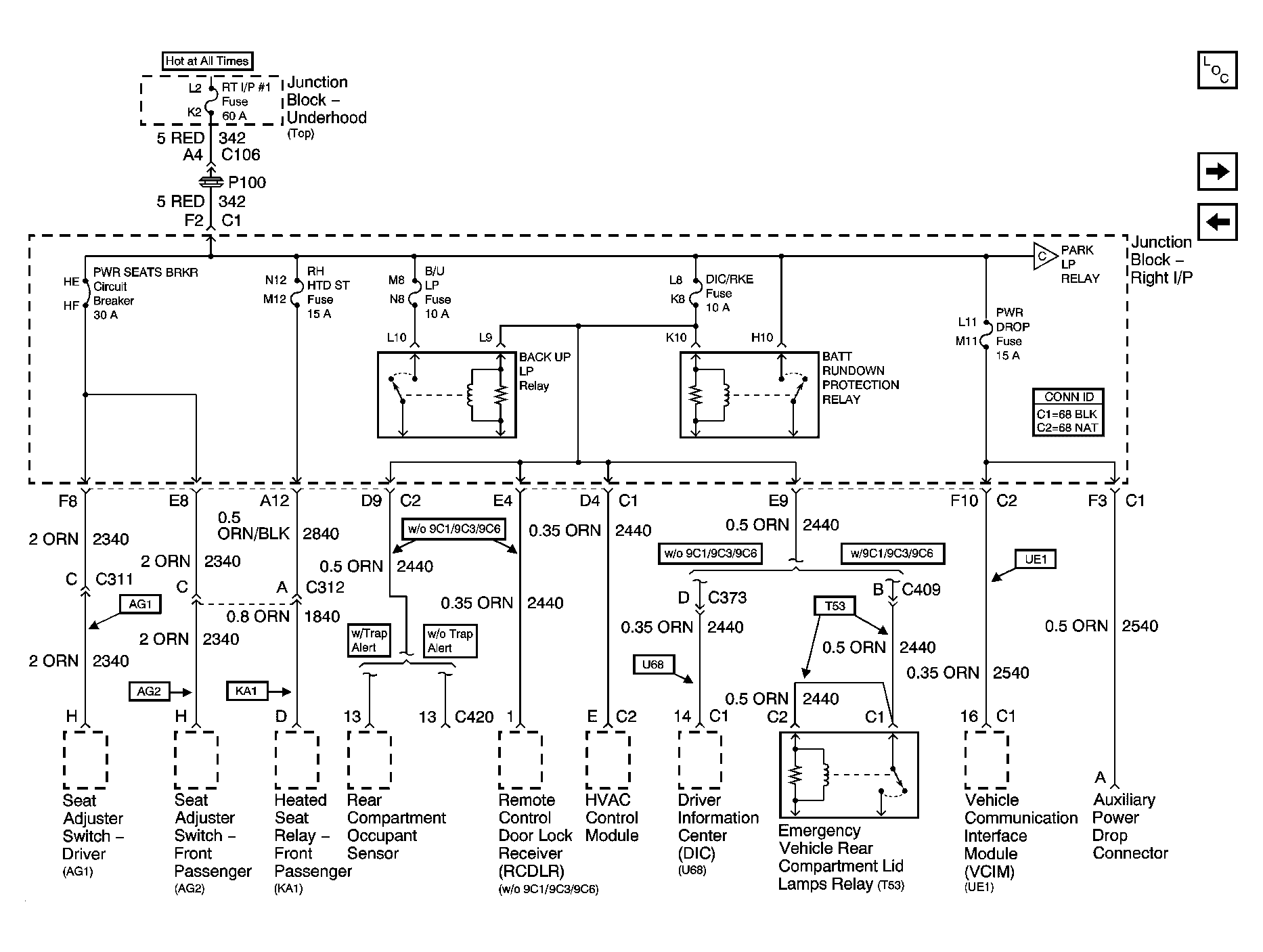

Fig 5: B/U LP, DIC/RKE, PWR DROP & RT HTD ST Fuses, PWR SEATS BRKR Circuit Breaker Schematic

Courtesy of GENERAL MOTORS CORP.

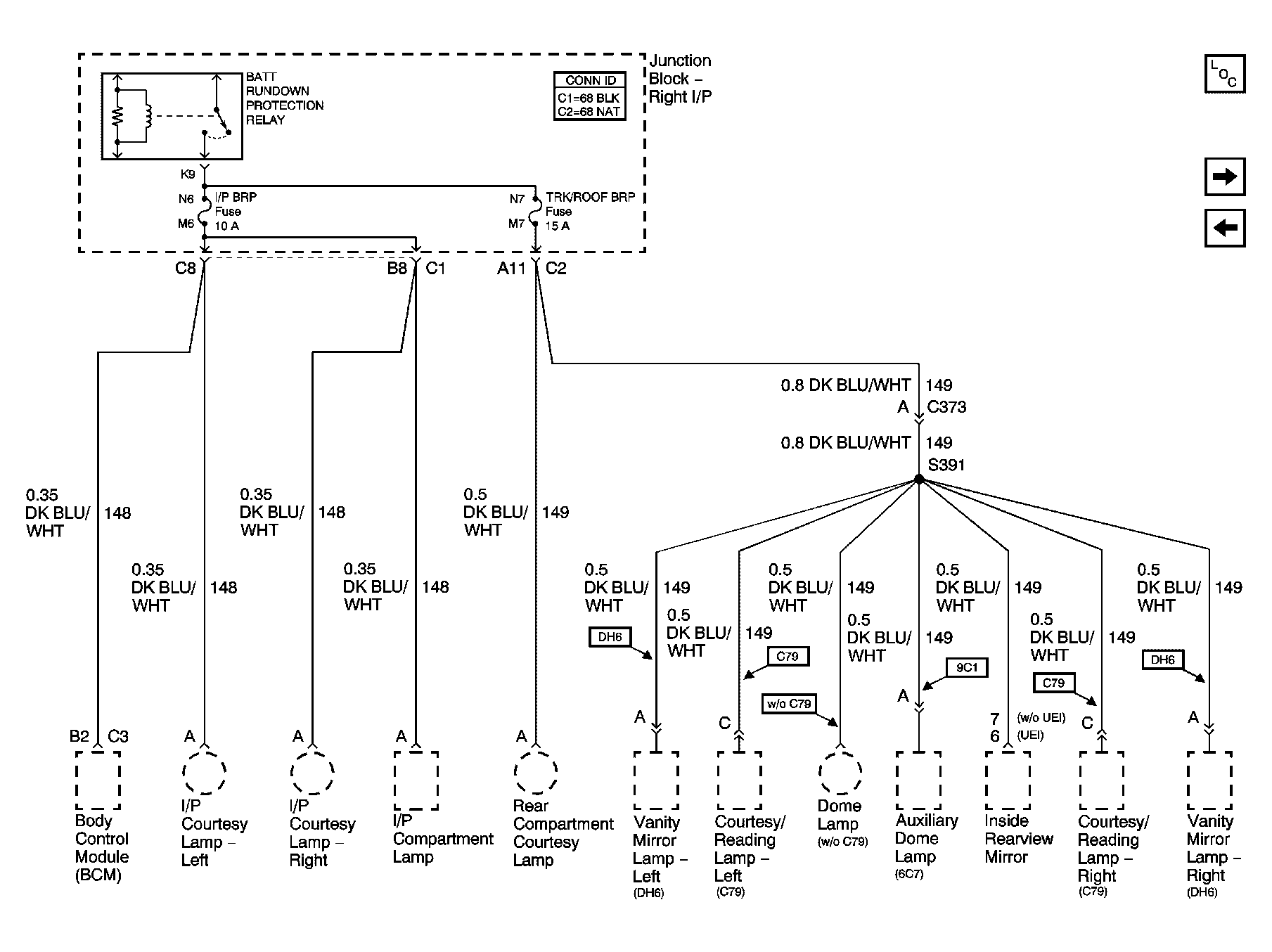

Fig 6: BATT RUNDOWN PROTECTION RELAY, IP BRP & TRK/ROOF BRP Fuses Schematic (Early Production)

Courtesy of GENERAL MOTORS CORP.

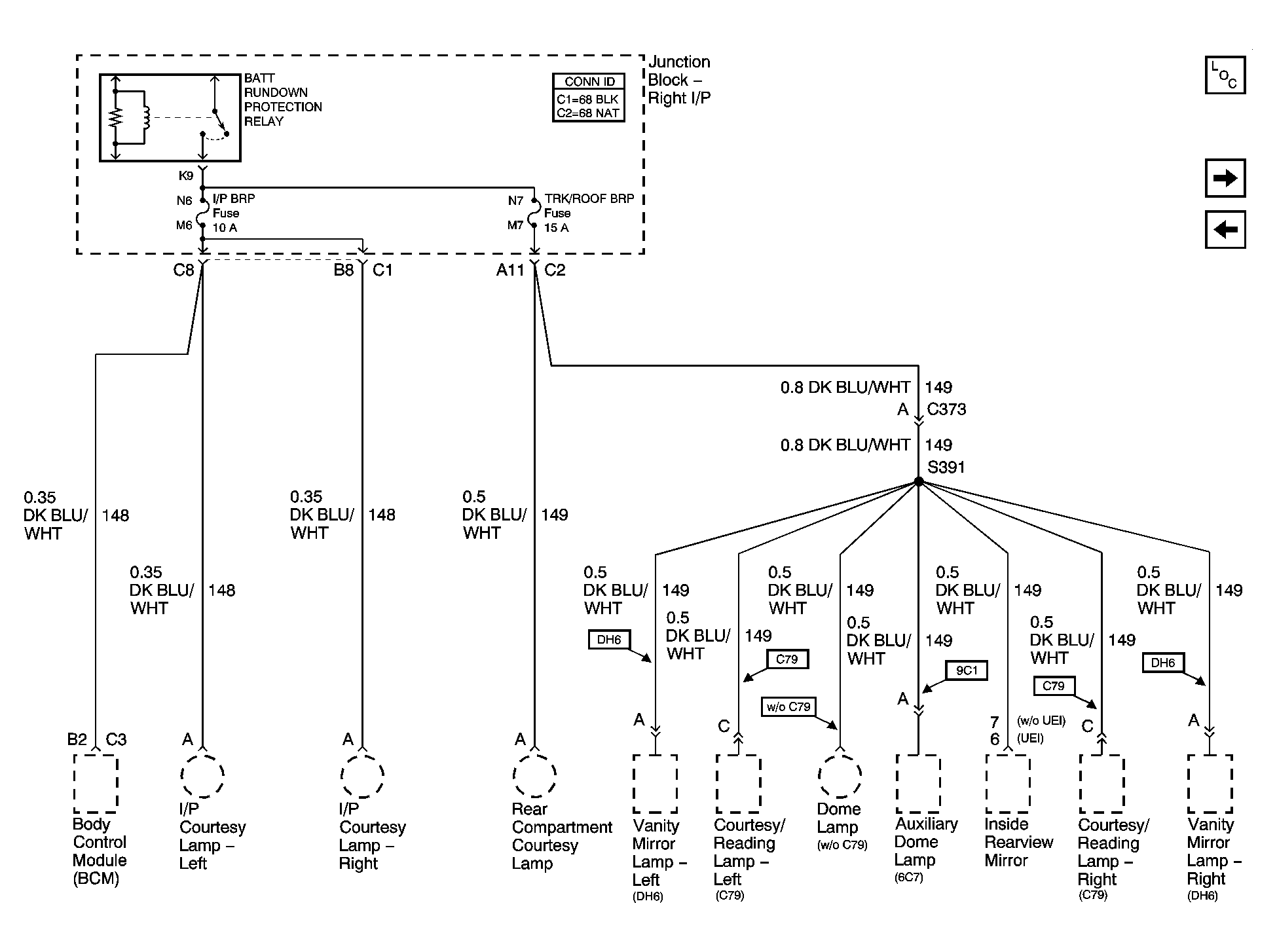

Fig 7: BATT RUNDOWN PROTECTION RELAY, IP BRP & TRK/ROOF BRP Fuses Schematic (Late Production)

Courtesy of GENERAL MOTORS CORP.

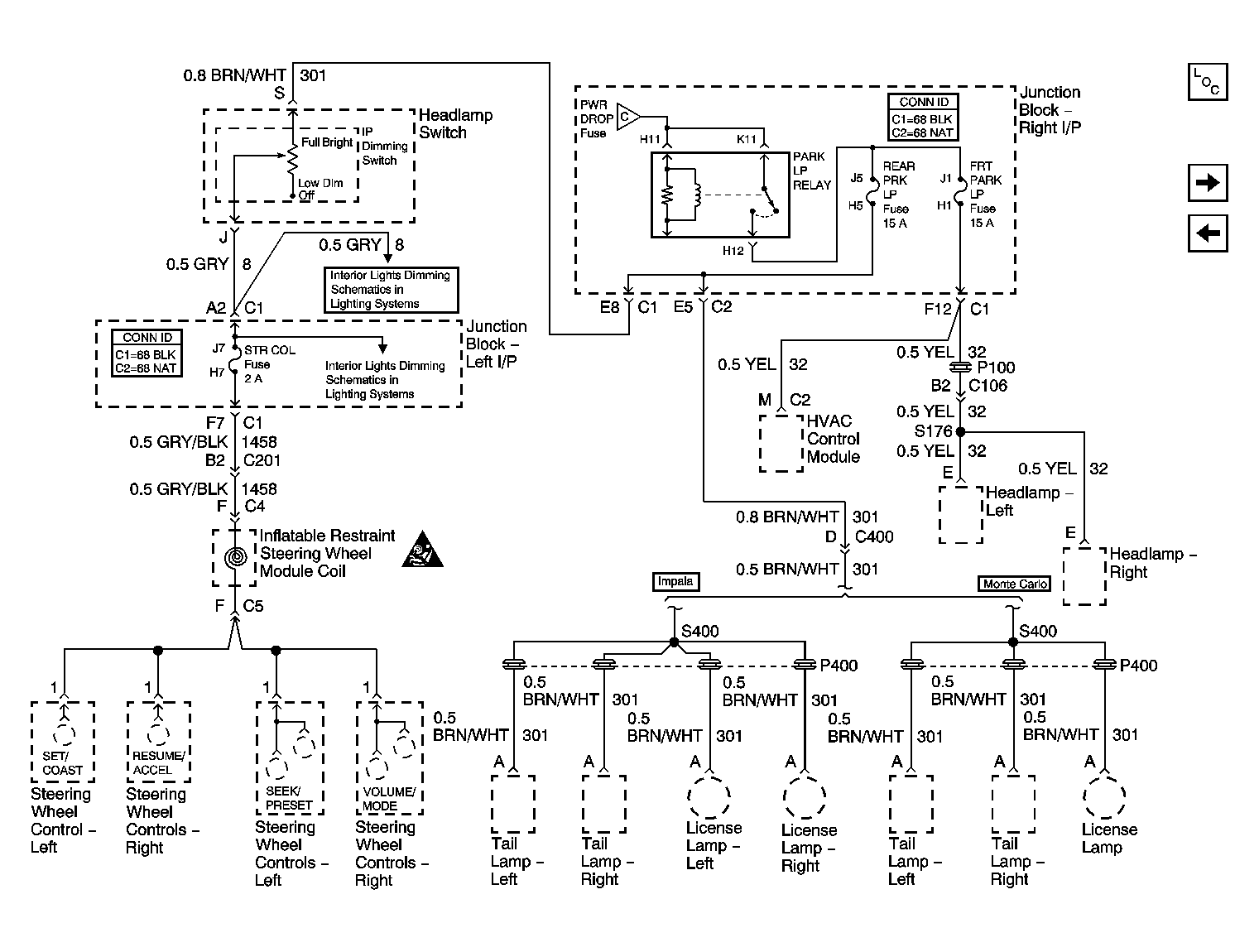

Fig 8: FRT PARK LP & REAR PRK LP Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

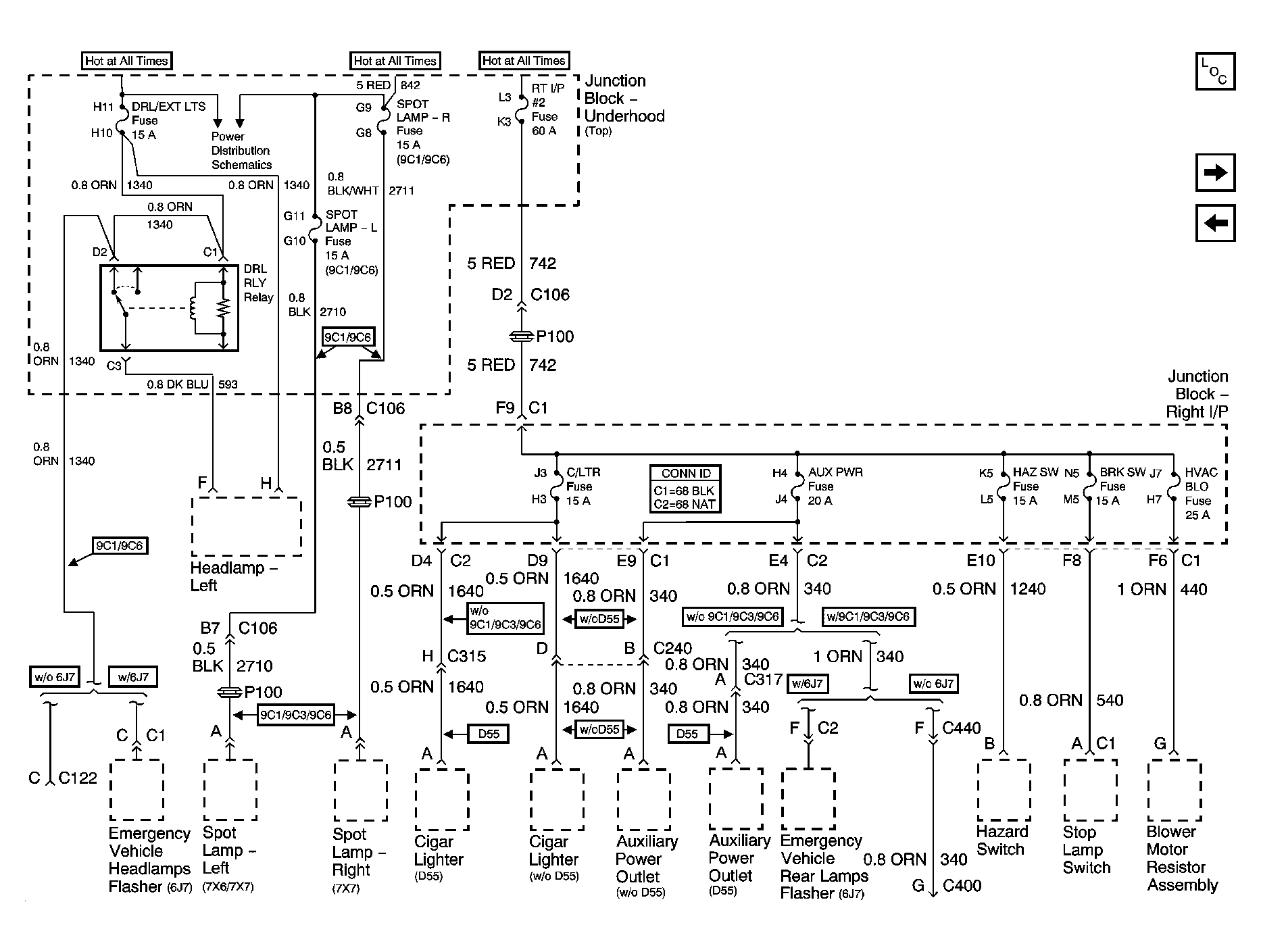

Fig 9: AUX PWR, BRK SW, C/LTR, DRL/EXT LTS, HAZ SW, HVAC BLO, RT I/P#2, Spot Lamp - Left & Spot Lamp - Right Fuses, DRL RLY Relay Schematic

Courtesy of GENERAL MOTORS CORP.

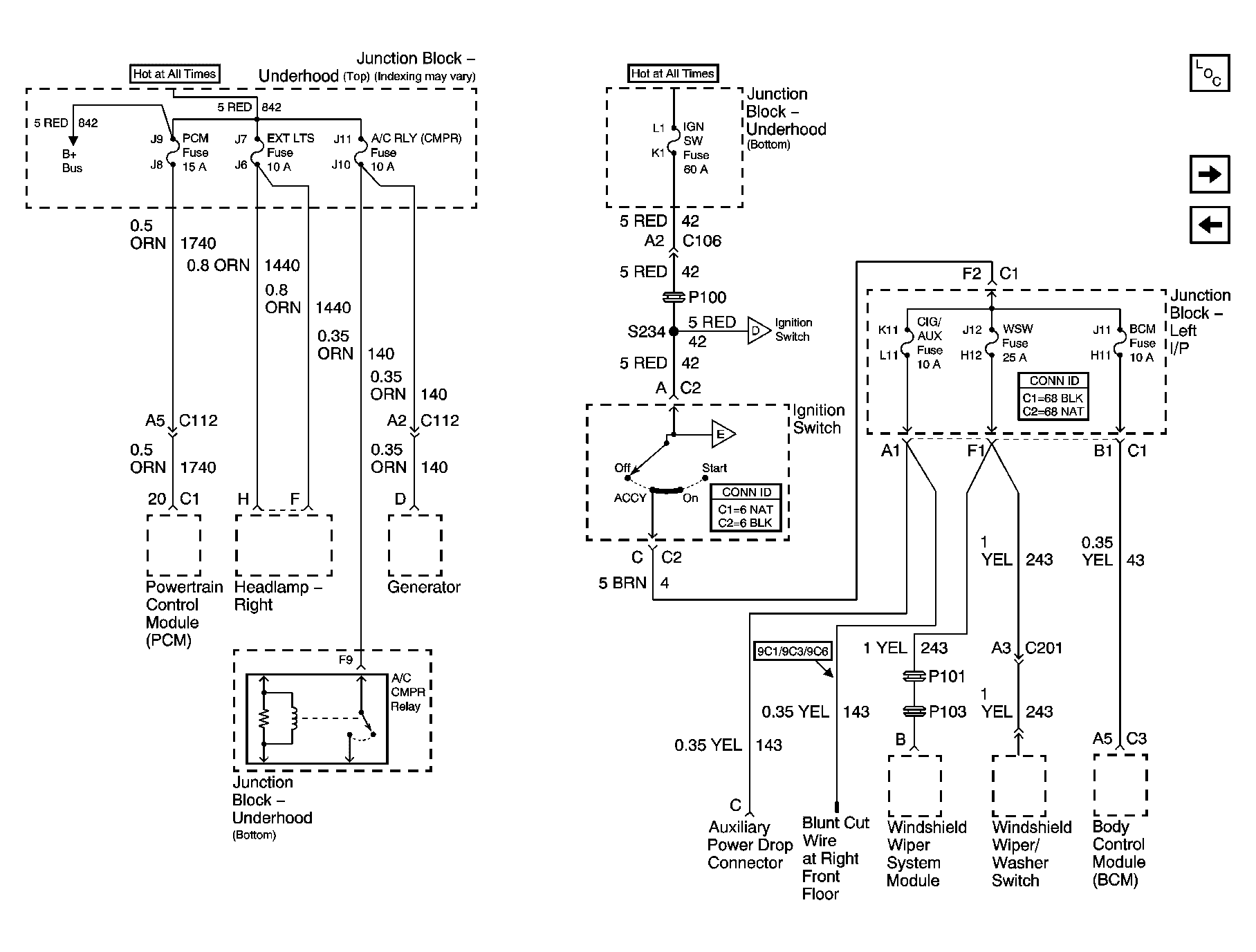

Fig 10: A/C RLY (CMPR), BCM, CIG/AUX, EXT LTS, IGN SW, PCM & WSW Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

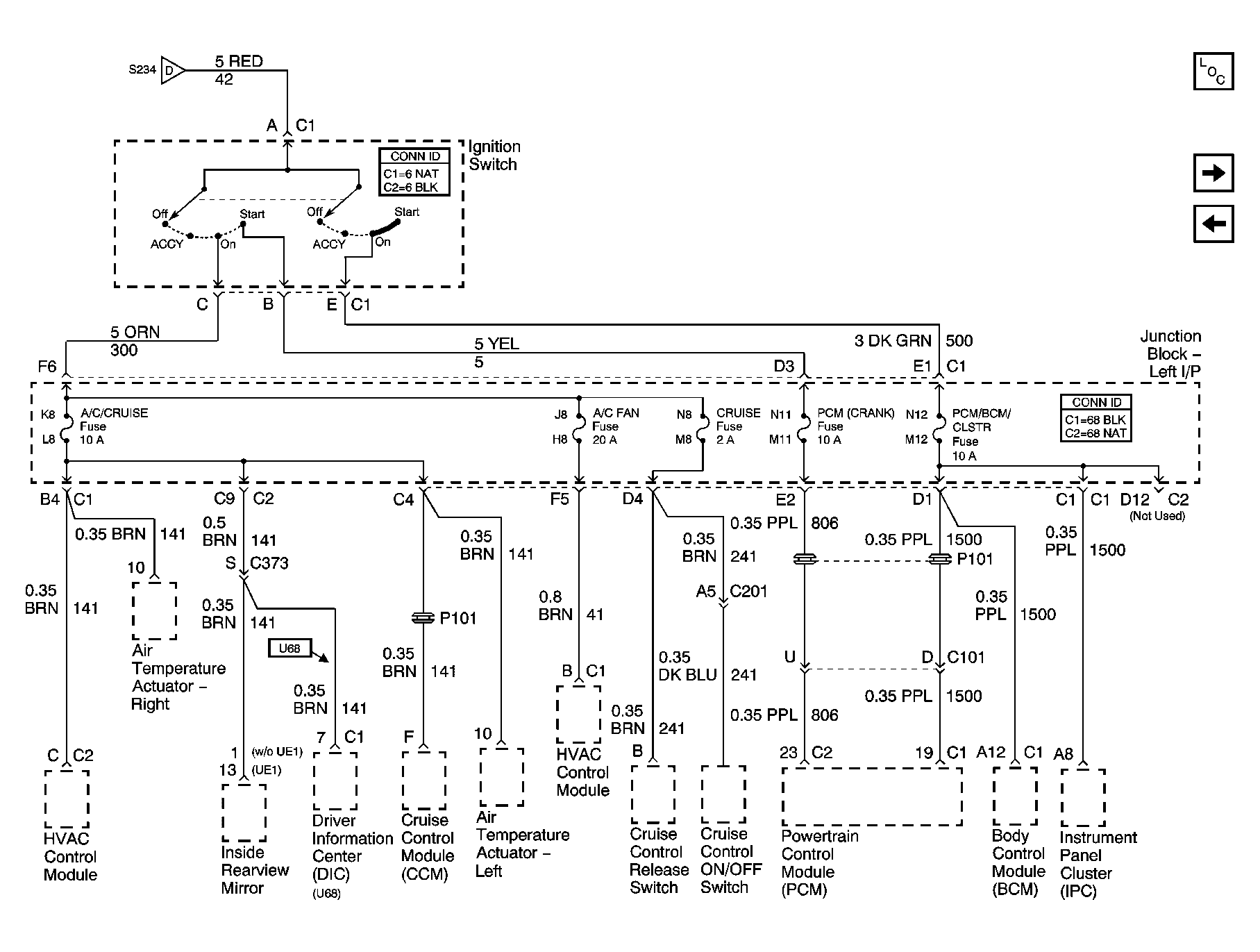

Fig 11: A/C/CRUISE, A/C FAN, CRUISE, PCM/BCM/CLSTR & PCM (CRANK) Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

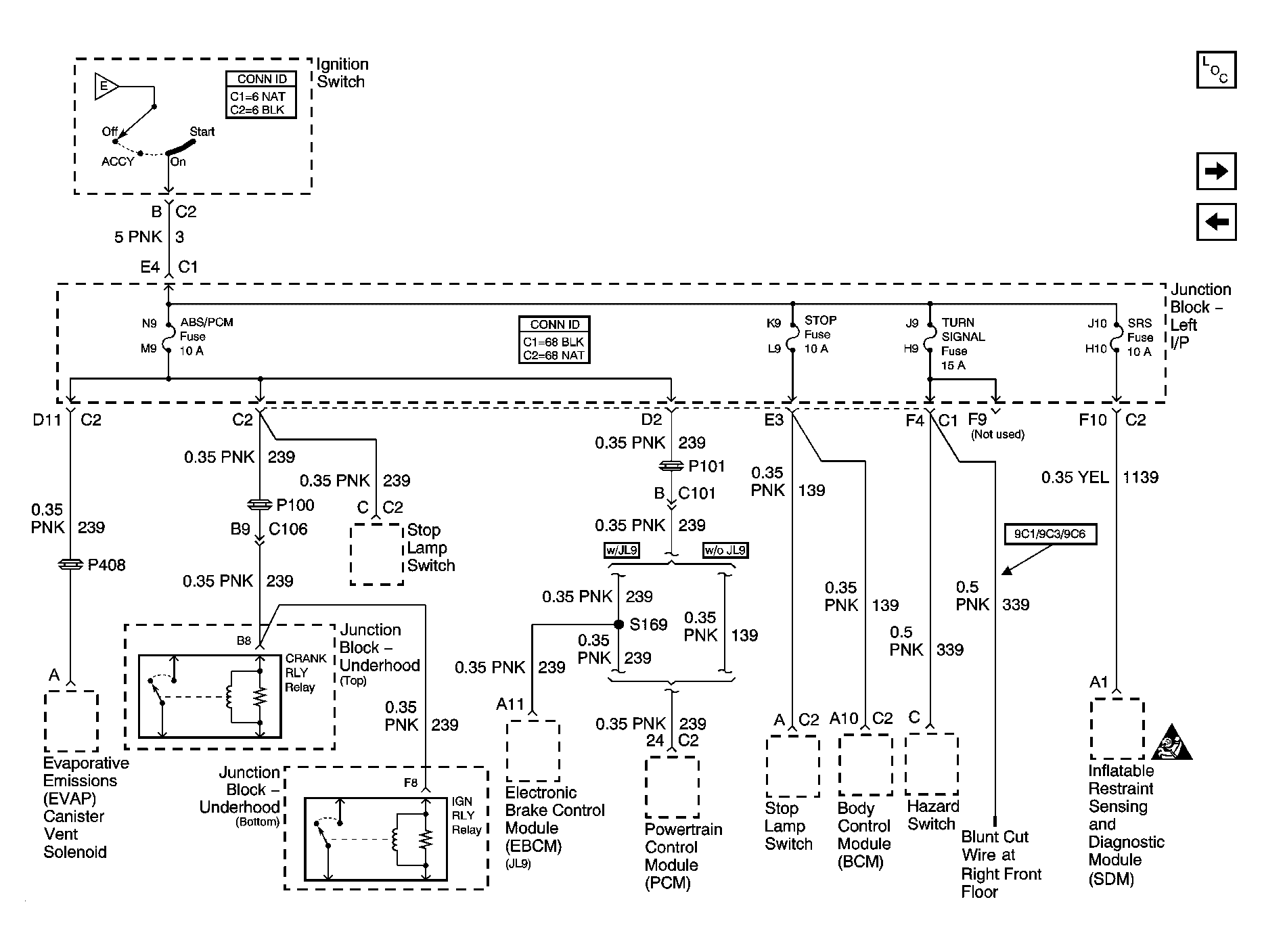

Fig 12: ABS/PCM, SRS, STOP & TURN SIGNAL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

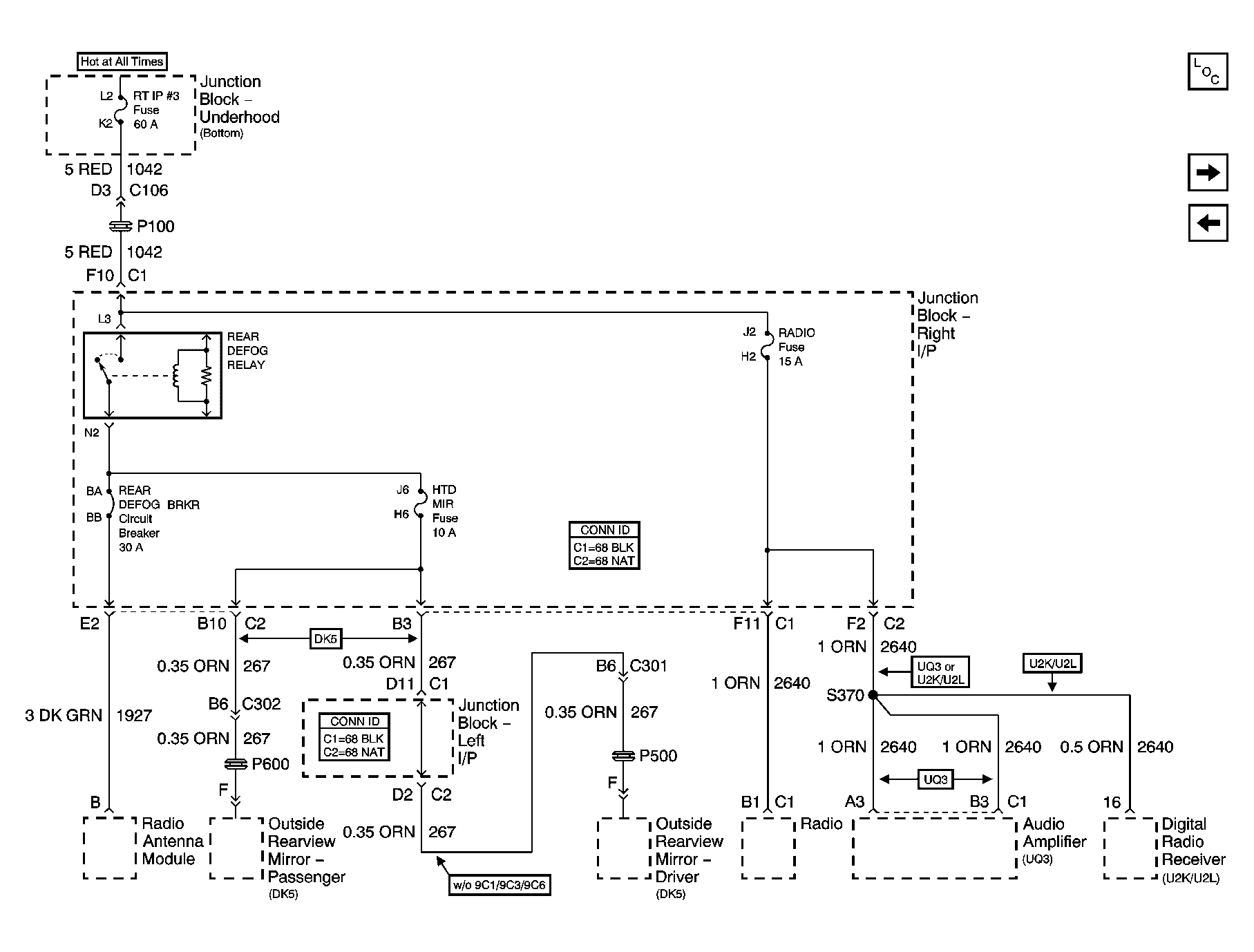

Fig 13: HTD MIR, RADIO & RT IP#3 Fuses, REAR DEFOG BRKR Circuit Breaker, REAR DEFOG RELAY & Digital Radio Receiver Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 14: FUEL INJ & TRANS SOL Fuses Schematic

Courtesy of GENERAL MOTORS CORP.

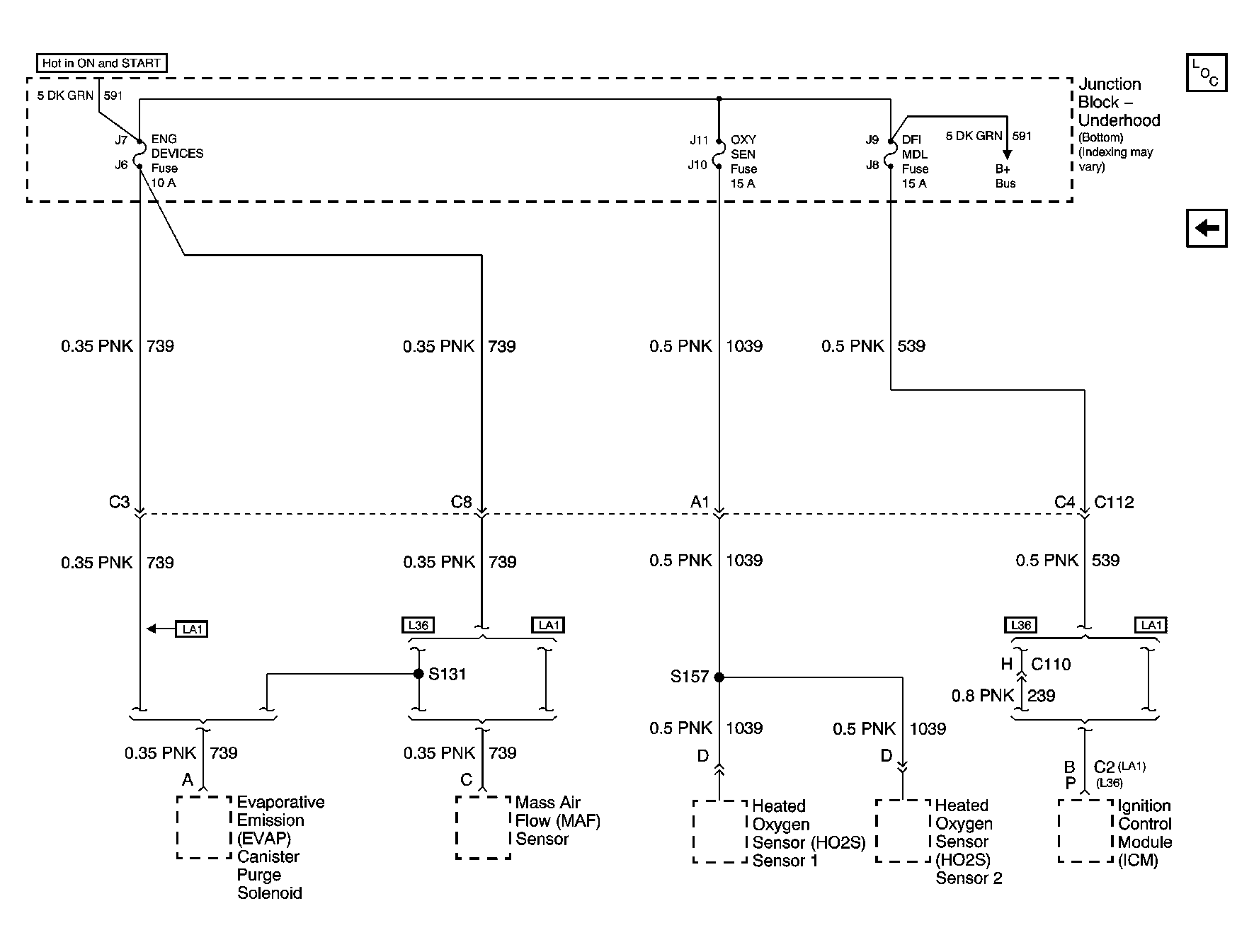

Fig 15: DFI MDL, ENG DEVICES & OXY SEN Fuses Schematic

Courtesy of GENERAL MOTORS CORP.
