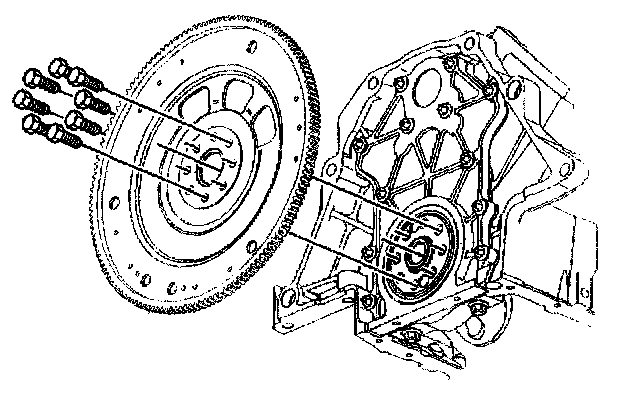

Flex Plate

Use the J 37096 to prevent the flywheel from rotating.





Install the new engine flywheel bolts.
Tighten the bolts to 15 Nm (11 lb ft).
Use the J 36660-A to rotate the bolts an additional 50°

Important: The crankshaft end play must be held in one direction during this check.
