Installation Procedure

  1. Install the cable (3) to the retaining clips (1).

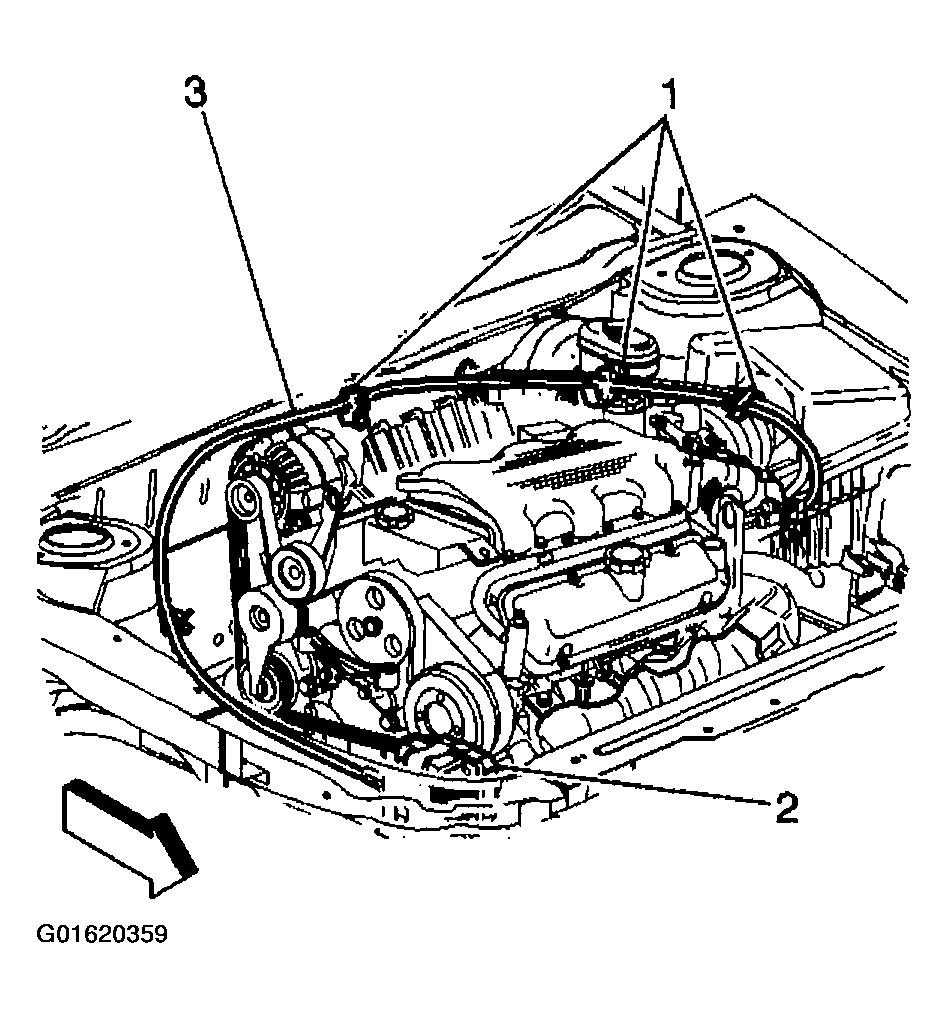

    Fig 1: Installing Cable To Retaining Clips
    G01620359Courtesy of GENERAL MOTORS CORP.
  2. Install the cable to the ribbon.
    Fig 2: Installing Cable To Ribbon
    G01620360Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Ensure that the ribbon does not become twisted when connecting the cable to the module.
  3. Connect the cable assembly to the module by turning the cable assembly 1/4 turn clockwise.

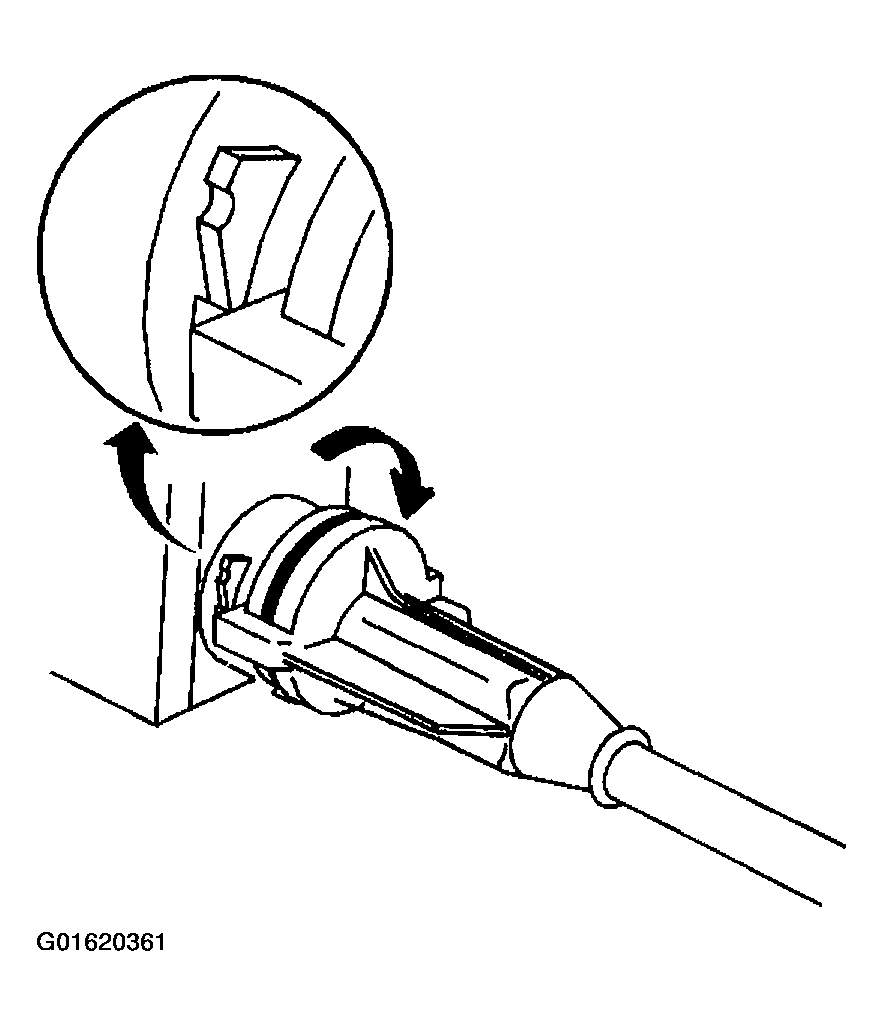

    Fig 3: Turning Cable Assembly Clockwise For Installation
    G01620361Courtesy of GENERAL MOTORS CORP.
  4. Install the cruise control cable tab (5) to the throttle body cam (6).
  5. Align the cruise control cable fitting (4) to the throttle body bracket (1). Snap the fitting into place. Ensure that the fitting is retained.
  6. Close the hood.

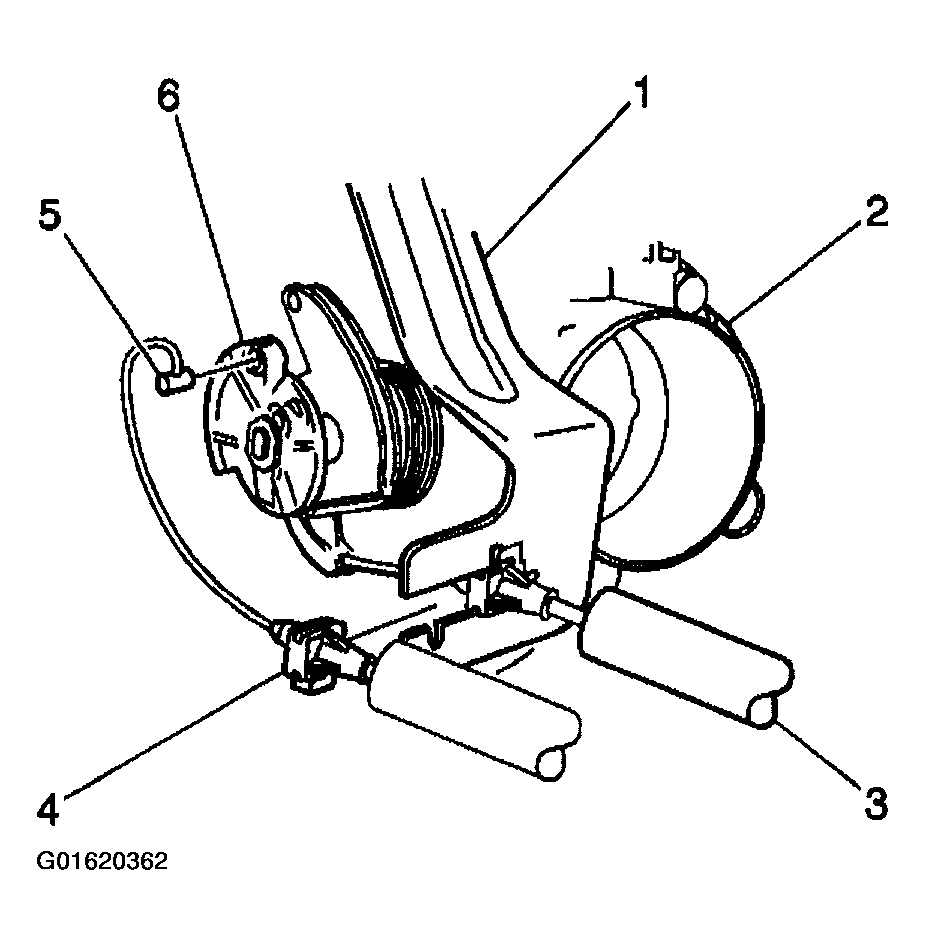

    Fig 4: Installing Cruise Control Cable Tab To Throttle Body Cam
    G01620362Courtesy of GENERAL MOTORS CORP.
