Power Seat Systems Connector End Views

Fig 1: Identifying Horizontal Motor Connector Terminals
G01590650Courtesy of GENERAL MOTORS CORP.

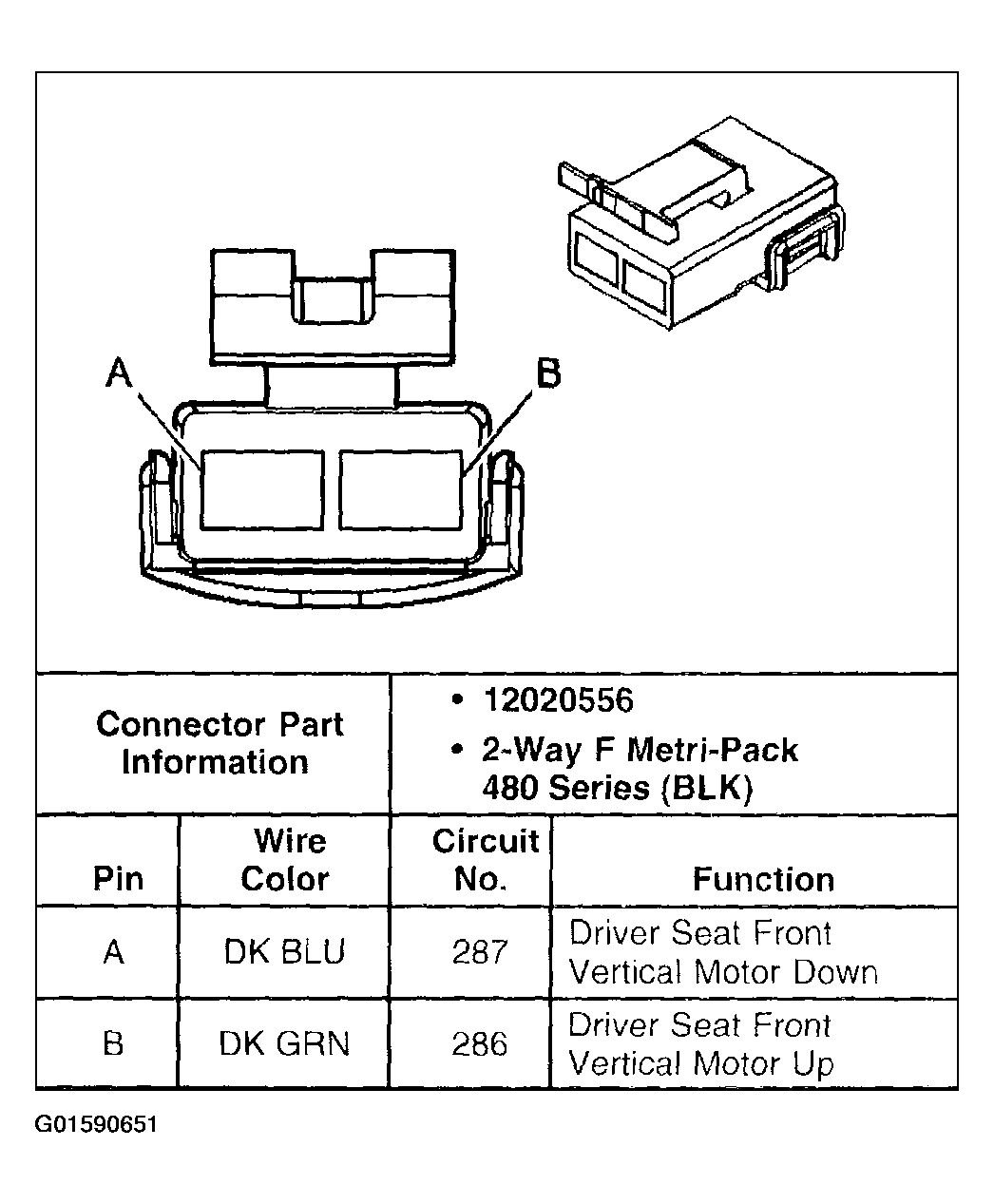

Fig 2: Identifying Front Vertical Motor Connector Terminals
G01590651Courtesy of GENERAL MOTORS CORP.

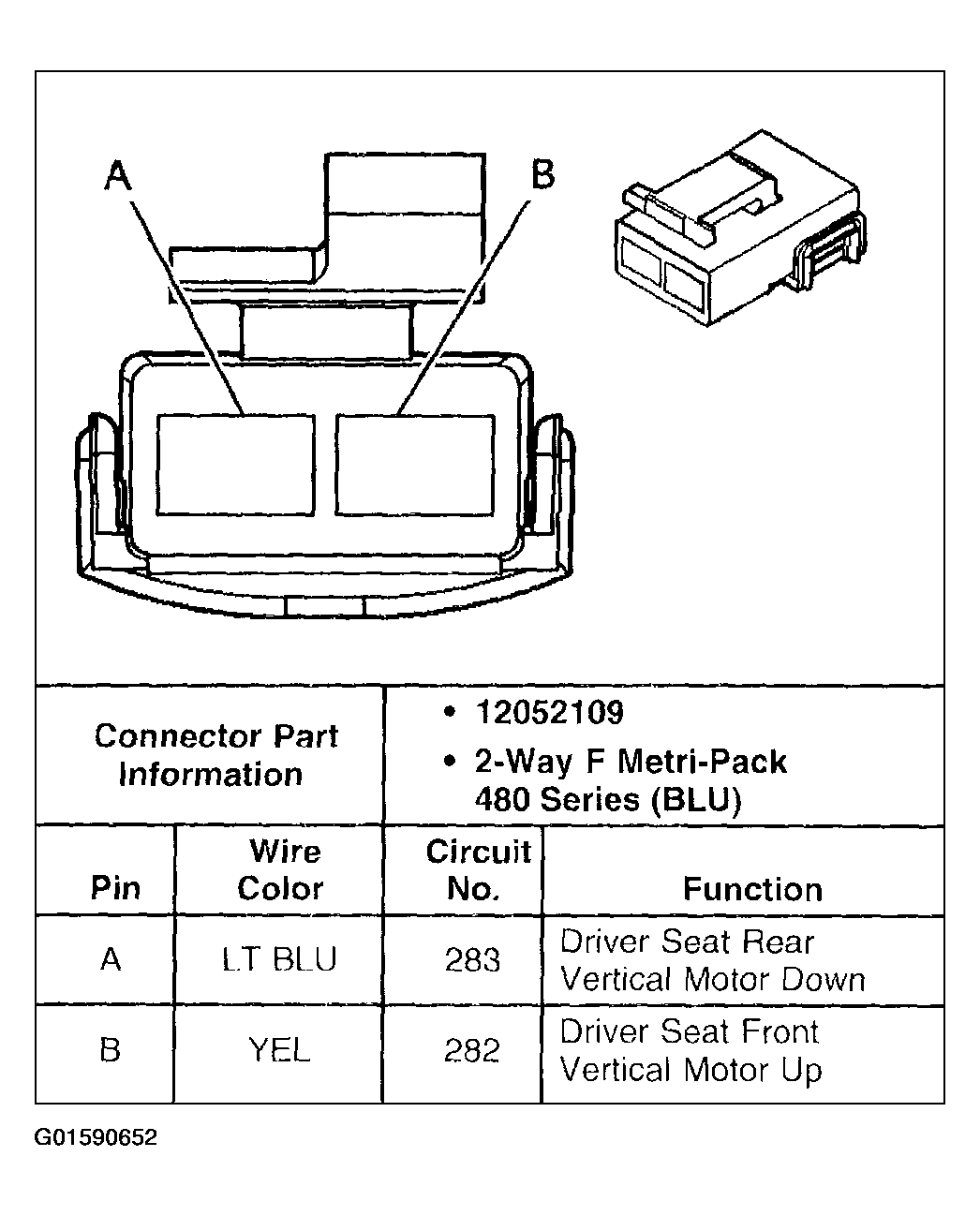

Fig 3: Identifying Rear Vertical Motor Connector Terminals
G01590652Courtesy of GENERAL MOTORS CORP.

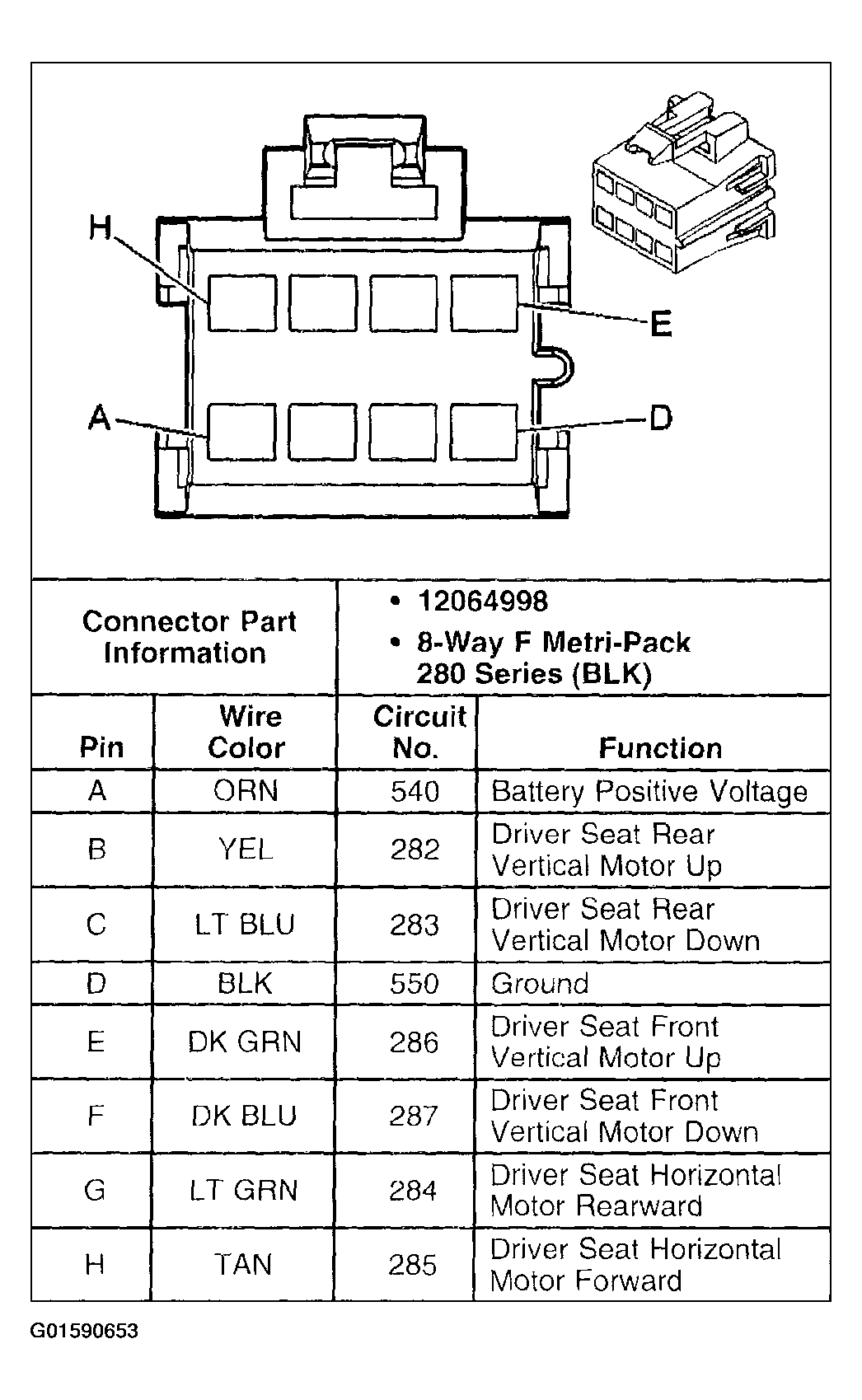

Fig 4: Identifying Seat Adjuster Switch Connector Terminals - Driver
G01590653Courtesy of GENERAL MOTORS CORP.
