Power Door Systems Connector End Views

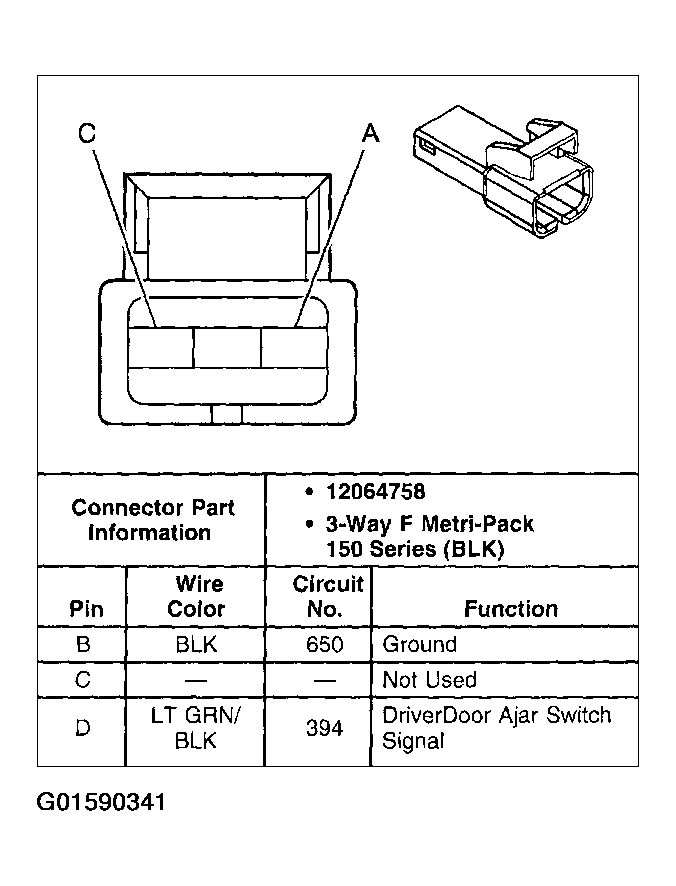

Fig 1: Identifying Door Ajar Switch Connector Terminals - Driver

G01590341

Courtesy of GENERAL MOTORS CORP.

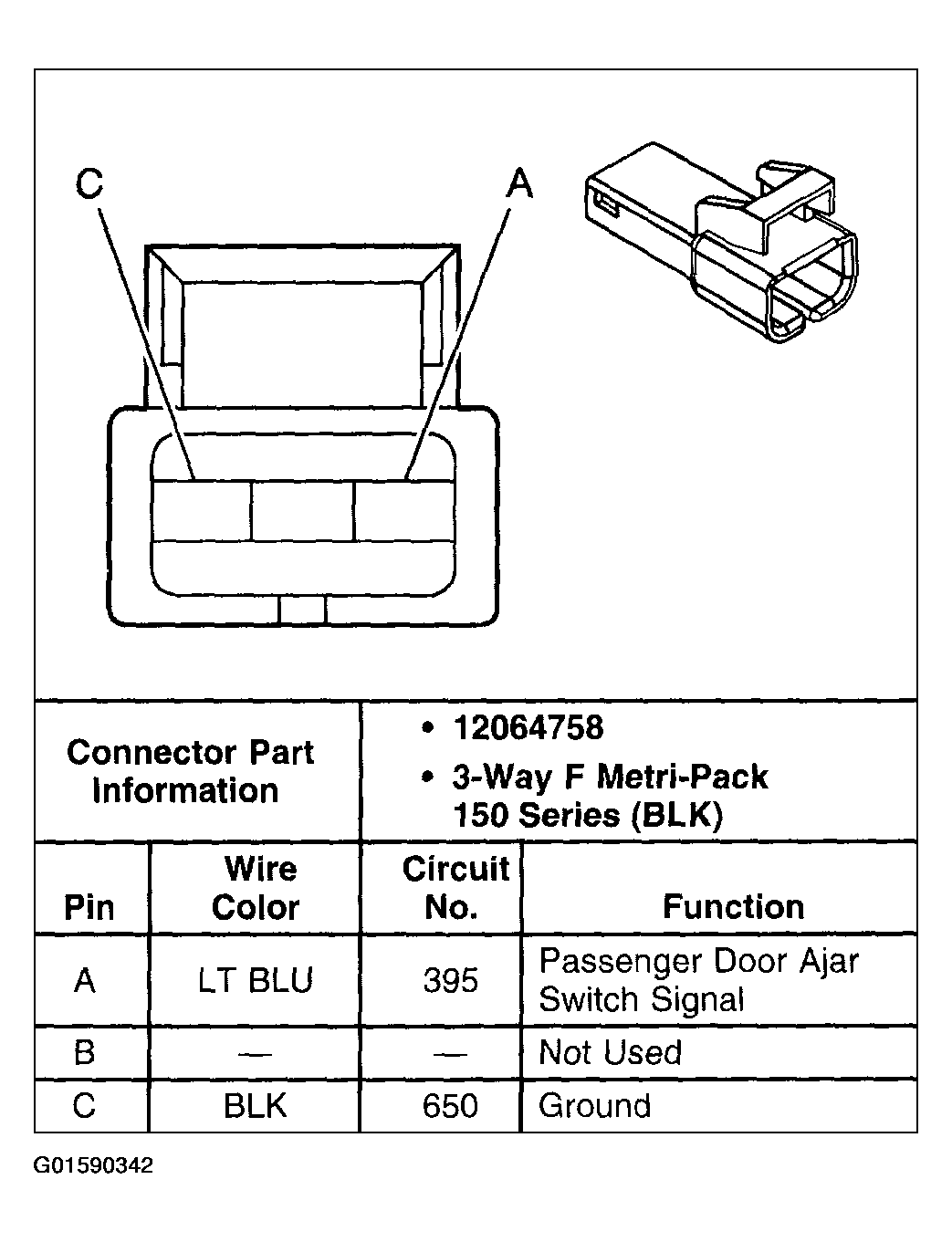

Fig 2: Identifying Door Ajar Switch Connector Terminals - Front Passenger

G01590342

Courtesy of GENERAL MOTORS CORP.

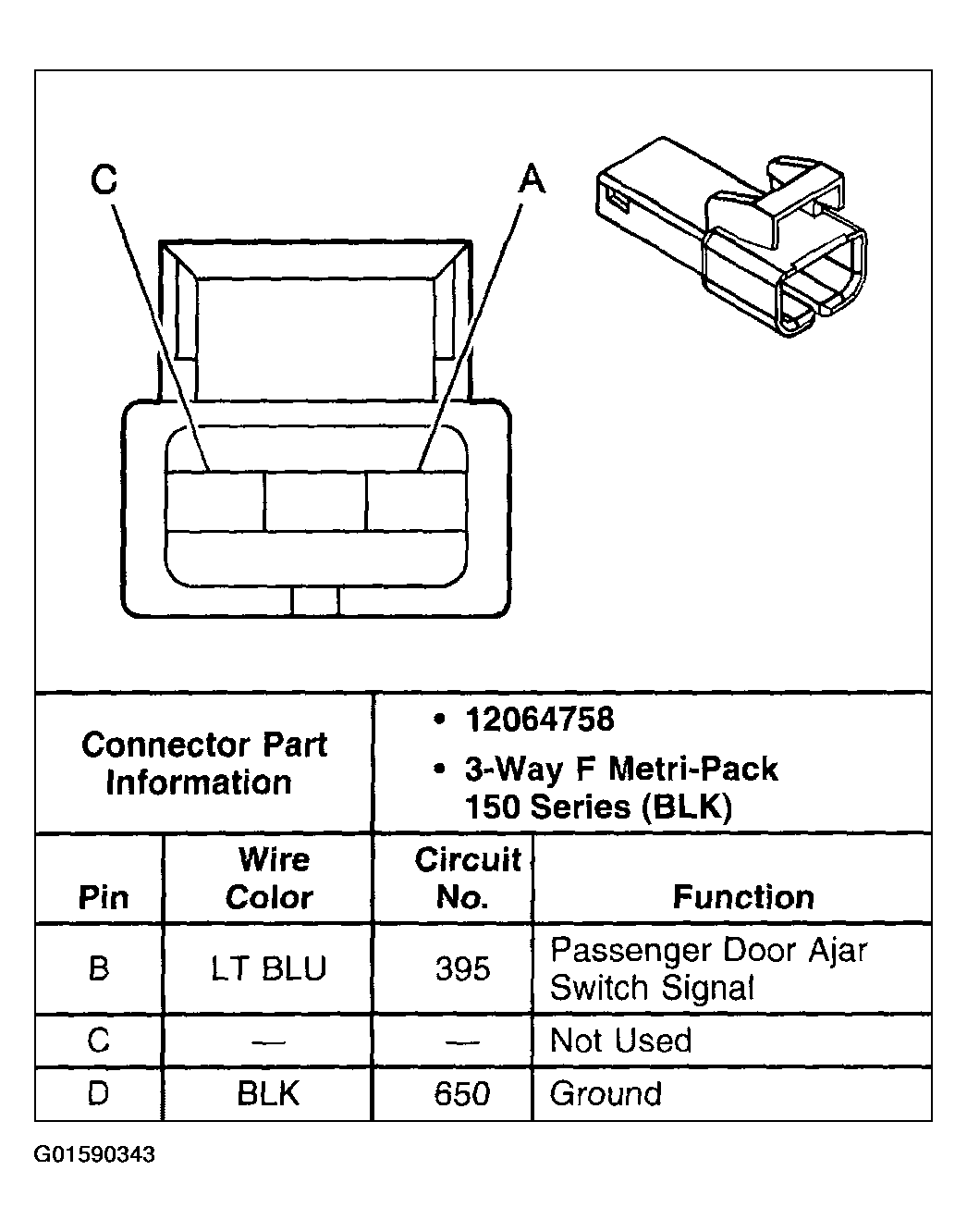

Fig 3: Identifying Door Ajar Switch Connector Terminals - LR

G01590343

Courtesy of GENERAL MOTORS CORP.

Fig 4: Identifying Door Ajar Switch Connector Terminals - RR

G01590344

Courtesy of GENERAL MOTORS CORP.

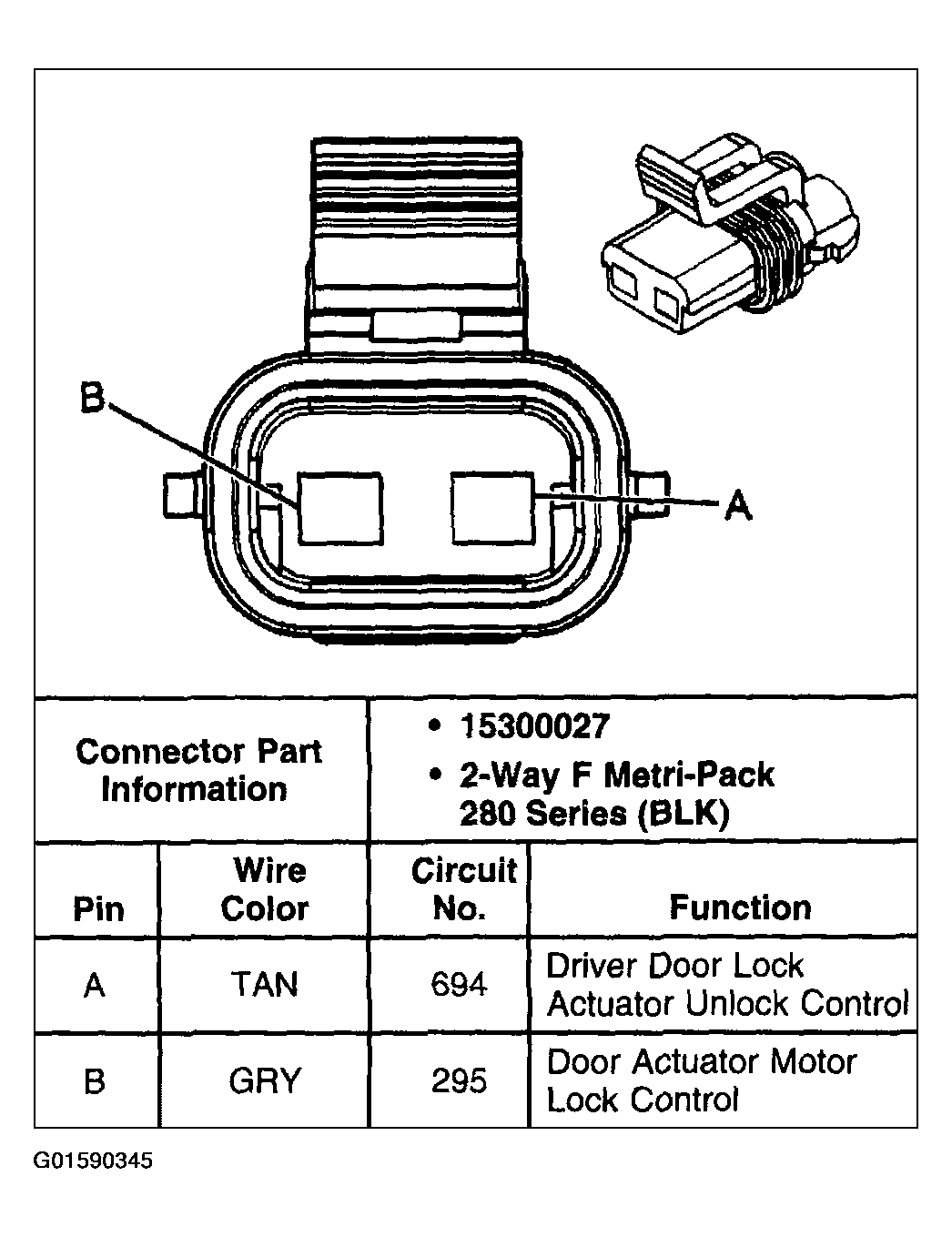

Fig 5: Identifying Door Lock Actuator Connector Terminals - Driver

G01590345

Courtesy of GENERAL MOTORS CORP.

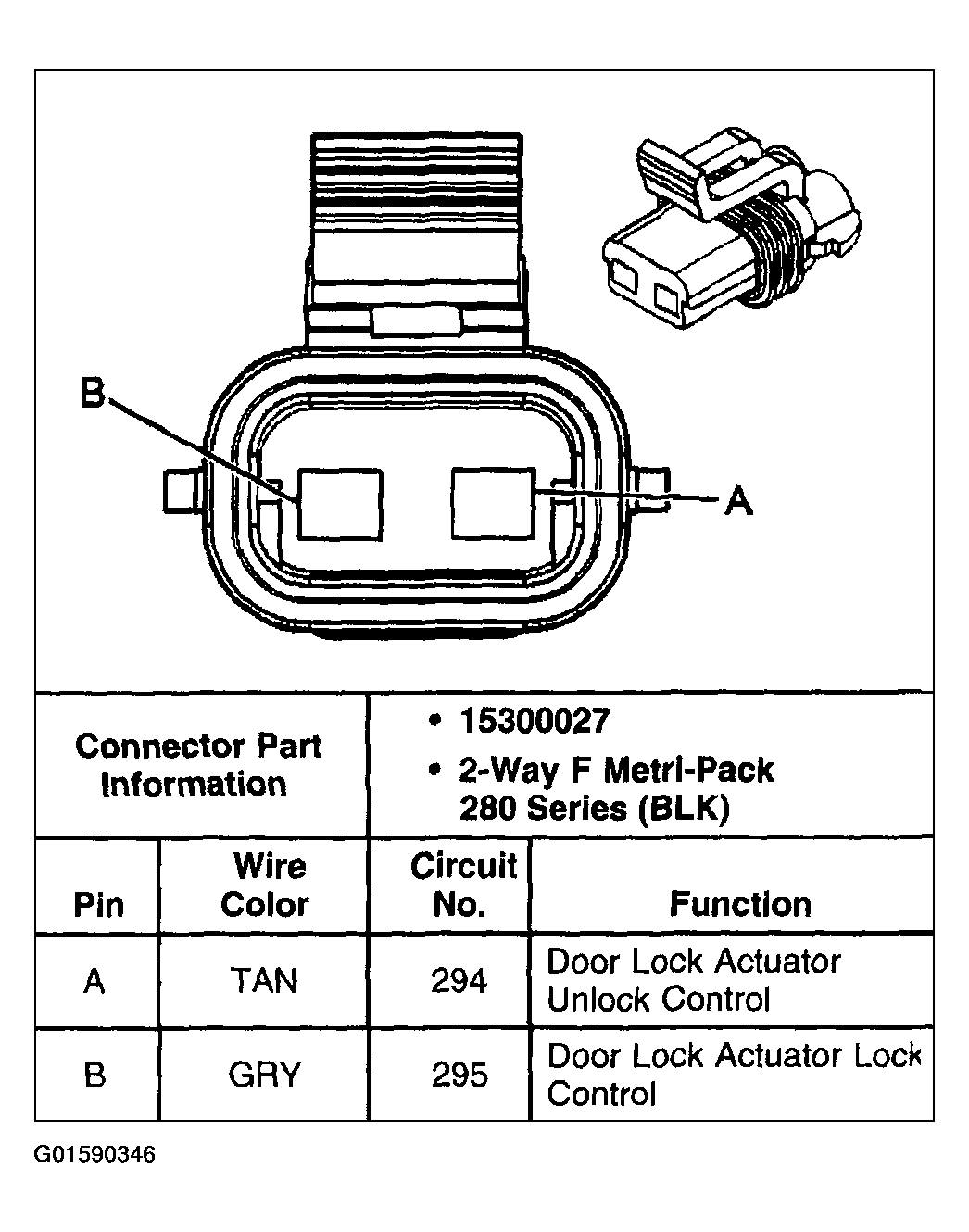

Fig 6: Identifying Door Lock Actuator Connector Terminals - Front Passenger

G01590346

Courtesy of GENERAL MOTORS CORP.

Fig 7: Identifying Door Lock Actuator Connector Terminals - LR

G01590347

Courtesy of GENERAL MOTORS CORP.

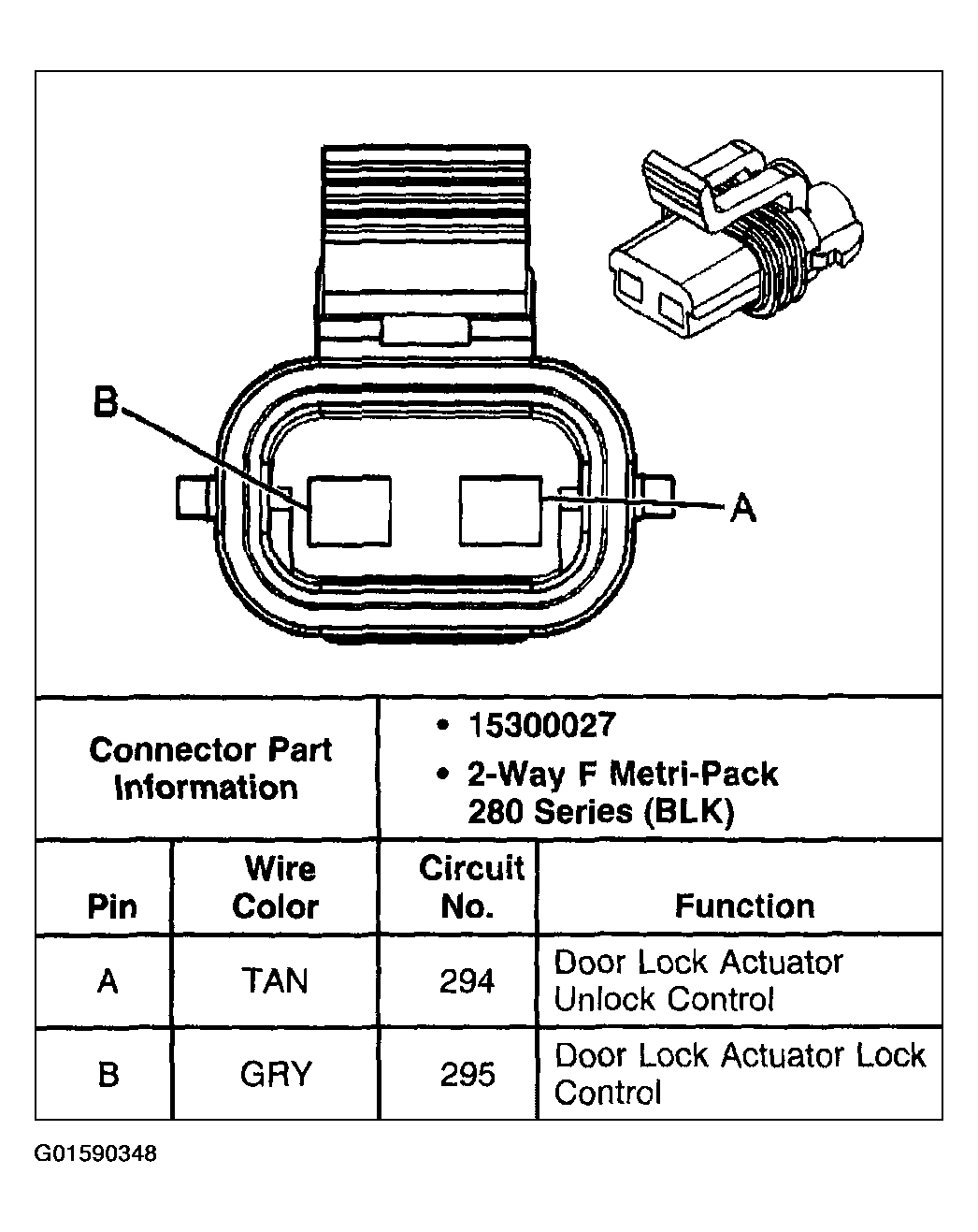

Fig 8: Identifying Door Lock Actuator Connector Terminals - RR

G01590348

Courtesy of GENERAL MOTORS CORP.

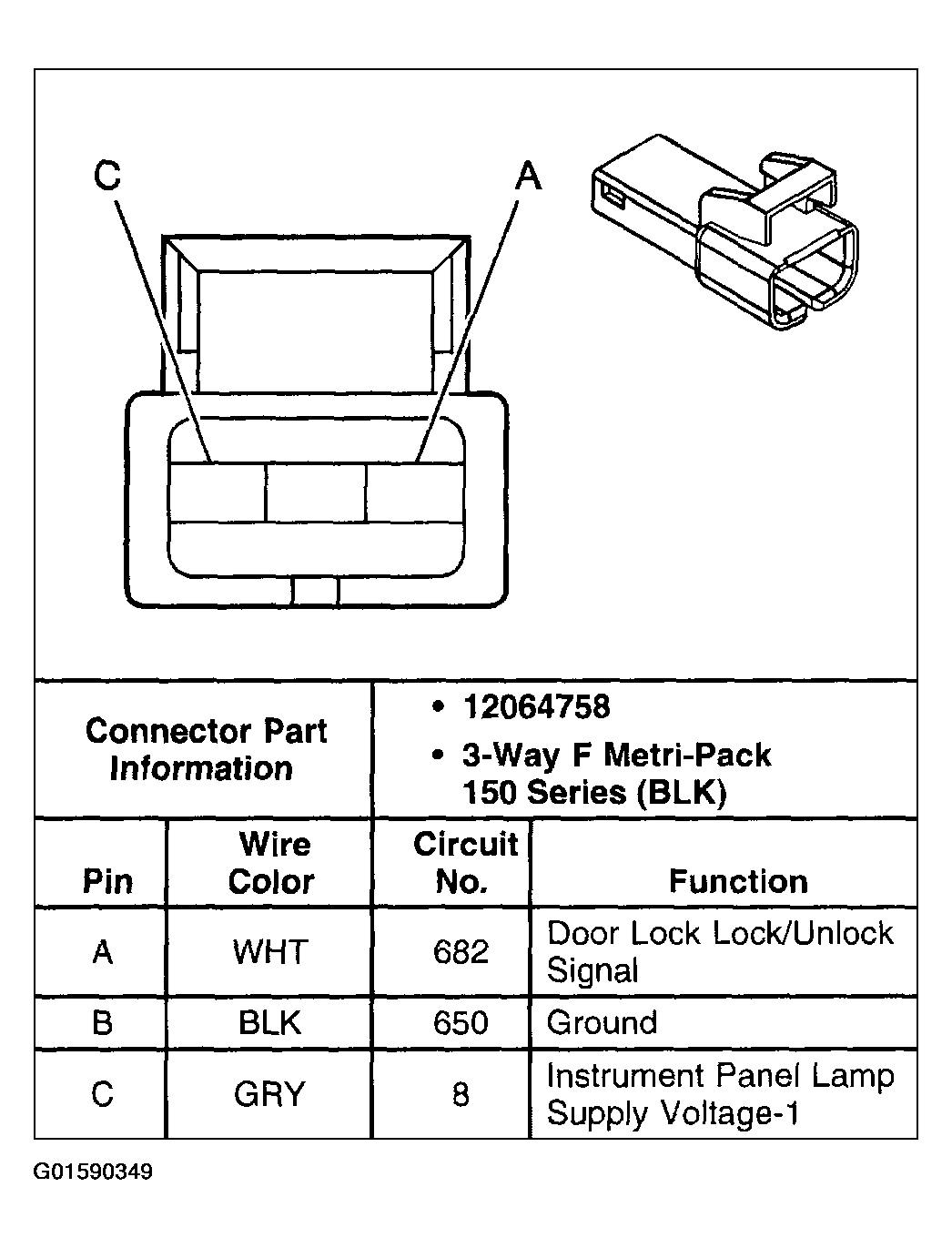

Fig 9: Identifying Door Lock Switch Connector Terminals - Driver

G01590349

Courtesy of GENERAL MOTORS CORP.

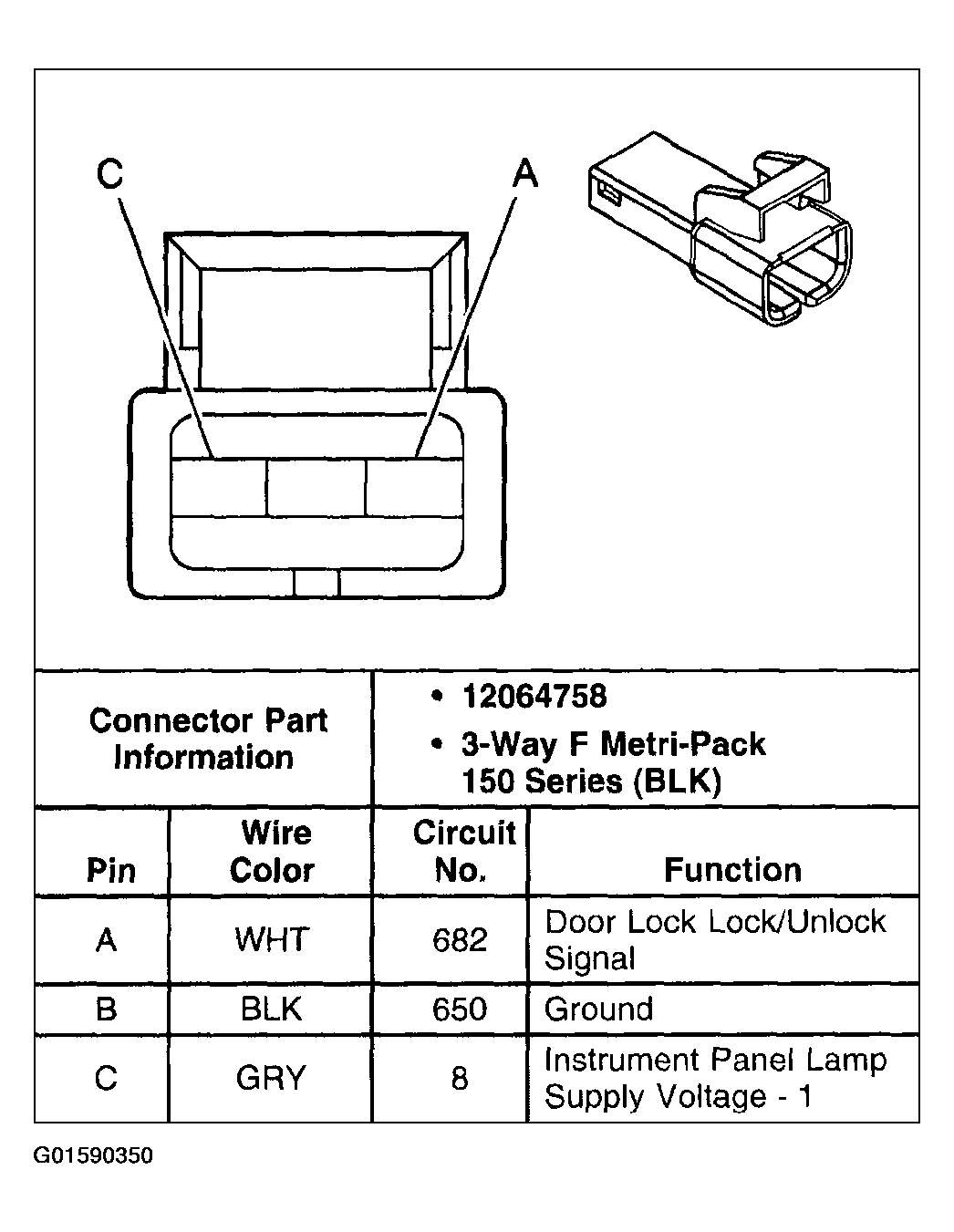

Fig 10: Identifying Door Lock Switch Connector Terminals - Front Passenger

G01590350

Courtesy of GENERAL MOTORS CORP.

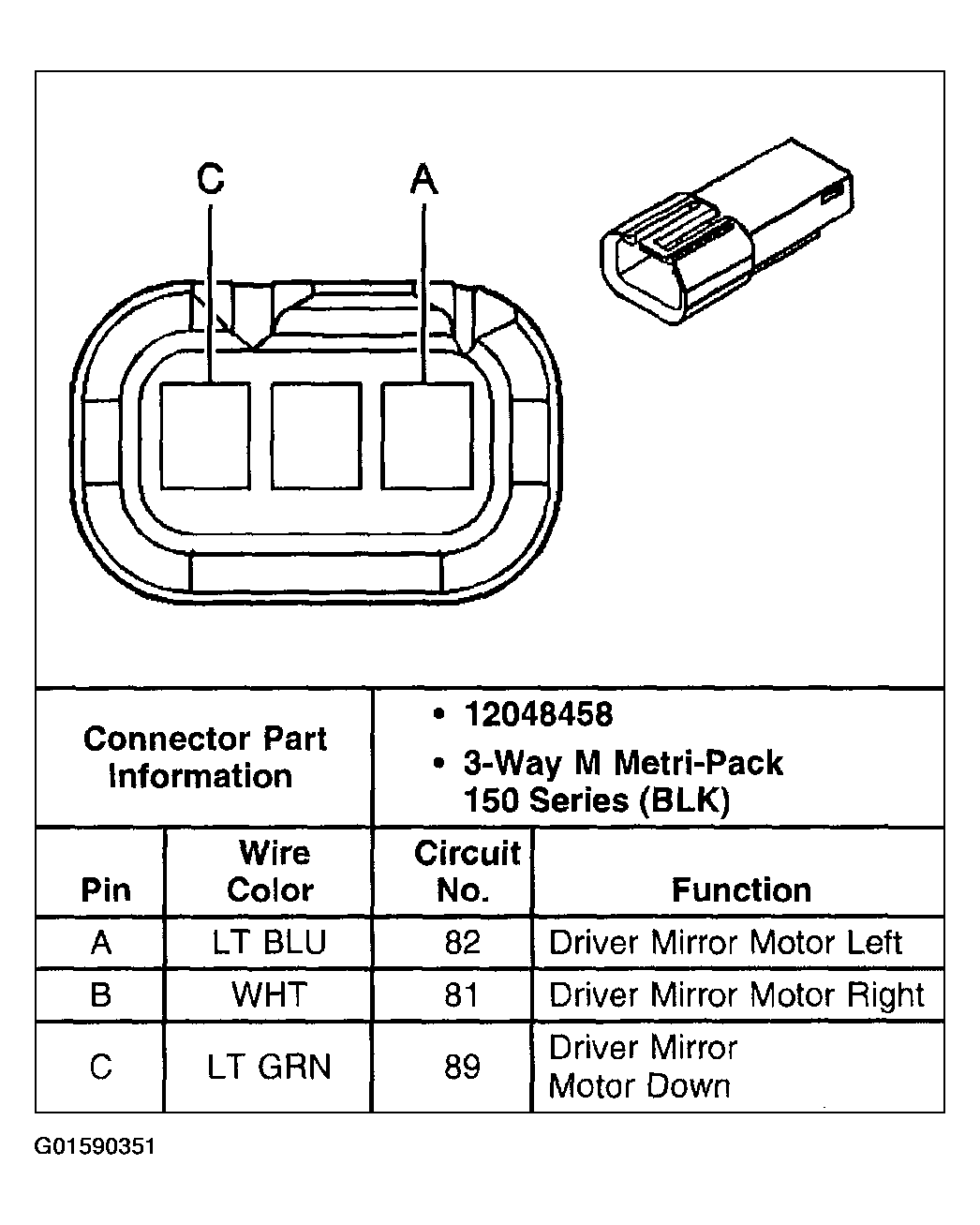

Fig 11: Identifying Outside Rearview Mirror Connector Terminals - Driver

G01590351

Courtesy of GENERAL MOTORS CORP.

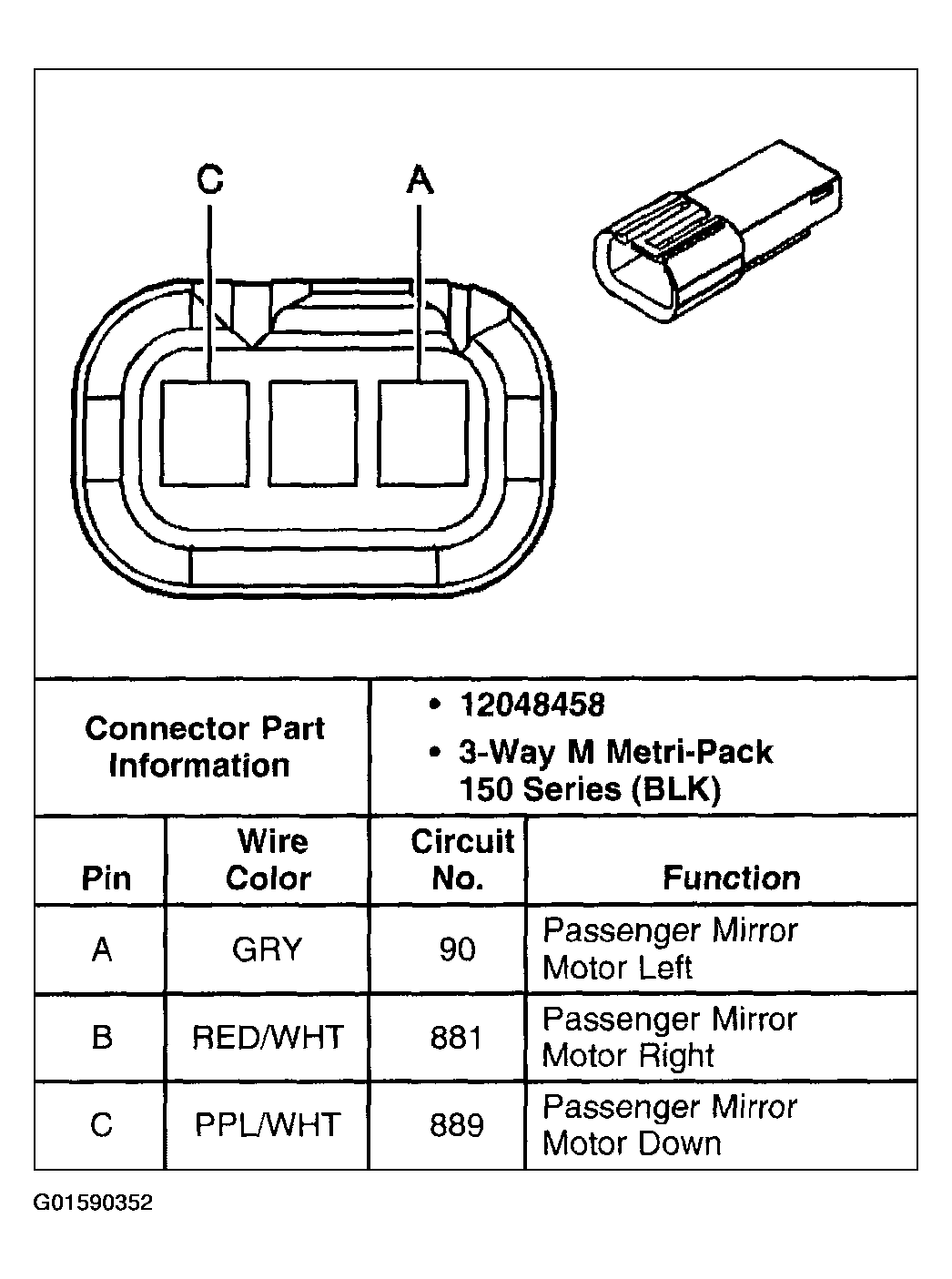

Fig 12: Identifying Outside Rearview Mirror Connector Terminals - Passenger

G01590352

Courtesy of GENERAL MOTORS CORP.

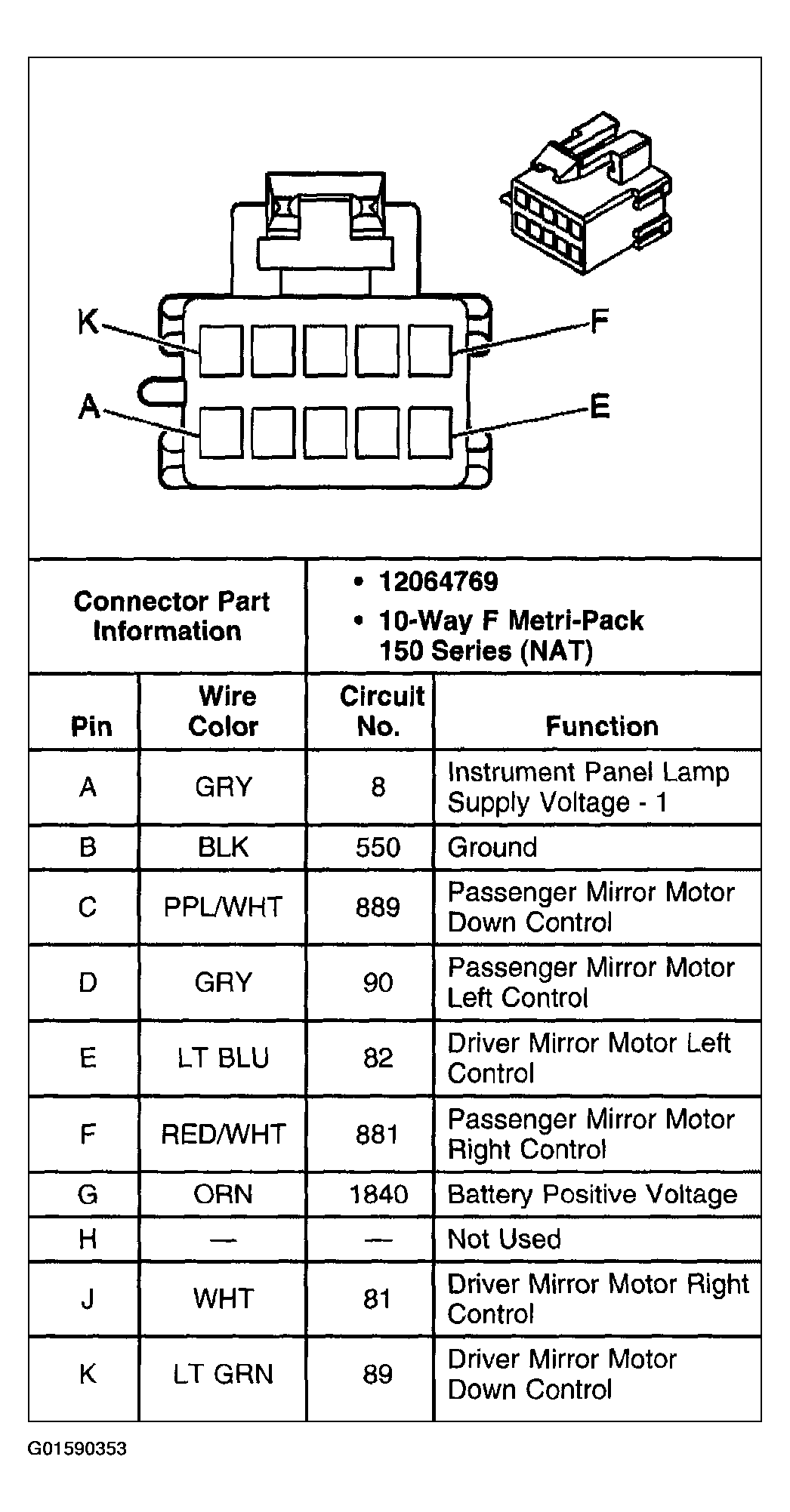

Fig 13: Identifying Outside Rearview Mirror Switch Connector Terminals

G01590353

Courtesy of GENERAL MOTORS CORP.

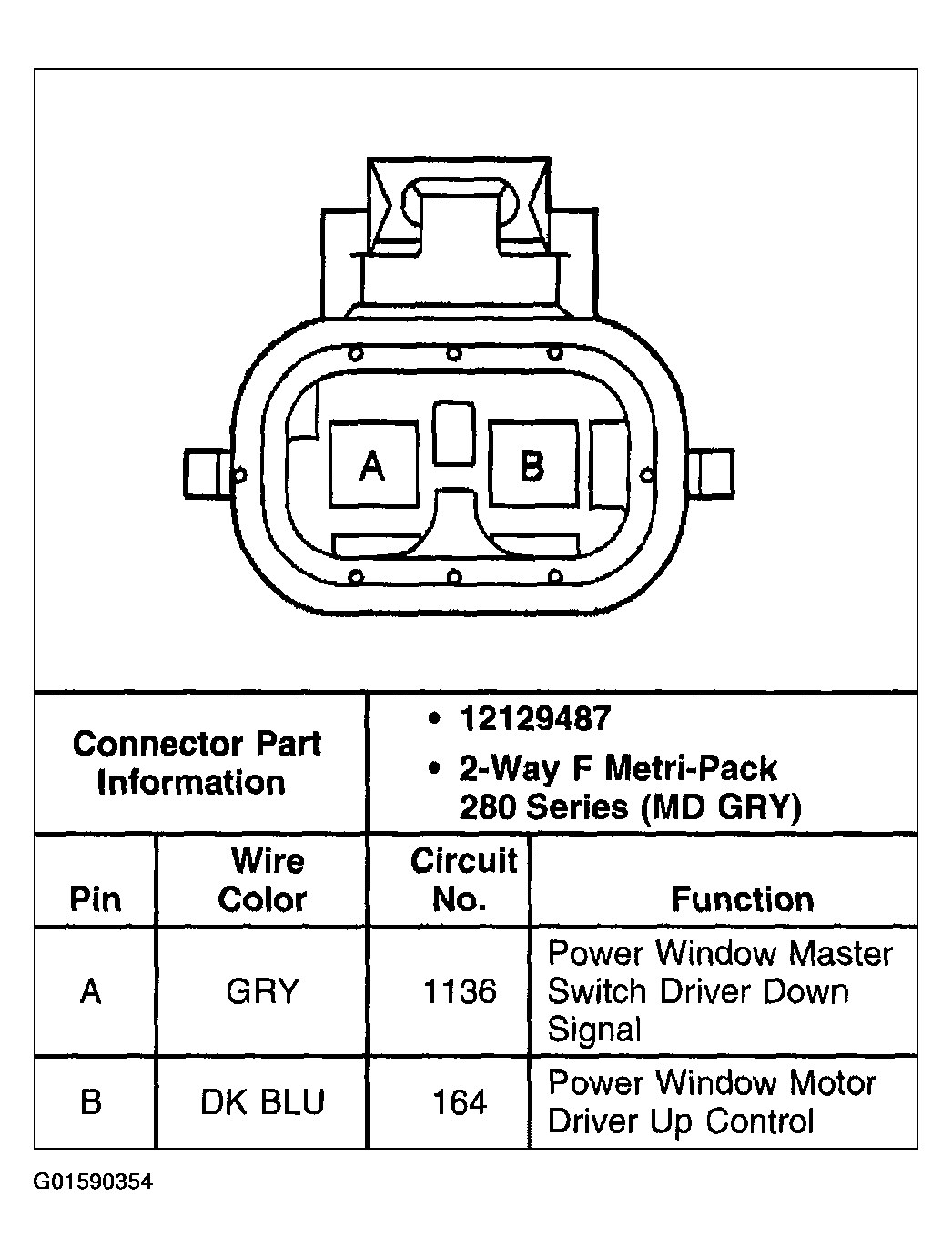

Fig 14: Identifying Window Motor Connector Terminals - Driver

G01590354

Courtesy of GENERAL MOTORS CORP.

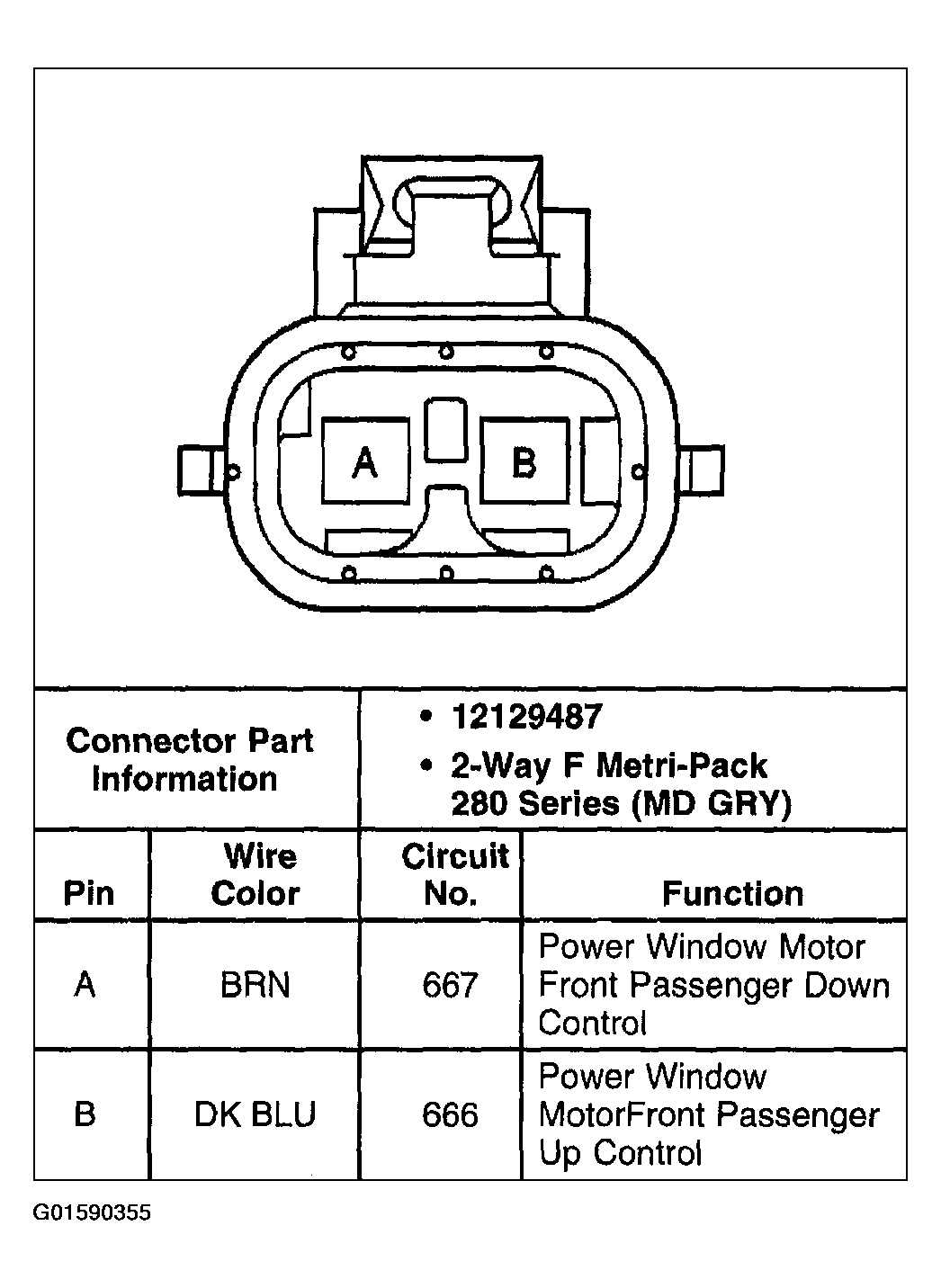

Fig 15: Identifying Window Motor Connector Terminals - Front Passenger

G01590355

Courtesy of GENERAL MOTORS CORP.

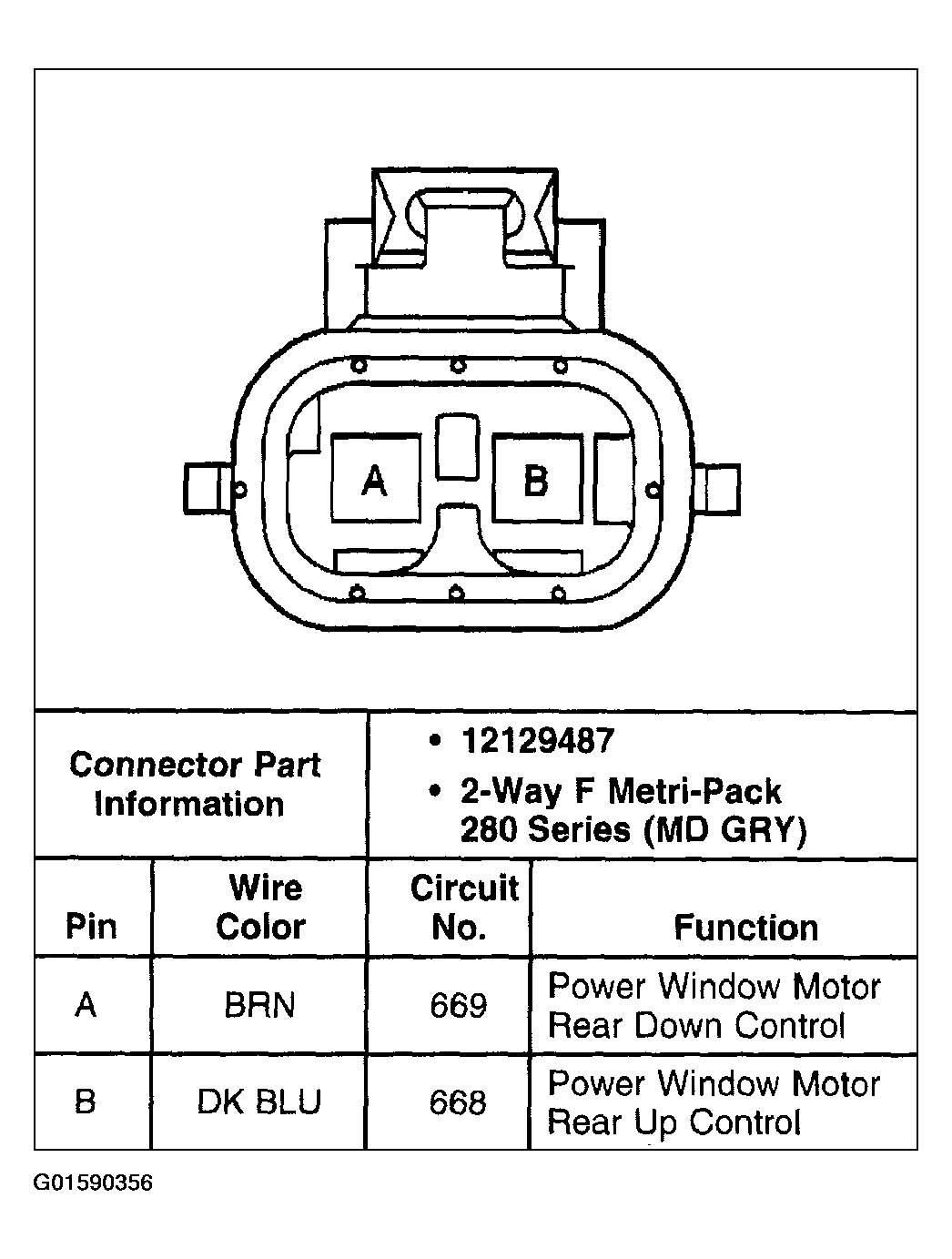

Fig 16: Identifying Window Motor Connector Terminals - LR

G01590356

Courtesy of GENERAL MOTORS CORP.

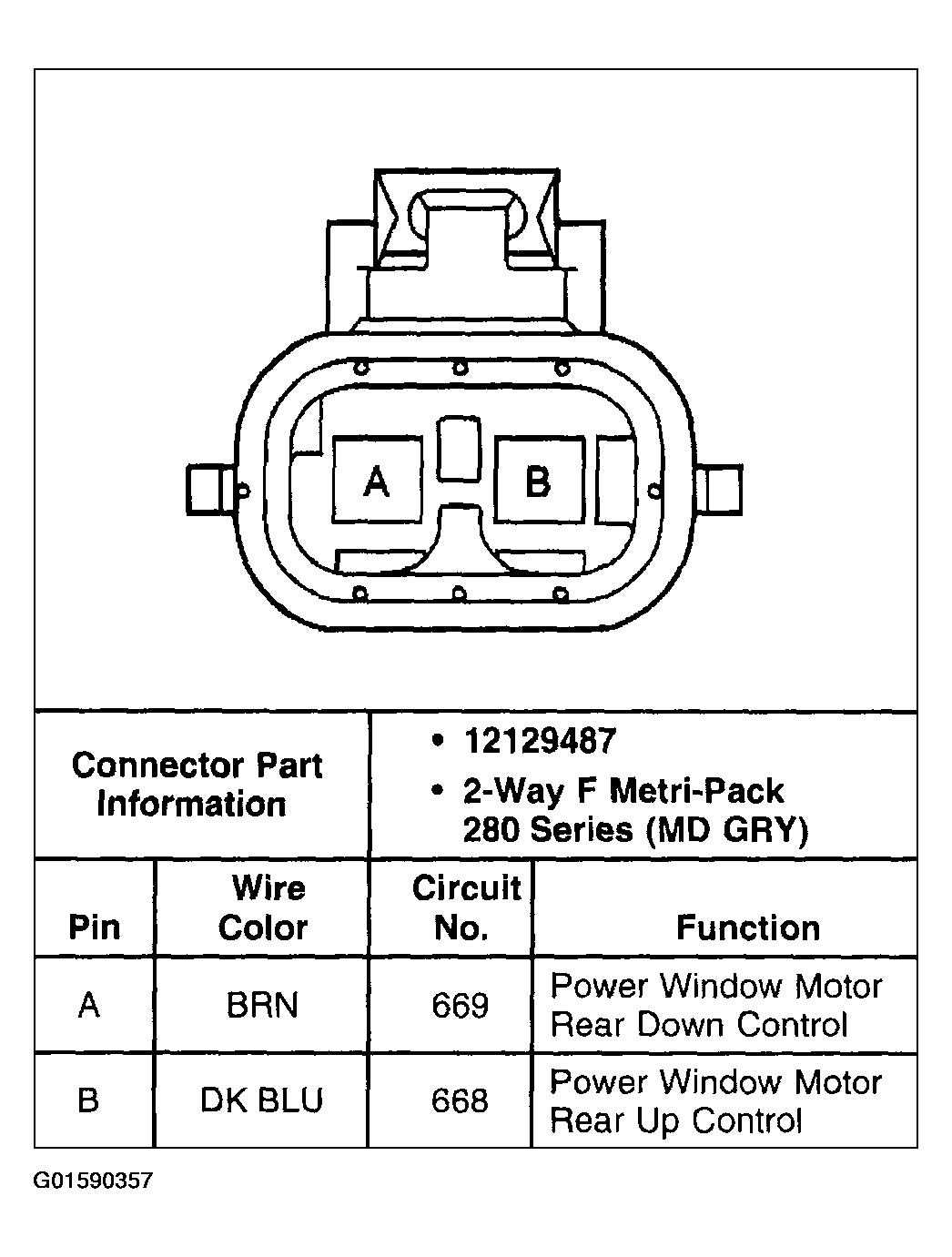

Fig 17: Identifying Window Motor Connector Terminals - RR

G01590357

Courtesy of GENERAL MOTORS CORP.

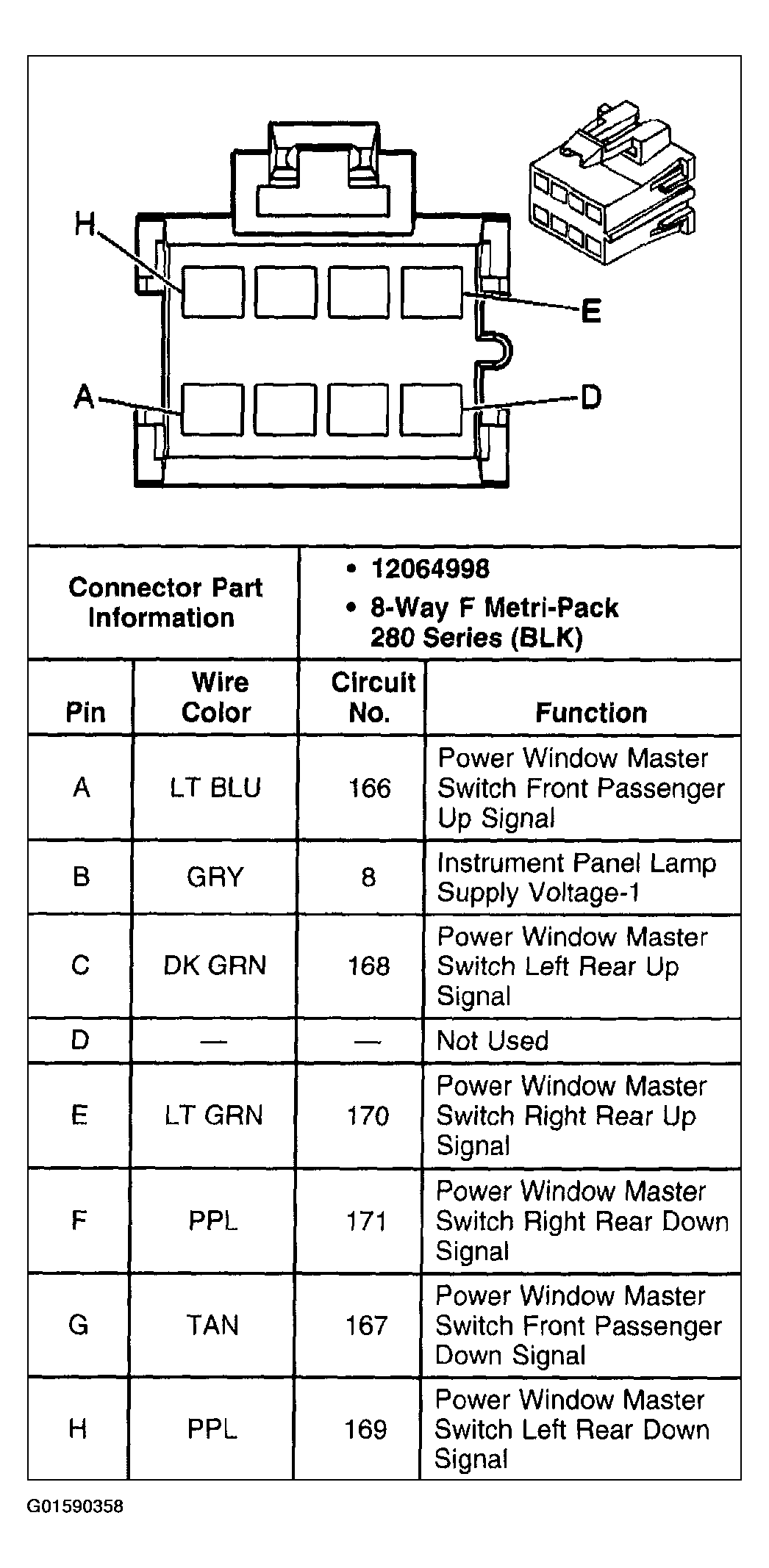

Fig 18: Identifying Window Switch Connector Terminals - Driver, C1

G01590358

Courtesy of GENERAL MOTORS CORP.

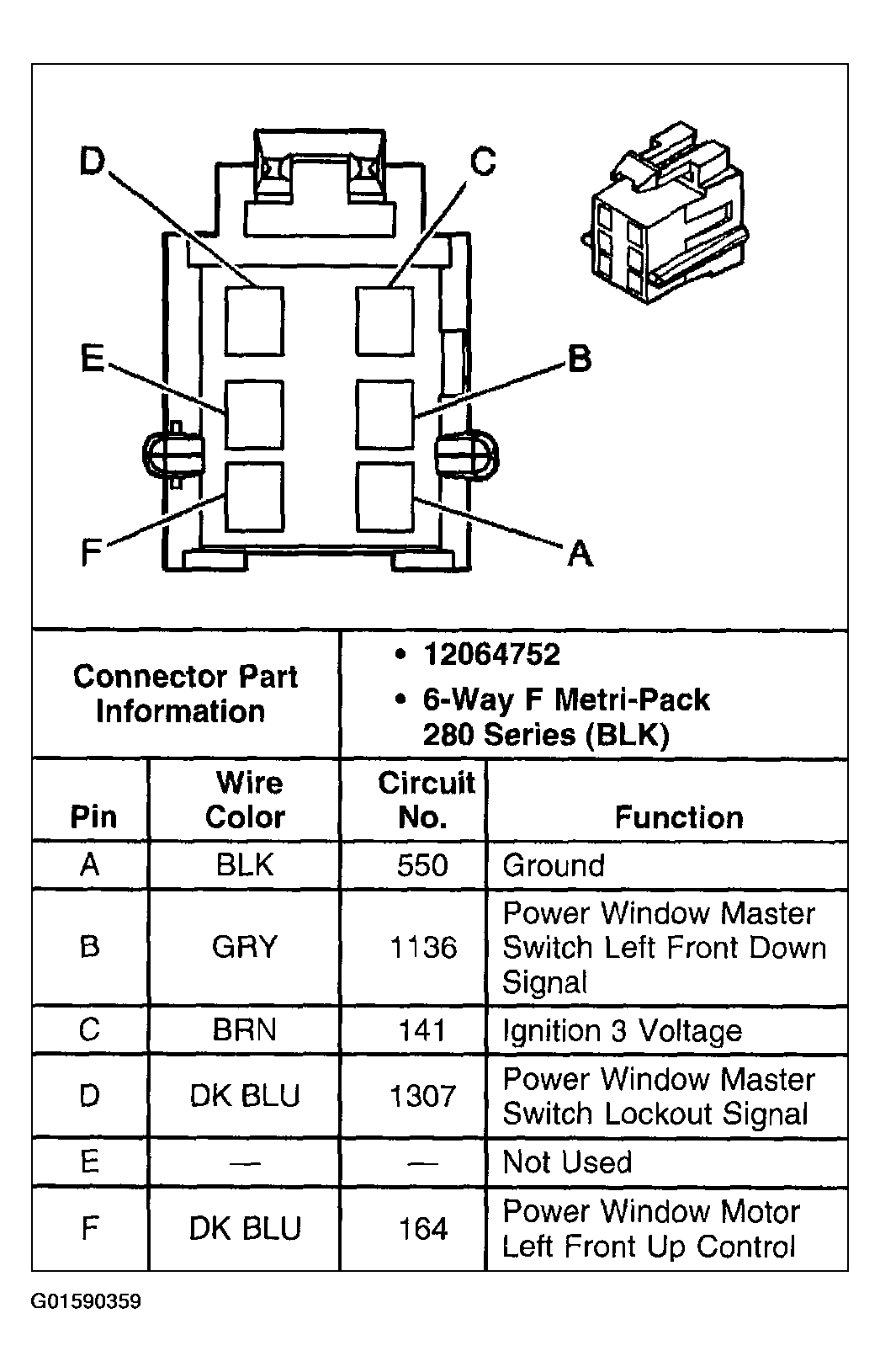

Fig 19: Identifying Window Switch Connector Terminals - Driver, C2

G01590359

Courtesy of GENERAL MOTORS CORP.

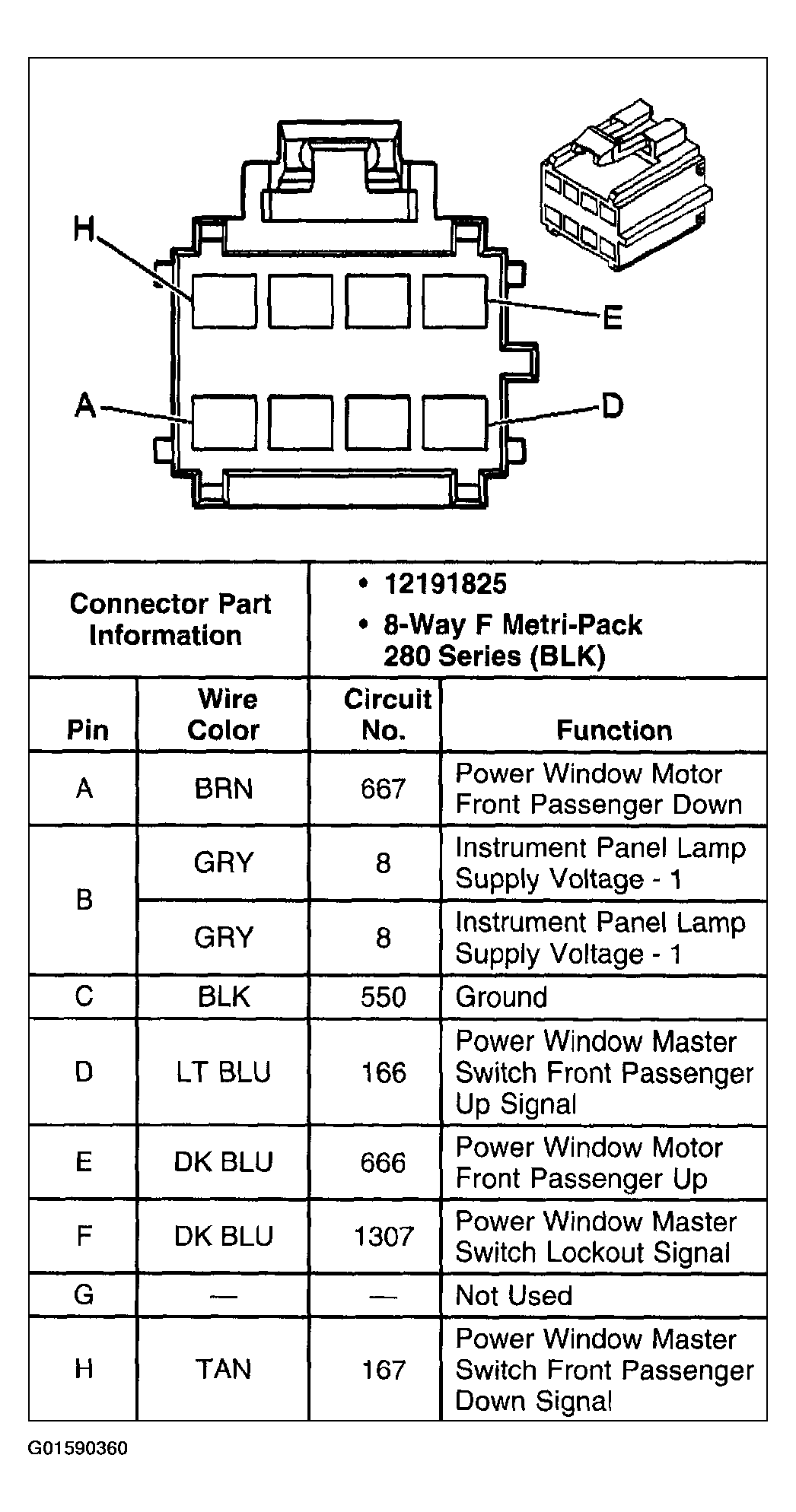

Fig 20: Identifying Window Switch Connector Terminals - Front Passenger

G01590360

Courtesy of GENERAL MOTORS CORP.

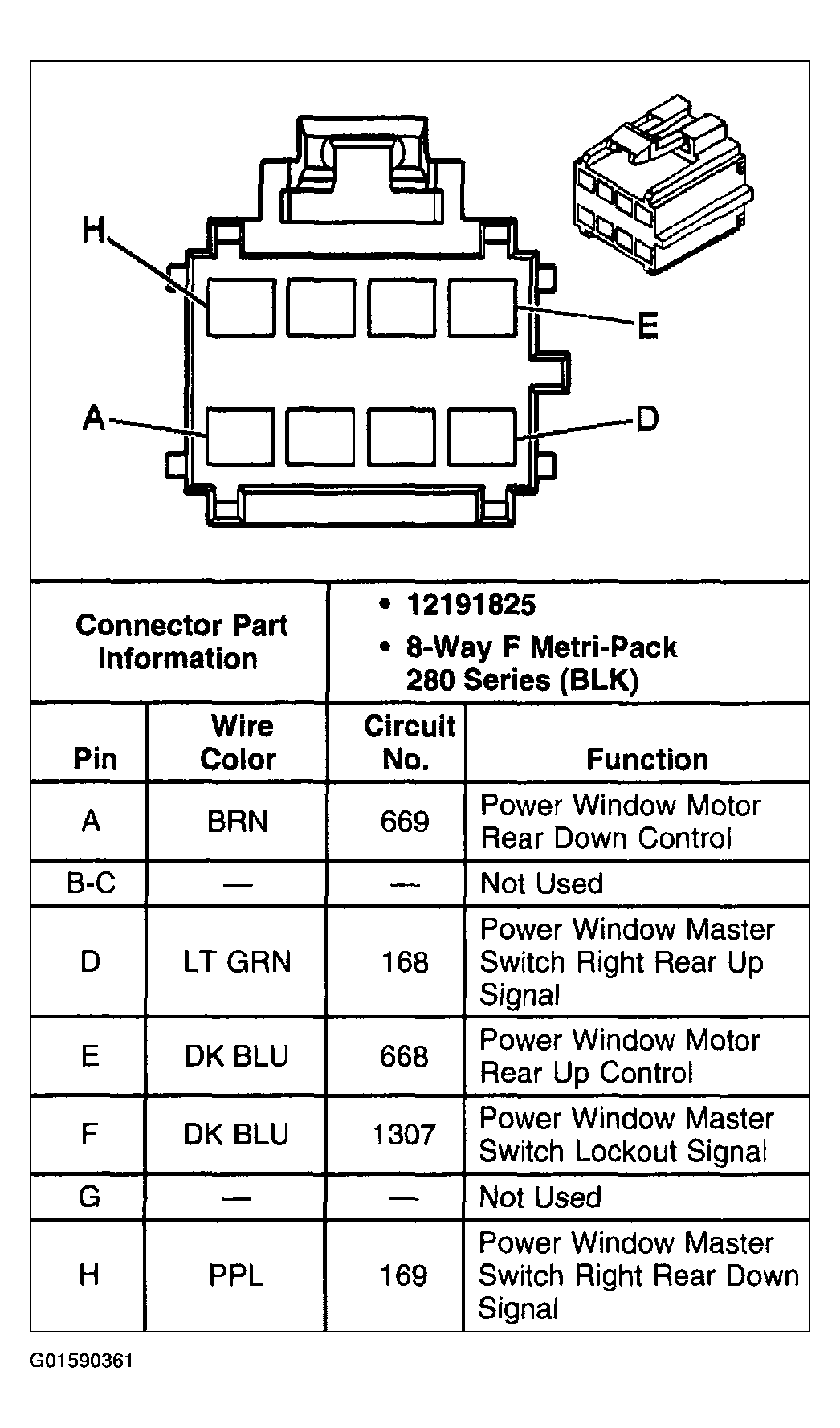

Fig 21: Identifying Window Switch Connector Terminals - LR

G01590361

Courtesy of GENERAL MOTORS CORP.

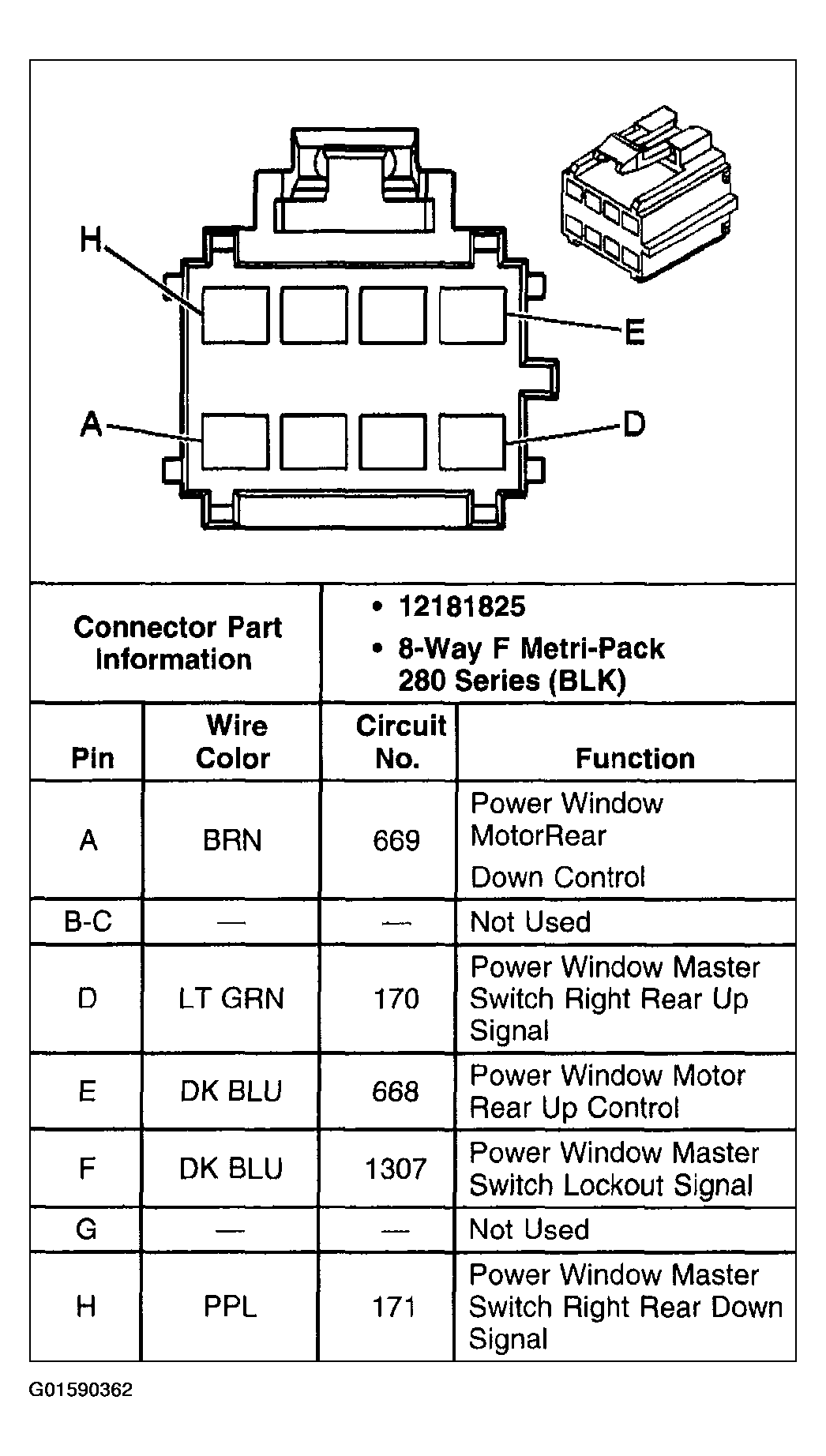

Fig 22: Identifying Window Switch Connector Terminals - RR

G01590362

Courtesy of GENERAL MOTORS CORP.
