Removal Procedure

  1. Using a small flat-bladed tool to release the power accessory switch panel retainers (1) from the door trim panel, push in and lift up. Start at the front of the panel.

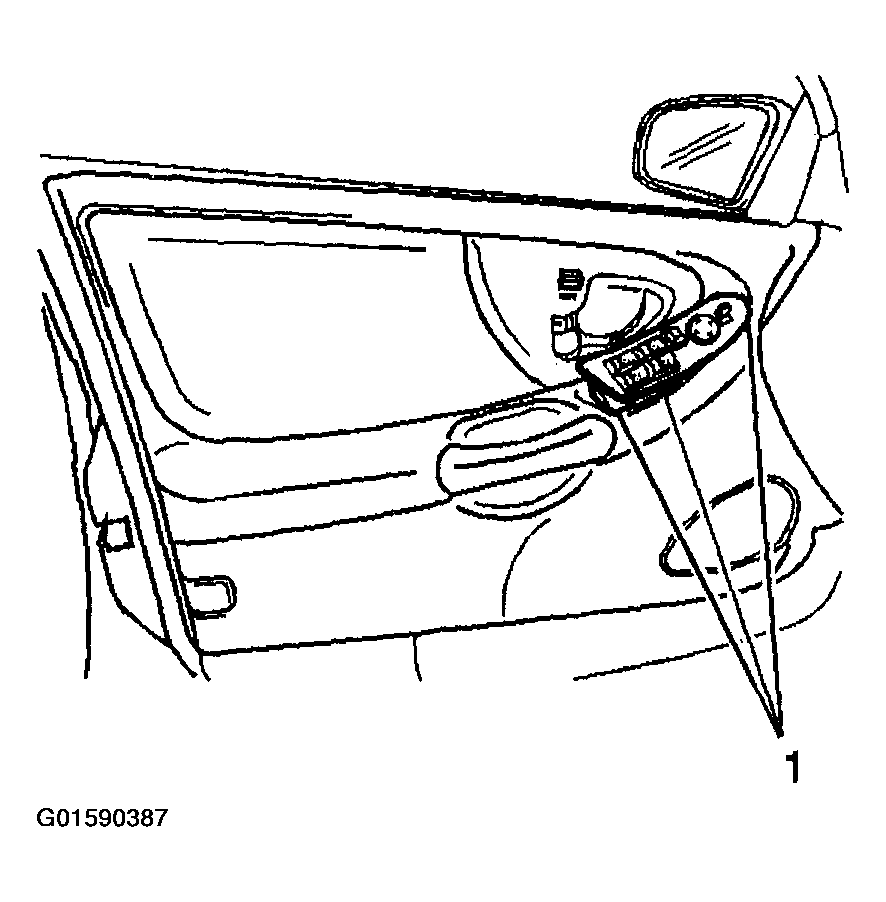

    Fig 1: Releasing Power Accessory Switch Panel Retainers From Door Trim Panel
    G01590387Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors (1, 2) from the switches.
  3. Remove the power window switch from the accessory panel by releasing the retainer tabs.
  4. Remove the power mirror switch from the accessory panel by releasing the retainer tabs.

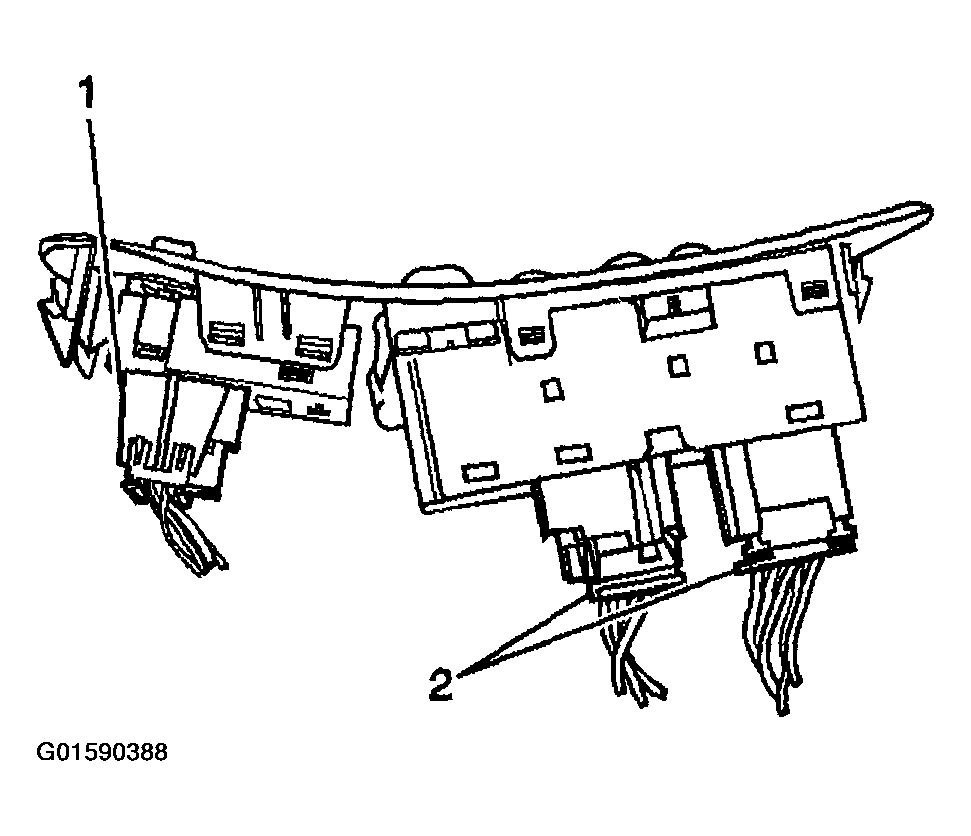

    Fig 2: Disconnecting Electrical Connectors From Switches
    G01590388Courtesy of GENERAL MOTORS CORP.
