Removal Procedure

  1. Remove the door handle bezel (3). Refer to DOOR HANDLE BEZEL REPLACEMENT  .
  2. Release the retaining tabs for the power door lock switch (2) from the door handle bezel (3).
  3. Disconnect the electrical connector (1) from the power door lock switch (2).

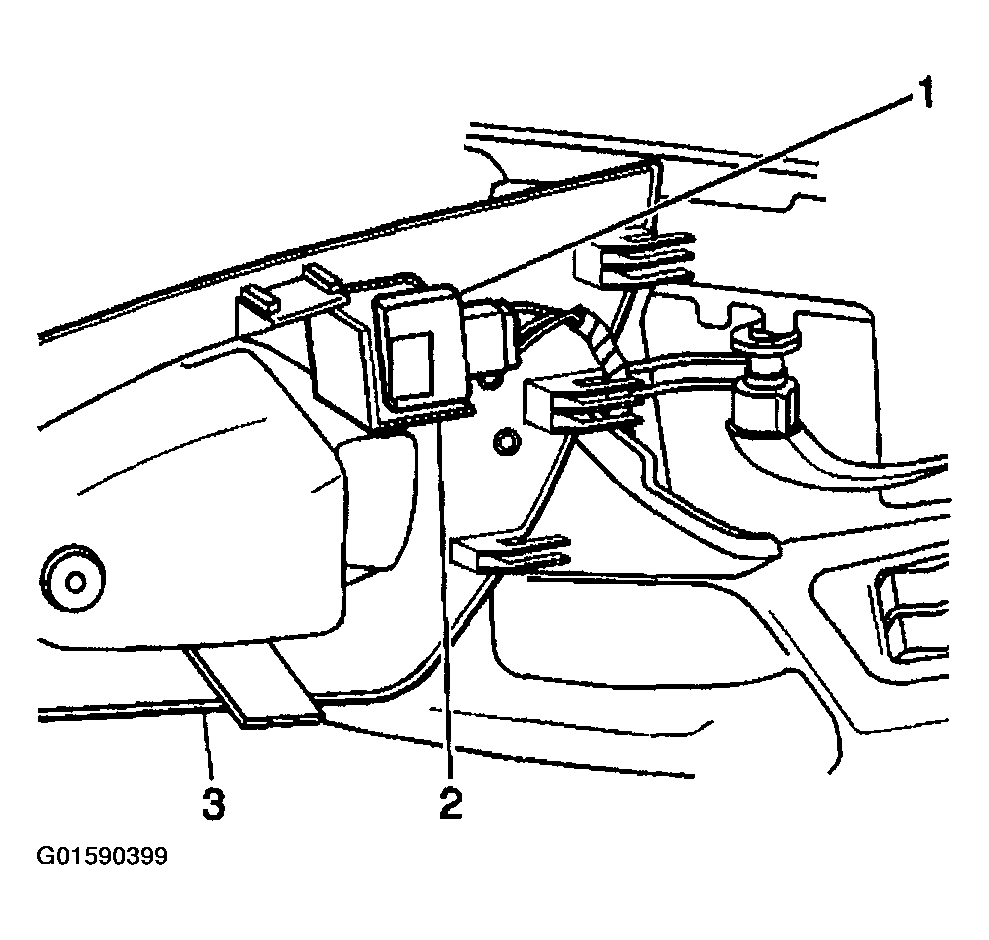

    Fig 1: Disconnecting Electrical Connector & Removing Power Door Lock Switch
    G01590399Courtesy of GENERAL MOTORS CORP.
