Installation Procedure

  1. Install the power window switch to the accessory switch plate.

    Press the window switch into the switch plate until retaining tabs are fully seated.

  2. Connect the electrical connectors (2) to the power window switch.

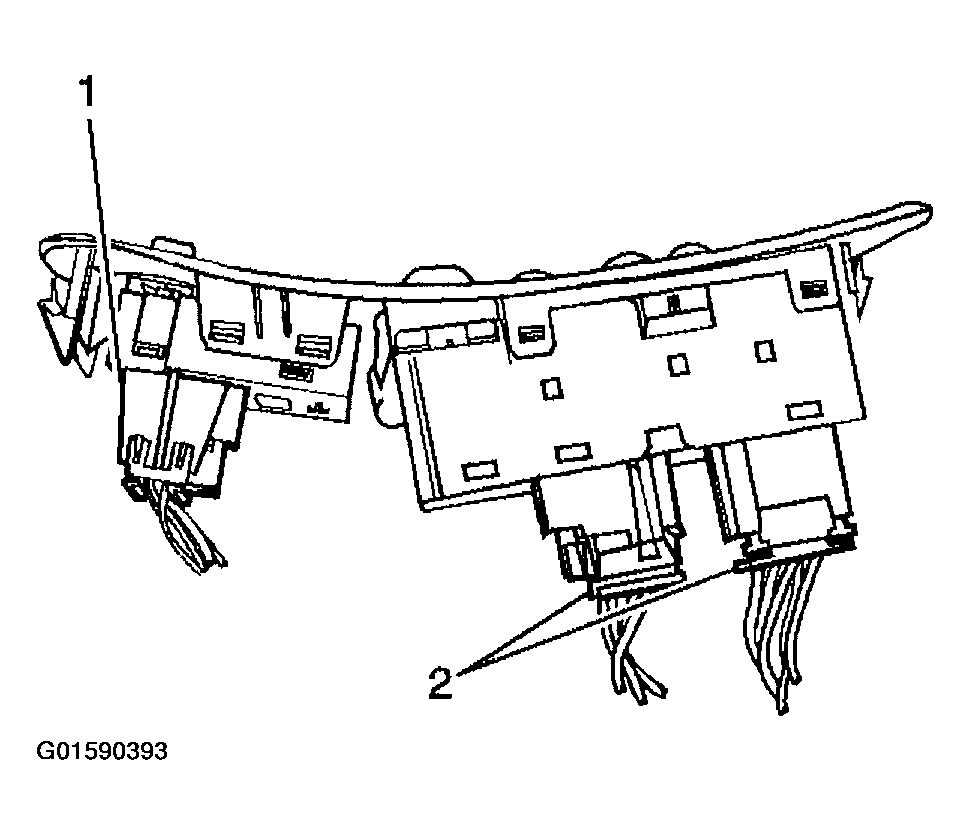

    Fig 1: Connecting Electrical Connectors To Power Window Switch
    G01590393Courtesy of GENERAL MOTORS CORP.
  3. Install the accessory switch plate to the door trim panel.

    Press the switch plate into the door trim panel until the retainers (1) are fully seated.

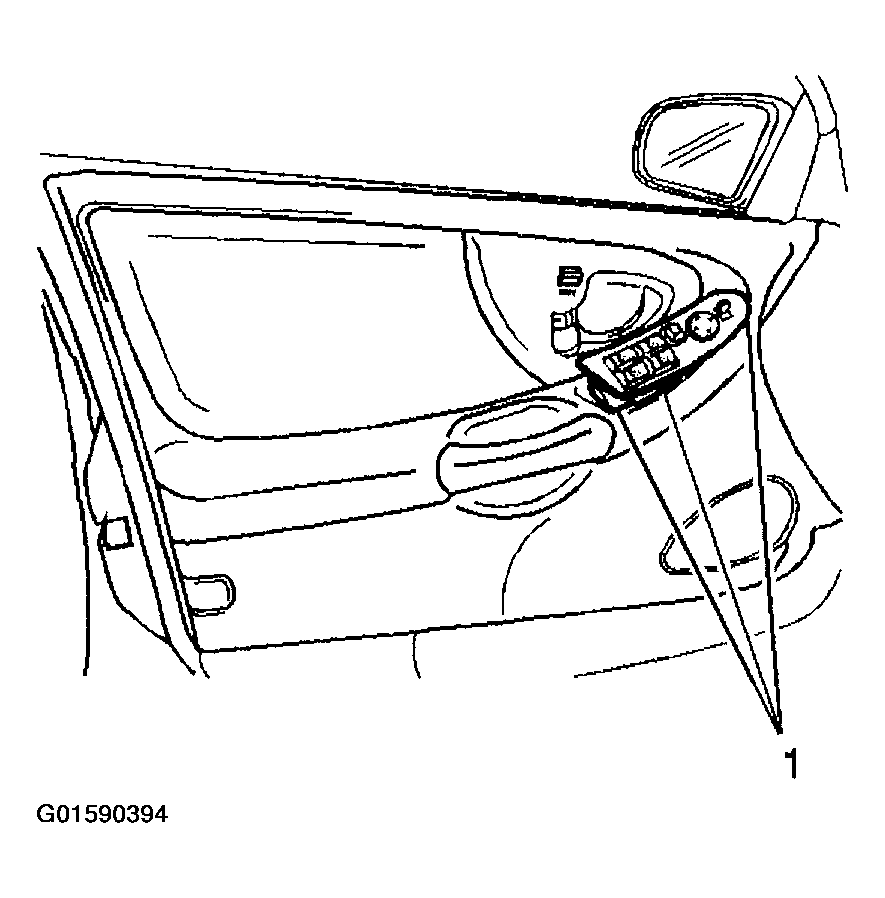

    Fig 2: Installing Accessory Switch Plate To Door Trim Panel
    G01590394Courtesy of GENERAL MOTORS CORP.
