Installation Procedure

  1. Install the exhaust muffler.
  2. Connect the exhaust muffler rear hanger insulators to the exhaust muffler.

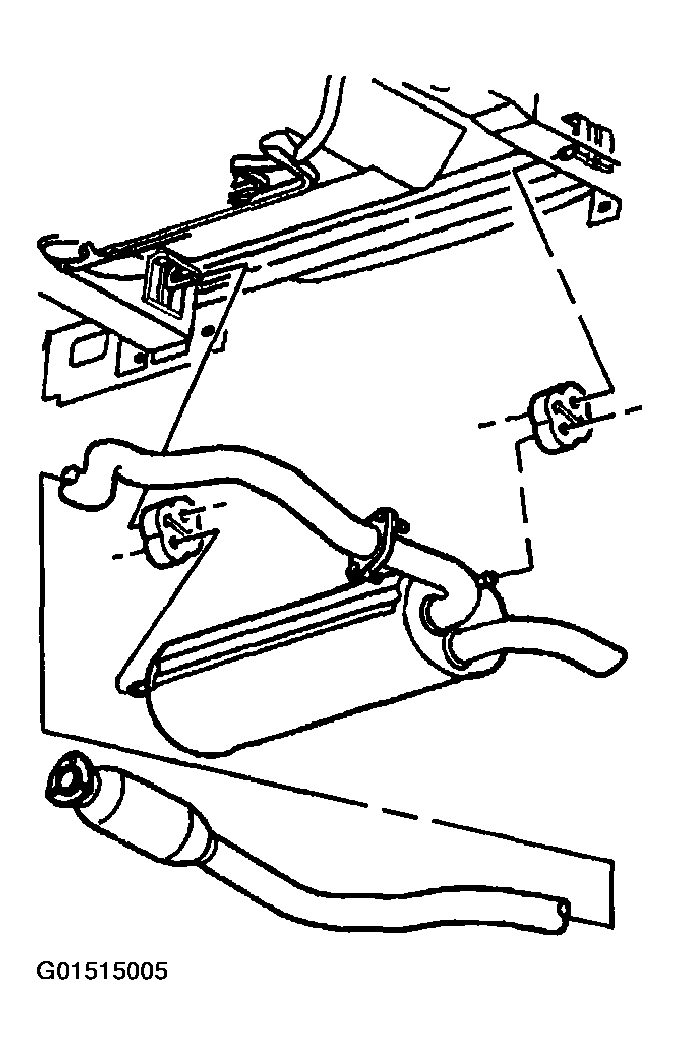

    Fig 1: Connecting Exhaust Muffler Rear Hanger Insulators To Exhaust Muffler
    G01515005Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  3. Install the exhaust muffler to the intermediate pipe.

    Tighten

    Tighten the exhaust muffler nuts to 50 N.m (37 lb ft).

  4. Lower the vehicle.
  5. Inspect the exhaust system for leaks and underbody contact.

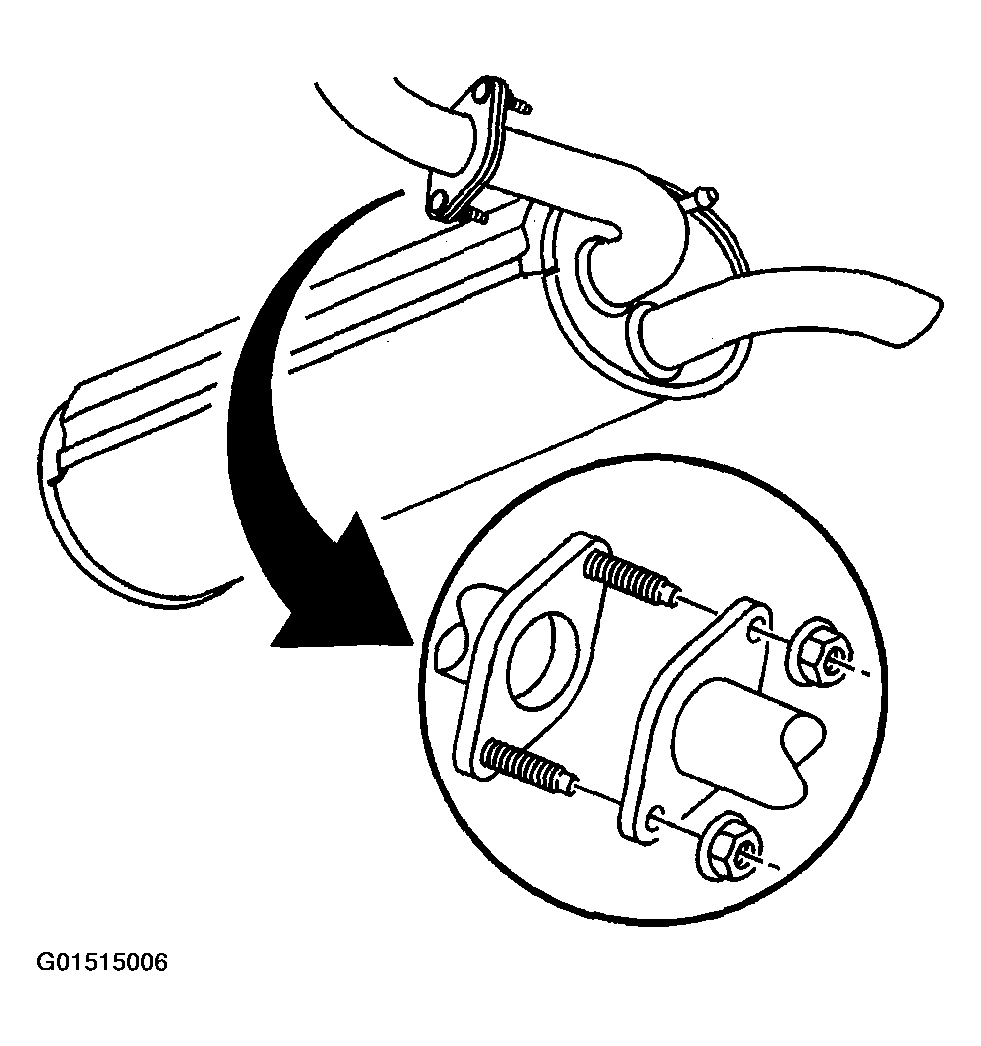

    Fig 2: Installing Exhaust Muffler To Intermediate Pipe
    G01515006Courtesy of GENERAL MOTORS CORP.
